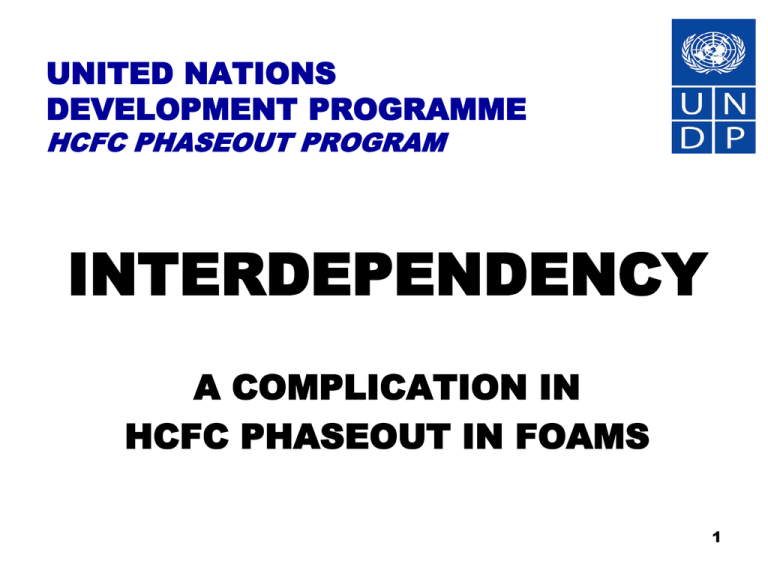

UNITED NATIONS
DEVELOPMENT PROGRAMME
HCFC PHASEOUT PROGRAM
INTERDEPENDENCY
A COMPLICATION IN
HCFC PHASEOUT IN FOAMS
1
HCFC Control Measures
Old vs. New
2
PRECONDITIONS TO
HCFC PHASEOUT
•
•
•
•
ACCESS TO TECHNOLOGY
ELIGIBILITY (61/40)
FUNDS
SUPPLY
3
ACCESS TO TECHNOLOGY (1)
SUBSTANCE
HCFC-141b
GWP
MW
 GWP
725
117
Baseline
1,030
134
443
794
148
279
1,430
102
522
11
70
-718
1
44
-725
Methyl formate
‘0’
60
-725
Methylal
‘0’
76
-725
FEA-1100
5
164
~-718
HFO-1234ze
6
114
~-719
HBA-2
<15
n/k
>-708
AFA-L1
<15
<134
>-708
HFC-245fa
HFC-365mfc
HFC-134a
Cyclopentane
CO2/Water
4
ACCESS TO TECHNOLOGY (2)
(CFC)
HCFC
CO2
HFC
Red
= high ODP/high GWP
Yellow = low ODP/high GWP
Black = no ODP/high GWP
Green = no ODP/low GWP
HC
HCO
HFO
5
ELIGIBILITY (1)
DECISION 61/47 (b):
Confirms that the phase-out of
HCFC-141b contained in preblended polyol systems that were
imported and/or manufactured
domestically, and counted as
consumption under Article 7, was
eligible for assistance according to
existing guidelines;
6
ELIGIBILITY (2)
• NO ADVANCE PROJECTS
ANYMORE
• PROJECTS NEED TO BE
INCLUDED IN HPMP AND MEET
STRATEGY
• PROJECT FORMAT OPEN
7
AVAILABILITY OF FUNDS
• CURRENT FUNDING TRANCHE
LIMITED
• REPLENISHMENT COMPLETELY
OPEN
• EXPECT DELAY/REJECTION FOR
PROJECTS NOT NEEDED FOR
2013 COMPLIANCE AND FOR
AFTER 2015 COMPLIANCE
8
SUPPLY
1. NEED TO INCLUDE SUPPLIER IN
PROJECT DESIGN/IMPLEMENTATION
2. POTENTIAL NEED FOR TECHNOLOGY,
TRAINING AND FUNDING OF SUPPLIER
3. SUPPLIER MAY BE IN ANOTHER
COUNTRY
4. THIS CREATES COMPLICATIONS AND
INTERDEPENDENY OF PROGRAMS
9
WHAT IS A SYSTEM HOUSE?
10
+ KNOW HOW!
11
WHAT IS A DOWNSTREAM USER?
12
THE ISSUE
PHASING OUT HCFCs AT DOWNSTREAM
USERS USING IMPORTED SYSTEMS
NEED ACTION IN THE COUTRY OF
EXPORT
PHASING OUT HCFCs AT SYSTEM
HOUSES NEED ACTION AT
DOWNSTREAM USERS INCLUDING
THOSE IN OTHER COUNTRIES
13
EXAMPLE 1:
DOMINICAN REPUBLIC
COUNTRY
# OF SUPPLIERS
MARKET SHARE
Mexico
2
70%
China
2
25%
Spain
1
5%
* May relocate to Panama
14
ACTION
•
STATUS
– Project submitted to the 62nd ExCom
•
TECHNOLOGY
– Methyl formate base for budget calculations
– Recipients allowed accepting other options if these options are
zero ODP and low GWP
– The MF based budget cost will be applied. Higher costs for the
account of the downstream user (or supplier)
•
IMPLEMENTATION
– The recipients to be divided into functional groups around their
supplier
– final choice of technology to be made together with the system
supplier
– UNDP to provide suppliers with technical information
– System suppliers in A5 countries are eligible for funding
15
EXAMPLE 2
URUGUAY
COUNTRY
# OF SUPPLIERS
MARKET SHARE
Argentina/Spain*
2
20%
Brazil
2
80%
* System comes from Spain; HCFC-141b added in Argentina
16
ACTION
•
STATUS
– Project deferred to 63rd ExCom
•
TECHNOLOGY
– Methyl Formate (MF) base for budget calculations
– Recipients allowed other zero ODP/low GWP options
– Budget will remain. Higher costs for the account of the
downstream user (or supplier)
•
IMPLEMENTATION
– MF trials this year
– Suppliers informed and cooperation offered
– Final choice of technology to be made in January
– System suppliers in A5 countries eligible for funding
17
CONCLUSION
• AD HOC DECISIONS MADE FOR
CURRENT PROJECTS
• PROJECTS FOR SYSTEM HOUSES
AND DOWNSTREAM USERS NEED
COORDINATION
• CLOSER PROJECT COORDINATION
BETWEEN GOVERNMENTS NEEDED
18
