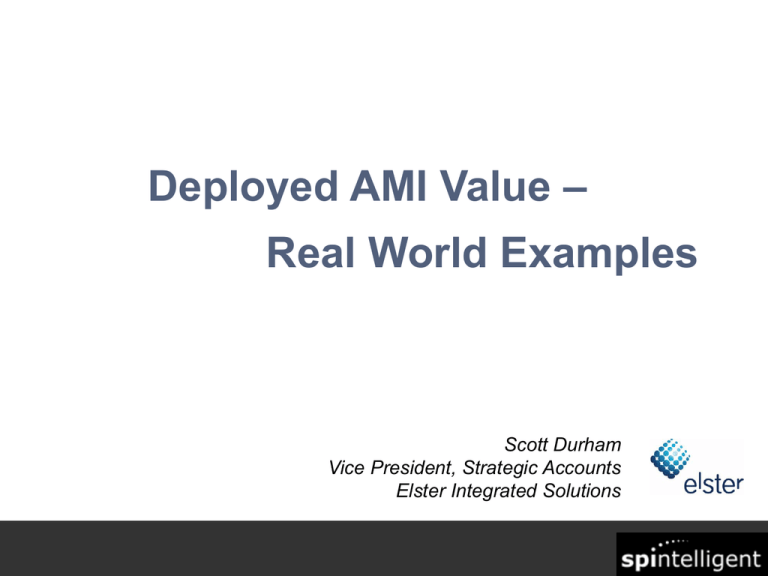

Deployed AMI Value –
Real World Examples
Scott Durham
Vice President, Strategic Accounts
Elster Integrated Solutions
Elster: The global leader in metering solutions









170 years of experience providing solutions for Electric,
Water, and Gas utilities
Over $1.8Billion in annual revenue
200 Million meters installed
The largest provider of metering systems in the
world – Names you know

American Meter – Gas – Now Elster American
Meter

ABB Electric Meters – Now Elster Electricity

AMCO Water Meters – Now Elster AMCO Water
A leader in 115 markets and 38 countries
$35Billion in assets
9,000 Worldwide employees
Energy Axis – Complete electric, gas, water AMI system Over 1 Million Smart Meters Deployed
Raleigh, North Carolina, Headquarters of Elster
Integrated Solutions and Center of Excellence for
AMI/AMR Technologies
AMI top functional choices, market comments…
Chartwell 2006 Industry Report
Functionality
% responses
Theft Detection
52%
Outage Monitoring
32%
Customer Energy Management
26%
Remote Disconnect
23%
Revenue Assurance
23%
Load Forecasting
19%
Time of Use (Residential)
16%
Time of Use (Commercial)
16%
Load Control
13%
Demand Response
10%
Asset Monitoring/Distribution
Automation
6%
Distribution Generation
3%
Leak Detection
3%

2007 Planning,
development, test…
2008 $$$

2009+

$$$$
Energy Axis Network Showing Repeater Levels
All 227 REX meters
registered
using
5 hops
All 227 REX
meters
(4
Repeater
levels)
registered using 7 hops
(6 Repeater levels)
2000 ft.
Active
Collecto
r
Alternate Collectors
Active
Collecto
r
Demonstrated Demand Response…
Applications:
 In-Home displays
 Thermostat control
 Load Control
 Integrated Prepay
Open and Interoperable with multiple 3rd party
vendors:
EnergyAxis
900 Mhz Radio
Riga
2.4 GHz
Riga Appliance
Control Module
4C Energy Solutions
Blueline
433 MHz
Riga Thermostat
Payback - EnergyAxis Remote Disconnect…







Fully integrated 200A disconnect switch
No visual equipment signifying disconnect
capability…meets regulatory non-discrimination
requirement
Available demand limiting threshold
Monitors load side voltage for safety and tampering
 Alerts via MAS if there is load side voltage when
switch is open
Integration with Prepayment metering
Designed for safety
 Switch will not be closed if load side voltage is
detected
Leading the market in integrated disconnect deployment
AMI Business Case

All values based on customer test deployment

Planned 175,000 Electric Meter Deployment, 40,000 with Disconnect
Feature

IRR
53.49%

Payback
1.65 Years

Total Capital Investment
$ 23,984,975

Average Yearly Savings/Cash Flow
$ 14,560,322

7-Year Calculated Savings
$101,922,253

AMI will reduce meter reading cost, charge offs, past due accts, theft, field
service orders and increase responsiveness, cash flow and revenue while
reading 99+% of meters every day.
AMI Business Case
Savings Not Included in the Analysis

TOU and/or load profiling

Reduction in estimated billing

Reduction in retraining meter readers

Reductions from inflation & population growth

Reduction in injuries to meter readers

A new one…the benefit of redirecting meter readers to collection

The benefit of DR capability…

The benefit of outage management/analysis…
Customer Experience
SRP – Phoenix, AZ

AMI in areas that have a high volume
of service calls.

10k/mo., nearly 200k smart meters
installed

90,000 remote disconnect meters

Over 150,000 remote service calls
since system installed.

Completing over 1,000 remote
disconnect/connects per week
Customer Experience
Fredericksburg, TX – AMI
rollout for electric and water

Reduce meter reading costs.

Identifying outages and leaks.

Monitoring conservation.

Improve customer service.

Hourly water usage profile, water usage
billed at tiered rate.

Pole mounted repeaters for water only
areas

F’burg is a GREAT town…
Customer Experience
AVEC - AK

Alaska Village Electric Cooperative uses
AMI to read meters in remote villages.

Villages are several hundreds of miles
away and are not accessible in the winter.

It is impossible to manually read meters in
the winter.

Meters are read remotely from office in
Anchorage, Alaska.

AVEC is able to localize and react to power
outages.
Customer Experience
CFE

Fully integrated CIS generates
disconnect/connect actions

Greatly enhanced safety for employees

Significant revenue assurance improvement,
theft losses down

Many meters not accessible

Reading meters in mountainous area via
satellite phone
Customer Experience
High Rise Applications
Solaire Tower in Orlando

Controlled Access

High Transient Rates

300 Electric Meters

300 Water Meters

300 Chilled Water Meters

Mesh communicates between floors

All read every day…
Elster in Ontario

Coalition of Large Distributors (CLD) went through a lengthy
procurement process in 2006

Toronto Hydro, Hydro Ottawa, Enersource, Horizon Utilities,
PowerStream, Veridian

Selected 5 Vendors of Record

Each utility then selected a supplier and negotiated a contract

Elster signed contracts with 5 of the CLD utilities

2 ASP’s have Energy Axis systems installed offering reading
services

230k Energy Axis smart meters delivered in 2006

Delivery at a rate of 40-50k per month in 2007

Expect to deliver 500 – 800k in 2008
Thank You…

Contact Information:
Scott Durham
VP, Strategic Accounts
Elster Integrated Solutions
scott.durham@us.elster.com
241-912-0671
