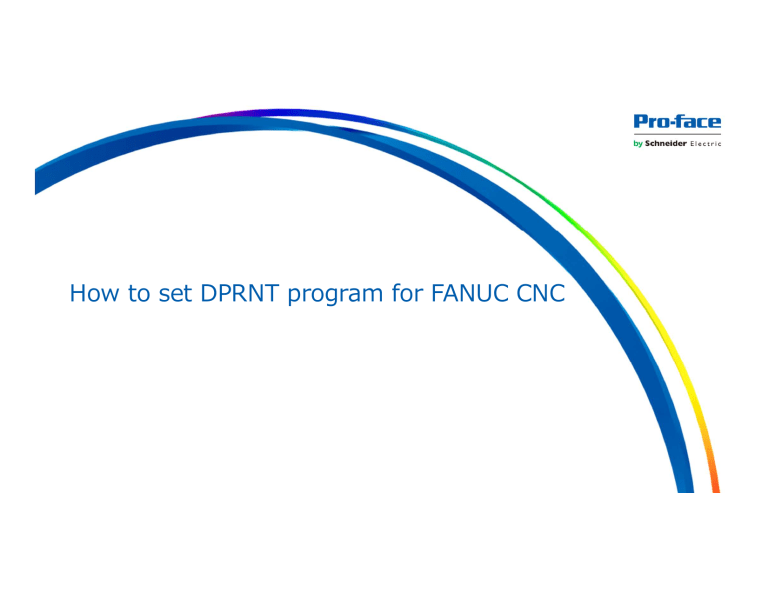

How to set DPRNT program for FANUC CNC
1
> Using DPRNT command, Fanuc CNC can output
string data via its serial port.
> Automatically assigned the strings with OPC UA
node based on prefix characters which is put on
each string send by CNC
> Program sample
DPRNT[PC*#501(50)]
1
2
3
1. DPRNT: data output from FANUC CNC
2. Prefix: refer to the DPRNT identifier listed on the
right-hand side table
3. #Address(Number of address)
-> Above sample show that the data of address 501 –551 is output from FANUC CNC.
2
3
©2018 Schneider Electric Japan Holdings Ltd.. All Rights Reserved.
