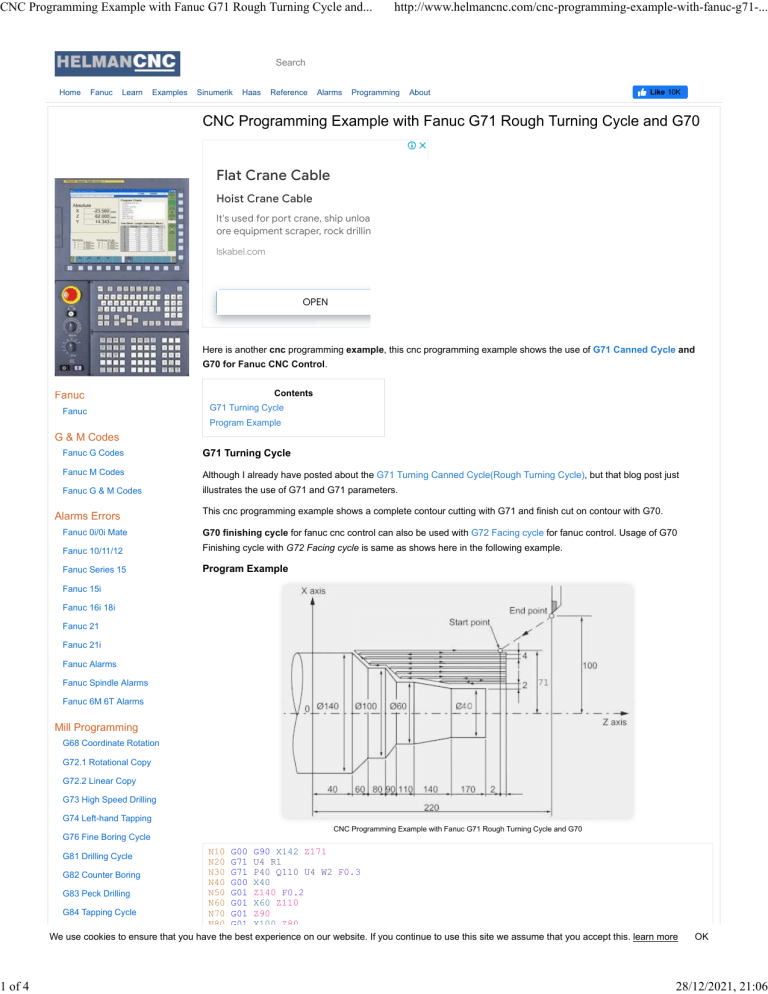

CNC Programming Example with Fanuc G71 Rough Turning Cycle and G70
Flat Crane Cable
Hoist Crane Cable
It's used for port crane, ship unloader, iron
ore equipment scraper, rock drilling jumbo
lskabel.com
OPEN
Here is another cnc programming example, this cnc programming example shows the use of G71 Canned Cycle and
G70 for Fanuc CNC Control.
Fanuc
Fanuc
Contents
G71 Turning Cycle
Program Example
G & M Codes
Fanuc G Codes
G71 Turning Cycle
Fanuc M Codes
Although I already have posted about the G71 Turning Canned Cycle(Rough Turning Cycle), but that blog post just
Fanuc G & M Codes
illustrates the use of G71 and G71 parameters.
Alarms Errors
This cnc programming example shows a complete contour cutting with G71 and finish cut on contour with G70.
Fanuc 0i/0i Mate
G70 finishing cycle for fanuc cnc control can also be used with G72 Facing cycle for fanuc control. Usage of G70
Fanuc 10/11/12
Finishing cycle with G72 Facing cycle is same as shows here in the following example.
Fanuc Series 15
Program Example
Fanuc 15i
Fanuc 16i 18i
Fanuc 21
Fanuc 21i
Fanuc Alarms
Fanuc Spindle Alarms
Fanuc 6M 6T Alarms
Mill Programming
G68 Coordinate Rotation
G72.1 Rotational Copy
G72.2 Linear Copy
G73 High Speed Drilling
G74 Left-hand Tapping
G76 Fine Boring Cycle
CNC Programming Example with Fanuc G71 Rough Turning Cycle and G70
N10 G00 G90 X142 Z171
N20 G71 U4 R1
N30 G71 P40 Q110 U4 W2 F0.3
G82 Counter Boring
N40 G00 X40
