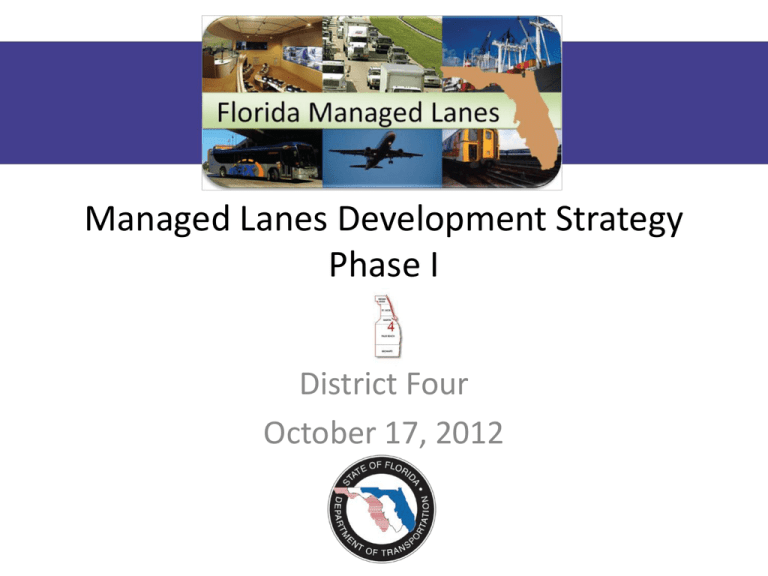

Managed Lanes Development Strategy Phase I District Four October 17, 2012 Agenda • • • • • • • Welcome and introductions Lessons Learned Project overview and goals Managed lanes discussion District 4 Presentation Questions and Answers/Next steps Field Review – I-595 – 3-Lane reversible managed lanes (under construction) driving for Florida’s Turnpike to I-75 – I-75 – 4-Lane managed lanes system (programmed for construction) driving from I-595 to Pines Boulevard • • Lunch break Field Review – I-75 – 4-Lane managed lanes system (programmed for construction) driving from Pines Boulevard to SR 826 (Golden Glades Interchange) – I-95 – 4-Lane managed lanes system (Phase 2 under construction & Phase 3 PD&E study driving from SR 826 (Golden Glades Interchange) to SW 10th Street • • 2 Travel back to Broward Operations Auditorium Adjourn District 3 • One major limited access facility, I-10 • Bridge Replacement • Congestion problem is US 98, an arterial 3 District 2 • I-295 will have tolled lanes • Increased typical section from one to two additional lanes in each direction • Bottlenecks with peak hour congestion exists today but trying to be proactive for future congestion 4 District 5 • I-4 Ultimate • Studying segments north and south of the Ultimate • Looking at Concessionaire agreement 5 Turnpike Enterprise • Integrated Congestion Pricing Plan • Veteran’s Expressway • HEFT • Two Tier Toll System 6 District 4 • Miami Express Lanes extend north to Oakland Park Boulevard (under construction) • PD&E looking N. to Boca Raton • Reevaluation to add HOT express lanes to S. of Linton 7 District Visits • Meeting Dates – – – – – – – – 8 District 3: District 2: Turnpike: District 5: District 6: District 4: District 1: District 7: September 25th September 27th October 10th October 11th October 16th October 17th October 30th October 31st Project Overview and Goals 9 Project Overview Three Phases of Project • Phase I – Policy and Action Plan • Phase II – Procedures and Standards • Phase III – Tolling and Return on Investment Project Purpose: It is the intent of the Department to develop a policy and related procedures requiring consideration of Managed Lanes as a part of all added capacity improvement projects on highways. The planning and development process should be conducted so as to not preclude the future implementation of Managed Lanes within the corridor. 10 Project Collaboration • Project Sharepoint under development www.FloridaManagedLanes.com • FDOT Systems Planning Office and consultants • District/Turnpike Enterprise Champions • SE Florida Regional Concept for Transportation Operations (RCTO) Coordination • Managed Lanes Review Team (MLRT) • Regional Expressway Authorities • Other Stakeholders (e.g., FHWA) 11 FDOT Definition: Managed Lanes FDOT Definition: “Highway facilities or sets of lanes within an existing highway facility where operational strategies are proactively implemented and managed in response to changing conditions with a combination of tools.” 12 Managed Lanes Discussion 13 Issues to Consider • • • • • • • • • 14 Policy Finance Design Technology Operations Enforcement Supporting Strategies Institutional Aspects Public Acceptance District Discussion • Purpose – To learn from you – What are your experiences and “lessons learned” with managed lanes? – What do you want to get out of this project? – What do you want us to evaluate? – How can we develop a unified statewide system? – What can central office do to help Districts/Turnpike with their managed lanes projects? 15 Potential Discussion Topics • Financial Structure: – – – – Feasibility: Regional vs. Project/Corridor Revenue Scenarios (Manage Demand, Generate Revenue) Construction Cost and Project Delivery Models Economy and Market Conditions • Public Outreach and Legislative Agenda – Public opinion on tolls and road pricing – Enabling legislation, authorization to price pre-existing HOV lanes, carpool requirements, etc. • Technology Evolution: – All Electronic Tolling conversion – National interoperability – Enforcement options 16 Potential Discussion Topics • Consistency: – – – – Statewide vs. Regional approaches Access Schemes Passenger Occupancy Requirements Operational Hours • Roadway Design Features: – – – – – 17 Traffic Separation Access Points Number of lanes Safety Enforcement Areas Next Steps 18 Next Steps • • • • 19 Additional FDOT District visits Review State and National practices Assess current and future projects in Florida Develop policy statement and action plan Questions & Answers 20 Contacts H. Walker Systems Planning Office (850) 414-4926 Holly.Walker@dot.state.fl.us or Artie White (850) 553-3500 Artie.White@Kimley-Horn.com Range of Facility Designs Lane Separation Techniques Slip Ramp Access to the I-680 HOT Lane Alameda County, California 23 Pylon Separation on the I-95 Express Lanes Near Miami, Florida Range of Facility Designs Access Options Continuous Access (Weave Lane Access) to the SR 167 HOT Lane Near Seattle, WA 24 Dedicated Access Ramps to I-15 Express Lanes San Diego, CA Range of Facility Designs Eligibility Lanes I-5 Truck Bypass Los Angeles, CA 25 Range of Facility Designs Eligibility Lanes LYMMO Bus Rapid Transit with dedicated lanes Orlando, FL 26 Bus Rapid Transit Viaduct Brisbane, Queensland, Australia Range of Facility Designs Reversible Lanes Reversible lanes on Lions Gates Bridge Vancouver, British Columbia 27 Barrier Separated Reversible HOT Lanes on I-25 Denver, CO
