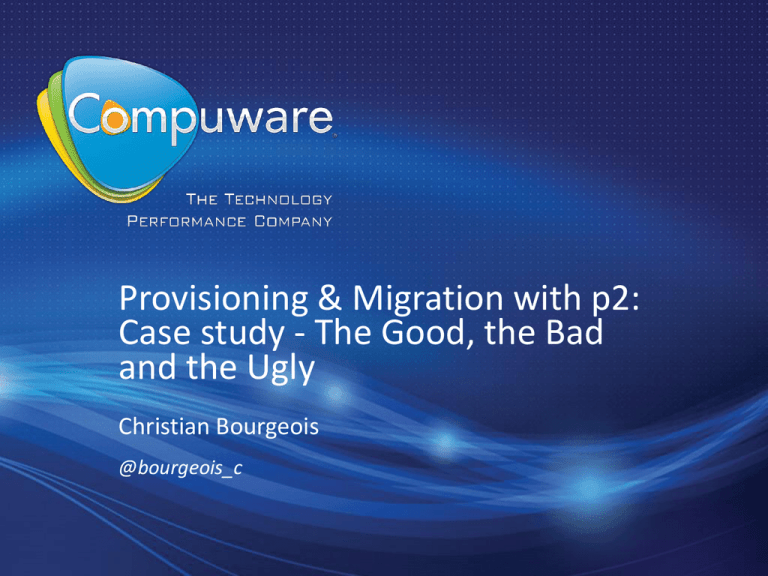

Provisioning & Migration with p2:
Case study - The Good, the Bad
and the Ugly
Christian Bourgeois
@bourgeois_c
Some Context on Previous Product Version
• Based on Eclipse 3.4
• Too much time to deliver a simple update
• Migration would leave system in
inconsistent state
2
How can we update a software component
and migrate it’s configuration data while
having a stable system in case of failure?
3
Demonstration
4
Provisioning UI
import org.eclipse.equinox.internal.p2.ui.ProvUI;
import org.eclipse.equinox.internal.p2.ui.ProvUIProvisioningListener;
import org.eclipse.equinox.internal.p2.ui.dialogs.AddRepositoryDialog;
import org.eclipse.equinox.internal.provisional.p2.repository.RepositoryEvent;
5
Business Model
Artifacts Layout
• server.feature
•
•
•
•
6
info.feature
server.bundle
common.bundle
config.feature
• client.feature
•
•
•
•
info.feature
client.bundle
common.bundle
client.bundle.nls
Business Model
info.feature – p2.inf
properties.1.name = bsm.adaptor
properties.1.value = true
properties.2.name = adaptor.name
properties.2.value = ZExampleAdaptor
properties.3.name = client.feature.name
properties.3.value = zzz.compuware.example.adaptor.client.feature
properties.4.name = server.feature.name
properties.4.value = zzz.compuware.example.adaptor.server.feature
properties.5.name = adaptor.id
properties.5.value = ZExampleAdaptor
properties.6.name = adaptor.version
properties.6.value = 1.0.0
properties.7.name = company.id
properties.7.value = CPWR
properties.8.name = domains.ids
properties.8.value = APM
7
Migrations… How to integrate them with
p2?
public abstract class org.eclipse.equinox.p2.engine.spi.ProvisioningAction {
…
public abstract IStatus execute(Map<String, Object> parameters);
public abstract IStatus undo(Map<String, Object> parameters);
…
}
8
Remote Provisioning
Server
Client
Create Plan
Uninstall
Create Plan
Execute Plan
Save
timestamp
Install
Create Plan
Execute Plan
timestamp
Execute Plan
9
Migrate
p2 Touchpoint Actions
instructions.configure=markStarted(started:true);
instructions.configure=copy(source:a, target:b,overwrite:true);
instructions.configure=setProgramProperty(propName:key, propValue:value);
instructions.configure=addJvmArg(jvmArg:-XX:+UnlockDiagnosticVMOptions);
They are executed in the “builder”!
10
Custom p2 Touchpoint Actions
instructions.configure=…adaptors.p2.engine.touchpoint.migrate();
instructions.unconfigure=…adaptors.p2.engine.touchpoint.saveConfigurations();
• Executes business logic
• Must have knowledge of their runtime
11
public IStatus execute(Map<String, Object> parameters) {
boolean isServer = RuntimeInfo.isServer();
if (!isServer) {
return Status.OK_STATUS;
}
…
IInstallableUnit infoInstallableUnit = this.getInfoInstallableUnit(iu, repositoryManager, progressMonitor);
String adaptorID = this.getAdaptorID(infoInstallableUnit);
Version adaptorVersion = this.getAdaptorVersion(infoInstallableUnit);
MigrationManager manager = this.getMigrationManager();
MigrationStatus migrationStatus = manager.migrate(adaptorID, adaptorVersion);
IStatus status = EclipseStatusFactory.createStatus(migrationStatus);
return status;
}
public IStatus undo(Map<String, Object> parameters) {
…
MigrationManager manager = this.getMigrationManager();
manager.revert(adaptorID, adaptorVersion);
}
12
Ok… But now I get a “No action found”
message?
13
p2 Meta-Requirements
• Provisions the meta-requirements in the
builder
com.compuware.vantage.vsm.adaptors.p2.engine.touchpoint.feature
provides.0.namespace=com.compuware.vantage.vsm.adaptors.p2
provides.0.name=touchpoints
provides.0.version=1.1
com.compuware.vantage.vsm.adaptors.p2.prerequisite.feature
metaRequirements.0.namespace=com.compuware.vantage.vsm.adaptors.p2
metaRequirements.0.name=touchpoints
metaRequirements.0.range=1.1
14
p2 Meta-Requirements
Beware!
• Tycho Bugzilla 351487
• tycho-p2-director-plugin ignores metarequirements
• *.target in IDE
15
Conclusion
• p2 is easy to use (when you know the basics)
• p2 API is becoming more high level
• Must be aware of the “tricks” and pitfalls
16
Christian Bourgeois
@bourgeois_c
Feedback is always appreciated
