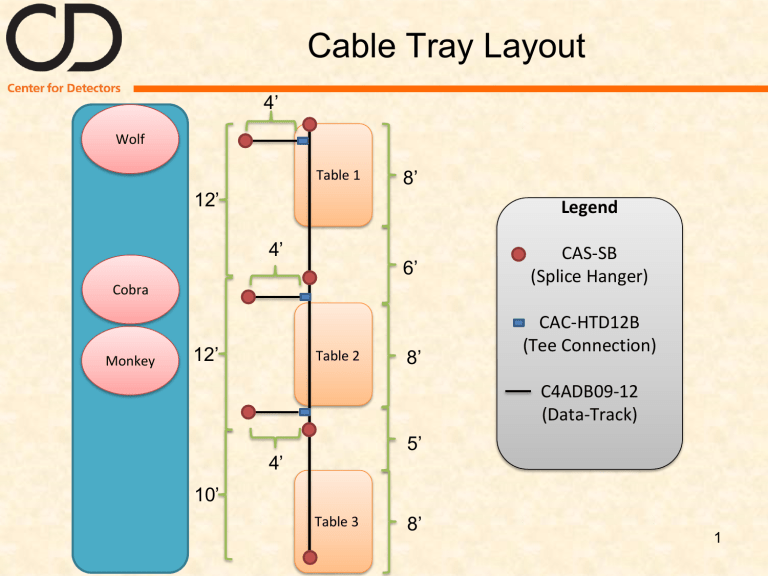

Cable Tray Layout
4’
Wolf
Table 1
8’
12’
Legend
4’
6’
Cobra
Monkey
12’
Table 2
8’
CAS-SB
(Splice Hanger)
CAC-HTD12B
(Tee Connection)
C4ADB09-12
(Data-Track)
5’
4’
10’
Table 3
8’
1
Components
2
Components
3
Components
4
Price Estimates
• Graybar Distributor Quote:
•
•
•
•
•
•
7 Data-Track Standard Clevis Hangers CZNH-CD
3 Data-Track Tee Connectors CAC-HTD12B
3 Data-Track 12' Straight Section C4ADB09-12-144
1 Data-Track 10' Straight Section C4ADB09-12-120
6 Data-Track Cable Drop-Out CAM-D0-5
5 Data-Track Center Rail End Cap CPLM-EC10Gray
There might be a few
additional components
needed to support the
system such as ½”
threaded rods and
supports, but they should
not cost much.
5
Price Estimates
• Research Computing Laboratory FMS Quote:
– $2800
• 30 feet of MonoSystems Mono-Tray Center Spine Cable Tray
• Support was two threaded rods connected with a support
beam which the tray sat on.
• They went completely through FMS and told them what they
wanted and O’Connell Electric priced everything.
