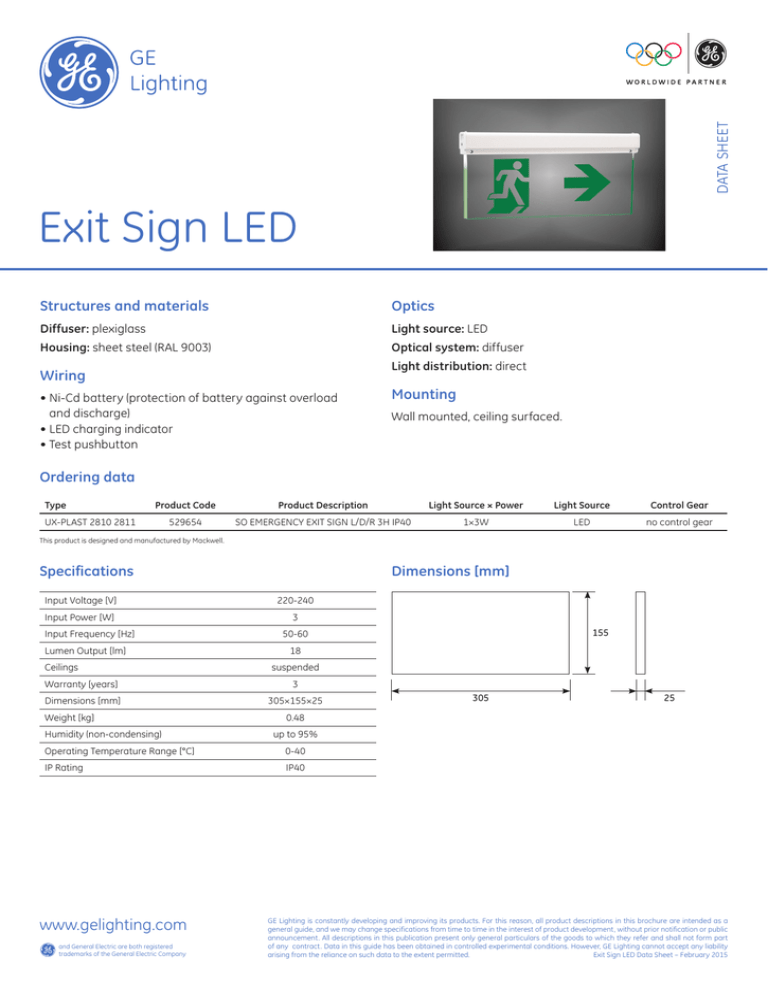

DATA SHEET
Exit Sign LED
Structures and materials
Optics
Diffuser: plexiglass
Light source: LED
Housing: sheet steel (RAL 9003)
Optical system: diffuser
Light distribution: direct
Wiring
•Ni-Cd battery (protection of battery against overload
and discharge)
•LED charging indicator
•Test pushbutton
Mounting
Wall mounted, ceiling surfaced.
Ordering data
Type
Product Code
Product Description
Light Source × Power
Light Source
Control Gear
529654
SO EMERGENCY EXIT SIGN L/D/R 3H IP40
1×3W
LED
no control gear
UX-PLAST 2810 2811
This product is designed and manufactured by Mackwell.
Specifications
Input Voltage [V]
Input Power [W]
Input Frequency [Hz]
Lumen Output [lm]
Ceilings
Dimensions [mm]
220-240
3
18
suspended
Warranty [years]
3
Dimensions [mm]
305×155×25
Weight [kg]
Humidity (non-condensing)
25
up to 95%
0-40
IP Rating
IP40
and General Electric are both registered
trademarks of the General Electric Company
305
0.48
Operating Temperature Range [°C]
www.gelighting.com
155
50-60
GE Lighting is constantly developing and improving its products. For this reason, all product descriptions in this brochure are intended as a
general guide, and we may change specifications from time to time in the interest of product development, without prior notification or public
announcement. All descriptions in this publication present only general particulars of the goods to which they refer and shall not form part
of any contract. Data in this guide has been obtained in controlled experimental conditions. However, GE Lighting cannot accept any liability
arising from the reliance on such data to the extent permitted. Exit Sign LED Data Sheet – February 2015
