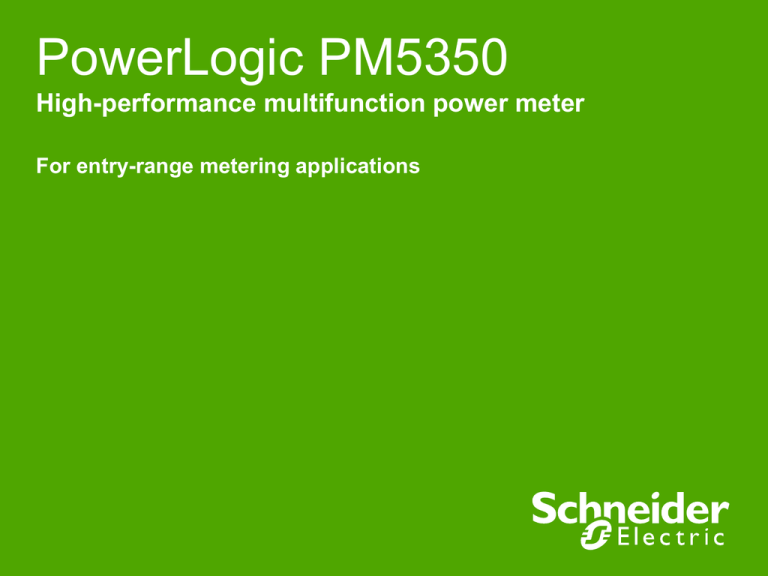

PowerLogic PM5350
High-performance multifunction power meter
For entry-range metering applications
A high-performance multifunction power
meter for the entry-range meter market
The PowerLogic PM5350 provides you with
a superior entry-range power meter for
demanding applications where accuracy
is paramount.
This user-friendly meter offers the perfect
balance of price, features and performance.
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
2
Offer overview
PM800 series
for incomers or
critical feeders
PM1000 series
for basic feeders
PM5350 meter to monitor and control
main feeders:
•Accurate and complete measurements
•Alarming for key parameters
•Breaker status monitoring and control
•Embedded serial Modbus communication
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
3
Applications
●Panel instrumentation
●Energy management
●Sub-billing and cost allocation
●Electrical installation
remote monitoring
●Circuit breaker
monitoring and control
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
4
Features
●Comprehensive measurement package
●Energy and demand monitoring
●THD/TDD & Min/Max reading
●Pre-configured alarm functions for more than 30
conditions
●Time stamp & internal time clock
●4 digital inputs for circuit breaker status indication
●2 relay outputs for circuit breaker control
●Active Energy compliant with IEC62053-22 class 0.5S
●Temperature range confirmed with IEC61557-12
standard
●Modbus RS-485 communication port
●Sealable features (V,I)
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
5
Easy operation
●Intuitive navigation with self-guided, language
selectable menus
●Language customization (English & simplified
Chinese)
●Bright, anti-glare dot matrix display (backlit)
●Summary screens with multiple values
●Front panel LEDs provide at-a-glance information
●Orange LED (configurable) w/ 3 modes: Off,
Alarm, Energy pulses
●Green LED w/ 2 modes: Off, Diagnostic
●Two meter reset levels (global, single parameter)
●Makes commissioning faster and easier
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
6
Easy installation
●Mounting clips (2) hold the meter in place
●No other tools required
●Ultra compact (44mm depth)
●Save valuable space
●Connectable up to 480 V L-L without PTs
●For installations compliant with category III
●Wetted digital inputs
●No needs of external power supply
●Clear identification for all connections
●Electrical drawings on the meter itself
●Green connector for communications
●Avoid mistaking it for the power supply
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
7
Alarming
●29 standard alarms to cover most
common needs
● Pickup magnitude and delays
● Dropout magnitude and time delays
● 4 unary alarms
● Power up, meter reset, self-diagnostic, phase
reversal
● 4 digital input alarms
●Association alarm – D/O possible
●4 levels of priority (None/Low/Med/High)
●40 alarms saved in non volatile memory
●Alarm counter to measure occurrence
●Alarm time-stamped (1s)
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
8
Specifications & dimensions
● 15 pre-defined system configuration
types for 4, 3 or 2 wires
● Data Update: 1 s nominal (50/60 cycles)
● Input Voltage:
● 20 to 690 V AC L-L
● 20 to 400 V AC L-N
● Input Current: Through CTs
● CT primary: 5A - 32767 A
● CT secondary: 5 A nominal
● Burden: < 0.024 VA at 9 A
● AC control power: 85 - 265 V ac
● DC control power: 100 - 300 V dc
● Temperature:
● Operating: -20 °C to +70 °C
● Storage: -40 °C to +85 °C
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
9
Measured parameters / accuracy ratings
Instantaneous measurements Accuracy
Min/Max



I1,I2,I3,In
± 0.24% from 0.5 to 9.0 A
U1,U2,U3,V1,V2,V3
± 0.30% from 65 to 347 V ac
F
± 0.03% from 45 to 70 Hz
PFtot, DPFtot,
PF1, PF2, PF3, DPF1, DPF2, DPF3
± 0.50%(Signed)

Ptot, Qtot, Stot,
P1, P2, P3, Q1, Q2, Q3, S1, S2, S3
± 0.36%(P-Q Signed)

THD / thd I1, I2, I3, In,
THD / thd V1,V2,V3,U1,U2,U3
TDD
?
Unbalance I, V, U
?


Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
10
Measured parameters / accuracy ratings
Energy†
Accuracy
Active
IEC 62053-22 Class 0.5S
Reactive
IEC 62053-22 Class 2
Apparent
± 0.5%
†
Capacity of counting ~ 9,2 x 10 ^ 6 Twh or ~ 11 years at 480VL-L / 1000 A
Demand
Power
Type‡
Active
Total
Reactive
Total
Apparent
Total
Current
Average
‡
NV Memory



Peak D/T




NV Memory




Demand calculations are Sliding, Fixed and Rolling bloc; and Thermal for current only
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
11
Additional measurements
●Load timer with adjustable settings
●With Low set up calculates total
operating feeder time
●Beyond nominal current settings
calculates the overload time
●Digital Input/Output timers
●Measurement in (s) for Time On
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
12
Standards compliance
●Accuracy
●Class 0.5S for active energy according to IEC 62053-22
●Class 2 for reactive energy according to IEC 62053-23
●IEC 61557-12
●PMD /S/K70/0.5
●Safety
●CE as per IEC61010-1
●cULus as per UL61010
●Mechanical characteristics according to IEC 60529
●IP degree 51 for front of meter
●IP degree 30 for meter body
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
13
Standards compliance
●Electromagnetic compatibility
●Electrostatic Discharge
●Immunity to radiated fields
●Immunity to fast transients
●Immunity to impulse waves
●Conducted immunity
●Immunity to magnetic field
●Immunity to voltage dips
●Conducted and radiated emissions
●Harmonics
●Flicker emissions
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
Level III (IEC 61000-4-2)
Level III (IEC 61000-4-3)
Level III (IEC 61000-4-4)
Level III (IEC 61000-4-5)
Level III (IEC 61000-4-6)
Level III (IEC 61000-4-8)
Level III (IEC 61000-4-11)
CE commercial environment /
FCC part 15 EN55011 Class A
IEC 61000-3-2
IEC 61000-3-3
14
Environmental friendly
●RoHS Compliant
●Low energy consumption
●Possibility to turn off Display and backlit
●Consumption typical 2 Watts
●ISO 14001 plant manufactured
Schneider Electric – PowerLogic PM5350 – customer presentation – September 2010
15
For more detailed information on this product,
or other products, services and solutions
● Ask your Schneider Electric representative
● Visit www.schneider-electric.com
