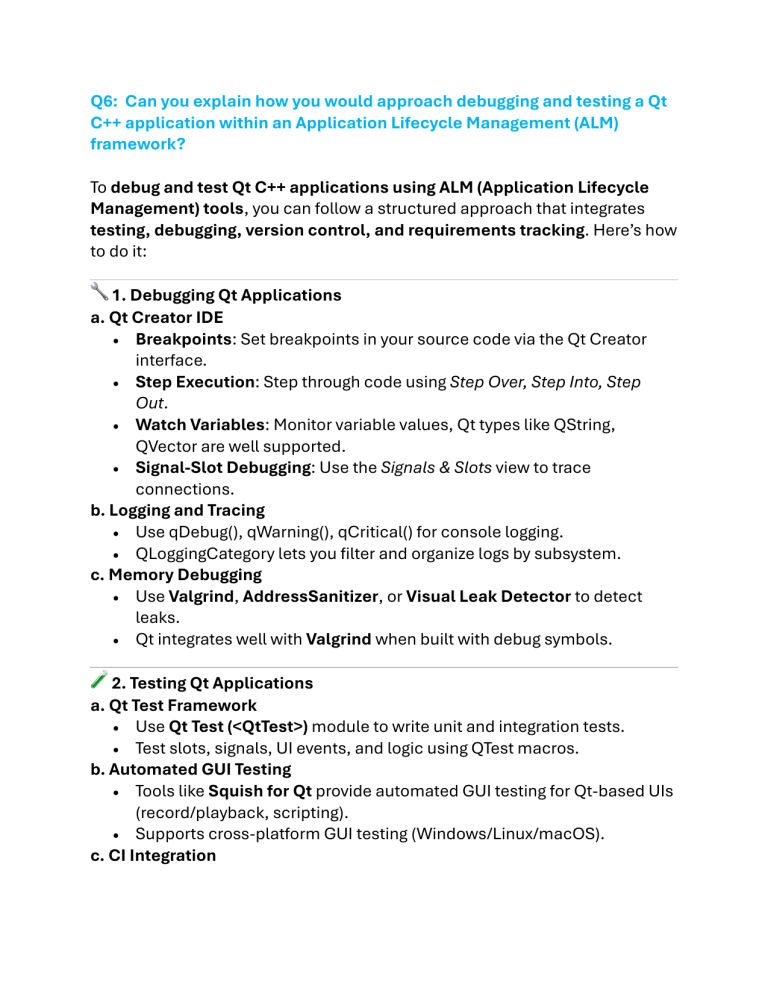

Q6: Can you explain how you would approach debugging and testing a Qt
C++ application within an Application Lifecycle Management (ALM)
framework?
To debug and test Qt C++ applications using ALM (Application Lifecycle
Management) tools, you can follow a structured approach that integrates
testing, debugging, version control, and requirements tracking. Here’s how
to do it:
🔧 1. Debugging Qt Applications
a. Qt Creator IDE
• Breakpoints: Set breakpoints in your source code via the Qt Creator
interface.
• Step Execution: Step through code using Step Over, Step Into, Step
Out.
• Watch Variables: Monitor variable values, Qt types like QString,
QVector are well supported.
• Signal-Slot Debugging: Use the Signals & Slots view to trace
connections.
b. Logging and Tracing
• Use qDebug(), qWarning(), qCritical() for console logging.
• QLoggingCategory lets you filter and organize logs by subsystem.
c. Memory Debugging
• Use Valgrind, AddressSanitizer, or Visual Leak Detector to detect
leaks.
• Qt integrates well with Valgrind when built with debug symbols.
🧪 2. Testing Qt Applications
a. Qt Test Framework
• Use Qt Test (<QtTest>) module to write unit and integration tests.
• Test slots, signals, UI events, and logic using QTest macros.
b. Automated GUI Testing
• Tools like Squish for Qt provide automated GUI testing for Qt-based UIs
(record/playback, scripting).
• Supports cross-platform GUI testing (Windows/Linux/macOS).
c. CI Integration
•
•
Integrate Qt tests with CI tools like Jenkins, GitLab CI, GitHub Actions,
etc.
Run headless GUI tests using Xvfb (on Linux) for CI pipelines.
🛠 3. Using ALM Tools for Qt C++
Application Lifecycle Management (ALM) integrates requirements, source
control, test management, and issue tracking.
a. Requirements and Traceability
• Use ALM tools like Atlassian Jira, Polarion, CodeBeamer, or Azure
DevOps to track feature requirements and link them to code and tests.
b. Version Control Integration
• Integrate Git or SVN with your ALM system to manage source code
history.
• Use branching models (e.g., Git Flow) for structured development and
testing.
c. Test Management
• Connect test results from Qt Test or Squish to ALM test plans (via
plugins or API).
• Track test coverage and link failed tests to bugs.
d. Issue/Bug Tracking
• Automatically create bug reports from test failures using tools like Jira,
Bugzilla, or Redmine.
Example Workflow:
1. Develop Qt app in Qt Creator using C++.
2. Write unit tests using Qt Test.
3. Set up Squish for UI automation.
4. Integrate with Git and push code.
5. CI server (e.g., Jenkins) builds the app, runs tests, collects results.
6. Results sync with ALM tools (like Jira or Polarion).
7. Bugs or issues are logged automatically if tests fail.
8. Use the ALM dashboard to trace requirement → implementation → test
→ result.
