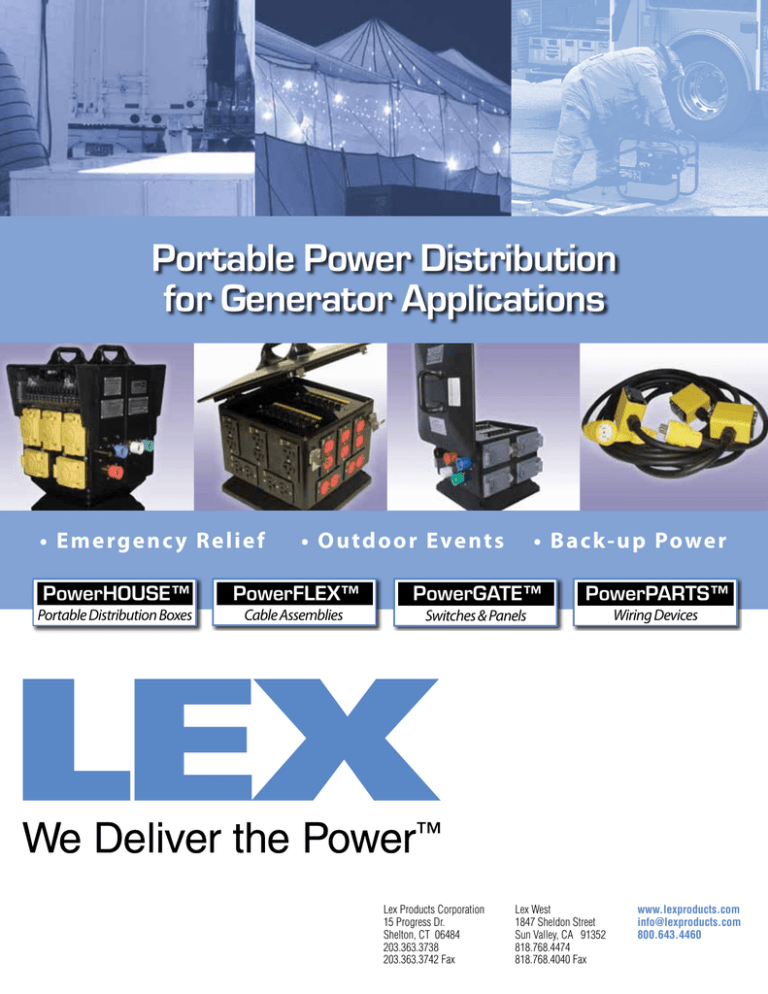

PowerHOUSE™
Portable Power Distribution
for Generator ApplicationsPowerRACK™
Portable Distribution Boxes
Rolling Distribution Racks
PowerHOUSE™
PowerPLUS™
Portable Distribution Boxes
Installed Distribution Boxes
Portable Distribution Boxes
PowerRACK™
PowerFLEX™
Rolling Distribution Racks
Cable Assemblies
PowerRACK™
PowerPLUS™
PowerGATE™
Rolling Distribution Racks
Installed Distribution Boxes
Switches & Panels
PowerHOUSE™
• Em ergen c y Re lPowerPLUS™
ief
• O u td oorPowerFLEX™
Event s • B ac k- u p Power
Installed Distribution Boxes
Cable Assemblies
Dimming & Control
PowerHOUSE™
PowerFLEX™
PowerGATE™
PowerPARTS™
Portable Distribution Boxes
Cable Assemblies
Switches & Panels
Wiring Devices
PowerRACK™
PowerGATE™
Rolling Distribution Racks
PowerPLUS™
Switches & Panels
Dimming & Control
PowerFLEX™
PowerPARTS™
PowerGATE™
Switches & Panels
Dimming & Control
PowerPARTS™
Wiring Devices
PowerTRAN™
Auto Transfer Switch
PowerPARTS™
Installed Distribution Boxes
Cable Assemblies
Dimming & Control
Wiring Devices
Wiring Devices
PowerTRAN™
Auto Transfer Switch
PowerTRAN™
Auto Transfer Switch
Lex Products Corporation
15 Progress Dr.
Shelton, CT 06484
203.363.3738
203.363.3742 Fax
Lex West
1847 Sheldon Street
Sun Valley, CA 91352
818.768.4474
818.768.4040 Fax
www.lexproducts.com
info@lexproducts.com
800.643.4460
About Lex Products
Since 1989, Lex Products has manufactured innovative, durable, safe and long-lasting power
distribution systems for the Entertainment, Industrial and Military markets. From our portable
distribution boxes, constructed of proprietary rubber enclosures, to the highest quality, most
complete line of cable assemblies, We Deliver the Power™!
2
Portable Power Distribution Solutions
Power Distribution System Schematics
400 Amp 3 Phase Power System Schematic............................................................ 4
200 Amp 3 Phase Power System Schematic............................................................ 5
PowerGATE™ Switches and Panels
400 Amp 3 Phase Power Input Panel....................................................................... 6
100 Amp 3 Phase Compact Power Input Panel........................................................ 7
Table of Contents
PowerHOUSE™ Portable Distribution Boxes
100-400 Amp 3 Phase Power Adjustable Main Circuit Breaker Boxes...................... 8
400 Amp 3 Phase Cam-Type Splitter Box................................................................. 9
200 Amp 3 Phase to (10) NEMA L21-20 Locking Receptacles................................. 9
200 Amp 3 Phase to (21) NEMA TT-30 RV Receptacles........................................ 10
200 Amp 3 Phase to (8) 50 Amp Locking Receptacles........................................... 10.
200 Amp 3 Phase to (6) 50 Amp Locking Receptacles ...........................................11
100 Amp 3 Phase to (3) L-1420 Receptacles...........................................................11
100 Amp 3 Phase to (15) NEMA 5-20 Duplex Receptacles.................................... 12..
100 Amp 3 Phase to (12) NEMA 5-20 GFCI Duplex Receptacles........................... 12
100 Amp 3 Phase to (5) NEMA L21-20 Locking Receptacles................................. 12
50 Amp Locking Input and Feed-Thru to (6) NEMA 5-20
Duplex Receptacles ............................................................................................... 13
50 Amp Locking Input to (6) NEMA 5-20 GFCI
Duplex Receptacles................................................................................................ 13
20 Amp 3 Phase GFCI Quad Stringer.................................................................... 14
20 Amp NEMA L21–20 to (3) NEMA 5-20 GFCI
Duplex Receptacles................................................................................................ 14.
PowerFLEX™ Cable Assemblies
Cam-Type Extensions............................................................................................. 15
Tie-in Sets............................................................................................................... 15
Soft Siamese........................................................................................................... 16
Pin and Sleeve Extensions..................................................................................... 16
Locking Extensions................................................................................................. 16
NEMA Wiring Device Extensions............................................................................ 17
E-String™............................................................................................................... 17
Cam-Type Connectors, Accessories & Wetguard™ NEMA Wiring Devices............18
Yellow Jacket™ Cable Crossovers............................................................................ 19
Toll Free: 800-643-4460 • www.lexproducts.com
3
Amp 3
3 Phase
Power
Distribution
System
400400
Amp
Phase
Power
Distribution
System
Generator – 150 KVA
400 A, 3 Ø, 120/208 VAC
Cables - 4/0 AWG Type W
(5) wire Cam Extensions
Page 15
Hammerhead
Distribution Box
400 A, 3 Ø
120/208 VAC Cam Input
(4) 100 A, (5) Wire
Cam Receptacles
NEMA 3R Weatherproof
Cat. No. DB400A-F202000
Page 9
Pagoda Distribution Box
100 A, 3 Ø
120/208 VAC Cam Input
(5) L21-20, 20 A
120/208 VAC Receptacles,
NEMA 3R Weatherproof
Cat. No. DB100NP-AFF-S3
Page 12
Cables - #2 AWG Type SC
(5) Wire Banded Cam Ext.
Page 15
Pagoda Distribution Box
100 A, 3 Ø
120/208 VAC Cam Input
(12) 20 A, 125 VAC
GFCI Receptacles
NEMA 3R Weatherproof
Cat. No. DB100NP-AQQ-S3
Page 12
4
Cube Distribution Box
L21-20, 20 A Input
(3) 20 A, 125 VAC
GFCI Receptacles
NEMA 3R Weatherproof
Cat. No. DB20-C13GFI
Page 14
Quad Stringer
L21-20, 20 A 120/208 VAC
Feed Thru
to (6) 20 A, 125 VAC
GFCI Receptacles
NEMA 3R Weatherproof
Cat. No. DB20-QD50GF-FT
Page 14
400 Amp Power
3 Phase Power
Distribution System
200 Amp 3 Phase
Distribution
System
Generator - 75KVA
200 A, 3 Ø, 120/208 VAC
Cables - 2/0 AWG Type W
(5) wire Cam Extensions
Page 15
Pagoda Distribution Box
50 A, 125/250 VAC
Feed Thru to (6) 20 A
125 VAC Duplex Receptacles
NEMA 3R Weatherproof
Cat. No. DB-50NQ-BBB-S3
Page 13
Hex Distribution Box
200 A, 3 Ø, 120/208 VAC to
(8) 50 A, 125/250 VAC
Locking Receptacles
NEMA 1
Cat. No. DB200A-X016369
Page 10
Pagoda Distribution Box
50 A, 3P4W, 125/250 VAC to
(6) 20 A, 125 VAC GFCI
Duplex Receptacles
NEMA 3R Rainproof
Cat. No. DB-50NF-BQQ-S3
Page 13
Cables - 50 A
6/4 AWG Type SOOW-A
Extensions
with CS Locking
Connectors
Page 16
5
Cable Assemblies
PowerGATE™
Switches & Panels
The PowerGATE™ Power Input Panel is a safe, convenient and economical
means of connecting emergency generator power to a building in conjunction with a transfer switch.
Power Input Panel
400 Amp, 120/208 VAC
or 277/480 VAC
Dimming & Control
PowerPARTS™
Wiring Devices
• The PowerGATE Power Input Panel is a safe, convenient and economical
means of connecting emergency generator power to a building, in conjunction with a transfer switch
PowerTRAN™
• Cables with 16 Series Cam-type Connectors can connect directly to the
inputs, saving crucial time in emergency situations
Auto Transfer Switch
• Cables drape downward for lowest profile against wall
• Tamper proof design limits access to connected cables
• Weatherproof construction for installation on building exterior,
ensures long life
Power Input Panels
• Dead front panel covers all exposed electrical parts for added safety
• Padlock hasp prevents unauthorized entry
• Individual cable holes restrict access reducing theft
TYPE 3R Rainproof
6
Description
Rating
16 Series Cam-type Input Connectors
Catalog No.
400 A, 3 Ø, 120/208 VAC
TYPE 3R
Rainproof
(5) Male; Black, Red, Blue, White, Green
PIP400-C5M-3F-BBR
400 A, 3 Ø, 277/480 VAC
TYPE 3R
Rainproof
(5) Male; Brown, Orange, Yellow, White, Green
PIP400-C5M-3F-BOY
Compact Power Input Panel
100 Amp, 120/240 VAC
• Convenient and economical means of connecting generator power to cellular transmission towers, attenuation enclosures, or other
utility cabinets.
• Cam-type connections save time in emergency situations.
• 16 Series Cam-type connections save time in emergency situations.
• Hinged lower access door supplied with hasp for locking the unit when not in use.
• Powder coat finish for durablity, corrosion and weather resistance.
(Front view with cable
attached and door open)
• Light weight compact aluminum construction for easy installation.
• TYPE 3R Rainproof construction.
• Weight is 9 lbs.
TYPE 3R Rainproof
(Bottom View)
Compact Power Input Panels
• Mounting hole location allows direct replacement of Appleton® power inlets.
(Closed View)
Catalog No.
0BL1304K7DSS
Rating
100 A, Single Phase, 120/240 VAC, 3 pole 4 wire
Enclosure
Aluminum with powder coat gray finish
Input
(4)Wire 16 Series Cam-type Double Set Screw Male devices.Red, Black,White, Green
Output
Hard wire to utility panel
Overcurrent Protection
N/A
Dimensions / Weight
8.5” x 8.5” x 10”H / 9 lbs.
7
PowerHOUSE™
Portable Distribution Boxes
PowerRACK™
Lex Products’ PowerHOUSE™ Portable Power Distribution Boxes utilize
proprietary heavy duty molded rubber enclosures for shock and impact resistance, full insulation, corrosion and weather resistance for years of troublefree service. Lex Products offers options that are fail safe, longer lasting and
easier to set up.
Rolling Distribution Racks
PowerPLUS™
100–400 Amp 3 Phase
Adjustable Main Circuit
Breaker Boxes
Installed Distribution Boxes
PowerFLEX™
Cable Assemblies
PowerGATE™
Disconnect Boxes
Switches & Panels
TYPE 3R Rainproof
• Breakers are adjustable from 160-400 Amp and
100 -250 Amp, reducing the number of inventory
items needed.
• Can protect a variety of cable sizes.
• Breaker is electronic with no thermal element.
Unit will not trip due to ambient temperature.
Dimming & Control
• Extremely compact for convenient portability.
• 20 A circuit breaker protected 125 VAC duplex
convenience receptacle to power your choice
of devices
PowerPARTS™
Wiring Devices
• Heavy duty molded rubber enclosure is
fully insulated, resistant to shock, impact,
corrosion and weather.
PowerTRAN™
Auto Transfer Switch
Catalog No.
DB400LP-AWB-S3
DB250LP-AWB-S3
Description
160-400 Adjustable Amp Breaker Box
100-250 Amp Adjustable Breaker Box
Rating
400-160 A, 3 Ø, 120/208 VAC
250-100 A, 3 Ø, 120/208 VAC
Input
(5) 16 Series Cam-type Male devices
(5) 16 Series Cam-type Male devices
Feed Thru
(5) 16 Series Cam-type Female devices
with covers
(5) 16 Series Cam-type Female devices
with covers
Output
(1) NEMA 5-20, 20 A, 2P3W,
125 VAC duplex receptacle
(1) NEMA 5-20, 20 A, 2P3W,
125 VAC duplex receptacle
Overcurrent
Protection
(1) 160 A - 400 A electronic main breaker
with adjustable setting
(1) 20 A, 1-pole branch rated circuit breaker
(1) 100 A - 250 A electronic main breaker
with adjustable setting
(1) 20 A, 1-pole branch rated circuit breaker
Overall Dimensions
14" L x 14" W x 13" H
14" L x 14" W x 13" H
Weight
44 lbs.
38 lbs.
480 VAC Versions Also Available
Custom Configurations, Individual Connectors and Interconnecting Cable Assemblies Available.
8
400 Amp 3 Phase Cam-Type Splitter Box
• Heavy duty molded rubber enclosure is fully insulated, resistant to
shock, impact, corrosion and weather.
• Extremely compact for convenient portability.
• Meets NEC requirements for properly rated branch
• circuit protection when downsizing cable.
DB400N1J4AJ2CD-63
Enclosure
HAMMERHEAD
Input
(5) 16 Series Cam-type Male devices
Output
(4) 100 A, 3 Ø, 120/208 VAC
(5) 16 Series Cam-type Female devices
(2)NEMA5-20,20A,2P3W,125VACGFCI
duplex receptacles
Overcurrent Protection
(4) 100 A, 3-Pole Branch Circuit
Rated Breakers
(2) 20 A, 1-Pole Branch Circuit
Rated Breakers
Overall Dimensions
15” L x 18” W x 22” H
Weight
75 lbs.
200 Amp 3 Phase to (10) NEMA L21-20
Locking Receptacles
• Heavy duty molded rubber enclosure is fully insulated, resistant to shock,
impact, corrosion and weather.
• Extremely compact for convenient portability.
• Meets NEC requirements for properly rated branch
• circuit protection when downsizing cable.
Catalog No.
DB200N1J10DM-63
Enclosure
HAMMERHEAD
Input
(5)Wire16SeriesCam-typeMaledevices
Output
(10) NEMA L21-20, 20 A, 4P5W, 3 ØY,
120/208 VAC locking receptacles
Overcurrent Protection
(10) 20 A, 3-Pole Branch Circuit
Rated Breakers
Overall Dimensions
15” L x 18” W x 22” H
Weight
75 lbs.
Hammerhead Enclosure
TYPE 3R Rainproof
Catalog No.
TYPE 3R Rainproof
Custom Configurations, Individual Connectors and Interconnecting Cable Assemblies Available.
9
PowerSTATION™ Enclosure
200 Amp 3 Phase to (21) NEMA TT-30 RV Receptacles
TYPE 3R Rainproof
Catalog No.
DB200NQ-PTT-S3
Enclosure
POWERSTATION
Input
200 A, 3 Ø, 120/208 VAC
(5) Wire 16 Series Cam-type Male devices
Output
(21) NEMA TT-30, 30 A, 2P3W 125 VAC
Straight Blade RV receptacles
Feed Thru:
(5) wire 16 Series Cam-type
Female devices
Overcurrent
Protection
(21) 30 A, 1-Pole Branch Circuit
Rated Breakers
Overall
Dimensions
27.5 ” L x 18.5 ” W x 18” H
Weight
65 lbs.
Custom Configurations, Individual Connectors and Interconnecting Cable
Assemblies Available.
Hex Enclosure
200 Amp 3 Phase to
(8) 50 Amp Locking Receptacles
TYPE 1
10
Catalog No.
DB200A-X016369
Enclosure
HEX
Input
200 A, 3 Ø, 120/208 VAC
(5) 18”, #1 AWG Type SC tails with
16 Series Cam-type Male devices
Output
(8) 50 A, 3P4W, 125/250 VAC “California Style” locking receptacles
Overcurrent
Protection
(8) 50 A, 2-Pole Branch Circuit
Rated Breakers
Overall
Dimensions
14.5”L x 18.5” H x 14.5” W
(Including handle)
Weight
60 lbs.
Custom Configurations, Individual Connectors and Interconnecting Cable
Assemblies Available.
200 Amp 3 Phase to
(6) 50 Amp Locking Receptacles
Catalog No.
DB200NP-A6S-S3
Enclosure
PAGODA
Input
(5) 16 Series Cam-type Male devices
Output
(6)50A3P4W,125/250VACCalifornialocking receptacles, 2H, N, G
Overcurrent Protection
(6) 50A 2-Pole Branch Circuit
Rated Breakers
Overall Dimensions
14” L x 14” W x 13” H
Weight
35 lbs.
TYPE 3R Rainproof
100 Amp 3 Phase to
(3) L-1420 Receptacles
Catalog No.
DB100NP-B3J-S3
Enclosure
PAGODA
Input
(5) 16 Series Cam-type Male devices
Output
(3) L-1420 3P4W, 125/250 VAC
Overcurrent Protection
(3) 20A 2-Pole Branch Circuit
Rated Breakers
Overall Dimensions
9” L x 9” W x 11” H
Weight
16 lbs.
Pagoda Enclosure
Custom Configurations, Individual Connectors and Interconnecting Cable
Assemblies Available.
Custom Configurations, Individual Connectors and Interconnecting Cable
Assemblies Available.
TYPE 3R Rainproof
11
100 Amp 3 Phase to (15)
NEMA 5-20 Duplex
Receptacles
Pagoda Enclosure
TYPE 1 Indoor or
TYPE 3R Rainproof
80 Amp 3 Phase
to (12) NEMA 5-20
GFCI Duplex
Receptacles
TYPE 3R Rainproof
100 Amp 3 Phase to (5) NEMA
L21-20 Locking
Receptacles
Catalog No.
DB100A-A401520
TYPE 1 Indoor
DB100NP-ABB-S3
TYPE 3R Rainproof
Enclosure
PAGODA
Input
100 A, 3 Ø, 120/208 VAC
(5) Wire 16 Series Cam-type
Male devices
Optional
Input
(5) 18”, #6 AWG Type SC Tails with
16 Series Cam-type Male devices
Output
(15) NEMA 5-20, 2P3W 20 A,
125 VAC duplex receptacles
Overcurrent
Protection
(15) 20 A, 1-Pole
Branch Circuit Rated Breakers
Overall
Dimensions
11”L X 11” W” X 13”H
(Including handle)
Weight
32 lbs.
Catalog No.
DB100NP-AQQ-S3
Enclosure
PAGODA
Input
100A, 3 Ø, 120/208 VAC
(5) Wire 16 Series Cam-type
Male devices
Output
(12) NEMA 5-20, 20 A, 2P3W
125VAC GFCI duplex receptacles
Overcurrent
Protection
(12) 20 A, 1-Pole
Branch Circuit Rated Breakers
Overall
Dimensions
11”L X 11” W” X 13”H
(Including handle)
Weight
33 lbs.
Catalog No.
DB100NP-AFF-S3
Catalog No.
DB100NP-AFF-S3
Input
100 A, 3 Ø, 120/208 VAC
(5) Wire 16 Series Cam-type
Male devices
Output
(5) NEMA L21-20, 20 A, 4P5W,
3 ØY, 120/208 VAC locking
receptacles
Overcurrent
Protection
(5) 20 A, 3-Pole
Branch Circuit Rated Breakers
Overall
Dimensions
11”L X 11” W” X 13”H
(Including handle)
Weight
32 lbs.
TYPE 3R Rainproof
12
Custom Configurations, Individual Connectors and Interconnecting Cable Assemblies Available.
50 Amp Locking Input and Feed Thru to (6) NEMA 5-20
Duplex Receptacles
Catalog No.
DB-50NQ-BBB-S3
Enclosure
PAGODA
Input
(1) 50 A, 3P4W, 125/250 VAC
“California Style” locking inlet
Output
(6) NEMA 5-20, 20 A, 2P3W
125 VAC duplex receptacles
Feed Thru
(1) 50 A, 3P4W, 125/250 VAC
locking receptacle
Overcurrent
Protection
(6) 20 A, 1-Pole
Branch Circuit Rated Breakers
Overall
Dimensions
9”L x 9”W x 11”H
Weight
16 lbs.
TYPE 3R Rainproof
50 Amp Locking Input to (6) NEMA 5-20
GFCI Duplex Receptacles
Catalog No.
DB-50NF-BQQ-S3
Enclosure
PAGODA
Input
(1) 50 A, 3P4W, 125/250 VAC
“California Style” locking inlet
Output
(6) NEMA 5-20, 20 A, 2P3W
125VAC GFCI duplex receptacles
Overcurrent
Protection
(6) 20 A, 1-Pole
Branch Circuit Rated Breakers
Overall
Dimensions
9”L x 9”W x 11”H
Weight
16 lbs.
Pagoda Enclosure
Custom Configurations, Individual Connectors and Interconnecting Cable
Assemblies Available.
TYPE 3R Rainproof
Custom Configurations, Individual Connectors and Interconnecting
Cable Assemblies Available.
13
20 Amp 3 Phase GFCI
Quad String
Quad Stringer
Catalog No.
DB20-QD50GF-FT
Input
(1) NEMA L21-20, 20 A, 4P5W,
3 Ø Y. 120/208 VAC locking plug
TYPE 3R Rainproof
Feed Thru
(1) NEMA L21-20, 20 A, 4P5W,
3 Ø Y, 120/208 VAC locking
connector
TYPE 3R Rainproof
Output
(6) NEMA 5-20, 20 A, 2P3W,
125VAC GFCI duplex receptacles
Cord
Specification
12/5SOOW-A,15’frommaleplugto
firstbox,then10’betweenboxesand
15’toendconnector.Overalllengthof
unit 50’
Quad boxes:
Dimensions 3.75”L x 2.5”W x 4”H
Cable length: 50’
TYPE 3R Rainproof
Weight
24 lbs.
Cube
20A NEMA L21-20 to (3) NEMA 5-20 GFCI Duplex Receptacles
Catalog No.
DB20-C13GFI
Input
(1) 18”, 12/5 SOOW-A Tail with
NEMA L21-20, 20 A, 4P5W, 3
ØY
120/208 VAC locking plug,
NEMA 1R Rainproof
Output
(3) NEMA 5-20, 20 A, 2P3W
125 VAC, GFCI duplex receptacles
Overcurrent
Protection
None
TYPE 1R Rainproof
Dimensions 6”L x 6”W x 4”H
14
Custom Configurations, Individual Connectors and Interconnecting Cable Assemblies Available.
PowerPLUS™
Installed Distribution Boxes
Lex Products’ PowerFLEX™ Cable Assemblies start with proprietary cables
which utilize the latest compounds for the right combination of durability
and flexibility. The world’s finest connectors are then attached with state-ofthe-art processes, expertise and quality.
PowerFLEX™
Cable Assemblies
PowerGATE™
Switches & Panels
Cam-Type Extensions
Cam-type Extensions are made with single pole cam-type
Dimming
Control
connectors and either Type W (Industrial)
or Type&SC
(Entertainment) Feeder Cable
PowerPARTS™
Rating
Male Connector
Cable
Female Connector
Catalog No.
400 A, 600 VAC
16 Series Inline
4/0 AWG Type W (Industrial)
16 Series Inline
FE600W-XXSwitch
Auto Transfer
400 A, 600 VAC
16 Series Inline
4/0 AWG Type SC (Entertainment)
16 Series Inline
FE6000-XX
200 A, 600 VAC
16 Series Inline
2/0 AWG Type W (Industrial)
16 Series Inline
FE500W-XX
200 A, 600 VAC
16 Series Inline
2/0 AWG Type SC (Entertainment)
16 Series Inline
FE5000-XX
100 A, 600 VAC
16 Series Inline
#2 AWG Type W (Industrial)
16 Series Inline
FE300W-XX
100 A, 600 VAC
16 Series Inline
#2 AWG Type SC (Entertainment)
16 Series Inline
FE3000-XX
100 A, 600 VAC
(5) 16 Series Inline
#2 AWG Type SC (5) Wire Banded
(5) 16 Series Inline
FB305W-XX
CAM Extensions
Wiring Devices
PowerTRAN™
Add suffix to indicate connector color: A=Black B=White C=Red D=Blue E=Green
xx specify cable length
Bare End Tie-In Sets
Male Connector
Cable
Female Connector
Catalog No.
400 A, 600 VAC
Bare Cable End
4/0 AWG Type W
(Industrial)
(5) 16 Series Inline
TS60WF-XX
200 A, 600 VAC
Bare Cable End
2/0 AWG Type W
(Industrial)
(5) 16 Series Inline
TS50WF-XX
100 A, 600 VAC
Bare Cable End
#2 AWG Type W
(Industrial)
(5) 16 Series Inline
TS300WF-XX
Tie-in Sets
Rating
Tie-In sets are to be used by authorized personnel only. xx specify cable length
15
Soft Siamese
Soft Siamese
Rating
Male
Connector
Cable
Center
Section
Female
Connector
Catalog No.
400 A, 600 VAC
16 Series Inline
4/0 AWG Type SC
(Entertainment)
Crimp with Y
heat shrink boot
(2) 16 Series Inline
SS6000-C
200 A, 600 VAC
16 Series Inline
2/0 AWG Type SC
(Entertainment)
Crimp with Y
heat shrink boot
(2) 16 Series Inline
SS5000-C
100 A, 600 VAC
16 Series Inline
#2 AWG Type SC
(Entertainment)
Crimp with Y
heat shrink boot
(2) 16 Series Inline
SS3000-C
Pin and Sleeve Extensions
Pin and Sleeve Extensions
Rating
Male
Connector
Cable
Female
Connector
NEMA
Configuration
Catalog No.
100 A, 4P5W , 120/208 VAC
5100P9W
2/5 Type W
5100C9W
Non-Nema
PE2/5W-XX-5100
60 A, 4P5W , 120/208 VAC
560P9W
6/5 Type W
560C9W
Non-Nema
PE6/5W-XX-560
Locking Extensions
xx specify cable length
16
50 Amp
Locking Extensions
Rating
Male
Connector
Cable
Female
Connector
NEMA
Configuration
Catalog No.
50 A, 3P4W,125/250 VAC
CS63-65C
6/4 SOOW-A
CS63-64C
Non-Nema
PE6/4-CS63-XX
xx specify cable length
Custom Configurations, Individual Connectors and Interconnecting Cable Assemblies Available.
NEMA Wiring Device Extensions are made with Extra Hard Usage (SOOW-A) or Junior Hard Service (SJOOW-A)
Portable Cord and Industrial Wiring Devices.
NEMA Extensions
15 A, 2P3W, 125 VAC Straight Blade (Edison) Extension
(right).
Rating
Male
Connector
Cable
Female
Connector
NEMA
Configuration
Catalog No.
30 A, 4P5W ,120/208 VAC
HBL2811
10/5 SOOW-A
HBL2813
L21-30
PE105-XX-L2130
20 A, 4P5W ,120/208 VAC
HBL2511
12/5 SOOW-A
HBL2513
L21-20
PE125-XX-L2120
15 A, 2P3W, 125 VAC
HBL5266C
12/3 SOOW-A
HBL5269C
5-15
PE7000-XX-515
15 A, 2P3W, 125 VAC
HBL5266C
12/3 SJOOW-A
HBL5269C
5-15
PE700J-XX-515
30 A, 4P5W, 120/208 VAC
28W81
10/5 SOOW-A
29W81
L21-30
PE105-XX-L2130W
20 A, 4P5W, 120/208 VAC
26W81
12/5 SOOW-A
27W81
L21-20
PE125-XX-L2120W
15 A, 2P3W ,125/208 VAC
14W47
12/3 SOOW-A
15W47
5-15
PE123-XX-515W
Weatherproof Extensions
NEMA Wiring Device Extensions
3 Ø, 30 A, 4P5W, 120/208 VAC Extension (left).
xx specify cable length
Multi-Receptacle Extension Cords
The award-winning Lex E-String™ Multi-Receptacle Extension Cord can be used for multiple applications. Comprised of a super flexible, extra-hard usage cord, the
E-String™ is durable and easy to use. Green LED indicator lights help in locating
receptacles and can be covered with attached dust
cover. Available with all black or all white construction.
Suitable for both indoor and outdoor use.
Recommended Version
Spacing
Catalog No.
Music stand lights in orchestra pits
12 AWG, six receptacles; 23'-4"; Black
4'-8"
50116BA
Meeting rooms for laptops, projectors
phones and other equipment
12 AWG, three receptacles; 25'; Black
8'-6"
59233B
Display booths in tents
12 AWG, six receptacles; 50'; White
10'
50112WA
Display booths in convention centers
12 AWG, six receptacles; 50'; Black
10'
50112BA
Scenery and other construction
12 AWG, six receptacles; 50'; Black
10'
50112BA
Photography lighting
12 AWG, three receptacles; 25'; Black
8'-6"
50123B
Outdoor Events
12 AWG, 220 VAC, four receptacles; 33'; Black
8'
59233B
E-String™
Applications
17
Cam Connectors, Accessories & Wetguard™ NEMA Wiring Devices
Cam-Type Connectors & Accessories
Male Inline
Female Inline
Panel Female Threaded Stud
Panel Male Threaded Stud
Panel Female Double Set Screw
Panel Male Double Set Screw
Rating
Cable
Size
Male
Inline
Female
Inline
Panel Male
Threaded
Stud
Panel
Female
Threaded
Stud
Panel
Male
Double Set
Screw
Panel
Female
Double Set
Screw
400 A
600 VAC
2/0 -4/0
204MI
204FI
640MTSP
640FTSP
640MP
640FP
235 A
600 VAC
#2 - 2/0
220MI
220FI
640MTSP
640FTSP
640MP
640FP
Note: Available in different colors (A = black, B = white, C = red, D = blue, E = green, Y = yellow, BR = brown, O = orange)
Male to (3) Female Parallelling T
Tapping T
Double Female
Double Male
Protective Cover
Snap Back Cover
16MFFF
MFF
RFF
MMM
Male: PCM
Female: PCF
CL40WTC-L-125
MMF
Note: Available in different colors (A = black, B = white, C = red, D = blue, E = green, Y = yellow, BR = brown, O = orange)
Wetguard™ NEMA Wiring Devices
•
•
EPTR rubber housing, water and
corrosion resistant.
Compression type strain relief is
watertight and prevents cord slippage.
NEMA
Config
Poles/
Wires
AC Volts
Male Plug
Female
Connector
125
14W47
15W47
3 Ø 120/208
26W81
27W81
3 Ø 120/208
28W81
29W81
15 Amp Devices – Straight Blade
5-15
2P3W
20 Amp Devices – Locking
L21-20
4P5W
30 Amp Devices – Locking
L21-30
18
4P5W
Yellow Jacket® Cable Crossovers
The Yellow Jacket Classic is an extra heavy duty cable protector that will readily stand up to high speed
bus and truck traffic. WIth its unique design and manufactured with 30% more polyurethane than
regular heavy duty cable protectors the Yellow Jacket Classic offers unparalleled durability and is the
best value in hinged lid cable protection.
(C)
(A)
CABLE PROTECTOR
END BOOTS
(Pair, Male/Female)
45˚ LEFT TURN
45˚ RIGHT TURN
Product
Model
(A) Length
in./mm
(B) Width
in./mm
(C) Height
in./mm
Weight
in./mm
Slot Size
in./mm
Number
of Slots
YJ1 -300
36 in./
914mm
21 in./
533mm
4 in./
102mm
40 lbs./
18.4 kg
3.0 in./
76mm
1
YJ1-500
36 in./
914mm
27 in./
686mm
6 in./
153mm
90 lbs./
41.4 kg
5.0 in./
128mm
1
YJ3-225
36 in./
914 mm
20 in./
508mm
3 in./
76mm
32 lbs./
14.5 kg
2.25 in./
57mm
3
YJ3-225
36 in./
914mm
27 in./
686mm
3 in./
76mm
48 lbs./
22.7 kg
2.25 in./
57mm
3
YJ4-125
36 in./
914mm
18 in./
457mm
2 in./
51 mm
23 lbs./
10.4 kg
1 .25 in./
32mm
4
YJ5-125
36 in./
914mm
19 in./
483 mm
2 in./
51 mm
24 lbs./
11.4 kg
1.25 in./
32mm
5
YJ5EB-125
End Boots
(pair M/F)
6 in./
152mm
20 in./
508mm
2 in./
51 mm
8 lbs./
3.8kg
1.25 in./
32mm
N/A
YJ5TL-125
Left Turn
25 in./
634mm
20 in./
508mm
2 in./
51 mm
25 lbs./
11.9kg
1.25 in./
32mm
N/A
YJ5TR-125
Right Turn
25 in./
634mm
20 in./
508mm
2 in./
51 mm
25 lbs./
11.9kg
1.25 in./
32mm
N/A
Cable Guards & Protectors
(B)
19
generator-ca-v1-a
Lex Products Corporation
15 Progress Dr.
Shelton, CT 06484
203.363.3738
203.363.3742 Fax
Lex West
1847 Sheldon Street
Sun Valley, CA 91352
818.768.4474
818.768.4040 Fax
www.lexproducts.com
info@lexproducts.com
800.643.4460
