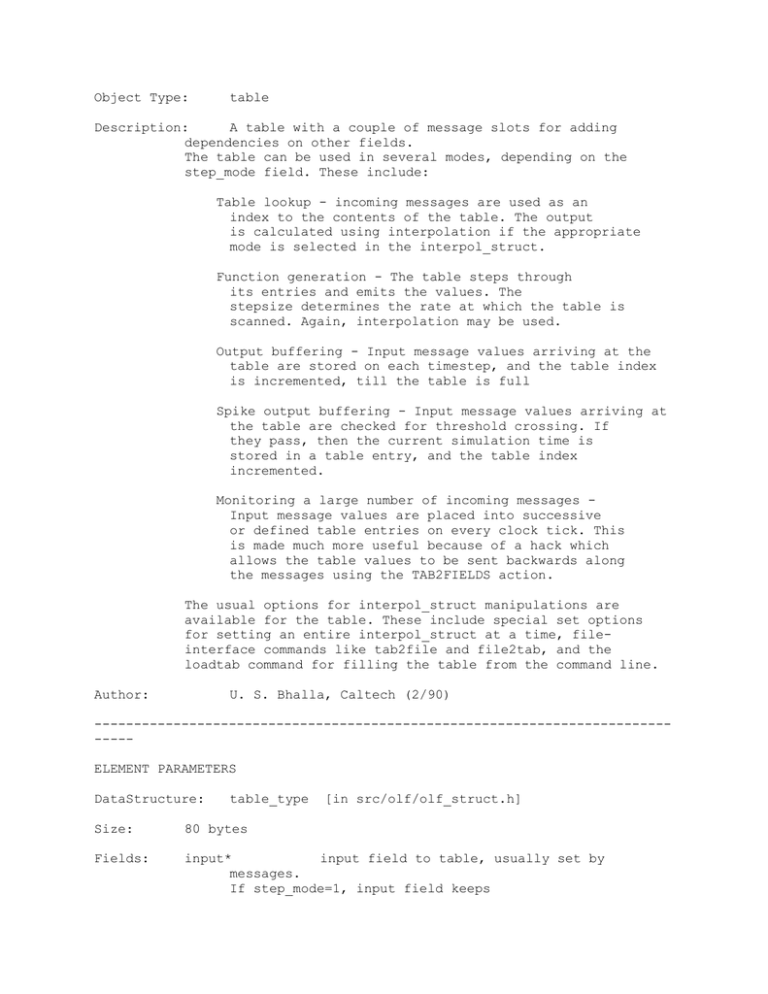

Object Type: table Description: A table with a couple of message slots for adding dependencies on other fields. The table can be used in several modes, depending on the step_mode field. These include: Table lookup - incoming messages are used as an index to the contents of the table. The output is calculated using interpolation if the appropriate mode is selected in the interpol_struct. Function generation - The table steps through its entries and emits the values. The stepsize determines the rate at which the table is scanned. Again, interpolation may be used. Output buffering - Input message values arriving at the table are stored on each timestep, and the table index is incremented, till the table is full Spike output buffering - Input message values arriving at the table are checked for threshold crossing. If they pass, then the current simulation time is stored in a table entry, and the table index incremented. Monitoring a large number of incoming messages Input message values are placed into successive or defined table entries on every clock tick. This is made much more useful because of a hack which allows the table values to be sent backwards along the messages using the TAB2FIELDS action. The usual options for interpol_struct manipulations are available for the table. These include special set options for setting an entire interpol_struct at a time, fileinterface commands like tab2file and file2tab, and the loadtab command for filling the table from the command line. Author: U. S. Bhalla, Caltech (2/90) ----------------------------------------------------------------------------ELEMENT PARAMETERS DataStructure: table_type [in src/olf/olf_struct.h] Size: 80 bytes Fields: input* input field to table, usually set by messages. If step_mode=1, input field keeps output* table* alloced step_mode stepsize track of the current position in the table (double) output field (double) interpol struct for table; assigned by TABCREATE (interpol_struct *) internal flag for table allocation (short) This flag selects between several modes of operation of the table. (short) 0 = TAB_IO - Default mode. Table does lookup. 1 = TAB_LOOP - Table acts as a function generator, looping back to the beginning when all the entries have been scanned. The input field is incremented by step_size on each timestep, and is used to perform the lookup. 2 = TAB_ONCE - Table acts as a function generator, terminating when all the entries have been scanned. At this stage the output is fixed at the last entry in the table. 3 = TAB_BUF - Table acts as a buffer. Incoming msg values are stored in successive table entries on each timestep. The output field keeps track of the table index. 4 = TAB_SPIKE - Table acts as a buffer for spike times. Incoming msg values are checked for crossing a threshold, which is stored in the 'stepsize' field. If they pass, then the simulation time is stored in the table entry. The output field keeps track of the table index. 5 = TAB_FIELDS - Table acts as a buffer for many incoming messages. If the messages are INPUT messages, each message value is placed in a successive table entry. If the messages are INPUT2, then the second slot of the message holds the table index. The TAB2FIELDS action will go back along these messages and place the table values into the source fields. This option does not work in parallel or with extended fields. increment to input for stepping through table with each clock tick in step_modes 1 and 2. In the case of step_mode 4, stepsize acts as the spike threshold. (double) ----------------------------------------------------------------------------- SIMULATION PARAMETERS Function: TableFunc Classes: segment Actions: PROCESS RESET SET TABCREATE [in src/olf/table.c] Must be called to allocate the interpol_struct of the table. syntax: call table TABCREATE xdivs xmin xmax This produces a table with indices from 0 to xdivs, i.e. xdvivs + 1 entries which span the range xmin to xmax. TABFILL Expands the table by using interpolation on the existing table entries. syntax: call table TABFILL xdivs fill_mode xdivs + 1 specifies the number of entries that the expanded table should have. fill_mode is one of 0 = B-spline fill (default) 1 = C_Spline fill (not yet implemented) 2 = Linear fill TAB2FIELDS Sends values from the table back to the originating element fields, only works with the TAB_FIELDS stepmode. syntax: call table TAB2FIELDS TABOP Carries out an operation on the entries in the table, putting the result in the 'output' field. syntax: call table TABOP op [min max] where op is the operation to perform and min and max are the x range on the table on which to operate The available operations are: a m M r s i f S DUMP Messages: = = = = = = = = average min Max range (i.e., max - min) slope intercept freq Sqrt(sum of squares) Saves the table fields and interpol entries in a script-readable file. This is an internal action only. INPUT input-value-for-lookup SUM value-to-sum-onto-output PRD value-to-multiply-output-by INPUT2 input-value-for-table index-for-value-to-go-to ----------------------------------------------------------------------------Notes: A table with a couple of message slots for adding dependencies on other fields. The table for the object is created using tabcreate. Does a table lookup with interpolation. Also permits one to modify the table with sum and product messages, so as to extend the dimensionality of the table. The table element is a way of defining arbitrary input-output functions. It is based on the interpol_struct described above, and provides the simplest form of access to it. Other values (possibly generated by other tables) may be summed or multiplied into the output value by means of messages, to permit pseudo-multidimensional functions to be generated by the table. Tables can also be used as function generators. The array with the table values has to be explicitly allocated using the TABCREATE function. Copies of a table use the original array unless a new array is explicitly allocated. Basically: output = lookup[input] * (prd values) + (sum values) TABCREATE The syntax for tables is simple, since there is only one interpol_struct to worry about: call <element> TABCREATE <xdivs> <xmin> <xmax> This call creates the interpol_struct data structure, which is rather badly named ``table''. Scaling tables When the fields table->sx, table->sy, table->ox, table->oy are set, the table element automatically scales on the entries in the interpol_struct array so as to avoid scaling computations during simulations. Example : Using the TAB_FIELDS options ============================CUT HERE====================================== //genesis // This example illustrates the use of the TAB_FIELDS options in // the table element. // First, we create a bunch of neutrals. The createmap command // lays them out in a 10x10 square array with unit spacing. createmap neutral /foo 10 10 -object // Then we create a table create table /bar call /bar TABCREATE 100 0 100 // We now assign the TAB_FIELDS step_mode. In this mode, incoming // messages are sent to successive table entries, and updated // on every clock tick. setfield /bar step_mode 5 // TAB_FIELDS addmsg /foo/proto[] /bar INPUT x reset step // To do the clock tick and assign the table values. int i /* Here we show the x fields */ echo echo Showing x fields before: for (i = 0; i < 100; i = i + 1) echo {getfield /foo/proto[{i}] x} " " -n end // Here we show that the table entries are now equal to the // x fields echo echo Showing table array for (i = 0; i < 100; i = i + 1) echo {getfield /bar table->table[{i}]} " " -n end // here we add 0.5 to each of the values in the table array. for (i = 0; i < 100; i = i + 1) setfield /bar table->table[{i}] \ {{getfield /bar table->table[{i}]} + 0.5} end // here we call the action in the table which goes back through // the messages and puts the new values in the source fields, // in this case the x coords of the array of neutrals. call /bar TAB2FIELDS // Here we look to see what happened. echo echo Showing x fields after: for (i = 0; i < 100; i = i + 1) echo {getfield /foo/proto[{i}] x} " " -n end echo ============================CUT HERE====================================== See also: Interpol documentation (Tables).
