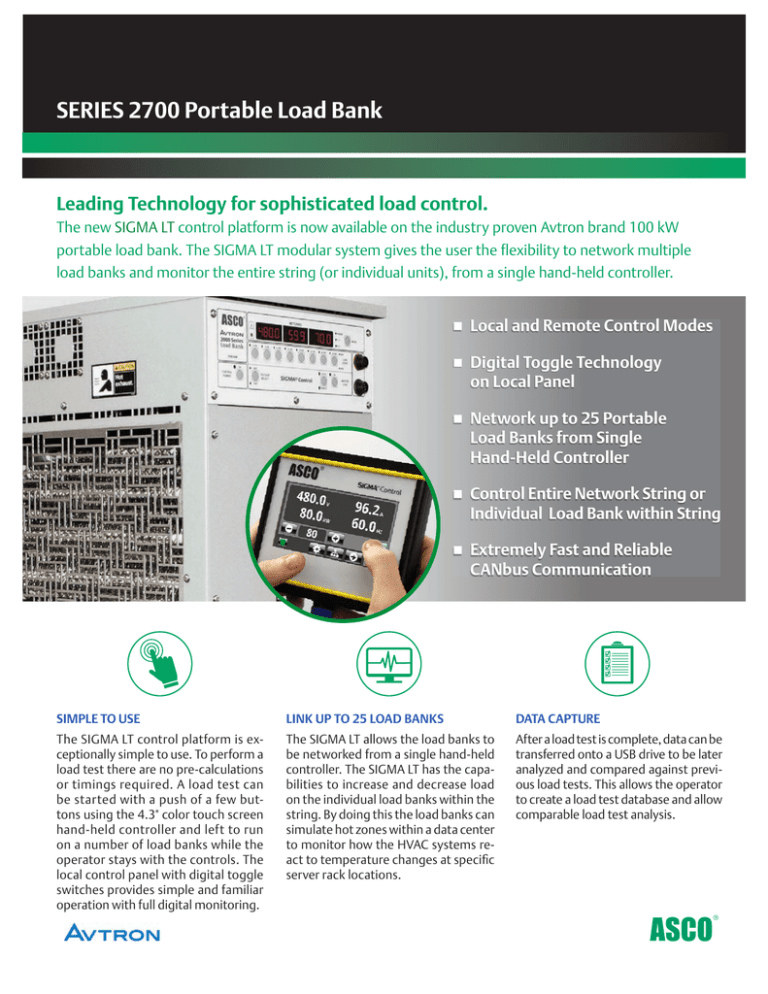

SERIES 2700 Portable Load Bank
Leading Technology for sophisticated load control.
The new SIGMA LT control platform is now available on the industry proven Avtron brand 100 kW
portable load bank. The SIGMA LT modular system gives the user the flexibility to network multiple
load banks and monitor the entire string (or individual units), from a single hand-held controller.
nLocal and Remote Control Modes
nDigital Toggle Technology
on Local Panel
nNetwork up to 25 Portable
Load Banks from Single
Hand-Held Controller
nControl Entire Network String or
Individual Load Bank within String
nExtremely Fast and Reliable
CANbus Communication
SIMPLE TO USE
LINK UP TO 25 LOAD BANKS
DATA CAPTURE
The SIGMA LT control platform is exceptionally simple to use. To perform a
load test there are no pre-calculations
or timings required. A load test can
be started with a push of a few buttons using the 4.3" color touch screen
hand-held controller and left to run
on a number of load banks while the
operator stays with the controls. The
local control panel with digital toggle
switches provides simple and familiar
operation with full digital monitoring.
The SIGMA LT allows the load banks to
be networked from a single hand-held
controller. The SIGMA LT has the capabilities to increase and decrease load
on the individual load banks within the
string. By doing this the load banks can
simulate hot zones within a data center
to monitor how the HVAC systems react to temperature changes at specific
server rack locations.
After a load test is complete, data can be
transferred onto a USB drive to be later
analyzed and compared against previous load tests. This allows the operator
to create a load test database and allow
comparable load test analysis.
Series 2700 Load Bank
The Series 2700 load bank is rated at 100
kW at 480 VAC and 93.75 kW at 240 VAC,
3 phase, 60 Hz. Utilizing the leading technology of the SIGMA LT control platform,
the Series 2700 represents the new standard for compact portable load banks.
Load Select
Voltage Select
Metering
Network
Master Load
Local/Remote
Mode
METERING
V/Hz/kW
V
/H
Hzz/kW
!
MODE
Vx3
Ax3
The Series 2700 features
two modes of control.
2000 Series
Load Bank
5 kW
10 kW
10 kW
0 kW
kW
10
0 kW
kW
20
0 kW
kW
20
0 kW
20
LOAD
SELECT
100 kW
The local mode is manual control via
digital toggle switches. The local mode features full digital monitoring and individual
load steps with LED indications.
The remote control mode is via the
optional hand-held controller. It features a
4.3" color touch screen housed in a rugged
and easy to grip industrial grade enclosure.
Load selection can be the sum of the entire
load string (up to 25 load banks) or individual
units within that string. Extremely fast and
reliable CANbus communication protocol is
used in the SIGMA LT for networking. CANbus protocol reduces network sag which is
typically found in RS232 network load banks.
A USB port is provided for data download and
software updates.
5 kW
48
80V
480V
ON
O
TRO
OL
L
CONTROL
WER
POWER
LOCAL
LOC
CAL
L
ON
O
SIGMALT Control
VOLTAGE
SELECT
240V
MASTER
LOAD
REMOTE
ASCO Label P/N 1073470-001 Rev. C
Durable
Enclosure
Color Touch
Screen
Load
Selection
Individual
Load Bank
Control
Network up to 25
Load Banks
Safety features in either mode of operation
include over temperature and over voltage.
Data Logging &
Statistical Data
(USB Port)
WARNING
Specifications
16.25 [413.00]
14.75 [375.00]
Construction
ASCO
A compact aluminized steel enclosure with
screened inlet and exhaust openings. Four
swivel casters provide mobility. Heavy duty
lifting handles are also provided.
Controls
Two modes of control; local or remote via
optional hand-held controller.
SIGMALT
CONTROL
PANEL
25.16 [638.97]
LOAD CONNECTION PANEL
METERING
R
V/Hz/kW
!
MODE
Vx3
Ax3
5 kW
5 kW
10 kW
10 kW
10 kW
20 kW
20 kW
20 kW
LOCAL
ON
GND
LOAD
SELECT
100 kW
ON
480V
CONTROL
POWER
VOLTAGE
SELECT
240V
120 VAC
MASTER
LOAD
REMOTE
A
B
C
29.12
[740.00]
AIR
FLOW
Control Power
The load bank requires control power of 120
VAC, single phase, 60 Hz (line cord provided).
Cooling
The resistive elements are air cooled by four
high velocity muffin fans for quiet operation.
Safety Circuits
The Series 2700 Load Bank features main line
circuit fusing, wrong voltage protection (Dual
Voltage model only), and over temperature
protection.
ASCO Power Technologies
6255 Halle Drive, Cleveland, OH 44125
EmersonNetworkPower.com/loadbank
LBsales@emerson.com 1-216-573-7600
2.63 [67.00]
Load Bank Weight
Load Capacity Ratings (3 phase, 60 Hz)
Rated kW
Rated Voltage
Load Step Resolution
100
480
5, 10, 10, 25, 50
93.75
240
3.75, 7.5, 7.5, 25, 50
NOTE: Designs for international 50/60 Hz voltages or
custom designs are also available. Consult factory.
105 lbs. [48 kg.] (approx.)
Options
20' cable set with connectors
Heavy duty shipping case
Specifications subject to change without notice.
Emerson Network Power is a trademark of Emerson
Electric Co. or one of its affiliated companies.
©March 2016 Emerson Electric Co.
Bulletin 609 Rev. B
