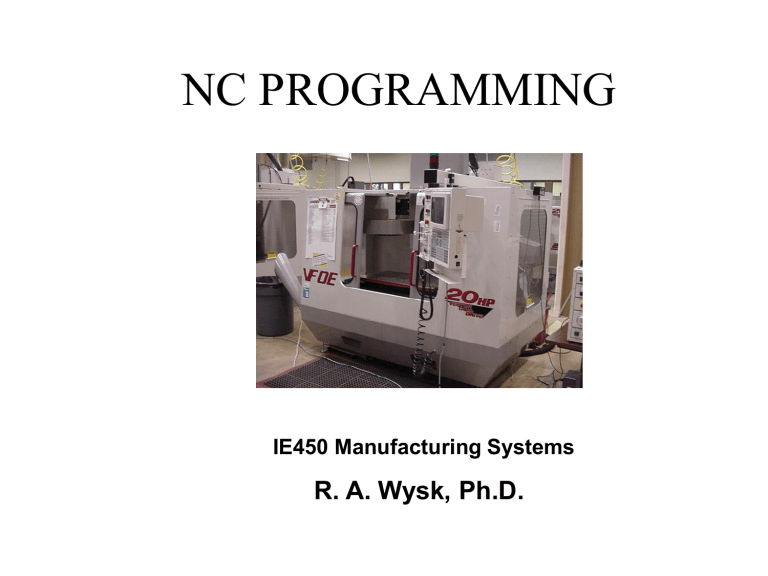

IE450 Manufacturing Systems
R. A. Wysk, Ph.D.

Introduction
Types of NC Machines
Components of a NC Machine
Control Mechanisms
Interpolation
Software Components

• Chapters 12-13 of
Computer Aided
Manufacturing , Wang, H.P., Chang, T.C. and
Wysk, R. A., 3 rd Edition ,2006. Chapter 9.

• To be able to know when and what type of NC should be used
• To be able to read and interpret an NC part program
• To be able to create NC part programs for milled parts
• To understand the difference between world, machine and part coordinates
• To understand how to set machine offsets
• To execute an NC part program

• 15th century - machining metal.
• 18th century - industrialization, production-type machine tools.
• 20th century - F.W. Taylor - tool metal - HSS
Automated production equipment -
Screw machines
Transfer lines
Assembly lines using cams and preset stops
Programmable automation -
NC
PLC
Robots

• high speed spindle (> 40,000 rpm)
• high feed rate drive ( > 600 ipm)
• high precision ( < 0.00005" accuracy)

• Computer control
• Servo axis control
• Tool changers
• Pallet changers
• On-machine programming
• Data communication
• Graphical interface

As a group, discuss how you could justify the purchase of an NC machine.
• What are the downsides for purchasing an
NC machine?
• Besides direct labor reductions, what other benefits come from NC machines?

• Variance reduction
– Time and quality
• Eliminate direct labor
• Produce increased part complexity
– Contouring
• Improve process efficiencies

MCU
MCU - Machine control unit
Machine
Tool
CLU - Control-loops unit
CLU
DPU
DPU - Data processing unit

NC Program
Execut ion
Sy st em
Dim ensio n s
Int erpolat or &
Se r v o - c o n t r o l
Mec hanism
Com m ands
T r an sl at o r
Cont rol Logic Po w e r Re la y
Linear Mot ion So len o id

1. Motion control: point to point (PTP) continuous (contouring) path
2. Control loops: open loop closed loop
3. Power drives: hydraulic, electric or pneumatic

4. Positioning systems: incremental absolute positioning
5. Hardwired NC and softwired
Computer Numerical Control (CNC)

• Moving at maximum rate from point to point.
• Accuracy of the destination is important but not the path.
• Drilling is a good application.

• Controls both the displacement and the velocity.
• Machining profiles.
• Precise control.
• Use linear and circular interpolators.

COMPONENTS OF AN NC MACHINE
TOOL – translation axis control
Controller
Position resolver
Machine table Gear box
Tachometer
Motor
Leadscrew
Servo drive
Magnetics control cabinet

• Accuracy
• Repeatability
• Spindle and axis motor horsepower
• Number of controlled axes
• Dimension of workspace
• Features of the machine and the controller.

• Accuracy - control instrumentation resolution and hardware accuracy.
• Control resolution: the minimum length distinguishable by the control unit (BLU).
• Hardware inaccuracies are caused by physical machine errors.

Component tolerances: inaccuracies in the machine elements, machine-tool assembly errors, spindle runout, and leadscrew backlash.
Machine operation:
Tool deflection (a function of the cutting force), produces dimensional error and chatter marks on the finished part.

Thermal error: heat generated by the motor operation, cutting process, friction on the ways and bearings, etc. Use cutting fluids, locating drive motors away from the center of a machine, and reducing friction from the ways and bearings

Programmed p osition
Repeatability
Avg. error
Test result

Converting the rotational motion of the motors to a linear motion.
Nut
Leadscrew
Pitch pitch (p): the distance between adjacent screw threads the number of teeth per inch (n): n = 1 / p
BLU: Basic Length Unit (machine resolution)
BLU = p (inch/rev)) / N (sensor points/rev)
Where N is normally defined as the gain from a resolver or encoder.

number of teeth per inch (n) = 20 n = 1 / p (teeth/in) = 0.05 in/rev
Resolver gain - N (sensor points/rev) = 200 pulses/rev
BLU = p (inch/rev)) / N (sensor points/rev)
= 0.05 in/rev / 200 pulses/rev
= 0.00025 inch

Open loop - No position feedback.
table pulses motor
Use stepping motor.

• A machine has 1 BLU = 0.001".To move the table 5" on X axis at a speed (feed rate) of
6 ipm.
• pulse rate = speed/BLU = 6 ipm/0.001 ipp= 6,000 pulse/min
• pulse count = distance/BLU
= 5/0.001 = 5,000 pulses

_
Up-down counter
+
Reference p ulses
DAC Amp
Differential amplifier
+ DC
Motor
Shaft
Tacho- meter
Encoder
Closed-loop control mechanism

Control multiple axes simultaneously to move
Y on a line, a circle, or a curve.
Y
(10,5)
(3,2)
Point-to-point control path
V
x
=6
(10-3)
(10-3)
2
+ (5-2)
2
X
= 6
V y
=6
(5-2)
(10-3)
2
+ (5-2)
2
= 6
(3,2)
Linear path
7
49+ 9
= 5.5149
3
49+ 9
= 2.3635
(10,5)
X

• Most common : linear and circular
• Since interpolation is right above the servo level, speed is critical, and the process must not involve excessive computation.
• Traditional NC interpolators: Digital
Differential Analyzer (DDA)
• Higher order curves, such as Bezier's curve, use off-line approximation algorithms to break the curves into linear or circular segments.

y z
•
Right hand rule z
•
Z axis align with the spindle - +Z moves away from the workpiece or the spindle.
•
X axis - Lathe: perpendicular to the spindle.
•
Horizontal machine: parallel to the table.
•
Vertical machine: +X points to the right.
y x x

Z
X - Primary Feed axis
Z - Spindle axis
Y - Remaining axis
Y
X

• Paper tape
Paper or Mylar coated paper.
• Diskettes
• From other computers through RS 232 or local area network (LAN)

• ASCII or ISO, use even parity
• EIA - Binary Coded Decimal (BCD), RS
244A standard, use odd parity.

• Machining centers
• Turning centers

• High-Speed Spindles
30,000-rpm Spindle: The Haas 30K spindle uses BT 30-taper tooling and accepts tools up to 0.5" max diameter.
Hybrid ceramic angular-contact bearings, an air/oil spot lubrication system, and a spindle chiller ensure superior accuracy and long bearing life.
The 30K spindle is available on VF-1 through VF-4 models. 10,000- and
15,000-rpm Spindles: A variety of 10K spindles are available for Haas VF models – for 40- or 50-taper models, with or without a gearbox. A 15K spindle option is available for all 40taper, direct-drive VF models.

• High-Speed Machining
The HSM option provides a powerful tool to reduce cycle times and improve accuracy. Using a motion algorithm called ”acceleration before interpolation,“ combined with full look-ahead of up to 80 blocks, HSM provides fast contouring feeds without distortion of the programmed path.
The Haas HSM option accepts ISO standard G code, and is a fraction of the cost of other highspeed controls

• Through-Spindle Coolant
Optional TSC supplies coolant at up to 300 psi to the cutting edge, for longer tool life, higher speeds, and improved deep hole drilling and blind pocket milling – as well as reduced cycle times. The exclusive
Haas design includes a special seal that disengages when the system is not in use, which extends the life of the system. (Note: This system provides 300 psi at a flow rate of 1.5 gallons per minute and 250 psi at
4 gpm. The actual pressure will vary with the diameter of the coolant passages in the tool).
High-Pressure (1000 psi) TSC
Available on the VF Super Speed models and all 50-taper VF models, high-pressure TSC makes it easier to perform deep-hole drilling and heavy cuts, allows faster feedrates and provides better surface finishes.
Max flow rate is 6 gal/min at 1000 psi; max spindle speed is 10,000 rpm with the high-pressure TSC option enabled.

• Linear Scales
When absolute positioning accuracy is necessary, linear scales are the only way to ensure exact axis positioning under the fluctuating conditions that exist in today’s machine shops. Linear scales ensure positioning accuracy along X, Y and Z axes by compensating for the thermal variations inherent in all machine tools. With 2-micron resolution, these scales deliver high accuracy for the type of precision that mold making and other high-tolerance machining applications demand.

Full 4th- and 5th-Axis Capabilities
Add a fully integrated Haas rotary table to your
VMC to create a supercharged machining center: Program any angle, perform circular cuts on the outside of your parts, or machine complex contours such as impellers.
From the original HA5C collet indexer to the
HRT series to the TR series trunnion tables, a
Haas rotary is the industry benchmark. For superior accuracy, Haas cuts the worm gear while it's attached to the spindle, rather than assembling the finished worm gear to the spindle. And Haas rotary products run directly from the machine’s control, for seamless operation and uncomplicated programming.

Programmable Coolant Nozzle
P-Cool is a multi-position programmable nozzle that automatically directs coolant precisely at the part without having to open the doors. The position of the nozzle is controlled via the part program, saving operator time by eliminating constant adjustments and allowing unattended operation. The nozzle can also be fine-tuned from the control pendant while a program is running.

Auto Door
With this option, the machine doors open and close automatically via the part program. This reduces operator fatigue during repetitive machining – which can increase operator productivity by up to 25% – and allows for unattended operation when used with a robotic loader.
Hard Drive & Ethernet Interface w/USB Support
This option provides tremendous flexibility in program transfer and storage. The 20 GB hard drive supplies ample storage space for program files, and the USB connection supports either a customersupplied ZIP™ drive or flash disk. The Ethernet component allows quick and easy data transmission between your Haas machine and a network or PC, and large files can be accessed by multiple machines.
High-speed data transfers allow DNC of large files at up to 1000 blocks per second. The Ethernet interface works with Windows XP,
ME, 2000 Pro & Server, NT 4.0, 98 and 95. IPX/SPX or TCP/IP protocol; easy setup from the control screen.

•
Haas Probing Systems
ML PS 95/175 Laser Tool Monitor and Work Measure Upgrade Kit:
Upgrade to Marposs - This non-contact laser system allows for automatic tool length, diameter measurement and breakage detection for tools from 0.008" to 6.8" in diameter.
The laser can be programmed to check tool profiles, monitor wear on multi-insert end mills, and can update tool offsets and compensates for thermal variations. This kit features IPC, Instant Productivity Cycles for quick and easy use on both laser tool setting and work probe systems by anyone who can operate an edge finder and indicator.
IPC are defaulted program cycles that do not require approximate tool offset inputs or descriptions for length and diameter measurements. IPC along with the work probe are just as easy to use for setting work offsets and measuring and finding part features by utilizing the wide range of defaulted programs. IPC features are many, fully defaulted cycles or creative and program them yourself. This upgrade kit will reduce your set-up times, while automatically updating your tool offset registers and more!

Workpiece rotates and tool stays stationary – normally horizontal.

•
Haas Servo Bar 300
Designed to boost productivity and streamline turning operations, this servo-driven bar feeder is built by
Haas exclusively for Haas CNC lathes. It runs directly from the
Haas control, making it the only
“smart” bar feeder on the market.
Unique features make setup and operation simple, like a large access door for spindle liner change-out and a single adjustment for setting bar diameter. All bar feed parameters are set at the lathe control.

•
Live Tooling
The live tooling option for Haas lathes allows you to use standard VDI 40 axial or radial driven tools to perform secondary operations such as milling, drilling, flatting and tapping – both on the face of the part and around the diameter. This option includes a full C axis, which provides interpolated bidirectional motion at precise speeds and feeds for part positioning and repeatability. A powerful hydraulic brake locks the main spindle during secondary operations, and disengages for turning and indexing.
Live tooling is not available with a standard bolt-on style tool turret. It is only available with the VDI or VB
Hybrid turret.

•
Steady Rest Provision
The Haas steady rest platform provides increased support for turning and boring long shafts on
SL-30 and SL-40 lathes. It features industry-standard mounting holes to accept a variety of aftermarket automatic hydraulic steady rests.
Hydraulic power is provided by the lathe, and the gripper is activated by M code.
*The steady rest provision does not include the gripper. Minimum and maximum part diameters are dependent on the size and style of gripper unit mounted on the platform. Minimum and maximum travel limits are measured from the spindle bulkhead, and do not include chuck dimensions or other workholding.

•
Parts Catcher
For bar feed applications, or when using a bar puller, the parts catcher rotates into position to catch the finished part and direct it into a bin located on the front door. There’s no need to stop the machine and open the door to retrieve parts.

• Tool Presetter
The manual tool-probe arm swings down for fast tool setting. Touch the tool tip to the probe and offsets are automatically entered.

• Primary Reference:
Chang T-C., Wysk, R. A., and Wang, H-P., “Computer
Aided Manufacturing”, Prentice Hall International Series in Industrial and Systems Engineering, 2006, Upper Saddle
Valley, NJ 07458. ISBN 0-13-754524-X Chapter 12 http://www.haascnc.com/

• Introduction
• Absolute and Incremental Programming
• Elements of NC Program
• NC Words (G, M, T, S, … Codes)
• Examples
• Cutter Compensation and Offsets
• Examples
• Conclusions

• Manual part programming
• Computer-assisted part programming
• Formats
– Fixed-Address
– Tab-Sequential
– Word-Address

Example 9.1
Machined from a 5" x 4" x 2" workpiece. low carbon steel.
The process plan:
1. Set the lower left bottom corner of the part as the machine zero point
(floating zero programming).
2. Clamp the workpiece in a vise.
3. Mill the slot with a 3/4" four flute flat end mill made of carbide. From the machinability data handbook, the recommended feed is 0.005 inch/tooth/rev, and the recommended cutting speed is 620 fpm.
4. Drill two holes with a 0.75" dia twist drill. Use 0.18 ipr feed and 100 fpm speed.

4 .0 0 0
.7 5
2 ho les
ø0.7 5± 0.001
C
R1 .0 0 0
3 .0 0 0
A
1 .0 0 0
B
1 .7 5
3 .0 0 0
2 .0 0 0
5 .0 0 0
.5 00
2.0 0 0
C
All dimension in inches. A ll t olerance ± 0. 00 1 "

Solution:
The cutting parameters need be converted into rpm and ipm.
Milling: RPM = 12
D
V
=
12 x 620 fpm

0.75 inch
= 3,157 rpm
RPM =
12 V

D
=
12 x 100 fpm

0.75 inch = 509 rpm
Drilling:
V f
= f RPM = 0.018
ipr x 509 rpm = 9.16
ipm

p3 p2
H2
H1 p8 p4 p6 p7 p5 p1
(0,0,0)
Drill End mill p9
Vise jaw
(0,0,0)

The coordinates of each point (cutter location) are calculated below: p1': ( 1.75+0.375, -0.1-0.375, 4.00) = (2.125, -0.475, 4.000) p1: (2.125,-0.475, 2.000-0.500) = (2.125,-0.475,1.500) p2: (2.125,4.000+0.100,1.500) = (2.125,4.100,1.500) p3: (3.000-0.375,4.100,1.500) = (2.625,4.100,1.500) p4: (2.625,1.375,1.500) p5: (3.000,2.000-1.000+0.375,1.500) = (3.000,1.375,1.500) p6: (3.000,2.625,1.500) p7: (3.000,2.000,1.500) p8: (2.625,2.000,1.500) p9: (2.625,-0.100,1.500) p9': (2.625,-0.100,4.000)

Part program
N0010 G70 G 90 T08 M06
Explanation
Set the machine to inch format and absolute dimension programming.
N0020 G00 X2.125 Y-0.475 Z4.000 S3157 Rapid to p1'.
N0030 G01 Z1.500 F63 M03 Down feed to p1, spindle CW.
N0040 G01 Y4.100
N0050 G01 X2.625
Feed to p2.
To p3.
N0060 G01 Y1.375
To p4.

Part program Explanation
N0070 G01 X3.000
To p5.
N0080 G03 Y2.625 I3.000 J2.000
Circular interpolation to p6.
N0090 G01 Y2.000
N0100 G01 X2.625
N0110 G01 Y-0.100
To p7.
To p8.
To p9
N0120 G00 Z4.000 T02 M05
N0130 F9.16 S509 M06
To p9', spindle off, tool #2.
Tool change, set new feed and speed.
N0140 G81 X0.750 Y1.000 Z-0.1 R2.100 M03 Drill hole 1.
N0150 G81 X0.750 Y3.000 Z-0.1 R2.100 Drill hole 2.
N0160 G00 X-1.000 Y-1.000 M30 Move to home position, stop the machine.

• Fixture
– G10, G54, G54.1
• Diameter
• Tool
– Length compensation
– Part-Edge compensation
• Cutter Compensation – Next Slides
• Others Discussed in Lab Exercises (Simulators)

• Cutter Compensation
Shifting tool path so that the actual finished cut is either moved to the left or right of the programmed path.
• Normally, shifted exactly by tool radius
• Tool Entry and Exit Issues

• You should know how an NC machine works
• You should be able to create an NC program using MasterCAM
• You should be able to read an NC program and understand what the machine will do
• You should be safe in the FAME lab using
NC machines
