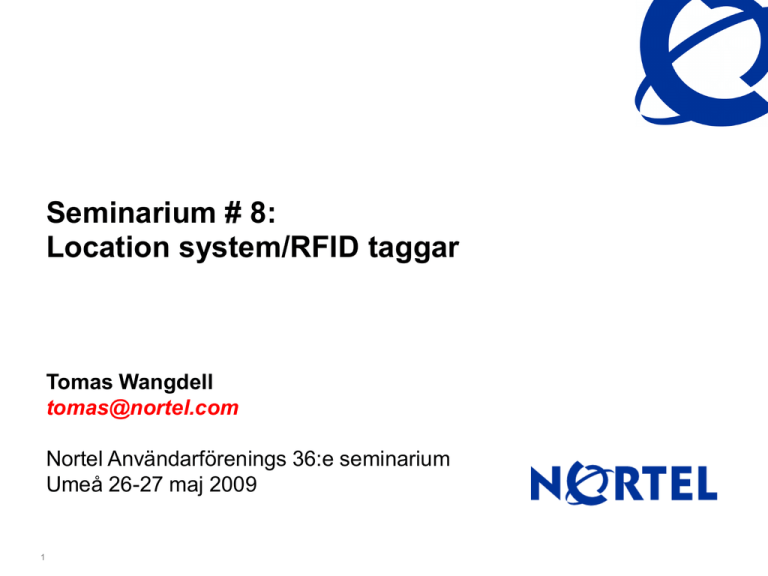

Seminarium # 8:
Location system/RFID taggar
Tomas Wangdell
tomas@nortel.com
Nortel Användarförenings 36:e seminarium
Umeå 26-27 maj 2009
1
Agenda
DEL 1
GENERELL ÖVERSIKT
Vad är ”Lokaliseringstjänster” ?
Hur fungerar det ?
Vad skall man ha det till ?
Vilka sorter finns det ?
DEL 2
MER DETALJER & EXEMPEL
Exempel Asset Tracking and Management System
Exempel Clinical Alarms and Alerts
Wireless WoVOIP/DECT
UC/nya användningsområden
SYFTE
Sätta Nortel på ”kartan” när det gäller lokaliseringstjänster
Ge en insikt om vad det rör sig om
Vilja boka möte
2
Litet lexicon 
RFID
Radio Frequency ID
Identitetsinformation för ett objekt/person
Sk tagg
”skickar”
RTLS
Real Time Location Tracking System
Realtidsbaserad lokaliseringssystem
”fångar”
3
RFID en växande företeelse inom alla brancher
Improving Efficiency with Real-Time Status
GATE SECURITY
Vi kommer företrädelsevis att titta på
sk In Building Asset Tracking
(dvs med ett underliggande WLAN)
ε
ε
ε
IN BUILDING ASSET TRACKING
ε
ε
ε
CRITICAL INFRASTRUCTURE MONITORING
CITYWIDE MONITORING
INVENTORY MANAGEMENT
FLEET TRACKING
4
ε
Varför RTLS?
• Leverage WLAN infrastructure with Wi-Fi-based asset/personnel
tracking and location applications
• Fast locating of tagged equipment improves core services
• Location context for workflows makes business operations and
processes more efficient
• Locating lost or missing equipment saves money
• Preventing theft reduces cost
5
Location Tracking in
Healthcare
1. Asset Tracking
•
•
•
•
•
Clinical equipment
Wheelchairs
Beds
Medical assets
IT assets
2. Staff tracking
•
•
Process/workflow
improvement
Nurse safety – panic alarming
3. Patient tracking
•
•
•
6
Process improvement through
departments
Mental illness facilities
Nursing homes/elderly care
Location Tracking in Mfg. & Supply Chain
1. Asset Tracking
•
•
•
Production equipment
Transport equipment
Tools
2. Staff tracking
•
•
•
•
Safety
Work-flow
Regulatory compliance
Time and attendance
3. Inventory tracking
•
•
•
•
7
Work in progress items
High value parts
Assemblies
Crates, carts, pallets
Location Tracking in Process
Industries
1. Asset Tracking
•
•
•
•
Production equipment
Transport equipment
MRO Equipment
Explosives / chemicals
2. Staff tracking
•
•
•
•
Safety in hazardous work
areas ( mines, chemical
plants, etc. )
Work-flow
Regulatory compliance
Time and attendance
3. Inventory tracking
•
•
8
Raw materials transport
Finished goods
Olika typer av lokaliserings tjänster
RTLS vs. Conventional RFID
• Passive RFID - Short Read Range Identification Technology
• Chokepoint-based
• More data than barcode, easily readable, becoming
inexpensive
• Standardized (EPC Global )
• Primarily an identification resource – not for location tracking.
• Active RFID - Location Tracking – Point Solutions
•
•
•
•
Use portals/scanners as overlays to existing LAN/WLAN
No standards proprietary networks
Various frequencies, tags & vendors create incompatible silos
Varying levels of performance, scalability and accuracy
• RTLS - Location Tracking – Leverage 802.11 coverage
• Real-time enterprise-wide location tracking
• Proprietary overlay systems over 802.11 networks
• Open standards 802.11-based leverages WLAN infrastructure
9
Client-Based Location (WLAN) “Jag är här”
Signal strength (of APs) collected by client (tag/PC)
Client sends data to location server over WLAN
APs
Client-Based
(of known
location)
Pros:
• Low cost of investment
• Infrastructure agnostic
• Good for on-demand
applications
• Potentially more accurate
Cons:
Cons:
RSSI 1
RSSI 2
RSSI 3
Client Device
Or tag Intranet
• Devices
require
client
• Devices
require
client
• Not
suitable
low
cost,
• Not
suitable
forfor
low
cost,
simple
devices
simple
devices
Wireless
Security
Switch
• Requires
calibration
• Requires
calibration
of of
Location
Server
Location
Server
• Requires
transport
location
• Requires
transport
of of
location
WLAN
network
infoinfo
overover
WLAN
network
10
RSSI
1, 2, 3
Mgmt. /
Location
Server
Application
Workstation
Infrastructure-Based Location (WLAN) “Du är där”
Signal strength (of MU) collected by AP/SPs
WLAN system sends data to location server via API
Client Device
Or tag
Infrastructure-Based
Pros:
• Low cost of investment
• Clientless
RSSI 1
RSSI 3
APs
RSSI 2
(of known
location)
Intranet
Wireless
Security
Switch
11
Mgmt. /
Location
Server
Application
Workstation
• Can locate active tags
Cons:
• Requires homogeneous
Cons:
WLAN network
•• Devices
client
Difficultyrequire
with certain
applications
like
E911
• Not
suitable for
low
cost,
simple
devices
• Requires
calibration of
Location calibration
Server
• Requires
of
Location
Servermodification of
• May require
MAC
• Requires
transport of location
info
over
• Can
beWLAN
foolednetwork
by client
Asset Tracking & Management – Översikt
Nortel
MCS
Communications Software
IBSS SynTrack – integrates location and
inventory info from various vendors into a
single framework. Policy engine drives
automated actions/alerts.
Application Software
Ekahau Positioning Engine – calculates the current
position of tagged assets
RTLS Base Software
Transport
Wi-Fi infrastructure - used for transport
or others
Readers & other hardware
None – Ekahau leverages
Wi-Fi infrastructure
Wi-Fi Tags
Active Wi-Fi Tags
Advantages
12
Ekahau “Software Tag” Clients
– Leverages WLAN Infrastructure
– Requires No Readers or Proprietary Hardware
– Leverages Best-in-class Partner Technologies
Professional Services - complete service suite:
design/deploy, implementation, training, support
eMail
Exempel på “Wi-Fi tag”:
Ekahau T-301A
• Ekahau’s 3rd Generation Wi-Fi Tag
• Built-in CPU, 802.11-b radio, full IP stack, motion sensor, memory and
power circuitry
• Li-Ion battery packs for up to five year battery life
• OTA (Over the Air) configuration and alerting
• Multi-application
•
•
•
•
Personnel security via belt clip
Object tagging via surface mounting, tie-wrap, hanger etc.
Two programmable (call/panic) buttons
Programmable signal LEDs and customizable buzzer
• Secure
• Optical tamper switch detects unauthorized removal of the tag
• Supports WEP and WPA-PSK, WPA2-PSK
• Events that cause a Tag to provide a location update to EPE
1. Periodic Update
2. Button Press
3. In Motion
4. After Motion
5. Tamper Event
13
There are other form factors of the tags, the T301B is the badge tag (w/o LED
display) and T301BD (w/LED display)
Personnel / Asset Tracking
with Location Technology
End-User Impact
• Employee Safety
• Improve employee safety by knowing
where they are if they are in distress
• Improved communication
• Communicate with a person based on
their location (closest to “x”)
• Improved Use of Resource
Allocation
• Leverage assets and investments to
their full potential
• Track usage (by floor, room, zone)
• Track / prevent loss
• Locate equipment by proximity to your
current location
14
Agenda
DEL 1
GENERELL ÖVERSIKT
Vad är ”Lokaliseringstjänster” ?
Hur fungerar det ?
Vad skall man ha det till ?
Vilka sorter finns det ?
DEL 2
MER DETALJER & EXEMPEL
Exempel Asset Tracking and Management System
Exempel Clinical Alarms and Alerts
Wireless WoVOIP/DECT
UC
15
Asset Tracking & Management
Start on high-return, location-aware applications for tracking
assets, personnel and patients.
Use of Radio Frequency Identification (RFID) capabilities, integrated
with mobile communications, inventory solutions and directory
applications, to track the location of assets, patients and clinicians.
Solution Benefits
• Improve efficiency through better utilization
of assets and resources.
• 40% Reduce Asset Loss/ theft and 10%
less inventory. 25% reduced rental costs.
• Streamlining Patient Workflow by 15%-20%
• Enhanced Patient & Clinician Safety
16
Asset Tracking solution
Leverage the WLAN network to provide real-time
location & status of assets, inventory, & people
• Ekahau Finder/Tracker Application or IBSS provides a
holistic view of the current placement of assets, inventory
or people at any time on map-based software
• Ekahau Tags, Badges or Clients are used to identify
assets, inventory or people to be tracked
• Location Clients can be placed on many different wireless
devices, including: Nortel Wireless VoIP Handsets,
handheld RFID or barcode scanners, PDAs, and laptops
• UC integration – click to call from GUI, generate UCbased event messaging based on business rules
• Determine efficiency by recording
the movement of assets & people
• Increase efficiency and
safety/security through
automated alerts based on location
• Provide new revenue-generating
services to some verticals (such
as “track my child”, …)
WLAN 2382
(part of core network)
LAN
Badges
Wireless APs
(part of core
network)
Positioning
Engine
& Server
IBSS or
Finder/Tracker
Application
& Server
Web Service
interface to UC
Tags
17
Operator
Station
Clients
IBSS or Finder/Tracker GUI
Asset tracking solutions for Healthcare: asset
management, personnel safety, maintenance status &
mat’ls replenishment
Benefit
• Reduce equipment
“Roundup” Costs
Description
• High-use/value equipment location is tracked
• Equipment location is monitored to detect if it is
misplaced and can be proactively relocated
• Decrease Equipment
Inventory
• Equipment location is monitored; misplaced or
• Increased Staff Utilization
• Staff can find equipment and materials where
hoarded items are detected and relocated
expected - positively impacting efficiency
• Increased Revenue Potential • Staff can find equipment and materials where
expected - positively impacting efficiency
(Increased Throughput)
• Equipment use turnaround is improved
TOTAL:
18
Sample business impact
$52,800 / yr savings
$17,600 Avg salary nurse/orderly
3 reduction in number of staff required
for equipment roundup
$450,000 / yr savings
$5,000
300
5
30%
5
Avg price of equipment
beds
pieces equipment/bed
excess equipmt saved thru AT
Avg equipment lifecycle (yrs)
$532,608 / yr savings
$20
116,800
11.4
2%
hourly nursing care cost
patient days
nursing care hrs/patient day
efficiency increase
$1,333,333 / yr savings
100,000
$200
30
2
outpatient visits
average revenue/procedure
avg procedure time
reduction in equipmt wait time thru AT
(min)
$2,369 K / year
Asset Tracking & Management
• Asset Database
• Proactive Alarms & Alerts
• Tabular Forms & Format
• Graphical Mapping
• Spatial Location
• Find Me / Follow Me
• Communications Enabled “Click to Connect”
19
SynTrack for Healthcare – Location Track
Entities shown on
imported floor plan
Selection of
tracked entities
20
Icons and colours
differentiate types and
states of entities
SynTrack for Healthcare – Multimedia
Services
Click to call makes it
easy to communicate
with tracked
personnel
UC may also support
IM, File sharing, or
sending files can also
be initiated.
Clicking on this icon
will initiate a call to
David Jones
Other Multimedia
services are also
available to initiate
with John Davis
21
Microsoft OCS
(shown), Nortel MCS
and IBM Lotus
Sametime
Asset Management Enhanced UC Solution
Asset Management Solution integrated
with Nortel UC solutions (MCS, ICA)
•
Location extended UC Presence
• Current location updated in real-time
• Efficiency: Call closest resource
•
UC enhanced Asset Management
• UC Click to Call and Presence within the
Asset Management Applications
• Asset Management automated alerts
delivered to UC clients
• Productivity: Automate workflows with
communications
Drive efficiency gains and value through convergence of Asset
Management and UC communications
22
22
Nortel Confidential & Proprietary
Alerts and Alarms with Ekahau Tags and OCS
• Leverage alert buttons on Ekahau T301 tag
• IM based on alert
• Location of incident shown on OC client location map
General Healthcare
23
Lone Healthcare Worker Safety
UC-enabled line-of-business applications (Services Integration)
• Locator Module: Virtual
Worker Safety
• Capability delivered:
• Consent-based tracking of
people
• Monitor safety of remote worker
via password based updates
• Escalation procedure – IM, call,
send GPS co-ordinates to
police
• Value to customer:
• Ensure the safety of staff
working in high-risk
environments
24
Nortel Confidential & Proprietary
“Where is it” – Equipment Locator
• Allows a worker (Nurse) to locate the nearest piece of
equipment of a certain type.
• Equipment must be location tagged with use status
monitored
• Nurse’s location is tracked as well
• Nurse interacts with the system on any phone using an
IVR system.
• Speech recognition allows question to be asked in any
number of ways using natural language
Where is an IV
pump?
The nearest IV
pump is in the
east hallway
outside room 301
25
Clinical Alarms & Alerts
A full-solution approach that manages the broad variety of
notifications and delivers them effectively to mobile devices.
Sends event-driven alarms and alerts instantaneously to the right
clinicians based on their role, the skills required and the clinician’s
proximity to the location where the skills are needed.
Solution Benefits
• Improved care and staff efficiency
through real time delivery of clinical alerts
to mobile staff handsets.
• Effective communication between
clinician
• Efficient response to care requirement
• Enhanced Patient & Clinician Satisfaction
26
Event Processing: Clinical Alarms/Alerts
Automated alerts are generated from monitoring
devices to improve efficiency and response
• Improve response to out-ofbounds conditions
• Save time & increase staff
efficiency
• Improve workflow, performance
& operations
• Automate recording of audit trail
for performance analysis
• Wireless VoIP handsets are leveraged to enhance response
• Integration of various systems that monitor state or condition
and with systems that control output
• Event Processing and Alarm Manager software drives
alerts and information from monitoring devices to the right
member of staff on their device of choice
• UC integration generates UC-based event messaging
based on business rules; automates creation of click-to-call
options to respond to events
1. Monitoring device detects out-of-bounds condition,
an alarm is triggered & sent to Alarm Manager
2. Alarm Manager determines distribution of alarm,
and sends alarm message to staff WLAN handset
3. Staff member’s WLAN handset rings, a text
message is displayed indicating problem
4. Staff member can decide to accept, reject or phone
the location where the alarm was generated; if not
accepted, an alternate responder is contacted
according to rules defined on alarm manager
27

Alarm Manager
(Emergin, Comtech,
…
WiSP with
Event Processing
(optional))
Application
Gateway 2246
(part of core n/w)
LAN/WLAN

Registered
staff
Device
gateway

Monitoring
devices
Clinical Alarms & Alerts solution for Healthcare: improve
response to out-of-bounds conditions – improving
efficiency & care
Benefit
• Improved staff
efficiency
• Improved care - faster
response to patient
events
Description
• RT delivery of alerts to mobile staff handsets
$20
96,320
11.4
1%
• Improved care results in faster patient
recoveries - reduce average patient days
yielding incremental admissions
TOTAL:
28
Sample business impact
$219,610 / yr savings
nursing hourly care cost
patient days (using figures above)
nursing care hrs/patient day
efficiency increase
$153,571 / yr increased income
5.6
0.25
4,000
5%
43
400
Avg hospital length of stay (days)
reduction in avg length of stay (days)
Avg hospital net income per patient
% of patients that have event
annual admissions per bed
beds
$373 K / year
Clinical Alarms & Alerts
Example: Patient Monitor Alarm to WLAN Handset(s)
4. Alarm Manager determines
distribution of alarm. Sends alarm to
attending nurse’s WLAN handset
Alarm Manager
WLAN
Access Point
5. Attending Nurse’s WLAN
handset rings and a text
message is displayed indicating
problem and monitor the alarm
was sent from. Nurse is busy
and does not accept the alarm
3. Patient Monitor sends
alarm message to Alarm
Manager
2. An alarm is
triggered
1. Patient Monitor
detects an out of
bounds condition
6. After a preset time the
alarm rings the charge
nurse’s WLAN handset.
Alarm accepted.
29
SynTrack for Healthcare – Out of Zone alerts
Infusion Pump is moved out
of the Ward
Movement out of the
zone triggers a alarm
message to WLAN
handset and IM
30
Enhancing a Clinical Process:
Emergency Response
Code Team
Code Blue!!!
Today
Announce Intercom
Team Converges
Code Team Action
Manually identify team and send messages
Manually Log
Collect Patient Records
Name num
Name num
Name num
• Human intensive process
• Impact on Patient Care
• High latency response
• Error prone
• Noise levels
• Expensive
Name num
Name num
Name num
Minutes
1
2
4
6
8
10
Code Team
Code Blue!!!
With Code Response
Announce
Automate Team formation
Using Presence, Location etc.
Location Identity
Presence
Message
Code Team Action
Bridge
Call
Auto Log
Record Data
• Faster response to critical
events=lives saved and less
litigation
• Highly Automated less prone to
human errors
• Accurate logs
• Reduced Interruptions to staff
Improved Patient Care, CSAT and <12 Month ROI
31
31
Application Gateway
Nortel Wireless Application Gateway 2246
Nurse Call
Server Based
Applications
Alarm System
WLAN Handset 6100 Series
Wireless
Application
Gateway 2246
Nav Up
Nav
Left
Heating, Ventilation and
Air Conditioning (HVAC)
Paging/email
32
Enter
Nav
Right
Nav Up
Enter
Nav Down
Nav Down
Nav
Left
Patient Monitoring
Nav
Right
DECT Messenger
• Real World Connection
• Complete alarms system with back-up,
logging, escalations
• Scalable and modular architecture
allowing multiple input sources including
hard contacts, paging controllers, serial
streams and IP
• Output escalations to GSM or other
devices
• Email notification
• Scheduler to allow different users and/or
escalations by time of day
LAN
D
M
C
D
M
C
COMPANION
ESPA
Serial input
Web i/o
GSM output
Hard contact i/o
external
systems
Input and
outputs
33
D
M
C
Nortel Phone Pool Checkout Solution
Staff can “self check-out & check-in”
handsets by simply swiping barcodes on
the phones and staff badges at kiosk
Efficiency
Call Server
Micro-kiosk with
scanner
Phone Pool
Application
Benefits
• Improve communications effectiveness between clinicians
• Eliminate need to post new clinician telephone numbers
for each shift
• Fewer WLAN handsets with better utilization
• Flexible numbering scheme
• Wide range of applications
•
Nurses, Housekeeping…
This solution has been disclosed as a Nortel patent and currently is protected by a
Provisional Filing. The patent description is available under Disclosure 19331RO.
34
Hospital Room Change Phone Management
“Patient follow me phone”
There are a significant
number of patient room
moves managing
35
communications is costly
In the new room
Scan phone, Scan patient
Patient DN is now assigned to
the phone
MPTC – Cell Phone extension
• Allows Cell phones to be checked out at MTPC station and
receive PBX calls.
• Simplified Mobile-X but initially without presence (we will
migrate this solution to leverage Mobile-x)
Scan phone to
receive PBX calls
36
All PBX calls to doctors
DN are forwarded to his
Cell phone
Scan phone to
Stop receiving PBX calls
Är ni intresserade ?
Tomas Wangdell
tomas@nortel.com
070-2663559
Attraktiva starterbjudande under 2009  ...
37
Download
