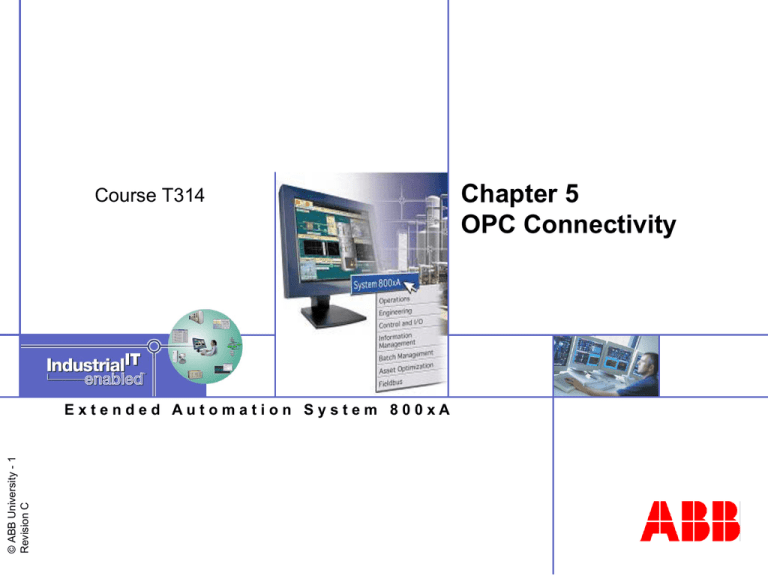

T314-05 OPC Connectivity

advertisement
Course T314
© ABB University - 1
Revision C
Extended Automation System 800xA
Chapter 5
OPC Connectivity
OPC
Connectivity

Overview
Objectives
After this chapter you should be able to:




© ABB University - 2
Revision C

Describe communication structure and data flow
Set up OPC connectivity
Verify communication (live data)
Explain the Name Uploader
Reference Documentation

3BSE035983

3BSE041434

3BSE043732
IndustrialIT 800xA – Control and I/O
OPC Server for AC 800M – Configuration
IndustrialIT 800xA - System
System Guide – Technical Data
IndustrialIT 800xA – Control and I/O
Application Programming – Introduction and Design
OPC
Connectivity
OPC Connectivity



© ABB University - 3
Revision C

OPC Communication
OPC Server Settings
System 800xA Settings
Check OPC Connectivity
OPC
Communication
OPC Standard

OPC stands for OLE for Process Control.
 OLE (Object Linking and Embedding) is a
Microsoft technology for objects to interact
with each other.
 OLE is based on COM or DCOM.

While OLE was originally designed for office
applications (e.g. Word, Excel). OPC
technology is an extension of that protocol for
industrial applications
 OPC is a group defined protocol for process
control data communication.
© ABB University - 4
Revision C

OPC Data Access for real time data
 OPC Historical Data Access for historical data
 OPC Alarm and Event for event data
OPC
Communication
Structure and Data Flow
Aspect
Server
© ABB University - 5
Revision C
Connectivity
Server
© ABB University - 6
Revision C
OPC
Communication
Basic Rules

The OPC Server must be installed in the same physical node as the
Connectivity Server.

One OPC Server is allowed to subscribe to data from a maximum of 24
PM861 controllers, or the equivalent number of variables from other
controller types.

A maximum of three OPC Servers are allowed to subscribe to Data Access
and/or Alarm and Event from one controller.

Multiple OPC Clients can subscribe to data or event notifications from the
same OPC Server.

A third-party OPC Client should, if possible, be installed on the same PC as
the OPC Server.
OPC
Communication
Afw OPC Service model
Aspect
Directory
800xA
Clients
Client/Server
Network
Afw OPC Service
Service Group
Service
Provider
© ABB University - 7
Revision C
redundant
Connectivity
Servers
AC 800M
controllers
Service Group
Service
Provider
Service
Provider
Service
Provider
redundant
Connectivity
Servers
Controller XXX
OPC
Communication
OPC Service
OPC Client: Service Structure
800xA
Clients
Aspect
Server
OpcDA Connector, Service
Event Collector, Service
1 Service Group for each CS or CS-pair
1 Service Group for each CS or CS-pair
Service
Provider
ex. CS1/2
Service
Provider
ex. CS2/2
Service
Provider
ex. CS1/2
Client/Server
Network
OPC Server
© ABB University - 8
Revision C
Connectivity
Server
Control
Network
AC 800M
controller
DA
AE
Data Access
Alarm & Events
Service
Provider
ex. CS2/2
OPC
Connectivity
OPC Connectivity



© ABB University - 9
Revision C

OPC Communication
OPC Server Settings
System 800xA Settings
Check OPC Connectivity
© ABB University - 10
Revision C
OPC Server
Settings
Setup DA and AE Access
OPC Server
© ABB University - 11
Revision C
Settings
Load Configuration Automatically
OPC
Connectivity
OPC Connectivity



© ABB University - 12
Revision C

OPC Communication
OPC Server Settings
System 800xA Settings
Check OPC Connectivity
System 800xA
© ABB University - 13
Revision C
Settings
Check OPC Data Access Settings (1)
System 800xA
© ABB University - 14
Revision C
Settings
Check OPC Data Access Settings (2)
System 800xA
© ABB University - 15
Revision C
Settings
Check OPC Alarm and Event Settings (1)
System 800xA
© ABB University - 16
Revision C
Settings
Check OPC Alarm and Event Settings (2)
System 800xA
© ABB University - 17
Revision C
Settings
Check OPC Alarm and Event Settings (3)
OPC
Connectivity
OPC Connectivity



© ABB University - 18
Revision C

OPC Communication
OPC Server Settings
System 800xA Settings
Check OPC Connectivity
© ABB University - 19
Revision C
Check OPC
Connectivity
Check Control Object Properties
© ABB University - 20
Revision C
Check OPC
Connectivity
Good OPC Connection
© ABB University - 21
Revision C
Check OPC
Connectivity
Bad OPC Connection
© ABB University - 22
Revision C
Check OPC
Connectivity
Check the System Services
© ABB University - 23
Revision C
