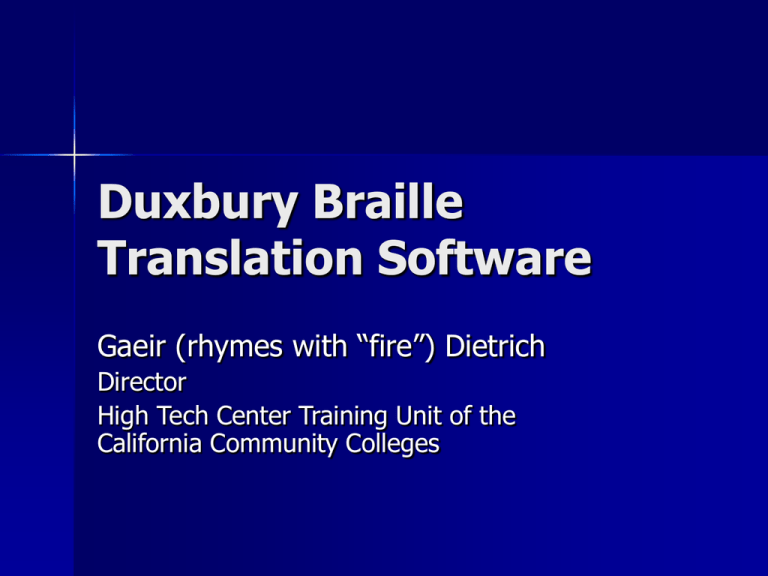

Duxbury Braille
Translation Software
Gaeir (rhymes with “fire”) Dietrich
Director
High Tech Center Training Unit of the
California Community Colleges
Software Specifics



Duxbury 10.7
http://www.duxburysystems.com/
During install load the Word template
– Nice information in help on using it

Best news: We now have undo!!!! We
can do math in Word with MathType!
Designed to Accept Word

Use Word paragraph styles
– Normal, Body Text
– Headings One, Two, Three
– List, Bulleted List, Numbered List
– Index levels one-nine

Can also use attribute styles
– Strong (for bold)
– Emphasis (for italic)
With Template

Preset styles for
– Foreign languages
– Computer Braille Code (CBC)
– Stairstep indents
– Headings

Also, styles based on Braille indents
Transcriber Speak

Standard Braille page
– 40 cells
– 25 lines

Formats
– Begin in a particular cell
– Runovers (i.e., following lines) go in
particular cells

Might begin in cell 3 with runovers in cell 1
Attaching the Template

With the Braille template installed
– Open the Word doc
– Go to the Tools menu
– Select Templates and Add in
– Check the update box
– Browse to the BANA* template

* Braille Authority of North America
– Select Attach
Attaching BANA Template
When to Use the
Template




For complex formatting
For foreign language
For computer code
To see how the document will look in
Braille
When Not to Use


Do not use the template when you
have a lot of tables
Duxbury will automatically create a
stair-step indent
– The template requires that you apply the
stair-step styles
Taming Word


Hardest part is knowing what Word is
up to…
Go to Tools menu > Autocorrect
Options
Autoformat As You Type
Note



Autoformat as you type is automatic.
Autoformat is manual.
Go figure…
Settings

We now want
– “smart quotes” okay
– Em dashes and en dashes okay

We still do not want
–
–
–
–

Superscripted ordinals
Special characters (e.g., ©)
Ellipses character
Curly quote apostrophe at front of a word
Autoformating lists is your choice
Smart Tags




To completely disable “smart tags”
Deselect under Tools > Autocorrect
Options > Smart Tags
AND
Deselect under Tools > Options >
Edit > Cut and Paste Options
Basic Smart Tags
Cut and Paste Smart Tags
Format Files


Use styles
Unknown styles are brought through
as “none”
– Flush left, no indent

Use search and replace (Ctrl + H) to
change publisher styles to standard
styles
Handy Style Shortcuts

Heading One
– Ctrl + Alt + 1

Heading Two
– Ctrl + Alt + 2

Heading Three
– Ctrl + Alt + 3

Change case
– Shift + F3
File Clean Up



The good news is…there hardly is
any!!
Duxbury 10.7 can handle most Word
formats
The bad news is that what’s needed is
a bit tricky…
Opening Apostrophe

10.7 still confuses an opening apostrophe
with a single quote when curly quotes are
used
– ‘tis
– ‘o

You can turn off the smart quotes entirely!
– But you don’t have to: turn off just while
searching; search for space apostrophe
Fixing Opening
Apostrophes


Search for single quotes, but do not auto
replace
Change to straight quote
– Select the apostrophe
– Retype
– Immediately Ctrl + Z if smart quotes
are turned on

OR turn off “smart quotes” just during
search and replace
From Scratch

If you are entering open apostrophes
from scratch
– Use Ctrl+' then '
– You will get a curly quote going the
correct direction!
– Duxbury handles these correctly!
Selecting Text in Word

Shift click
– Click mouse once where selection begins
– Move to end of selection
– Hold down shift key and click mouse once

Select a single word
– Double click on word
– Use arrow keys with shift key down
Selecting Continued

Select a paragraph
– Triple click

Select one line
– With cursor at beginning of line
Hold down shift key and tap down arrow once
 Hold down shift key and tap end key

Moving

Ctrl + down arrow
– Moves you to beginning of next
paragraph
– Very handy for inserting “bullet” asterisks

Ctrl + home
– Moves to top of document

Ctrl + end
– Moves to bottom of document
Auto Page Numbering


Text on Word page must match book
Use hard page breaks
– Ctrl + Enter

Adjust margins or font sizes as
necessary
Set Page Numbers

Insert > Page Numbers
Not page one?

If the document does not begin with
Arabic number one (1)
– Choose Format
Done in Word



Formatting and clean up complete
Save document
Close Word
– Important for running macro

Open Duxbury
Duxbury Settings

Global > Word Importer
Please Note


If you are using the BANA template,
do not select Duxbury’s courier to CBC
setting.
That will undo to template settings.
Embosser Setup

Global > Embosser Setup
Two Embosser Settings


For individual documents not following
defaults
Document > Embosser Setup
Opening File in Dux


File > Open
Select template
Templates

If using BANA template in Word, use
BANA template in Dux
– Includes textbook page numbers

If not using Word template
– Can use standard if no page numbers
needed
– Use textbook template for page numbers
– Can use textbook all the time
In Duxbury

Translate
– Ctrl + T

Emboss
– Ctrl + E

You’re done!
Binding





Standard Braille paper is 11 x 11.5 in.
Buy it 19-hole punched
Get a comb binding machine
Use Duxbury to create a title page
Can use Braille paper for front/back cover
– For larger volumes, cut light poster board paper
to size
– Plastic covers available from APH
References

BANA site
– www.brailleauthority.org
– Great resource for formatting questions

High Tech Center Training Unit
(manuals)
– www.htctu.net
– Basic information on using Duxbury
Braille Sources

American Printing House (APH)
– www.aph.org

National Library Services (NLS)
– Good source of Braille music

Alternate Text Production Center
(ATPC)
– www.atpc.org
– Sells Braille outside CCCs—many
textbooks
