Context and Data Flow Diagram Symbols

advertisement

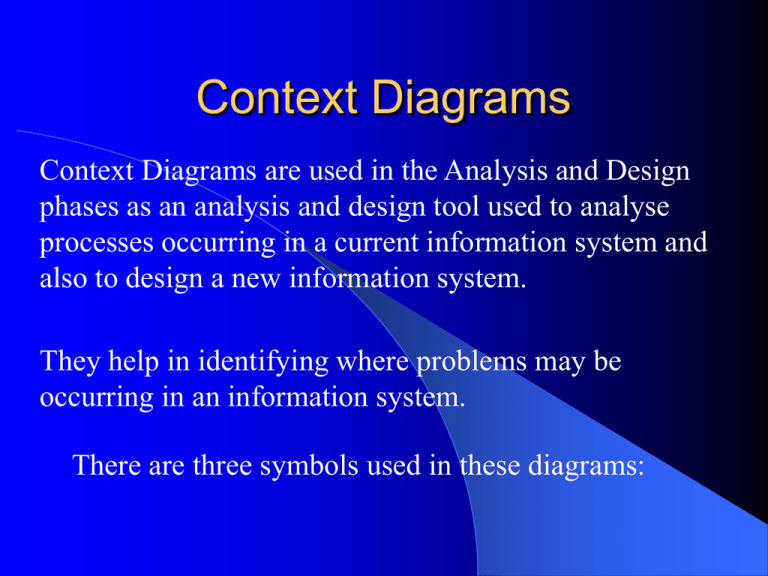

Context Diagrams
Context Diagrams are used in the Analysis and Design
phases as an analysis and design tool used to analyse
processes occurring in a current information system and
also to design a new information system.
They help in identifying where problems may be
occurring in an information system.
There are three symbols used in these diagrams:
Data Flow
Booking

Data flows describe the data being
transferred, not the processing of the data.
 E.g. “booking” is used rather than “validate
booking”.
 “Validate booking” is a process whereas the
“booking” itself is the data.
The whole system and a process
The whole system
Booking system

The oval shape is used to represent the
whole information processing system
(Context Diagram)
External Entity
students

People, programs, organisations, other info
systems that provide data to the system or
receive output from the system.
 Nouns are used to name external entities.
 External entities are things that are external
to the system in question.
Context Diagrams
Bookings
Invoice
Restaurant
System
Diners
Orders
Suppliers
Payment

The highest level of the data flow diagram.

General description of the system and its relationship
with “the outside world.”
