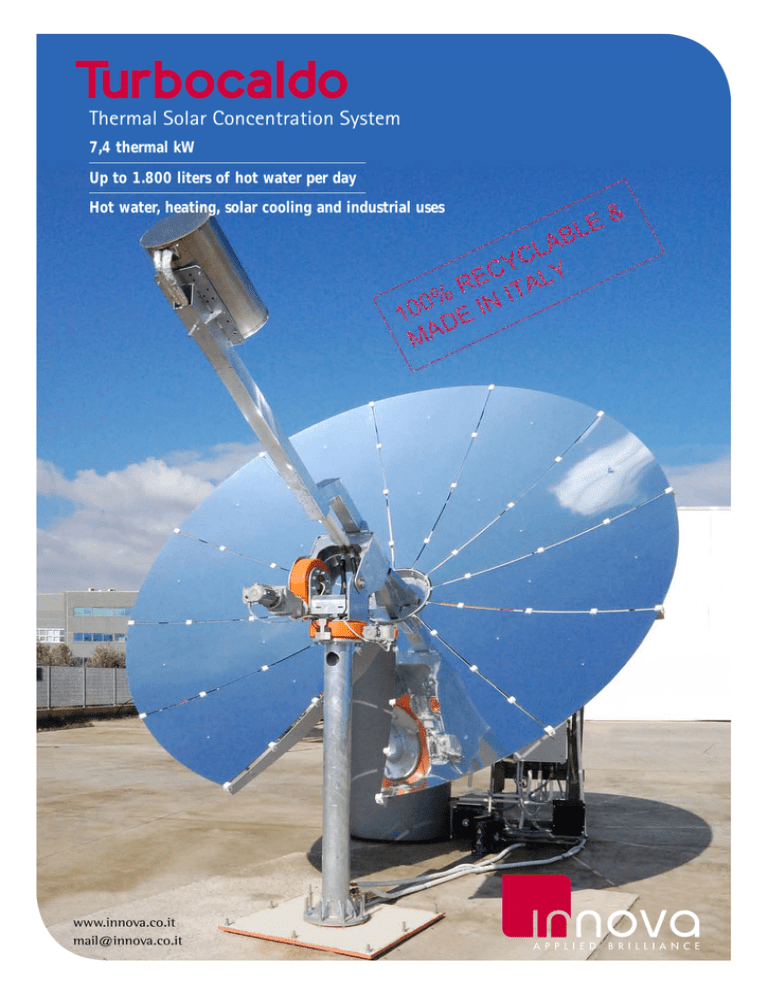

Turbocaldo

advertisement
Turbocaldo
Thermal Solar Concentration System
7,4 thermal kW
Up to 1.800 liters of hot water per day
Hot water, heating, solar cooling and industrial uses
www.innova.co.it
[email protected]
General
Gross collector area
11,23 m2
Collector area
9,58 m2
Optical efficiency
89,00 %
Sun tracking
Dual axis
Temperature protection
Automatic system
Maximum fluid temperature of primary loop *
110 °C
Temperature settings
Maximum fluid pressure
Solar height
6 bar
Heat transfer fluid
Water / Propylene glycol-water solution
Flow Rate
Side view: working position and safe position
7-19 l/min
Power supply
230 V 50 Hz ± 0,5 Hz
Auxiliary supply
UPS + battery
* Special versions up to 250 °C on request
Production
Peak thermal power (DNI 1000 W/m2)
Hot water peak production Dt 30 °C / 50 °C
7,4 kW
200 l/h - 120 l/h
Plan view: safe position
Materials
Reflector
Multilaminar Aluminium Mirrors
Structure
Galvanized steel / Inox steel
Environmental Performance, dimension and weight
Maximum wind speed in operating conditions
50 km/h
Maximum wind speed in safe condition
160 km/h
Weight
550 kg
Reflector diameter
3,75 m
Maximum overall dimensions
Axonometric view: working position
d. 5,00 m x h. 4,60 m
Focal point distance
2,26 m
Height in safe position
3,00 m
Hydraulic connections
3/4 inches
Warranty
Turbocaldo production
Up to 15.000 kWht for year*
2 years
* Estimate based on solar radiation of Rome - IT (DNI source ENEA)
Turbocaldo
vacuum tube
solar panel
h0=0.769 a1=0.66
a2=0.008
Trinum vers. Turbocaldo Certificate
Certificate Solar Keymark
