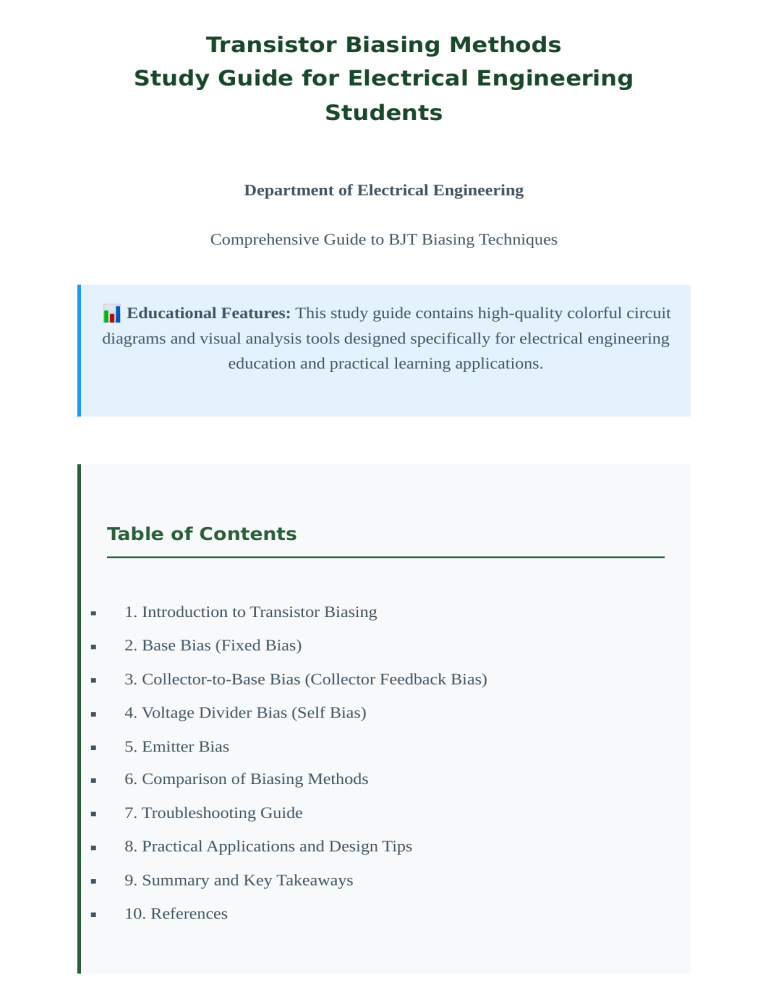

Transistor Biasing Methods
Study Guide for Electrical Engineering
Students
Department of Electrical Engineering
Comprehensive Guide to BJT Biasing Techniques
📊 Educational Features: This study guide contains high-quality colorful circuit
diagrams and visual analysis tools designed specifically for electrical engineering
education and practical learning applications.
Table of Contents
1. Introduction to Transistor Biasing
2. Base Bias (Fixed Bias)
3. Collector-to-Base Bias (Collector Feedback Bias)
4. Voltage Divider Bias (Self Bias)
5. Emitter Bias
6. Comparison of Biasing Methods
7. Troubleshooting Guide
8. Practical Applications and Design Tips
9. Summary and Key Takeaways
10. References
1. Introduction to Transistor Biasing
Transistor biasing is the process of establishing the proper operating point (Q-point) for
a transistor in an amplifier circuit. The Q-point determines the DC voltages and currents
in the transistor when no AC signal is applied. Proper biasing ensures that the transistor
operates in the active region and provides linear amplification without distortion.
Key Objectives of Biasing:
Establish proper Q-point for linear operation
Maintain stability against temperature variations
Provide maximum output voltage swing
Minimize distortion
Ensure reliable operation across component tolerances
1.1 Operating Regions of BJT
A bipolar junction transistor (BJT) can operate in three regions:
Active Region: Base-emitter junction forward biased, base-collector junction reverse
biased
Saturation Region: Both junctions forward biased
Cutoff Region: Both junctions reverse biased
1.2 Stability Factors
The stability of a biasing circuit is measured by how well it maintains the Q-point
despite variations in:
Temperature (affects β, VBE, and ICO)
Component tolerances
Transistor replacement
S = ∂IC/∂ICO (Stability factor with respect to reverse
saturation current)
2. Base Bias (Fixed Bias)
Base bias, also known as fixed bias, is the simplest biasing method where the base
current is fixed by a resistor connected between the base and the supply voltage.
2.1 Circuit Analysis
For the base bias circuit, applying Kirchhoff's voltage law to the base-emitter loop:
VCC = IB × RB + VBE
IB = (VCC - VBE) / RB
IC = β × IB
IE = IC + IB ≈ IC (since β >> 1)
VCE = VCC - IC × RC
2.2 Stability Analysis
The stability factor for base bias is:
S = ∂IC/∂ICO = (1 + β)
This shows that the stability factor equals (1 + β), which is quite high, making this
circuit very sensitive to temperature variations.
Advantages:
Simple circuit with minimum components
Low cost implementation
Easy to analyze mathematically
Suitable for switching applications
Disadvantages:
Poor thermal stability
Highly dependent on β variations
Q-point varies significantly with transistor replacement
Not suitable for precision amplifier applications
Design Example 2.1:
Given: VCC = 12V, β = 100, VBE = 0.7V, RC = 2kΩ
Required: Design for IC = 3mA
Solution:
Step 1: Calculate required base current
IB = IC/β = 3mA/100 = 30µA
Step 2: Calculate base resistor
RB = (VCC - VBE)/IB = (12 - 0.7)/30µA = 376.7kΩ
Choose standard value: RB = 390kΩ
Step 3: Verify collector-emitter voltage
VCE = VCC - IC × RC = 12 - 3mA × 2kΩ = 6V
Result: The transistor operates in the active region with VCE = 6V
3. Collector-to-Base Bias (Collector Feedback Bias)
In collector feedback bias, the base resistor is connected to the collector instead of
VCC, providing negative feedback that improves stability.
3.1 Circuit Analysis
Applying Kirchhoff's voltage law to the base-collector loop:
VCC = IC × RC + IB × RB + VBE
VCC = β × IB × RC + IB × RB + VBE
IB = (VCC - VBE)/(RB + β × RC)
IC = β × IB
VCE = VCC - IC × RC
3.2 Stability Analysis
The stability factor for collector feedback bias is:
S = (1 + β)/(1 + β × RC/(RB + RC))
This is significantly better than base bias, especially when β × RC >> RB.
Advantages:
Better stability than base bias
Negative feedback improves linearity
Self-compensating for β variations
Simple two-resistor design
Disadvantages:
Reduced input impedance due to feedback
Voltage gain reduction
Still temperature dependent
Limited stability improvement
Design Example 3.1:
Given: VCC = 15V, β = 120, VBE = 0.7V, IC = 2mA
Required: Design collector feedback bias circuit
Solution:
Step 1: Choose RC for desired VCE (typically VCC/2)
VCE = 7.5V, RC = (VCC - VCE)/IC = (15 - 7.5)/2mA =
3.75kΩ
Choose standard value: RC = 3.9kΩ
Step 2: Calculate base current
IB = IC/β = 2mA/120 = 16.67µA
Step 3: Calculate base resistor
RB = (VCE - VBE)/IB = (7.8 - 0.7)/16.67µA = 426kΩ
Choose standard value: RB = 430kΩ
4. Voltage Divider Bias (Self Bias)
Voltage divider bias is the most widely used biasing method due to its excellent
stability. It uses two resistors to create a voltage divider that provides a stable base
voltage.
4.1 Circuit Analysis
Two analysis methods can be used: exact analysis and approximate analysis.
4.1.1 Approximate Analysis (Stiff Voltage Divider)
When the voltage divider is "stiff" (R2 || R1 << βRE), we can use:
VB = VCC × R2/(R1 + R2)
VE = VB - VBE
IE = VE/RE
IC ≈ IE
VCE = VCC - IC(RC + RE)
4.1.2 Exact Analysis
Using Thevenin equivalent of the voltage divider:
VTH = VCC × R2/(R1 + R2)
RTH = R1 || R2 = (R1 × R2)/(R1 + R2)
IB = (VTH - VBE)/(RTH + (1 + β)RE)
4.2 Stability Analysis
The stability factor for voltage divider bias is:
S = (1 + β)/(1 + β × RE/(RTH + RE))
For a stiff voltage divider where RTH << βRE, S ≈ 1, providing excellent stability.
Advantages:
Excellent thermal stability
Independent of β variations
Predictable Q-point
Suitable for mass production
Good for AC amplifiers
Disadvantages:
Requires more components
Higher power consumption
Reduced voltage gain due to RE
More complex analysis
Design Example 4.1:
Given: VCC = 20V, β = 80, VBE = 0.7V, IC = 5mA, VCE = 10V
Required: Design voltage divider bias circuit
Solution:
Step 1: Determine RE and RC
Choose VE = 2V for good stability
RE = VE/IE = 2V/5mA = 400Ω
RC = (VCC - VCE - VE)/IC = (20 - 10 - 2)/5mA = 1.6kΩ
Step 2: Design voltage divider
VB = VE + VBE = 2 + 0.7 = 2.7V
Choose I2 = 10 × IB = 10 × (5mA/80) = 0.625mA
R2 = VB/I2 = 2.7V/0.625mA = 4.32kΩ
R1 = (VCC - VB)/I2 = (20 - 2.7)/0.625mA = 27.68kΩ
Standard values: R1 = 27kΩ, R2 = 4.3kΩ, RC = 1.6kΩ, RE = 390Ω
5. Emitter Bias
Emitter bias uses dual power supplies (positive and negative) to achieve excellent
stability by connecting the base to ground through a resistor.
5.1 Circuit Analysis
VE = -VBE (since VB = 0V)
IE = (|VEE| - VBE)/RE
IC ≈ IE
IB = IC/β
VCE = VCC + VBE - IC × RC
5.2 Stability Analysis
The stability factor for emitter bias approaches unity:
S ≈ 1
Advantages:
Excellent stability (S ≈ 1)
Independent of β
Simple analysis
Predictable performance
Disadvantages:
Requires dual power supply
Higher cost and complexity
Not practical for portable devices
Higher power consumption
Design Example 5.1:
Given: VCC = 12V, VEE = -12V, β = 100, IC = 4mA, VCE = 8V
Solution:
Step 1: Calculate emitter resistor
IE ≈ IC = 4mA
RE = (|VEE| - VBE)/IE = (12 - 0.7)/4mA = 2.825kΩ
Choose RE = 2.8kΩ
Step 2: Calculate collector resistor
RC = (VCC + VBE - VCE)/IC = (12 + 0.7 - 8)/4mA =
1.175kΩ
Choose RC = 1.2kΩ
Step 3: Calculate base resistor
IB = IC/β = 4mA/100 = 40µA
RB = VBE/IB = 0.7V/40µA = 17.5kΩ
6. Comparison of Biasing Methods
Base
Collector
Voltage
Emitter
Bias
Feedback
Divider
Bias
(1 + β)
(1 + β)/(1 + βRC/RT)
≈ 1 (when stiff)
≈1
Poor
Fair
Excellent
Excellent
Component Count
2
2
4-5
3
Power Supply
Single
Single
Single
Dual
Design Complexity
Simple
Simple
Moderate
Simple
Parameter
Stability Factor (S)
Temperature
Stability
Base
Collector
Voltage
Emitter
Bias
Feedback
Divider
Bias
Input Impedance
High
Moderate
Moderate
High
β Independence
Poor
Fair
Good
Excellent
Applications
Switching
General purpose
Linear amplifiers
Precision circuits
Parameter
7. Troubleshooting Guide
7.1 Common Problems and Solutions
Problem: Transistor in Saturation (VCE ≈ 0V)
Cause: Excessive base current or insufficient collector resistance
Solution: Increase RB or decrease RC
Problem: Transistor in Cutoff (VCE ≈ VCC)
Cause: Insufficient base current or open base circuit
Solution: Decrease RB or check for open connections
Problem: Thermal Runaway
Cause: Poor thermal stability, inadequate heat sinking
Solution: Use voltage divider bias, add heat sink, use current limiting
Problem: Distorted Output
Cause: Improper Q-point, insufficient bias
Solution: Adjust bias point to center of load line
7.2 Measurement Procedures
1. Measure DC voltages at base, collector, and emitter
2. Calculate currents using Ohm's law
3. Verify transistor is in active region
4. Check Q-point stability over temperature
5. Measure β and compare with datasheet values
8. Practical Applications and Design Tips
8.1 Design Guidelines
Choose appropriate biasing method: Voltage divider for stability, base bias
for switching
Q-point positioning: Center of load line for maximum swing
Stability criteria: Aim for S < 10 for good stability
Power dissipation: Ensure PD < PD(max) with appropriate derating
Component tolerances: Use 5% resistors for critical applications
8.2 Temperature Compensation Techniques
Diode compensation: Use diode in series with base for VBE tracking
Thermistor compensation: Temperature-sensitive resistor in bias network
Current mirror biasing: Advanced technique for IC applications
Negative feedback: Emitter degeneration for stability
8.3 Practical Considerations
Capacitor selection: Bypass capacitors for AC coupling
Layout considerations: Minimize parasitic effects
Component ratings: Ensure adequate voltage and power ratings
Frequency response: Consider Miller capacitance effects
9. Summary and Key Takeaways
Essential Points to Remember:
1. Biasing Purpose: Establish proper Q-point for linear operation without
distortion
2. Stability is Crucial: Temperature and β variations must be minimized
3. Voltage Divider Bias: Most commonly used due to excellent stability
4. Trade-offs Exist: Stability vs. simplicity vs. component count
5. Design Verification: Always verify the design meets specifications over
temperature range
9.1 Selection Criteria Summary
For switching applications: Base bias is sufficient
For linear amplifiers: Voltage divider bias is preferred
For precision circuits: Emitter bias with dual supply
For cost-sensitive designs: Collector feedback bias
9.2 Design Process Summary
1. Determine application requirements
2. Select appropriate biasing method
3. Choose Q-point for desired performance
4. Calculate component values
5. Verify stability and performance
6. Test over temperature and component variations
10. References
1. Boylestad, R. L., & Nashelsky, L. (2013). Electronic Devices and Circuit Theory
(11th ed.). Pearson.
2. Sedra, A. S., & Smith, K. C. (2015). Microelectronic Circuits (7th ed.). Oxford
University Press.
3. Floyd, T. L. (2014). Electronic Devices: Conventional Current Version (9th ed.).
Pearson.
4. Malvino, A. P., & Bates, D. J. (2015). Electronic Principles (8th ed.). McGraw-Hill
Education.
5. Horowitz, P., & Hill, W. (2015). The Art of Electronics (3rd ed.). Cambridge
University Press.
6. IEEE Standards for Transistor Biasing and Thermal Analysis
7. Application Notes from semiconductor manufacturers (ON Semiconductor, Texas
Instruments, Fairchild)
This study guide provides a comprehensive overview of transistor biasing methods for
educational purposes. Always consult current datasheets and application notes for
specific design requirements.
© 2024 - Electrical Engineering Department Study Materials
