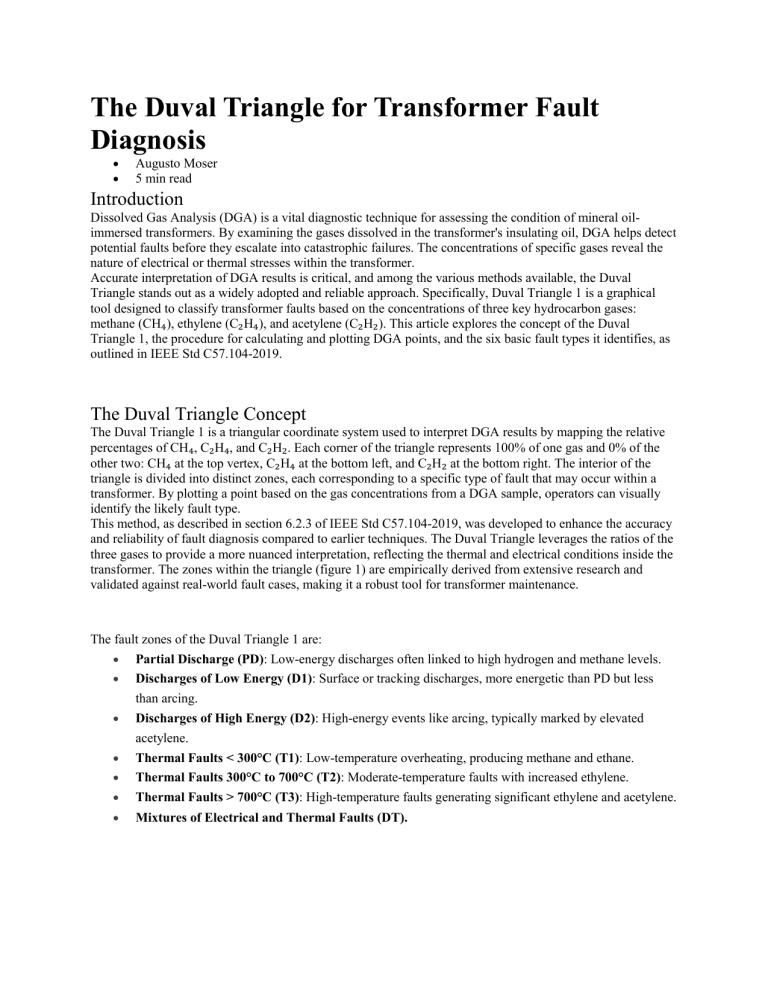

The Duval Triangle for Transformer Fault
Diagnosis


Augusto Moser
5 min read
Introduction
Dissolved Gas Analysis (DGA) is a vital diagnostic technique for assessing the condition of mineral oilimmersed transformers. By examining the gases dissolved in the transformer's insulating oil, DGA helps detect
potential faults before they escalate into catastrophic failures. The concentrations of specific gases reveal the
nature of electrical or thermal stresses within the transformer.
Accurate interpretation of DGA results is critical, and among the various methods available, the Duval
Triangle stands out as a widely adopted and reliable approach. Specifically, Duval Triangle 1 is a graphical
tool designed to classify transformer faults based on the concentrations of three key hydrocarbon gases:
methane (CH₄), ethylene (C₂H₄), and acetylene (C₂H₂). This article explores the concept of the Duval
Triangle 1, the procedure for calculating and plotting DGA points, and the six basic fault types it identifies, as
outlined in IEEE Std C57.104-2019.
The Duval Triangle Concept
The Duval Triangle 1 is a triangular coordinate system used to interpret DGA results by mapping the relative
percentages of CH₄, C₂H₄, and C₂H₂. Each corner of the triangle represents 100% of one gas and 0% of the
other two: CH₄ at the top vertex, C₂H₄ at the bottom left, and C₂H₂ at the bottom right. The interior of the
triangle is divided into distinct zones, each corresponding to a specific type of fault that may occur within a
transformer. By plotting a point based on the gas concentrations from a DGA sample, operators can visually
identify the likely fault type.
This method, as described in section 6.2.3 of IEEE Std C57.104-2019, was developed to enhance the accuracy
and reliability of fault diagnosis compared to earlier techniques. The Duval Triangle leverages the ratios of the
three gases to provide a more nuanced interpretation, reflecting the thermal and electrical conditions inside the
transformer. The zones within the triangle (figure 1) are empirically derived from extensive research and
validated against real-world fault cases, making it a robust tool for transformer maintenance.
The fault zones of the Duval Triangle 1 are:
 Partial Discharge (PD): Low-energy discharges often linked to high hydrogen and methane levels.
 Discharges of Low Energy (D1): Surface or tracking discharges, more energetic than PD but less
than arcing.
 Discharges of High Energy (D2): High-energy events like arcing, typically marked by elevated

acetylene.
Thermal Faults < 300°C (T1): Low-temperature overheating, producing methane and ethane.
Thermal Faults 300°C to 700°C (T2): Moderate-temperature faults with increased ethylene.
Thermal Faults > 700°C (T3): High-temperature faults generating significant ethylene and acetylene.

Mixtures of Electrical and Thermal Faults (DT).


Figure 1 - Duval Triangle 1 Method
Table 1 - Fault zone boundaries for figure 1
Gas % / Fault
PD
%CH₄
≥ 98
%C₂H₄
-
%C₂H₂
-
T1
T2
< 98
-
< 20
≥ 20 and < 50
<4
<4
T3
DT
-
≥ 50
< 50
< 15
≥ 4 and < 13
-
≥ 40 and < 50
≥ 13 and < 29
-
≥ 50
≥ 15 and < 29
D1
D2
-
< 23
≥ 23
≥ 13
≥ 29
-
≥ 23 and < 40
≥ 13 and < 29
Our Solutions
HV Assets has a complete solution for monitoring transformers using an advanced water, hydrogen, temperature
and pressure sensor, the Basic Care Sensor, and the Early Warning Sensor, measuring hydrogen and
temperature. Click here to check the technical data.
Early Warning Sens
Basic Care Sensor
Calculating and Displaying DGA Points
To utilize the Duval Triangle 1, one must calculate the relative percentages of CH₄, C₂H₄, and C₂H₂ from a
DGA sample and plot them on the triangle. Annex D.4 of IEEE Std C57.104-2019 outlines the following
procedure:
1. Obtain Gas Concentrations: Get the concentrations of CH₄, C₂H₄, and C₂H₂ in parts per million
(ppm) from the DGA report.
2. Calculate Total Concentration: Sum the concentrations of the three gases: Total = CH₄ + C₂H₄ +
C₂H₂.
3. Compute Relative Percentages: Determine the percentage of each gas relative to the total:
o %CH₄ = (CH₄ / Total) × 100
o %C₂H₄ = (C₂H₄ / Total) × 100
%C₂H₂ = (C₂H₂ / Total) × 100
These percentages always sum to 100%, aligning with the triangular coordinate system.
4. Plot the Point: Using the calculated percentages, locate the corresponding point on the Duval
Triangle. The position within a specific zone indicates the fault type.
o
Example Calculation
Consider a DGA sample with the following concentrations:
CH₄ = 25 ppm
C₂H₄ = 15 ppm
C₂H₂ = 10 ppm
Total Concentration: 25 + 15 + 10 = 50 ppm
Relative Percentages:
%CH₄ = (25 / 50) × 100 = 50%
%C₂H₄ = (15 / 50) × 100 = 30%
%C₂H₂ = (10 / 50) × 100 = 20%
Using these values (50%, 30%, 20%), the point is plotted on the Duval Triangle. This can be done manually on
a printed triangle or via software tools that automate the plotting and interpretation process. The resulting
position within a fault zone provides diagnostic insight.
Figure 2 - Example of Duval Triangle 1 Plot
Note: It is not recommended to attempt fault identification using the method described above if all gas
levels are below the values of IEEE Std C57.104-2019 Table 1.
Types of Faults Identified by the Duval Triangle
Annex C.1 of IEEE Std C57.104-2019 defines the six basic types of faults that the Duval Triangle 1 can
identify. These faults reflect different thermal and electrical stresses within the transformer:
1. Partial Discharges (PD): Partial discharges of the cold plasma (corona) type, resulting in possible Xwax deposition on paper insulation.
2. Discharges of Low Energy (D1): Discharges in mineral oil and/or paper, evidenced by larger
carbonized perforations through paper (punctures), carbonization of the paper surface (tracking),
carbon particles in mineral oil (as in tap changer diverter operation), or partial discharges of the
sparking type, inducing pinhole or carbonized perforations (punctures) in paper.
3. Discharges of High Energy (D2): High-energy electrical discharges in mineral oil and/or paper, with
power follow-through, evidenced by extensive destruction and carbonization of paper, metal fusion at
the discharge extremities, extensive carbonization in mineral oil and, in some cases, tripping of the
equipment, confirming the large current follow-through.
4. Thermal Faults Less Than 300°C (T1): Low-temperature overheating, typically due to minor
overloads or inadequate cooling. These faults primarily affect the oil and/or paper, with possible
evidence of brownish paper.
5. Thermal Faults Between 300°C and 700°C (T2): Moderate-temperature thermal faults, affecting
both oil and solid insulation, often caused by localized hotspots in windings or the core.
6. Thermal Faults Greater Than 700°C (T3): Severe high-temperature faults that rapidly degrade both
oil and solid insulation, with strong evidence of carbonization of the mineral oil (>700 ºC), metal
discoloration (800 ºC) or metal fusion (>1000 ºC).
