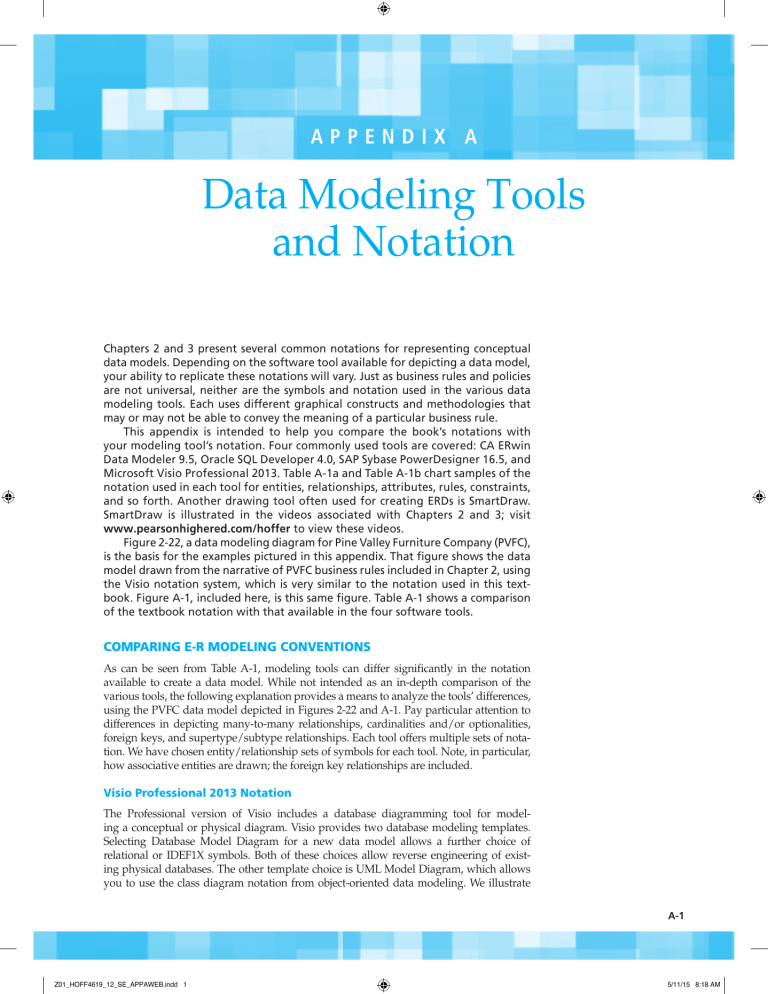

Appendix A
Data Modeling Tools
and Notation
Chapters 2 and 3 present several common notations for representing conceptual
data models. Depending on the software tool available for depicting a data model,
your ­ability to replicate these notations will vary. Just as business rules and policies
are not universal, neither are the symbols and notation used in the various data
modeling tools. Each uses different graphical constructs and methodologies that
may or may not be able to convey the meaning of a particular business rule.
This appendix is intended to help you compare the book’s notations with
your modeling tool’s notation. Four commonly used tools are covered: CA ERwin
Data Modeler 9.5, Oracle SQL Developer 4.0, SAP Sybase PowerDesigner 16.5, and
Microsoft Visio Professional 2013. Table A-1a and Table A-1b chart samples of the
notation used in each tool for entities, relationships, attributes, rules, constraints,
and so forth. Another drawing tool often used for creating ERDs is SmartDraw.
SmartDraw is illustrated in the videos associated with Chapters 2 and 3; visit
www.pearsonhighered.com/hoffer to view these videos.
Figure 2-22, a data modeling diagram for Pine Valley Furniture Company (PVFC),
is the basis for the examples pictured in this appendix. That figure shows the data
model drawn from the narrative of PVFC business rules included in Chapter 2, using
the Visio notation system, which is very similar to the notation used in this textbook. Figure A-1, included here, is this same figure. Table A-1 shows a comparison
of the ­textbook n
­ otation with that available in the four software tools.
Comparing E-R Modeling Conventions
As can be seen from Table A-1, modeling tools can differ significantly in the notation
­available to create a data model. While not intended as an in-depth comparison of the
various tools, the following explanation provides a means to analyze the tools’ differences,
using the PVFC data model depicted in Figures 2-22 and A-1. Pay particular attention to
differences in depicting many-to-many relationships, cardinalities and/or optionalities,
foreign keys, and supertype/subtype relationships. Each tool offers multiple sets of notation. We have chosen entity/relationship sets of symbols for each tool. Note, in particular,
how associative entities are drawn; the foreign key relationships are included.
Visio Professional 2013 Notation
The Professional version of Visio includes a database diagramming tool for modeling a ­conceptual or physical diagram. Visio provides two database modeling templates.
Selecting Database Model Diagram for a new data model allows a further choice of
­relational or IDEF1X symbols. Both of these choices allow reverse engineering of existing physical d
­ atabases. The other template choice is UML Model Diagram, which allows
you to use the class diagram notation from object-oriented data modeling. We illustrate
A-1
Z01_HOFF4619_12_SE_APPAWEB.indd 1
5/11/15 8:18 AM
A-2
Z01_HOFF4619_12_SE_APPAWEB.indd 2
5/11/15 8:18 AM
Attributes
Recursive
Relationship
Subtypes
Associative
Entity
Basic
Entity
Weak
EMPLOYEE
HOURLY
EMPLOYEE
Manages
SALARIED
EMPLOYEE
EMPLOYEE
Associative
Strong
Hoffer-RameshTopi Notation
Visio Professional
2013
CA ERWin Data
Modeler 9.5
Table A-1 A Comparison of Hoffer, Ramesh, and Topi Modeling Notation with Four Software Tools
(a) Common modeling tools, notations
SAP Sybase PowerDesigner
16.5
# PRODUCT_LINE_ID
* PRODUCT_LINE_NAME
PRODUCT LINE
SUBTYPE A SUBTYPE B
SUPERTYPE
(No special symbol.
Uses regular Entity
symbol.)
PRODUCT LINE
Oracle SQL Developer
Data Modeler 4.0
A-3
Z01_HOFF4619_12_SE_APPAWEB.indd 3
5/11/15 8:18 AM
(continued)
(Not allowed)
M:N
Optional
1:M
Mandatory
1:M
P
(Not available
without cardinality)
(Not available
without cardinality)
1:M
1
(Not available
without cardinality)
(Not available
without cardinality)
1:1
Mandatory
1:1
CA ERWin Data
Modeler 9.5
Visio Professional
2013
Hoffer-Ramesh-Topi
Notation
b) Common modeling tools’ cardinality/optionality notations
Table A-1
0,n
0,n
0,n
0,n
0,1
0,1
0,1
0,1
SAP Sybase PowerDesigner Oracle SQL Developer
16.5
Data Modeler 4.0
A-4
Appendix A • Data Modeling Tools and Notation
Figure A-1
Visio Professional 2013 model
SALESPERSON
PK Salesperson ID
Serves
Salesperson Name
Salesperson Telephone
Salesperson Fax
TERRITORY
DOES BUSINESS IN
PK Territory ID
Territory Name
CUSTOMER
PRODUCT LINE
PK Product Line ID
Product Line Name
PK Customer ID
Customer Name
Customer Address
Customer Postal Code
Submits
Includes
ORDER
PK Order ID
Order Date
PRODUCT
PK Product ID
VENDOR
PK Vendor ID
Vendor Name
Vendor Address
ORDER LINE
Product Description
Product Finish
Product Standard Price
Ordered Quantity
USES
PRODUCED IN
Goes Into Quantity
RAW MATERIAL
PK Material ID
SUPPLIES
Material Name
Material Standard Cost
Unit Of Measure
Supply Unit Price
Is Supervised By
Supervises
SKILL
PK Skill
HAS SKILL
EMPLOYEE
PK Employee ID
WORK CENTER
PK Work Center ID
Work Center Location
WORKS IN
Employee Name
Employee Address
only the Database Model Diagram template. This template may be customized to indicate ­primary key (PK), foreign keys (FK), secondary indexes, nonkey fields, data types, the
­format of cardinalities, and so on. You can also elect to display the primary key fields at
the top of each entity or in their actual physical order. This text uses the relational template.
Z01_HOFF4619_12_SE_APPAWEB.indd 4
5/11/15 8:18 AM
Appendix A • Data Modeling Tools and Notation
A-5
All entities are depicted as square rectangles with optional horizontal and
vertical lines used to partition entity information. Keys (primary, alt, foreign), nonkey
attributes, referential integrity, and so on can be optionally displayed within the entity
box. Subtype/supertype connectors are available.
Entities
Relationships Both binary and unary relationships can be shown, but not ternary.
Lines can be labeled in one or both directions or neither, and the relationship types are
either identifying (solid line) or nonidentifying (dashed line). Cardinality and optionality notation differ according to the symbol set chosen, relational or IDEF1X. Notation
samples for the relational symbol set chosen for our diagram can be seen in Table A-1b.
To make the “parent” entity optional, you have to uncheck the Required box for the
foreign key attribute, which then also makes the relationship nonidentifying. This tool
provides a helpful “range” option, where a minimum and a maximum value can also
be set for cardinality. When identifying or nonidentifying relationships are established,
keys are automatically migrated above or below, respectively, the entity’s horizontal
separator line. The recursive Supervises relationship shows the business rule that a
supervisor may supervise none or any number of employees but cannot show that the
president has no supervisor, only that each employee has exactly one supervisor.
A many-to-many relationship between two entities cannot be established; a new
(associative) entity must be added to resolve it. The many and varied line connectors
provided by the tool can be used to draw a many-to-many relationship, but these connector objects do not establish the functional relationship within the tool.
CA ERwin Data Modeler 9.5 Notation
Here, for physical or logical modeling, one has the choice among IDEF1X, IE
(Information Engineering), or DM (Dimensional Modeling) notation. The examples
used here demonstrate IE. ERwin has very robust capabilities for adding many types
of metadata to the entities, attributes, and relationships. The user can choose to display
the model in several Display Levels, including only entities and relationships, entities
with key attributes, and fully attributed entities. As with many of the other tools, both
logical and physical data models can be developed and displayed. The key difference
between most conceptual and logical data models is that the tools want to resolve all
primary keys in a logical data model, which is necessary to migrate to a physical data
model. Thus, many tools, like ERwin, do not support development of what is purely a
conceptual data model. ERwin does support versioning of a data model.
An independent entity is represented as a box with a horizontal line and
square corners. If an entity is a child (weak) entity in an identifying relationship, it
appears as a dependent entity—a box with rounded corners. Associative entity symbols
are also represented this way. ERwin determines the entity type based on the relationship in which it is involved. For example, when you initially place an entity in a model,
it displays as an independent entity. When you connect it to another entity using a
­relationship, ERwin determines whether the entity is independent or dependent, based
on the relationship type selected.
Entities
Relationships ERwin represents a relationship as a solid or dashed line connecting
two entities. Depending on the notation you choose, the symbols at either end of the
line may change. Cardinality options are flexible and may be specified unambiguously.
A parent may be connected to “Zero, One, or More,” signified by a blank space; “One or
More,” signified by a P; “Zero or One,” signified by a Z; or “Exactly,” some ­number of
instances; P or Z may optionally appear on the ERD. Many-to-many relationships can be
depicted or the user may opt to automatically or manually resolve them. Figure 2-22 (A-1)
does not have any many-to-many relationships because it already shows all p
­ ossible ones
as associative entities (e.g., DOES BUSINESS IN). (Visio does not support M:N relationships.) In Figure A-2 we show what would result from ­manually telling ERwin to resolve
each M:N by creating an associative entity. For example, consider the many-to-many
SUPPLIES relationship between Vendor and Raw Materials. The user selects a “Show
Association Entity” option on the relationship line that then automatically eliminates
Z01_HOFF4619_12_SE_APPAWEB.indd 5
5/11/15 8:18 AM
A-6
Appendix A • Data Modeling Tools and Notation
Figure A-2
CA ERwin Data Modeler 9.5 model
SALES PERSON
Salesperson ID
Salesperson Name
Salesperson Telephone
Salesperson Fax
Territory ID (FK)
Serves
SALES TERRITORY
DOES BUSINESS IN
Territory ID
Territory ID (FK)
Customer ID (FK)
Territory Name
PRODUCT LINE
CUSTOMER
Product Line ID
Customer ID
Product Line Name
Customer Name
Customer Address
Customer Postal Code
Submits
Includes
ORDER
Order ID
Order Date
Customer ID (FK)
PRODUCT
ORDER LINE
Product ID
Order ID (FK)
Product ID (FK)
Product Description
Product Finish
Product Standard Price
Product Line ID (FK)
Ordered Quantity
VENDOR
PRODUCED IN
Vendor ID
Work Center ID (FK)
Product ID (FK)
USES
Vendor Name
Vendor Address
Material ID (FK)
Product ID (FK)
WORK CENTER
RAW MATERIAL
SUPPLIES
Work Center ID
Material ID
Vendor ID (FK)
Material ID (FK)
Work Center Location
Material Name
Material Standard Cost
Unit of Measure
Supply Unit Price
SKILL
HAS SKILL
EMPLOYEE
Skill
Skill (FK)
Employee ID (FK)
Employee ID
WORKS IN
Employee ID (FK)
Work Center ID (FK)
Supervisor ID (FK)
Supervises
Z01_HOFF4619_12_SE_APPAWEB.indd 6
5/11/15 8:18 AM
Appendix A • Data Modeling Tools and Notation
A-7
the many-to-many relationship, establishes new ones with cardinality and optionality
­notations, ­creates the associative entity, and allows the “Supply Unit Price” a­ ttribute
for the SUPPLIES relationship to be displayed in the diagram. SUPPLIES would not be
the name automatically given this associative entity, so we have renamed it. ORDER
LINE is also shown as an associative entity by ERwin. The recursive nonidentifying
Supervises relationship, where parent and child are shown as the same entity, shows
that an Employee (a Supervisor) may supervise many employees, but not all employees
are supervisors. The notation also indicates that nulls are allowed, which shows that
a ­supervisor may have no employees and an employee (the president) may have no
supervisor. The diagram introduces a Role Name (Supervisor ID) for the PK attribute
in its role as a nonkey FK attribute for the Supervises relationship. Keys migrate automatically when relationships are established, and foreign keys are notated “FK.” In an
identifying relationship, the FK migrates above the horizontal line in the entity and
becomes part of the primary key of the child entity. In a nonidentifying relationship, the
foreign key migrates below the line and becomes a nonkey attribute in the child entity.
In ERwin, a dashed line represents a nonidentifying relationship.
The chart captured from ERwin’s online help and shown in Figure A-3 depicts the
range of cardinality symbols for different ER notation sets that may be used from this
product.
SAP Sybase PowerDesigner 16.5 Notation
PowerDesigner projects are contained within a workspace that can be customized
and includes a hierarchy of folders and models. Links to model files, report files, and
external files are also stored in the workspace. When a data modeler is working on
­multiple ­projects or on a part of a project with different requirements, multiple workspaces
may be defined as needed. Each is kept locally and is reusable. It is p
­ ossible to work in
Cardinality
Description
IDEF1X Notation
Identifying Nonidentifying
Nulls No Nulls
IE Notation
Identifying Nonidentifying
Nulls No Nulls
DM Notation
Identifying Nonidentifying
Nulls No Nulls
Figure A-3 ERwin cardinality/
optionality symbols
One to zero,
one, or more
One to one
or more (P)
P
P
P
P
P
P
P
P
P
Z
Z
Z
Z
Z
Z
Z
Z
Z
4
4
4
4
4
4
4
4
4
One to zero
or one (Z)
One to
exactly (N)
Z01_HOFF4619_12_SE_APPAWEB.indd 7
5/11/15 8:18 AM
A-8
Appendix A • Data Modeling Tools and Notation
only one workspace at a time. PowerDesigner 16.5 includes various integrated modeling
tools besides data modeling, including XML modeling, data ­movement m
­ odeling, and
various enterprise information architecture tools.
The examples in this appendix use the Conceptual Data Model graphics with the
Information Engineering notation. Other conceptual modeling notations s­ upported are
Barker and IDEF 1/x. Conceptual designs can be used to generate first logical and then
physical data models. Further, PowerDesigner 16.5 has data warehouse design capabilities, including the ability to identify dimension and fact tables and to generate cubes.
The amount of detail that is displayed in the data model is selected by the
modeler and may include primary identifiers, a predetermined number of attributes,
data type, optionality, and/or domain. A double-click of the entity allows access to the
entity’s property sheet. Properties shown include name, technical code name, a comment field that contains a descriptive label if desired, stereotype (subclassification of
entity), estimated number of occurrences, and the possibility of generating a table in
the physical data model. Additional entity properties include attributes, identifiers, and
rules. Each of these properties has its own property sheet.
Entities
PowerDesigner uses a solid line between entities to establish any
r­elationship. Crows foot notation is used to establish cardinality and the circle and
line establish optionality, similar to the Hoffer notation. Relationship properties
include name, technical code name, comment, stereotype, the related pair of entities
(only binary and unary relationships are supported), and a generation capability. It
is possible to model a many-to-many relationship without breaking it down to include
the associative entity. If desired, however, an associative entity may be modeled and
­displayed. Recursive (reflexive) relationships may be modeled easily, and subtypes
may also be presented.
Relationships
Oracle Designer Notation
Diagrams drawn using the Oracle SQL Developer Data Modeler tool can be set to show
only the entity names, the entity names and the primary key, or the entity names and all
of the attribute labels.
No specific symbols exist for the different entity types, including associative
entities and supertypes or subtypes. All entities are depicted as rounded rectangles, and
attributes can be displayed within the box. Unique identifiers are preceded by a # sign
and must be mandatory, mandatory attributes are tagged with *, and optional attributes
are tagged with °.
Entities
Relationships Lines must be labeled in both directions, not just one direction, and
are challenging to manipulate and align. Cardinality is read by picking up the cardinality sign attached to the other entity. Thus, a Customer may place an order or not,
but when an order is placed, it must be related to a particular customer. Looking at
the EMPLOYEE entity, the recursive supervisory relationship is depicted by the “pig’s
ear” attached to the entity. It shows that an Employee may supervise one or more
employees and that an employee must be supervised by one employee or supervisor.
It is ambiguous as to whether the multiple cardinality is zero, one, or many.
When working with Oracle SQL Developer Data Modeler, it is important to
sketch your data model carefully and completely before attempting to use the tool.
Editing the model can be challenging, and deleting an object from the diagram does
not automatically delete it from the Repository.
Comparison of Tool Interfaces and E-R Diagrams
For each of the software modeling tools included in Table A-1, the data model for
Figure 2-22 (A-1) is included here. These figures should give you a better idea of what
the symbol notation looks like in actual use. Note that we use uppercase for all data
Z01_HOFF4619_12_SE_APPAWEB.indd 8
5/11/15 8:18 AM
Appendix A • Data Modeling Tools and Notation
Figure A-4
A-9
SAP Sybase PowerDesigner 16.5 model
SALESPERSON
TERRITORY
Serves
Salesperson_ID
Salesperson_Name
Salesperson_Telephone
Salesperson_Fax
Territory_ID
DOES BUSINESS IN
Territory_Name
CUSTOMER
PRODUCT LINE
Product_Line_ID
Product_Line_Name
Customer_ID
Customer_Name
Customer_Address
Customer_Postal_Code
Submits
Includes
ORDER
Order_ID
Order_Date
PRODUCT
Product_ID
Product_Description
Product_Finish
Product_Standard_Price
ORDER LINE
Ordered_Quantity
PRODUCED IN
USES
VENDOR
Goes_into_Quantity
Vendor_ID
Vendor_Name
Vendor_Address
WORK CENTER
Work_Center_ID
Work_Center_Location
RAW MATERIAL
Material_ID
Material_Name
Material_Standard_Cost
Unit_of_Measure
SUPPLIES
Supply_Unit_Price
Supervision
Supervises
EMPLOYEE
SKILL
Skill
Z01_HOFF4619_12_SE_APPAWEB.indd 9
HAS SKILL
Employee_ID
Employee_Name
Employee_Address
Is Supervised By
WORKS IN
5/11/15 8:18 AM
A-10
Appendix A • Data Modeling Tools and Notation
Figure A-5
Oracle SQL Developer Data Modeler 4.0 model
serves
SALES TERRITORY
is served by
has business with
# TERRITORY_ID
* TERRITORY_NAME
SALESPERSON
CUSTOMER
does business in
# CUSTOMER_ID
* CUSTOMER_NAME
O CUSTOMER_ADDRESS
PRODUCT LINE
# SALESPERSON_ID
* SALESPERSON_NAME
O SALESPERSON_FAX
O SALESPERSON_TELEPHONE
submits
# PRODUCT_LINE_ID
* PRODUCT_LINE_NAME
ORDER
includes
is submitted by
belongs to
# ORDER_ID
* ORDER_DATE
requests
PRODUCT
VENDOR
# PRODUCT_ID
* PRODUCT_DESCRIPTION
O PRODUCT_FINISH
O STANDARD_PRICE
# VENDOR_ID
O VENDOR_NAME
O VENDOR_ADDRESS
supplies
is used by
ORDER LINE
* ORDERED_QUANTITY
employs
used to produce
WORK CENTER
RAW MATERIAL
# MATERIAL_ID
* MATERIAL_NAME
* UNIT_OF_MEASURE
O STANDARD_COST
appears on
requested by
produced in
uses
supplied by
appears on
# WORK_CENTER_ID
O WORK_CENTER_LOCATION
works in
has
SKILL
# SKILL_CODE
O SKILL_DESCR
belongs to
belongs to
has
HAS_SKILL
supervises
EMPLOYEE
# EMPLOYEE_ID
* EMPLOYEE_NAME
O EMPLOYEE_ADDRESS
supervised by
names and include an underscore between words in Figure A-5, which is different from
other E-R diagrams in this book. We do this for two reasons: (1) This is what many
Oracle practitioners do, and (2) Oracle, like many other RDBMSs, always displays data
names in SQL and repository query results in all-capital letters, so creating data names
in this format may be easier for some people to read.
Z01_HOFF4619_12_SE_APPAWEB.indd 10
5/11/15 8:18 AM
