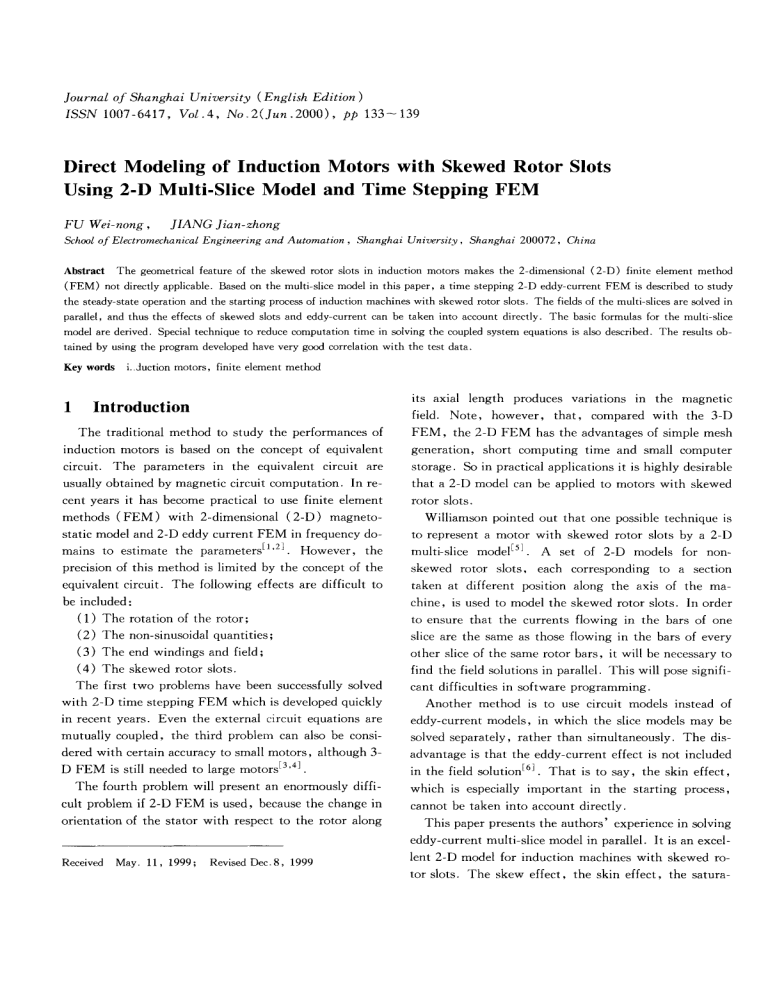

Journal of Shanghai University (English Edition ) I S S N 1007-6417, Vol.4, N o . 2 ( J u n . 2 0 0 0 ) , pp 133--139 Direct Modeling of Induction Motors with Skewed Rotor Slots Using 2-D Multi-Slice Model and Time Stepping FEM F U Wei-nong, JIANG Jian-zhong School of Electromechanical Engineering and Automation, Shanghai University, Shanghai 200072, China The geometrical feature of the skewed rotor slots in induction motors makes the 2-dimensional (2-D) finite element method (FEM) not directly applicable. Based on the multi-slice model in this paper, a time stepping 2-D eddy-current FEM is described to study the steady-state operation and the starting process of induction machines with skewed rotor slots. The fields of the multi-slices are solved in parallel, and thus the effects of skewed slots and eddy-current can be taken into account directly. The basic formulas for the multi-slice model are derived. Special technique to reduce computation time in solving the coupled system equations is also described. The results obtained by using the program developed have very good correlation with the test data. Abstract Key words i.~ductionmotors, finite element method 1 Introduction its axial length produces variations in the magnetic field. Note, however, that, compared with the 3-D The traditional method to study the performances of F E M , the 2-D FEM has the advantages of simple mesh induction motors is based on the concept of equivalent generation, short computing time and small computer circuit. The parameters in the equivalent circuit are storage. So in practical applications it is highly desirable usually obtained by magnetic circuit computation. In re- that a 2-D model can be applied to motors with skewed cent years it has become practical to use finite element rotor slots. methods ( F E M ) with 2-dimensional ( 2 - D ) magneto- Williamson pointed out that one possible technique is static model and 2-D eddy current FEM in frequency do- to represent a motor with skewed rotor slots by a 2-D mains to estimate the parameters [1'2]. However, the multi-slice model [51. A set of 2-D models for non- precision of this method is limited by the concept of the skewed rotor slots, equivalent circuit. The following effects are difficult to taken at different position along the axis of the ma- be included: chine, is used to model the skewed rotor slots. In order (1) The rotation of the rotor; each corresponding to a section to ensure that the currents flowing in the bars of one (2) The non-sinusoidal quantities; slice are the same as those flowing in the bars of every (3) The end windings and field; other slice of the same rotor bars, it will be necessary to (4) The skewed rotor slots. find the field solutions in parallel. This will pose signifi- The first two problems have been successfully solved cant difficulties in software programming. with 2-D time stepping FEM which is developed quickly Another method is to use circuit models instead of in recent years. Even the external circuit equations are eddy-current models, in which the slice models may be mutually coupled, the third problem can also be consi- solved separately, rather than simultaneously. The dis- dered with certain accuracy to small motors, although 3D FEM is still needed to large motors [3'4l . advantage is that the eddy-current effect is not included The fourth problem will present an enormously diffi- which is especially important in the starting process, cult problem if 2-D FEM is used, because the change in orientation of the stator with respect to the rotor along in the field solution [6] . That is to say, the skin effect, cannot be taken into account directly. This paper presents the authors' experience in solving eddy-current muhi-slice model in parallel. It is an excel- Received May. 11, 1999; RevisedDec.8, 1999 lent 2-D model for induction machines with skewed rotor slots. The skew effect, the skin effect, the satura- Journal of Shanghai University 134 tion, the rotor rotation and the non-sinusoidal quantities E (~) = l (re) 9A (k) at ' _ can all be included directly in the system equations. When the applied terminal voltage is known, the currents, torque, etc. , can be computed directly. In this where (3) l (k) is the axial length of the k-th slice. The total current density j(k) in a conductor of the k-th slice is paper the basic formulas for multi-slice model are derived. Special techniques needed in the mesh generation = l(k) a (- j(~) and the software programming for salient structure are u (k) + E(k)) a ((k) also described. The CPU time needed and the compu- - - IG ) l(k) aA(k)) u + at (4) ' ting accuracy are compared when different number of slices are used. The test results of an 11 kW skewed cage induction motors are used to verify the computed where u (k) is the potential difference between the two ends of a conductor in the k-th slice and a is the conductivity of the material. results. Integrating the current density j(k) over the cross- 2 B a s i c E q u a t i o n s of M u l t i - S l i c e M o d e l section of the conductor gives It is first assumed that there are no leakage fluxes in the outer surface of the stator core and in the inner sur- _ i (k) __(su(k) + J l(~) aA(~) ) a t dg2 , G (5) l?~-) a2(k) face of the rotor core. The stator outside circuit and the effect of the rotor end rings are considered by coupling where i(k) is the total current in the conductor, s = da2 is the cross-sectional area of the rotor bar. the electrical circuits into the FEM equations. The leakage inductances at the end regions of the stator winding and at the end rings of the rotor cage are obtained by analytical methods. By putting l(k) in Eq. (5) to the left hand side, and letting k = 1,2 . . . . . M ( M is the number of slices) and to group all these M equations together, one has The motor in the axial direction is considered as comM posing of multi-slices [6] . In each slice the magnetic vec- N~ l(,,,) i(m) tor potential has an axial component only. The magnetic m = I M fields are present in planes normal to the machine axis. Hence the characteristic of the electromagnetic field of each slice is 2-dimensional. The electrical relationships M --G(SEU(m) + , ~ ff l(rn) 3n(m,daQ)ot m=l = as those flowing in the bars of every other slice. i = i(l)= i(2) i(M) ..... (7) Replacing i (m) in Eq. (6) with i, one obtains The Maxwell's equations applied to the domain under i = investigation will give rise to the following equation: V x (v V x A ) : - ] , (6) According to the assumption the rotor bar current is between the various slices are based on the principle that the currents flowing in the bars of one slice are the same . ~(m) ~ Su + M = (1) l ('') 3A(m)dg] 3t ) (8) g~(,n) M where A is the magnetic vector potential having only the axial component; v is the retuctivity of the material. 2.1 In air-gap and iron core domains m-I M u = ~ u (m) is the potential differences between the two m-1 Because the iron cores are laminated, the eddy currents in the iron cores are neglected in the mathematical model. Therefore, in the air-gap and the iron core domain, ends of a bar. Because the items on the right hand side of Eqs. (5) and (8) are equal, one has u (k' j = 0. 2.2 where l = x~ l (m) is the axial length of the bar and - l(k) l -u + l(k)~Z~_l~f lS (2) In rotor conductor domain l~fl(k) aA(k) at l(m) = OA( at m)dX2 - da2. The induced electromotive force between the two ends of a conductor in the k-th slice is Substituting Eq. (9) into Eq. ( 4 ) , one has (9) Vol. 4 No. 2 Jun. 2000 FU W. N. : Direct Modeling of Induction Motors with Skewed Rotor Slots Using'" electromotive force in one phase is therefore a~ + j(k) = -- ( 1 u + a aA(k) o" '@ ff .(,,,)aA ('') "+Z-'~-IJm>l- m at M a 612- 8 A (k> ~da). ff S1m~--~jl(m)[ :l E- f aA d12 + Substituting Eq. (10) into Eq. (1) and noticing that j(k), A(k) and 12(~) can be written simply as j , A and Y], one obtains the basic electromagnetic field equation w ""ff s(m) w+2 1 ) (m) S2w M - - 1~=1l('~)(~ aWA d f 2 _ a(+~ ~f a8 tA d 1 2 // , ( 1 5 a (~ ) Tu + Vi-t + S f fa ~O- Ad£2 " where 12(+m) = S~,,) + s(m) + ... + s(m) and 12(Y) = (11) Another relationship between i and u can be obtained by the circuit equations for the rotor end windings [2] . Because all rotor bars are connected with rotor rings, the relationship must be expressed in the matrix equation: = [Z][/], (12) where [ u ] and [ i ] are column matrices, each element means the voltage difference and the current of the rotor bar, respectively; [ Z ] is the impedance matrix of the end network of the rotor cage. Eqs. ( 8 ) , (11) and (12) will give rise to the basic formulas in the rotor bar domain. The unknown potential difference u can then be eliminated first. 2.3 dAd12 ] jj aa '::r ~,~_~; /S :,a(,, , , ('+)OA('', at d a - [u] ff "+ (fsf+ aAd12~ + .II__ aAdg2 in the rotor conductor domain as: a dAd12 & + S(I 'n) (10) Vx(vqxA)= 135 In stator conductor domain S(m) + c(m) + ... + e(m) w+l 'Jw+2 ~'2w coils are S~ + l S w + 2 . . . . . S 2 w , and the total crosssectional area of one turn at one side is equal to S. The circuit equations are Substituting Eq. ( 1 5 ) into Eq. ( 1 4 ) , and noticing that R = 2wl/aS and the total conductor area of one phase is 12( m) = ~ (+m) + 1-2(m) = 2wS, one obtains G 2wl [Su + ~ l ( m ) ( ~ a Ad12~ - ~f a Ad12]l .... , f2(m) + D(m) ,. (16) Notice that j = i/S. The electromagnetic field equation in Eq. (1) becomes 2wl [u + ~=ll(m)(ff - Because the stator winding consists of fine wires, the current density j in the stator conductor is assumed uniform. Assuming that the stator winding of one phase consists of w turns in series, the cross-sectional areas of each conductor at one side of the coils are $1, $ 2 , . . . , S ~ , the areas of each conductor at the other side of the • D(÷m) aO~tAd12_ ff Vf-t a a d121/]" t2(m) (17) Substituting Eq. (13) into Eq. ( 1 6 ) , one has i---2w/ a [ ( S us + Rfi + L ~ ff di) + d12- f f a A d a (is) , di u, = u - R~i - L~ -~, u = E - Ri, (13) (14) where Us is the applied voltage; i is the phase current; R, and L, are resistance and inductance at the end of winding, respectively; u is the total potential difference of each element in the stator winding; R is the resistance of each element in the stator. The total induced Eqs. ( 1 7 ) and ( 1 8 ) constitute the basic formulas governing the stator conductor domain. By using finite element formulation and coupling the electromagnetic field equations together with the electrical circuit equations, one obtains the following large nonlinear system of equations: i + [Q R] 0i = [P], (19) 136 Journal of Shanghai University where the unknowns [ A ] and [ i ] are the axial components of magnetic vector potentials and the currents, respectively, that are required to be evaluated. [ K ] , [ C 1, [ Q 1, [ R ] are the coefficient matrices and [ P l is the column matrix associated with the input voltages. The mechanical equation of the motor is also required to be coupled, dZ0 Jm dt 2 - T e - Tf = T, (20) where Jm is the moment of inertia; 0 is the angular position of the rotor; Te is the electromagnetic torque, and Tf is the load torque. The Maxwell stress tensor is used for electromagnetic torque computation [z] . Because the magnetic flux density B of the air gap in the elements contacted with iron is liable to low accuracy, it will give more reliable results if only the B in the middle elements is used to compute the torque. Therefore, the air gap is divided into three layers. The middle layer is chosen as an integration cross sectional area (integration ring). The electromagnetic torque can be obtained by moved with the rotation of the rotor. The position of the rotor mesh is determined by Ok, [ Kk ], [ Ck 1, [ Qk 1, [Rk ] will change with the rotation of the rotor mesh. In the iteration process for the solution of the equation coupling Eqs. ( 2 2 ) , (23) and ( 2 4 ) , the rotor mesh will be changed repeatedly. This will certainly give rise to difficulties in the programming. The proposed method is, instead of using Eq. ( 2 2 ) , using the Euler's method to obtain an initial guess of wk as follows: o~(ko) Tk-a = 6Ok_1 -[- T A t . (25) During the process in solving Eq. ( 2 4 ) , the rotor mesh is fixed. After the solution of Eq. ( 2 4 ) , Tk can be obtained, wk can be computed again by using the Backward Euler's method according to Eq. ( 2 2 ) . The difference between cok(°) and cok indicates the discretization nents of the flux density. error which is dependent on the At step size [7]. If this error is larger than allowed, the step size At will be reduced automatically. At each time step, the iterative solver is most suitable in solving the system of large equations. This is because the good initial value, which can be obtained easily from the result of the previous step, can be used to reduce the number of iterations. In this paper the Newton-Raphson method coupled with the incomplete Cholesky-conjugate gradient algorithm is used to solve the system of large nonlinear equations. 3 4 T~ = /10(rs 1 rr)% frB~B~ds, (21) where/~0 is the permeability in vacuum; rs and rr are the outer and the inner radii of the integration ring respectively, and Sag is the cross-sectional area of the integration ring; Br and B~ are the r- and the p-compo- Solution of System of Equations For time stepping process in F E M , the Backward Euler's method is used. In the steady-state problems, the complex FEM model is solved first to give an initial guess of A (0) and i ( 0 ) . The Backward E u l e r ' s method is used to discretize the time variable. If the solution at the ( k - 1 ) - t h step is known, then at the k-th step one has cok = ~'k-x + f ~ At, (22) Ok = Ok-1 + wkz~t, (23) Q~ Ck + ~R-~] [ Aikk l = [Kk + ~ [~k AtRkJ[A'-lJ+ ik_l [P,] (24) where o) is the rotor speed. The rotor FEM mesh is Results The presented method has been used to simulate the operation of an 11 kW, skewed rotor cage induction motor. The details of the motor is shown in Table 1. The stator of the motor is wounded with full-pitch singlelayer windings. 4.1 Load operation The programs are run on a personal computer Pentium/150 MHz. The size of each time step is 0. 039 ms. The computed and measured stator phase currents are shown in Fig. 1. The comparison of the CPU time of the computation of one step, as well as the error between computed and measured stator currents when using different slice numbers is shown in Table 2. Vol.4 No.2 Table 1 Jun.2000 FU W.N. : Direct Modeling of Induction Motors with Skewed Rotor Slots U s i n g ' " Main parameters of tested motor Table 2 137 Comparison of C P U time and error using different slice numbers Rated power (kW) 11 Rated voltage (V) 380 Number of slices Unknowns CPU time(s) Error( % ) 1 2712 38 19.67 2 5399 76 7.77 3 8086 128 5.96 4 10773 209 5.26 Rated current (A) 22.61 Rated frequency (Hz) 50 Connection A Number of phases 3 Number of pole pairs 2 Number of stator slots 48 5 13460 313 5.17 6 16147 446 5.12 Number of rotor slots 44 Stator diameter (ram) 240 Rotor diameter (ram) 157 Air-gap length (ram) 0.5 Core length (mm) 165 Skew 1.3 stator slot pitch Table 3 Comparison of currents and torques at locked-rotor test Computed result 30 20 Phase current Torque (Average) (RMS) (A) (N'm) 148.2 145.3 Test result of motor I 150.4 158.4 Test result of motor II 149.5 155.8 10 150 100 50 -10 -20 <-<- 0 -30 ; 10 t/ms 1'5 20 -50 -100 -151 (a) Computed fo 2b 3'o 4'O 5'o 4b 5b t/ms (a) current 20 600 10 0 400 -10 -20 -301 0 Z i 5 , 10 t/ms 1'5 200 i 20 b~ -200 400 (b) Measured Fig. 1 2'0 3'0 t/ms Stator phase current waveform at load test 4.2 R o t o r locked operation The comparison of the results between the computed and the measured data for locked-rotor operation at steady-state is shown in Table 3. If the results of the complex FEM model are used as the initial data for the time stepping F E M model, the computed stator currents and electromagnetic torques for rotors with non-skewed and skewed rotor-bars are shown in Figs. 2, 3, and 4, respectively. Because the solutions are computed before the currents reach their steady-states, there are very obvious torque ripples in the torque waveforms. fo (b) Torque Fig. 2 Current and torque at locked-rotor test ( n o n skewed rotor-bars) 4.3 Starting process The method has also been used to simulate the starting operation of the motors. The computed stator phase current (phase A ) and the torque at the no-load condition are shown in Fig. 5, while the measured current (phase A ) is shown in Fig. 6. The applied voltages are va = V m c o s (wt - ~ r / 3 ) , vn = V,~cos (cot - ~r/3 - 2~r/3), vC = Vmcos (:o~ot - re/3 - 47r/3), Journal of Shanghai University 138 150 100 50 150 100 -50 -100 -150 AAAAAAA VVVVVvv' 50 40 g0 -50 10 20 30 40 -100 5'0 t/ms -150 ~o 16o (a) Current '~0 3'0 4'0 b~ io 0 "1000 50 100 Fig. 5 ( s k e w e d rotor-bars with 1 . 3 stator slot pitch) 20 30 40 (b) Torque Computed current and torque at starting process (skewed rotor-bars with 1 . 3 stator slot) <%: 10 150 t/ms Current and torque at locked-rotor test -100 -150 250 ~_~ oa 200100 (b) Torque -50 200 3oo t/ms 0 2'50 400 - 1'0 150 100 50 25o (a) Stator phase current 300 ~ . 250 200 150 100 0 50 Fig. 3 1~o t/ms 150 100 -100 IAAAAAAA VVVVVVVV -150 50 50 5'0 t/ms 160 150 200 230 t/ms (a) Current Fig. 6 250 [ 5 Measured stator phase current at starting process Conclusions 150 100 50 00 10 20 30 40 #0 t/ms (b) Torque Fig. 4 Current and torque at locked-rotor test (skewed rotor-bars with 1 . 0 stator slot pitch) where Vm = 380 r ~ V. The result of computed current using the proposed method shows very good correlation with the test data. The computed currents and torques when the rotor is non-skewed and skewed 1 stator slot are shown in Fig. 7 and Fig. 8, respectively. The computed magnetic flux distributions during starting process are shown in Fig. 9. The skewed geometry of the rotor slots in induction motors has great influences upon the performances of the machines. The multi-slice model for skewed rotor slot motors, being solved in parallel using time stepping 2-D eddy current F E M , can take into account the skew effect, the eddy-current effect, the rotor rotation and the non-sinusoidal quantities directly in the system equations. It is an excellent 2-D model to solve an essentially 3-D problem. The proposed method thus has a significant contribution in applying time stepping FEM models to study practical electrical machines with skewed slots. Vol. 4 No. 2 Jun. 2000 F U W . N. : Direct Modeling of Induction Motors with Skewed Rotor Slots U s i n g ' " 139 IOO °hAAAAAAAAA ' A 50 ---,ojVV!vvvvvv 0 A^, :11~00 5t 160 150 200 250 t/ms (a) Current (a) t = 0.800 ms 800 600 b".200 -400 -6000 5'0 100 150 t/ms 200 250 (b) Torque Fig. 7 Computed current and torque at starting process Fig. 9 (b) t =4.609 ms Computed flux distributions during starting process (non-skewed rotor-bars) References 150 100 50 --< o [I] IAAAAAAAAAA -50 -100 VVVVVVVVVVV V -150 I I 0 100 I 150 t/ms [2] I 250 [3] Ho S. L. , Fu W . N. , Status of the application of finite element method to induction machines, Aegean Cbnference on 200H1 b~ 100 [5 ] If " I I I I 100 150 200 250 t/ms [6] (b) Torque Fig. 8 Arkkio A. , Analysis of induction motors based on the nu- gineering Series, 1985 (5) [4 ] 50 tions, IEEE Trans. on Mag. , 1991, 2 7 : 5 2 3 2 - 5234 Helsinki, Acta Polytechnica Scandinavica, Electrical En- I 200 ~.. 4°° F o ment method coupled with circuits and mechanical equa- merical solution of the magnetic field and circuit equations, (a) Current Pill _,o°: v Vassent E. , Meunier G. , Foggia A. , et al. , Simulation of induction machine operation using a step by step finite ele- Applications Society Annual Meeting, Denver, Colorado, 1994 : 93 - 97 Computed current and torque at starting process (skewed rotor-bars with 1 stator slot) Electrical Machines and Power Electronics, 1995:37 - 4 2 Ho S . L . and Fu W. N. , Computation of harmonic stray losses of induction motors using adaptive time stepping finite element method coupled with circuits, Seventh Inter. Conf. on Electrical Machines and Drives, Conference Publication 1995, No. 412:93 - 97 Williamson S . , Induction motor modeling using finite elements, Inter. Conf. on Electrical Machines, Paris, France, 1994 : 1 - 8 Williamson S. , Flack Timothy J. , Volschenk Albertus F. , Representation of skew in time-stepped two-dimensional finite-element models of electrical machines, IEEE Industrial [7] Ho S. L. , Fu W . N. , Wong H . C . , A n increment method for steady state solution of induction motors while using time stepping finite element model, 1997,33(2) : 1374 - 11377 IEEE Trans. on M a g . ,
