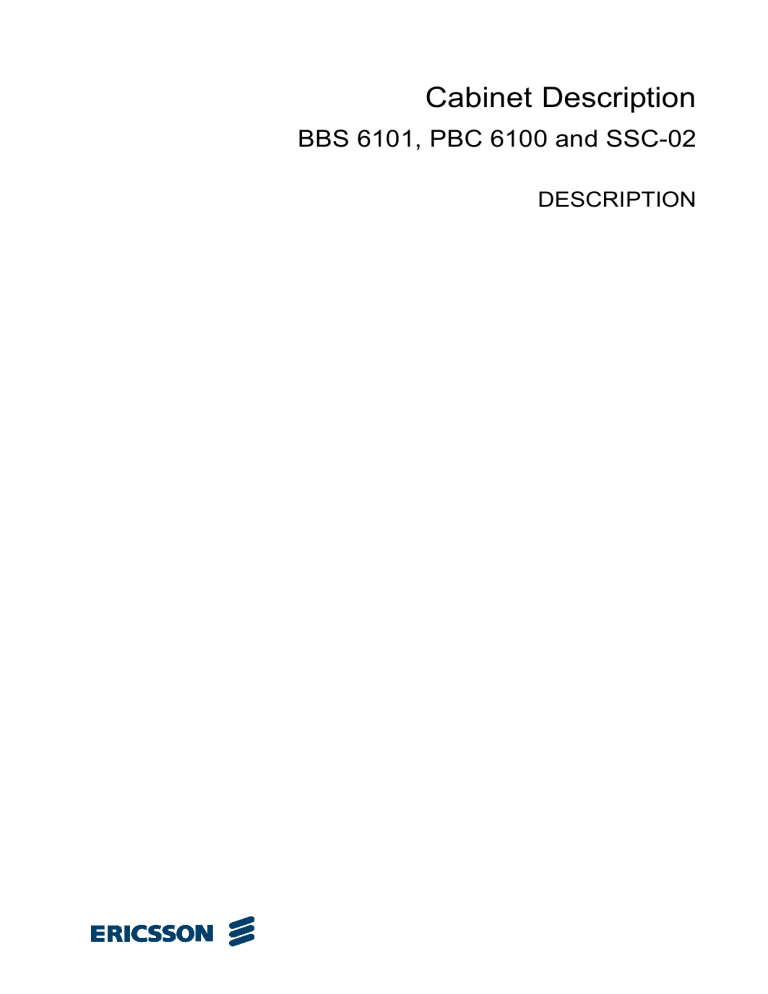

Cabinet Description
BBS 6101, PBC 6100 and SSC-02
DESCRIPTION
Copyright
© Ericsson AB 2010. All rights reserved. No part of this document may be
reproduced in any form without the written permission of the copyright owner.
Disclaimer
The contents of this document are subject to revision without notice due to
continued progress in methodology, design and manufacturing. Ericsson shall
have no liability for any error or damage of any kind resulting from the use
of this document.
Trademark List
All trademarks mentioned herein are the property of their respective owners.
These are shown in the document Trademark Information.
7/1551-LZA 701 6009 Uen B 2010-04-30
Contents
Contents
1
Introduction
1
1.1
Target Group
1
2
Product Overview
3
2.1
Main Features
3
3
Cabinet Overview
5
3.1
Cabinet
5
3.2
Doors
6
3.3
Connection Field
9
3.4
Optional Equipment
11
4
Size, Weight and Color
13
5
Space Requirements
15
6
Environment
17
7
Power
19
8
Interfaces
21
Glossary
23
Reference List
25
7/1551-LZA 701 6009 Uen B 2010-04-30
Cabinet Description
7/1551-LZA 701 6009 Uen B 2010-04-30
Introduction
1
Introduction
This document describes the common parts of the cabinet used for the BBS
6101, PBC 6100 and SSC-02.
P028024A
Figure 1
1.1
Cabinet Overview
Target Group
The target groups for these instructions are the personnel involved in the site
installation engineering process and those responsible for the installation,
integration, and maintenance of RBS sites.
7/1551-LZA 701 6009 Uen B 2010-04-30
1
Cabinet Description
2
7/1551-LZA 701 6009 Uen B 2010-04-30
Product Overview
2
Product Overview
This section contains a common product overview of the cabinet for the BBS
6101, PBC 6100 and SSC-02
2.1
Main Features
The cabinet:
•
Is designed for outdoor use
•
Is IP 55/NEMA 3R shielded.
•
Can be equipped with different climate solutions.
•
Can be configured with different interior.
See the following documents for a detailed overview of each cabinet type:
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
7/1551-LZA 701 6009 Uen B 2010-04-30
3
Cabinet Description
4
7/1551-LZA 701 6009 Uen B 2010-04-30
Cabinet Overview
3
Cabinet Overview
This section contains descriptions of parts common to the BBS 6101, PBC
6100 and SSC-02:
•
Cabinet
•
Doors
•
Connection Field (CF)
•
Optional Equipment.
See the following documents for units specific for each cabinet type:
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
P028029A
Figure 2
3.1
Cabinet with Door for BBS, PBC and SSC
Cabinet
The cabinet structure consists of an inner and an outer liner. The volume
between the liners is filled with foam insulation. With this design there is
virtually no heat-bridges in the climate insulation and thus giving the cabinet an
excellent thermodynamic performance.
The top of the cabinet is provided with four M8 threaded holes that are provided
for the usage of lifting eye bolts.
The roof of the cabinet is designed with a small overhang in the front to protect
the top of the environmental seal from direct sunlight and water.
7/1551-LZA 701 6009 Uen B 2010-04-30
5
Cabinet Description
3.2
Doors
The doors are of the same design concept as the cabinet when it comes to the
thermal insulation with an inner and outer liner and insulation foam in between.
It contains the climate systems and the climate controller.
The cabinets are equipped with different doors depending on configuration
of the specific cabinet.
Table 1
Doors
Door
Cabinet
CLU door
BBU 6101
HEX door
PBC 6100
Combo door
SSC-02
At delivery the door is closed and locked.
The opened door is locked in position with a door hatch. Figure 3 on page 6
shows the door hatch.
P028025A
Figure 3
Door Hatch
At delivery the door is left hanging. It is possible to shift to right hanging door.
See Installing Cabinet, Reference [3], for how to do.
3.2.1
CLU Door
The CLU door is used for the BBU 6101.
Cooling
The CLU is an active climate system.
6
7/1551-LZA 701 6009 Uen B 2010-04-30
Cabinet Overview
A fan is used to ensure air circulation inside the cabinet through the cold
evaporator, the airflow for the outer part of the CLU (the condenser) is by
natural convection.
Heating
When heating functionality is desired, the optional heater is mounted, utilizing
the same air flow as is used for cooling.
Table 2
3.2.2
CLU Characteristics
Characteristics
Value
Inside temperature
+10°C - +30°C
Non-destructive outdoor temperature
range:
-40°C - +60°C
HEX Door
The HEX door is used for the PBC 6100.
The HEX door is intended for a cabinet configuration with one climate zone
that does not require active cooling.
The HEX door uses a heat exchanger core to cool the internal air with the
external air without having any air exchange between the internal and external
air. With this solution it is possible to remove the estimated heat from the PBC
compartment.
Table 3
HEX Characteristics
Characteristics
Value
Inside temperature
+10°C - +55°C
Non-destructive outdoor temperature
range:
-40°C - +60°C
Voltage Supply Range
-48 VDC
200 - 240 VAC
3.2.3
Combo Door
The combo door is used for the SSC-02.
The combo door is intended for a system with a dual climate zone where
the upper climate zone is used for equipment with a greater span of allowed
temperatures and therefore do not need an active cooling and the lower climate
zone is used for batteries that requires active cooling.
7/1551-LZA 701 6009 Uen B 2010-04-30
7
Cabinet Description
The lower part of this door has a climate unit of the same type as the CLU
door described above.
The upper part is equipped with a small HEX.
Small HEX
The small HEX is of the same type as the HEX door described above.
The solution with the small HEX has the capacity to remove the estimated heat
from the upper climate zone of the cabinet.
Table 4
Combo Door Characteristics
Characteristics
Value
Inside temperature
+10°C - +55°C
Non-destructive outdoor temperature
range:
-40°C - +60°C
Voltage Supply Range
-48 VDC
200 - 240 VAC
3.2.4
FFU Door
Note:
N/A for this product release.
The functionality of the FFU is basically to reduce the excess heat created
within the cabinet and the solar radiation by means of external air that is blown
into the cabinet by fans. The air inlet is provided with a filter. The choice of filter
component can be changed in the field. The climate controller compares the
inner and outer temperature of the cabinet and when the inner temperature is
colder than the outer temperature, louvers close and the air flow is shorted.
This way no hot ambient air is transported into the cabinet making the battery
compartment hotter than necessary
With this solution it is possible to remove the estimated heat from the upper
compartment of the cabinets.
Table 5
FFU Characteristics
Characteristics
Value
Inside temperature
Δ max 5°C
Non-destructive outdoor temperature
range:
Δ max 5°C
Voltage Supply Range
-48 VDC
200 - 240 VAC
8
7/1551-LZA 701 6009 Uen B 2010-04-30
Cabinet Overview
3.2.5
Locking System
The doors are equipped with a locking system. As default, the locking system is
factory installed at the right side of the door. It is possible to shift the locking
installation to right hanging door. See Installing Cabinet, Reference [3], for
how to do.
3.3
Connection Field
The CF is located in the bottom of the cabinet. See Figure 4 on page 9. This
part of the cabinet is included in the IP55 shielding but it is not included in
the temperature control.
In this area all the cables enter and terminate to their designated ground point,
connector, OVP or otherwise.
The CF area also contains an Interconnection Frame (ICF) for the SSC-02
and PBC 6100.
See the following documents for further information about the ICF:
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
P028026A
Figure 4
3.3.1
Connection Field
Earth Grounding
The cabinet is provided with two M8 earth studs in the front of the CF area, as
shown in Figure 5 on page 10. The ground wire of the incoming AC feed (if
any) is terminated in a green/yellow earth terminal that is securely connected
to the cabinet ground.
7/1551-LZA 701 6009 Uen B 2010-04-30
9
Cabinet Description
P028027A
Figure 5
3.3.2
Earth Grounding Studs
Cable Entries
Cable inlets can be mounted on left or right side in the connection field and in
the bottom of the cabinet. The cabinet is equipped with sealed openings on
both sides and sealed openings for cable inlets in the bottom. Figure 6 on page
10 shows the sealed openings at the sides, and Figure 7 on page 11 shows
the sealed openings in the bottom.
P028028B
Figure 6
10
Sealed Openings at the Sides of the Cabinet
7/1551-LZA 701 6009 Uen B 2010-04-30
Cabinet Overview
P028030A
Figure 7
Sealed Openings at the Bottom
See the following documents for actual cable inlets for the different cabinets:
3.4
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
Optional Equipment
This section describes optional equipment that can be installed into the cabinet.
3.4.1
Battery Frame Kit
When installing NSB 100 batteries the cabinet can be equipped with a Battery
Frame Kit, Reference [1].
3.4.2
Earthquake Kit
See the Earthquake Kit Description, for further information.
Note:
N/A in this product release.
7/1551-LZA 701 6009 Uen B 2010-04-30
11
Cabinet Description
12
7/1551-LZA 701 6009 Uen B 2010-04-30
Size, Weight and Color
4
Size, Weight and Color
This section describes the physical characteristics of the cabinet.
Size
Table 6
Size
Height
Width
Depth
1464 mm
667 mm
797 mm
(1)
944 mm
(2)
(1) Including CLU door.
(2) Including HEX or Combo door.
Weight
Table 7
Weight
(1)
Unit
Weight
Cabinet without door.
65 kg
Cabinet including door.
95 kg
(2)
145 kg
(3)
170 kg
(4)
130 kg
(5)
CLU door.
30 kg
HEX door.
70 kg
Combo door.
80 kg
FFU door.
55 kg
(1)
(2)
(3)
(4)
(5)
Without Delta power supply, batteries and cables.
Including CLU door.
Including HEX door.
Including Combo door.
Including FFU door.
Color
Table 8
Color
Color
Gray
7/1551-LZA 701 6009 Uen B 2010-04-30
13
Cabinet Description
14
7/1551-LZA 701 6009 Uen B 2010-04-30
Space Requirements
5
Space Requirements
This section describes the space requirements for the different cabinets.
The space required for the cabinet is shown in Figure 8 on page 15.
C
B
A
D
Cabinet
E
Door
F
P028002B
Figure 8
Table 9
Cabinet Clearance to Walls
Cabinet Clearance to Walls
Key
CLU door
HEX or Combo door
Minimum
Minimum
A
1.5 m at cable inlet side,
otherwise 50 mm to wall
or 100 mm to adjacent
cabinet
1.5 m at cable inlet side,
otherwise 50 mm to wall
or 100 mm to adjacent
cabinet
B
667 mm
667 mm
C
435 mm
578 mm
D
200 mm to wall
200 mm to wall
400 mm when placed
back to back
400 mm when placed
back to back
7/1551-LZA 701 6009 Uen B 2010-04-30
15
Cabinet Description
Key
E
F
16
CLU door
HEX or Combo door
Minimum
Minimum
1465 mm to wall
1527 mm to wall
1665 mm when placed
back to back
1727 mm when placed
back to back
690 mm
750 mm
7/1551-LZA 701 6009 Uen B 2010-04-30
Environment
6
Environment
See the descriptions of the specified cabinets as follows:
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
7/1551-LZA 701 6009 Uen B 2010-04-30
17
Cabinet Description
18
7/1551-LZA 701 6009 Uen B 2010-04-30
Power
7
Power
See the descriptions of the specified cabinets as follows:
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
7/1551-LZA 701 6009 Uen B 2010-04-30
19
Cabinet Description
20
7/1551-LZA 701 6009 Uen B 2010-04-30
Interfaces
8
Interfaces
See the descriptions of the specified cabinets as follows:
•
BBS 6101 Description, Reference [2].
•
PBC 6100 Description, Reference [4].
•
SSC-02 Description, Reference [5].
7/1551-LZA 701 6009 Uen B 2010-04-30
21
Cabinet Description
22
7/1551-LZA 701 6009 Uen B 2010-04-30
Glossary
Glossary
CCU
Climate Control Unit
CF
Connection Field
ICF
Interconnection Frame
7/1551-LZA 701 6009 Uen B 2010-04-30
23
Cabinet Description
24
7/1551-LZA 701 6009 Uen B 2010-04-30
Reference List
Reference List
[1]
Battery Frame Kit, NTM 101 1915/1
[2]
BBS 6101 Description, 8/1551-LZA 701 6009
[3]
Installing Cabinet, 13/1531-LZA 701 6009
[4]
PBC 6100 Description, 9/1551-LZA 701 6009
[5]
SSC-02 Description, 10/1551-LZA 701 6009
7/1551-LZA 701 6009 Uen B 2010-04-30
25
