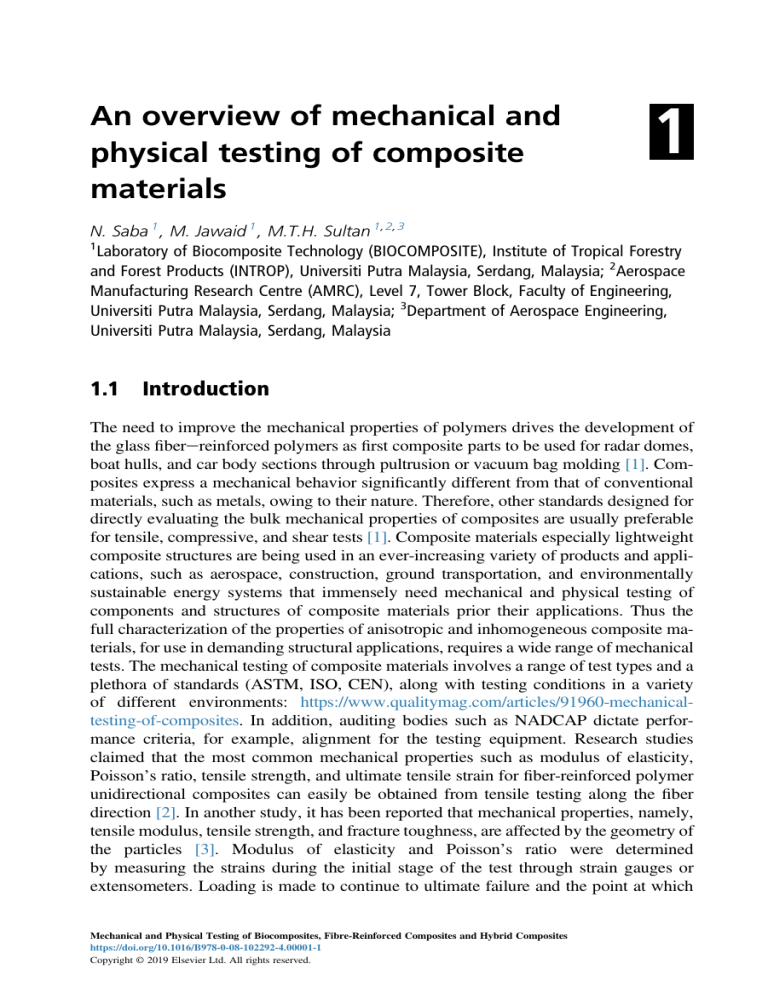

An overview of mechanical and physical testing of composite materials 1 N. Saba 1 , M. Jawaid 1 , M.T.H. Sultan 1,2,3 1 Laboratory of Biocomposite Technology (BIOCOMPOSITE), Institute of Tropical Forestry and Forest Products (INTROP), Universiti Putra Malaysia, Serdang, Malaysia; 2Aerospace Manufacturing Research Centre (AMRC), Level 7, Tower Block, Faculty of Engineering, Universiti Putra Malaysia, Serdang, Malaysia; 3Department of Aerospace Engineering, Universiti Putra Malaysia, Serdang, Malaysia 1.1 Introduction The need to improve the mechanical properties of polymers drives the development of the glass fiberereinforced polymers as first composite parts to be used for radar domes, boat hulls, and car body sections through pultrusion or vacuum bag molding [1]. Composites express a mechanical behavior significantly different from that of conventional materials, such as metals, owing to their nature. Therefore, other standards designed for directly evaluating the bulk mechanical properties of composites are usually preferable for tensile, compressive, and shear tests [1]. Composite materials especially lightweight composite structures are being used in an ever-increasing variety of products and applications, such as aerospace, construction, ground transportation, and environmentally sustainable energy systems that immensely need mechanical and physical testing of components and structures of composite materials prior their applications. Thus the full characterization of the properties of anisotropic and inhomogeneous composite materials, for use in demanding structural applications, requires a wide range of mechanical tests. The mechanical testing of composite materials involves a range of test types and a plethora of standards (ASTM, ISO, CEN), along with testing conditions in a variety of different environments: https://www.qualitymag.com/articles/91960-mechanicaltesting-of-composites. In addition, auditing bodies such as NADCAP dictate performance criteria, for example, alignment for the testing equipment. Research studies claimed that the most common mechanical properties such as modulus of elasticity, Poisson’s ratio, tensile strength, and ultimate tensile strain for fiber-reinforced polymer unidirectional composites can easily be obtained from tensile testing along the fiber direction [2]. In another study, it has been reported that mechanical properties, namely, tensile modulus, tensile strength, and fracture toughness, are affected by the geometry of the particles [3]. Modulus of elasticity and Poisson’s ratio were determined by measuring the strains during the initial stage of the test through strain gauges or extensometers. Loading is made to continue to ultimate failure and the point at which Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites and Hybrid Composites https://doi.org/10.1016/B978-0-08-102292-4.00001-1 Copyright © 2019 Elsevier Ltd. All rights reserved. 2 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites tensile strength and ultimate tensile strain are determined. The modulus of elasticity and Poisson’s ratio properties are measured at load levels well below the point of failure, typically corresponding to strain levels between 0.1% and 0.3%. However, the tensile strength and ultimate tensile strain values are the challenges, and they become more difficult to obtain as the specimen’s tensile strength increases [2]. 1.2 Mechanical and physical testing The mechanical and physical testing of polymers and their composites is vital to determine the material properties for use in design and analysis of the product, quality control, application performance requirements, and production process. The mechanical and physical testing ensure the material complies with performance requirements in accordance with industrial specifications, especially to the aerospace, automotive, consumer, medical, and defense industries [4]. Mechanical testing of polymer composites involves the determination of mechanical parameters such as strength and stiffness to investigate its use for the design of a composite’s structure. The most common standardized mechanical testing of polymer composites includes tensile (tension), flexural, impact [5], shear, and compression with open and closed holes, and the physical testing includes water absorption, density, void content, hardness, and scratch resistance. Researchers also conducted the compression, shear, and interlaminar strength for the determination of proper parameters of the failure criterion model involving ultimate strength and failure prediction of composite samples: https://www.aacresearch.at/en/mechanische-pruefung-2. Beside these, many other standardized bearing strength tests according to ASTM D 5961 and interlaminar fracture toughness tests to ASTM D 5538 are reported as mechanical tests on composites: https://www. qualitymag.com/articles/91960-mechanical-testing-of-composites. 1.2.1 Tensile test Tensile testing is a destructive test process that provides information about the tensile strength, yield strength, and ductility of the metallic material. It measures the force required to break a composite or plastic specimen and the extent to which the specimen stretches or elongates to that breaking point. Tensile testing of composites is generally in the form of basic tension or flat-sandwich tension testing in accordance with standards such as ISO 527-4, ISO 527-5, ASTM D 638, ASTM D 3039, and ASTM C 297. Such tests produce stress-strain diagrams used to determine tensile modulus. Tensile testing is presented in Fig. 1.1. Tensile testing also provides tensile strength (at yield and at break), tensile modulus, tensile strain, elongation, and percent elongation at yield, elongation, and elongation at break in percent http://www.intertek.com/polymers/tensile-testing/. In-plane tensile testing of plain composite laminates is the most common test. Tensile tests are also performed on resin-impregnated bundles of fibers (“tows”), through thickness specimens (cut from thick sections of laminates), and sections of sandwich core materials: https://www.qualitymag.com/articles/91960-mechanical-testing-of- An overview of mechanical and physical testing of composite materials 3 Figure 1.1 Tensile testing of plastics and composites. composites. Alignment is critical for composite testing applications because composites are anisotropic and generally brittle, as the anisotropy means that the properties and strength of the material differ depending on the direction of the applied force or load. Thus, the tensile strength of a composite material is very high in the direction parallel to the fiber orientation, while the tensile strength is much lower if tested in any other direction. Interestingly, to determine maximum tensile strength in the direction parallel to the fiber direction, the tensile test must have superior axialload-string alignment, primarily critical in the aerospace industry, where composites are often applied in high-tensile-stress structures. Currently, a range of proven gripping mechanisms including manual, pneumatic, and hydraulic actuation is available for ambient, subambient, and high-temperature testing, ranging between 269 and 600 C: https://www.aac-research.at/en/mechanische-pruefung-2/. Obtained test data specify the optimal materials, design parts to withstand application forces, and provide key quality control checks for materials. 1.2.2 Flexural test As the physical properties of many materials (especially thermoplastics) can vary depending on ambient temperature, it is sometimes appropriate to test materials at temperatures that simulate the intended end use environment. The flexural test measures the force required to bend a beam under three-point loading conditions, and it is generally applicable to both rigid and semirigid materials, resins, and 4 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites laminated fiber composite materials [6]. The data is often used to select materials for parts that will support loads without flexing. The most common flexural testing of plastics, polymer composites, and large fiber-reinforced plates involves three-point and four-point bend testing according to ISO 14,125, ISO 178, ASTM D 790, and ASTM D 6272 to ensure suitability under various conditions for better insight into their properties and to ensure that they are suitable for the intended application. A variety of specimen shapes can be used for this test, but the most commonly used specimen size for ASTM is 3.2 mm 12.7 mm 125 mm (0.12500 0.500 5.000 ), the rectangular samples of dimension 160 mm 20 mm 8 mm 10 mm 1 mm for ASTM D790 [7], and for ISO, it is 10 mm 4 mm 80 mm. Most commonly in the flexural test, the specimen lies on a support span, and the load is applied to the center by the loading nose producing three points bending at a specified rate. The parameters for this test are the support span, the speed of the loading, and the maximum deflection for the test. These parameters are based on the test specimen thickness and are defined differently by ASTM and ISO. For ASTM D790, the test is stopped when the specimen reaches 5% deflection or the specimen breaks before 5%, but for ISO 178, the test is stopped when the specimen breaks. If the specimen does not break, the test is continued as far as possible, and the stress at 3.5% (conventional deflection) is reported. Flexural testing also gives a semiqualitative idea of the fiber/matrix interfacial strength of a composite [6]. Flexural properties testing provides editable and raw data on flexural stress at yield, flexural strain at yield, flexural stress at break, flexural strain at break, flexural stress at 3.5% (ISO) or 5.0% (ASTM) deflection, flexural modulus, and stress/strain curves. Flexural modulus is used as an indication of a material’s stiffness when flexed: http://www.intertek.com/polymers/testing/flexuralproperties/. 1.2.3 Impact test The impact test is designed to determine how a specimen of a known material such as polymers, ceramics, and composites will respond to a suddenly applied stress. The impact test is explicitly used for evaluating the toughness, brittleness, notch sensitivity, and impact strength of engineering materials to resist high-rate loading [8,9]. The ability to quantify the impact property is a great advantage in product liability and safety. Impact test specimen types include notch configurations such as V-notch, U-notch, and keyhole notch. Impact testing most commonly consists of Charpy and Izod specimen configurations. The Izod impact test differs from Charpy impact test in the way that the notch is positioned facing the striker. Thus in the Charpy test, the test piece is held horizontally between two vertical bars, but in the Izod test, the specimen stands erect, like a fence post. However, in the keyhole impact test, the notch, which is machined to look like a keyhole, is usually applied by the steel casting industries and is tested in the same manner as the “V” and “U” notch. The V, U, and key notch are presented in Fig. 1.2. Keyhole impact testing is usually performed where the material thickness is restricted and is tested down to cryogenic temperatures: http://www.wmtr.com/en.charpy.html. An overview of mechanical and physical testing of composite materials 5 Figure 1.2 Different notches of impact test: http://www.wmtr.com/en.charpy.html. 1.2.3.1 Charpy impact The Charpy impact test was invented in 1900 by Georges Augustin Albert Charpy (1865e1945), and it is regarded as one of the most commonly used test to evaluate the relative toughness of a material in a fast and economic way. The Charpy impact test measures the energy absorbed by a standard notched specimen while breaking under an impact load. This test continues to be used as an economical quality control method to determine the notch sensitivity and impact toughness of engineering materials such as metals, composites, ceramics, and polymers. The standard Charpy impact test specimen is of dimension 55 mm 10 mm 10 mm, having a notch machined across one of the larger dimensions, as illustrated in Fig. 1.3. The Charpy impact test measures the energy absorbed by a standard notched specimen while breaking under an impact load [10]. This test consists of striking a suitable specimen with a hammer on a pendulum arm while the specimen is held securely at each end. The hammer strikes opposite the notch. The energy absorbed by the specimen is determined precisely by measuring the decrease in motion of the pendulum arm. The important factors that affect the toughness of a material include low temperatures, high strain rates (by impact or pressurization), and stress concentrators such as notches, cracks, and voids: http://www.wmtr.com/en.charpy.html. 1.2.3.2 Izod impact The Izod impact test was named after English engineer Edwin Gilbert Izod. The Izod impact test is like the Charpy impact test and is used to test materials at low temperature: Figure 1.3 Charpy impact test. 6 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites Figure 1.4 V-notch maker and impact testing machine [8]. http://www.wmtr.com/en.izod.html. In this test, a specimen is machined to a square or round section, with either one, two, or three notches that have a dimension of 70 mm 15 mm 3 mm [8]. The Izod impact test consists of a pendulum with a determined weight at the end of its arm swinging down and striking the specimen while it is held securely in a vertical position [11]. The V-notch maker and impact test machine are displayed in Fig. 1.4 [8]. The impact strength is determined by the loss of energy of the pendulum as determined by precisely measuring the loss of height in the pendulum’s swing [9]. Researchers also defined impact strength as the tendency of polymer composites to endure high-energy impact without breaking or fracturing. They also reported that in fiber-reinforced polymer composites and hybrid composites the impact properties are governed by the properties of the individual fibers used for hybridization, interlaminar, and interfacial adhesion between the fiber and the matrix [8]. 1.2.4 Compression test Composite compression testing methods provide a means of introducing a compressive load into the material while preventing it from buckling. Compression tests are performed for composite materials that are in the form of a relatively thin and flat rectangular test specimen such as laminate panels. Compression testing was conducted for polymers, composites, and elastomers and can also be conducted on plain or “open/filled hole” specimens. Remarkably, compression testing determines behavior of materials under a crushing load, and the compression and deformation at various loads is recorded to calculate compressive stress and strain. In general, there are three methods of introducing a compressive load into a test specimen: • • End loading: all of the load is introduced into the flat end of the test specimen. Shear loading: the load is introduced into the wide faces of the test specimen. An overview of mechanical and physical testing of composite materials • 7 Combined loading: a combination of shear and end loading is used: https://www.qualitymag. com/articles/91960-mechanical-testing-of-composites. The most common testing standards include ASTM D 695, ASTM D 3410, and ISO 14,126. The resulting stress-strain diagram provides information on elastic limit, proportional limit, yield point, yield strength, and compressive strength. Compression fixtures are designed to meet the unique requirements of composite materials by providing precise alignment and precision guidance to prevent buckling. Another type of compression called “compression after impact (CAI)” is gaining attention for showing considerable advances in damage-tolerant composites and also the repeatability of composite performance such as the process of adding sheets between plies and additives to the resin. CAI requires a drop tower to provide the impact before a compression test is conducted on a testing machine. Most common standards for CAI include Airbus AITM 1.0010, ASTM D 7136D 7137, SACMA 2R-94, and Boeing BSS 7260. 1.2.5 Bending test The three-point as well as four-point bending tests are conducted for measuring the deflection and bending strength of fiber-reinforced polymer plastics. The mechanical parameters for the bending tests lies between 269 and 600 C, using the moving coil extensometer or cross-head movement of the machine: https://www.aacresearch.at/en/mechanische-pruefung-2. 1.2.6 Interlaminar shear strength test The interlaminar shear strength (ILSS) is another important mechanical test that provides information about the quality of the resin-fiber bond. The ILSS of unidirectional laminates and carbon fiberereinforced plastics are usually determined through a threepoint bending test, where the resistance to interlaminar shear stress is kept parallel to the layers of the laminate and is measured in accordance with DIN EN 2563: https:// www.aac-research.at/en/mechanische-pruefung-2. 1.2.7 Cryogenic test Cryogenic tests are performed on materials that are chiefly designed for application in space technology. In this test tensile, compression, shear, bending, and ILSS tests of fiber-reinforced plastics are conducted in cryostat in liquid helium temperature close to absolute zero (down to 4 degrees Kelvin): https://www.aac-research.at/en/ mechanische-pruefung-2. 1.2.8 Shear test In some instances, physical properties of materials can vary depending on ambient temperature, so it is appropriate to test materials at temperatures that simulate the intended 8 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites end use environment: https://www.qualitymag.com/articles/91960-mechanical-testingof-composites. Shear tests are used to determine the attributes such as shear strain, shear stress, shear modulus, and failure mode since the awareness of the "deformable" mechanical properties of plastics and polymer composites is essential to extend their applications. Shear testing can be used for quality control, comparative testing, and finite element (FE) analysis of new materials. Shear strength results are important to design a wide variety of materials like adhesives, plastics, films, and sheet products that tend to be subjected to various "shear loads," or in applications where factors such as crushing loads are a risk, and it is one of the key values used in FE analysis, such as by aerospace, transportation, defense, and material manufacturers. Different materials such as homopolymers and polypropylene-based composites will behave differently in shear tests, and at times, unpredictable results may occur: http://www.intertek.com/shear-testing/. In-plane shear properties can be easily measured on a tensile test specimen with a 45 degree fiber orientation. The specimen’s axial and transverse strain is measured using either strain gauges or a biaxial extensometer. Standards for shear test include ASTM D3518 and ISO 14,129. The ASTM C 273, ASTM D 5379, ASTM D 4255, ASTM D 2344, and ISO 14,130 can also be met with an interlaminar flexural and shear testing fixture: https://www.qualitymag.com/articles/91960mechanical-testing-of-composites. 1.2.9 Fatigue test Fatigue and fracture testing is another important mechanical test that accommodates the dynamic loads <1 up to 2500 kN. This test is an essential requirement of composite materials, especially in demanding applications such as aerospace and wind power. In this test the load frames need to provide the high stiffness along with exceptional alignment that composite testing demands. 1.3 Physical test 1.3.1 Water absorption test Water absorption, often called water absorption 24 hour/equilibrium, is the most important physical test for the materials to be used for exterior applications under ASTM D570: http://www.intertek.com/polymers/testlopedia/water-absorption-astmd570/. It is used to determine the amount of water absorbed under specified conditions. Factors affecting water absorption behavior include the type of plastic, additives used, temperature, and length of exposure. The results obtained give an insight on the performance of the materials in water or humid environments. Percent of water absorption was calculated from Eq. (1.1) using ASTM D570 [10]. Water absorptionð%Þ ¼ Wn Wd 100 Wd (1.1) An overview of mechanical and physical testing of composite materials 9 where Wn is the weight of composites samples after immersion, and Wd is the weight of the composite samples before immersion. For the water absorption test, the specimens are dried in an oven for a specified time and temperature and then placed in a desiccator to cool. Immediately upon cooling, the specimens are weighed. The material is then emerged in water at agreed upon conditions, often 23 C for 24 h, or until equilibrium, and then removed, patted dry with lint-free cloth, and weighed carefully. The water absorption test is expressed as an increase in weight-percent and is continued for several days until the constant weight of the samples is obtained. 1.3.2 Density Density is one of the most important factors in determining the properties of polymer composites material [13] and is defined as mass of the material per unit volume, measured as per standard ASTM D792-75 or ASTM D792-91 [14]. In the case of fiber-reinforced polymer composites, its value mainly depends on the relative proportion of reinforcement and matrix [15]. The density of composite constituents (fibers and matrices) is determined by weighing the specimen in air and then weighing it while suspended on a wire and immersed in water, and the difference in water is noted. In the case of the specimen having the density lower than that of water, a sinker is allowed to attach with a wire to facilitate immersion. The density r is then calculated from Eq. (1.2) r¼ ð0:9975Þa ða þ w bÞ (1.2) where a is the weight of the specimen in air, b is the total weight of specimen and sinker completely immersed, while the wire is partially immersed, and w is the weight of a fully immersed sinker but partially immersed wire. The density of a composite is also determined in a similar way. In some cases, composite density is measured by using ASTM D1895 standard, calculated by using Eq. (1.3) m Density g cm3 ¼ v (1.3) where m is the mass of the composites, and v is the volume of composites. 1.3.3 Void content Void content is another physical property that needs to be analyzed in composites according to ASTM D2734. The void content is determined from the theoretical and experimental density of the composites through Eq. (1.4) [16,17]. Void Contentsð%Þ ¼ rtheoretical rexperimental rtheoretical (1.4) 10 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites where rtheoretical ¼ 1 W f =r f þ Wm=r m Wf ¼ fiber weight fraction, Wm ¼ matrix weight fraction, rf ¼ fiber density, and rm ¼ matrix density. 1.3.4 Rockwell hardness The Rockwell hardness test is the most frequently used hardness testing method and is considered to be more accurate and easier to perform than other hardness tests: [18] http://www.wmtr.com/en.rockwellhardness.html. This test can be performed on all metals and composites unless the size, shape, or surface conditions of the specimens are prohibitive: http://www.wmtr.com/en.rockwellhardness.html. The hardness measurement based on the net increase in depth of impression as a load is applied and is measured according to the ASTM D785 or ISO 2039. In this test a standard specimen of dimension 6.4 mm in thickness is either molded or cut from a sheet and is placed on the surface of the Rockwell hardness tester. In this test method, a minor load is applied, and the gauge is set to zero. The major load is applied by tripping a lever. After 15 s the major load is removed. The specimen is allowed to recover for 15 s, and then the hardness is read off the dial with the minor load still applied. The hardness of the specimen is read directly from the dial with the unitless R, L, M, E, and K scales. These scales are called Rockwell hardness numbers and are directly related to the indentation hardness of the plastic material (i.e., the higher the reading, the harder the material). Notably, R and M scales are commonly used with plastics: http://www.intertek.com/polymers/testlopedia/rockwell-hardness-astm-d785/. Softer polymeric materials will give a wider range of variation in the surfaces, such as molded surfaces that will give a higher reading than machined surfaces. 1.3.5 Scratch test Scratch testing is carried out to get an insight into materials to determine the resistance to abrasion and wear of modern composite materials and automotive paints varnishes, as well as coatings. Single asperity scratching allows the mechanisms behind abrasive or ductile damage of samples under investigation and the morphology of the scratches to be examined with a combination of microscopy and profilometry techniques. Scratch testing applications include commercial polymers, paint, and varnishes for the automotive industry, multilayered systems, and application-related performances: http://www.intertek.com/analytical-laboratories/scratch-testing/. 1.3.6 Industrial applications of mechanical and physical tests Remarkably, in the polymer and polymer compositeebased industries, mechanical and physical testing are regarded as one of the most accepted, dominant, and widely An overview of mechanical and physical testing of composite materials 11 preferable tools by academics and researchers to evaluate strength, stiffness, rigidity, density, shear, and water absorption tendency. A wide range of high-performance, advanced industrial applications, including textiles, packaging, construction, bridges, architecture, railways, aerospace, spacecraft avionics cooling systems, automotive, ship buildings, sporting goods, flooring, paneling, insulating materials, refractory lining, kitchen worktops, infrastructure, military, leisure boats, furniture, medicinal products, plastics, and synthetic leatherebased products, involve mechanical and physical testing of materials. 1.4 Conclusions Mechanical and physical properties characterization has a great impact, as it is an essential requirement for analyzing the strength and stiffness of polymer composites. These properties follow specific standardization and guidelines. Mechanical tests including tensile, flexural, and impact properties provide bright reflection on the material’s ability to resist a sudden rupture or cleavage under applied stress or load. Moreover, the mechanical properties of fiber-reinforced polymeric composites immensely depend on the nature of the fiber, polymer, and fiber/matrix interfacial bonding. Physical properties including water absorption, hardness, shear, void content, and density also direct composite applications. The diverse advanced and engineering applications based on mechanical and physical testing such as construction and building, furniture, automobile, railway coach interiors, electrical appliances, and pipes, as well as storage devices including post boxes, grain storage silos, and bio-gas containers were reported. This chapter highlights the importance of mechanical and physical testing to provide valuable data and information of polymers and polymer composites in several industries to the use of steel, cement and concrete-based polymer composites. Acknowledgments The authors are grateful to Malaysian Industry-Government Group for High Technology (MIGHT) for financial support of this work Under Newton-Ungku Omar Fund Grant No: 6300873 and 6300896. References [1] Bruno L. Mechanical characterization of composite materials by optical techniques: a review. Optic Laser Eng 2017;104:192e203. [2] Adams DO. Tensile testing of composites: simple in concept, difficult in practice. High Perform Compos 2015:1081e9223. [3] Lim S, Zeng K, He C. Morphology, tensile and fracture characteristics of epoxy-alumina nanocomposites. Mater Sci Eng A 2010;527:5670e6. 12 Mechanical and Physical Testing of Biocomposites, Fibre-Reinforced Composites [4] Saba N, Paridah M, Jawaid M. Mechanical properties of kenaf fibre reinforced polymer composite: a review. Construct Build Mater 2015;76:87e96. [5] Senthilkumar K, Saba N, Rajini N, Chandrasekar M, Jawaid M, Siengchin S, Alotman OY. Mechanical properties evaluation of sisal fibre reinforced polymer composites: a review,. Construct Build Mater 2018;174:713e29. [6] Mehndiratta A, Bandyopadhyaya S, Kumar V, Kumar D. Experimental investigation of span length for flexural test of fiber reinforced polymer composite laminates. J Mater Res Technol 2017;7:89e95. [7] Saba N, Mohammad F, Pervaiz M, Jawaid M, Alothman OY, Sain M. Mechanical, morphological and structural properties of cellulose nanofibers reinforced epoxy composites. Int J Biol Macromol 2017;97:190e200. [8] Saba N, Paridah MT, Abdan K, Ibrahim NA. Effect of oil palm nano filler on mechanical and morphological properties of kenaf reinforced epoxy composites. Construct Build Mater 2016;123:15e26. [9] Saba N, Tahir PM, Abdan K, Ibrahim NA. Fabrication of epoxy nanocomposites from oil palm nano filler: mechanical and morphological properties. BioResources 2016;11: 7721e36. [10] Yahaya R, Sapuan S, Jawaid M, Leman Z, Zainudin E. Effect of fibre orientations on the mechanical properties of kenafearamid hybrid composites for spall-liner application. Defence Technol 2016;12:52e8. [11] Saba N, Paridah TM, Abdan K, Ibrahim NA. Preparation and characterization of fire retardant nano-filler from oil palm empty fruit bunch fibers. BioResources 2015;10: 4530e43. [12] Sassoni E, Manzi S, Motori A, Montecchi M, Canti M. Novel sustainable hemp-based composites for application in the building industry: physical, thermal and mechanical characterization. Energy Build 2014;77:219e26. [13] Saba N, Paridah MT, Abdan K, Ibrahim NA. Physical, structural and thermomechanical properties of oil palm nano filler/kenaf/epoxy hybrid nanocomposites. Mater Chem Phys 2016;184:64e71. [14] Das G, Biswas S. Physical, mechanical and water absorption behaviour of Coir fiber reinforced epoxy composites filled with Al2O3 particulates. In: IOP conference series: materials science and engineering. IOP Publishing; 2016. p. 012012. [15] Costa ML, Rezende MC, De Almeida SFM. Effect of void content on the moisture absorption in polymeric composites. Polymer Plast Technol Eng 2006;45:691e8. [16] Rao PD, Kiran CU, Prasad KE. Effect of fiber loading and void content on tensile properties of Keratin based randomly oriented human hair fiber composites. Int J Compos Mater 2017;7:136e43. _ S, Kılıç S, Sipahi C, Pişkin B, G€ [17] Ayyıldız S, Soylu EH, Ide okçe HS. Annealing of Co-Cr dental alloy: effects on nanostructure and Rockwell hardness. J Adv Prosthodont 2013;5: 471e8. [18] Mark JE. Physical properties of polymers handbook. Springer; 2007.
