1

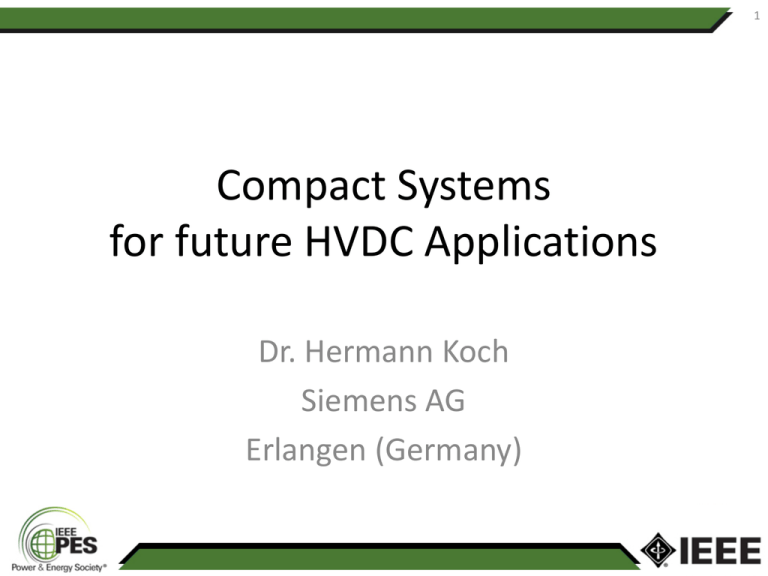

Compact Systems
for future HVDC Applications
Dr. Hermann Koch
Siemens AG
Erlangen (Germany)
2
Applications: Main drivers today
• Space reduction
• Interconnection of
Standardized HVDC
Offshore Transmission
Installations
• German
“Energiewende“
• Impact
• Increasing of
transmission capacities
• Efficient transmission
over long distances
• Increasing the grid
stability with new
generation structure
3
Solutions
• Point-to Point connections for strengthening of grid
and transmission of RES
• Onshore applications in a Hybrid Transmission
System
(OHL, underground Transmission)
• Offshore / Onshore Multiterminal HVDC Systems
• Overlay (Backbone) Grid incl. Onshore
and Offshore HVDC Systems
4
VSC full bridge
5
Towards a first
HVDC Systems in Germany
6
Operational stresses in gas
insulated systems
Why is it NOT possible to directly use existing AC systems for DC
voltage?
Stresses of insulators in
operation
Gas
Mechanical Stress
Current I
Gas
Chemical Stress
Thermal Stress
Gas
Impact on
Electric Stress
Grounded Encapsulation
DC insulating systems must withstand different electrical stress
compared to AC systems
7
Physical Effects influencing electric
stress
Grounded Encapsulation
∆T
Ionization
Attachment
N
N
+
-
-
-
+
- -
-
-
+
-
+
+
Charge transport
and accumulation
+
+
Drift due to
electric field
+
-
N
-
Recombination
-
Field emission
8
Transition from AC to DC electric
field
AC
1
0
Positive space charge
density in gas
Negative space charge
density in gas
DC
1
1
1
negative DC voltage
negative DC voltage
0
0
0
9
HVDC basic investigations
Exemplary test setups
Artificial
protrusions
Dielectric limits
Temperature
gradient
Long-term testing
Charging phenomena
Surface effects
10
Technical challenges for DC
insulators
• Development of insulator design allowing for control of
physical effects, particularly charging effects
• Development of suitable insulating material for DC gas
insulated systems
• Careful handling/drying of insulating parts and cleanliness
during assembly
• Definition of “equipment-specific” high voltage testing
procedures
• Approach: Application of capacitively graded
insulator based on Resin Impregnated Paper
technology
11
Normalized electric field
Innovative RIP insulator design for
DCCS ±320 kV
DC field distribution
AC field distribution
Radius
12
Simulation
Effect of field grading
Potential distribution
AC
DC
With field grading
High voltage conductor
High voltage conductor
Without field grading
13
DC Compact Switchgear ±320kV
14
Testing Strategy
• There are NO international agreed standards
for this kind of equipment.
• List of the possible dielectric tests:
–
–
–
–
DC withstand test at higher level
DC voltage with superimposed impulse voltage
Polarity reversal
Long(er) term test with specified voltage, current,
temperature and time profile
15
Summary
In Addition to traditional Central Power Generation Large Scale
Renewable Energy Sources (RES) have to implemented into
Transmission Systems
•
New Transmission Solutions are needed
•
Standardization of HVDC Grids has started
in Europe
•
Compact Gas Insulated Systems for HVDC Applications
are feasible and ready for use
16
Thank you very much
for your kind attention
Dr. Hermann Koch
Siemens AG
E T TI
D-91058 Erlangen, Germany
hermann.koch@siemens.com
Dr. Denis Imamovic
Siemens AG
E T TS PLM 4
D-91058 Erlangen, Germany
denis.imamovic@siemens.com
