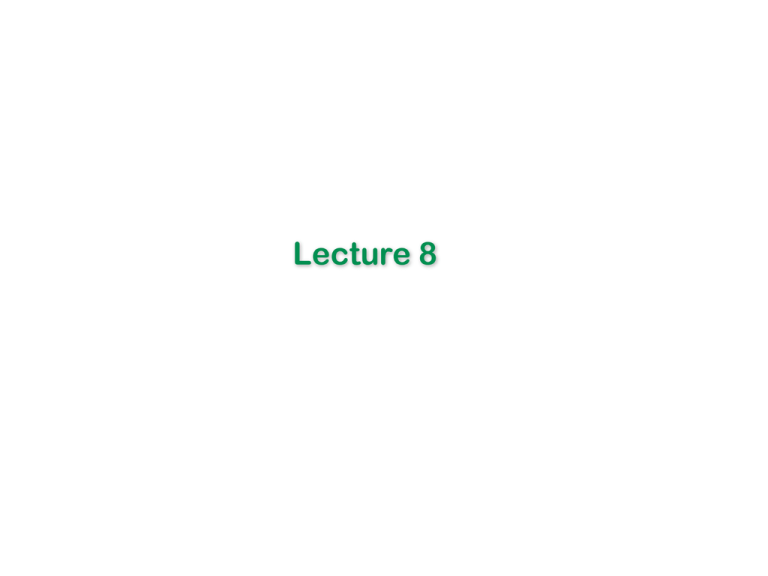

Lecture 8
iClicker
§ A device has a charge q=10 nC and a potential V=100V,
what’s its capacitance?
§ A: 0.1 nF
§ B: 1nF
§ C: 10nF
§ D: 1010 F
§ E: 1F
iClicker
§ A device has a charge q=10 nC and a potential V=100V,
what’s its capacitance?
§ A: 0.1 nF
§ B: 1nF
§ C: 10nF
§ D: 1010 F
§ E: 1F
q = 10nC = 10
8
C
V = 100V
C = q/V = 10
8
/100 = 10
10
= 0.1nF
Parallel Plate Capacitor (4)
Remember the definition of capacitance…
… so the capacitance of a
parallel plate capacitor is
Variables:
A is the area of each plate
d is the distance between the plates
Note that the capacitance depends only on the
geometrical factors and not on the amount of
charge or the voltage across the capacitor.
12
Example: Capacitance, Charge, and Electrons
…
Question: A storage capacitor on a random access memory
(RAM) chip has a capacitance of 55 nF. If the capacitor is
charged to 5.3 V, how many excess electrons are on the
negative plate?
Answer:
Idea: We can find the number of excess electrons on the
negative plate if we know the total charge q on the plate.
Then, the number of electrons n=q/e, where e is the electron
charge in coulomb.
Second idea: The charge q of the plate is related to the
voltage V to which the capacitor is charged: q=CV.
15
Cylindrical Capacitor (1)
§ Consider a capacitor constructed of two collinear
conducting cylinders of length L
• Example: coax cable
§ The inner cylinder has radius r1 and
the outer cylinder has radius r2
§ Both cylinders have charge per
unit length λ with the inner cylinder
having positive charge and the outer
cylinder having negative charge
16
Cylindrical Capacitor (2)
§ We apply Gauss’ Law to get the electric field between the two
cylinders using a Gaussian surface with radius r and length L as
illustrated by the red lines
§ … which we can rewrite to get an
expression for the electric field
between the two cylinders
r1< r < r2
17
Cylindrical Capacitor (3)
§ As we did for the parallel plate capacitor, we define the voltage
difference across the two cylinders to be V = |V1 – V2|
§ Thus, the capacitance of a cylindrical capacitor is
Note that C depends on
geometrical factors only.
18
Spherical Capacitor (1)
§ Consider a spherical capacitor formed by two concentric
conducting spheres with radii r1 and r2
19
Spherical Capacitor (2)
§ Let’s assume that the inner sphere has charge +q
and the outer sphere has charge –q
§ The electric field is perpendicular to the surface of both
spheres and points radially outward
20
Spherical Capacitor (3)
§ To calculate the electric field, we use a Gaussian surface
consisting of a concentric sphere of radius r such that r1 < r < r2
§ The electric field is always perpendicular to the Gaussian surface so
§ … which reduces to
…makes sense!
21
Spherical Capacitor (4)
§ To get the electric potential we follow a method similar to the one we
used for the cylindrical capacitor and integrate from the negatively
charged sphere to the positively charged sphere
§ Using the definition of capacitance we find
§ The capacitance of a spherical capacitor is
then
22
Capacitance of an Isolated Sphere
§ We obtain the capacitance of a single conducting sphere
by taking our result for a spherical capacitor and moving
the outer spherical conductor infinitely far away
§ Using our result for a spherical capacitor…
§ …with r2 = ∞ and r1 = R we find
…meaning V = q/4πε0R
(we already knew that!)
23
iClicker
q
§ A metal ball of radius R has a charge q.
§ Charge is changed q -> - 2q. How did it’s capacitance
change?
A: C->2 C0
B: C-> C0
C: C-> C0/2
D: C->4 C0
E: C->8 C0
14
iClicker
q
§ A metal ball of radius R has a charge q.
§ Charge is changed q -> - 2q. How does it’s capacitance
changed?
A: C->2 C0
B: C-> C0
C: C-> C0/2
D: C->4 C0
E: C->8 C0
15
Energy Stored in Capacitors
§ Capacitors store electric energy
1
U = qV
2
q = CV
1
2
U = CV
2
2
1q
U=
2C
(V created by “q”s, selfinteraction)
or
We want small
voltage, large
energy: large C
37
Energy Density in Capacitors (1)
§ We define the energy density, u, as the electric potential energy
per unit volume
§ Taking the ideal case of a parallel plate capacitor that has no fringe
field, the volume between the plates is the area of each plate times
the distance between the plates, Ad
§ Inserting our formula for the capacitance of a parallel plate capacitor
we find
38
Energy Density in Capacitors (2)
§ Recognizing that V/d is the magnitude of the electric
field, E, we obtain an expression for the electric potential
energy density for parallel plate capacitor
§ This result, which we derived for the parallel plate capacitor,
is in fact completely general.
§ This equation holds for all electric fields produced in any way
• The formula gives the quantity of electric field energy per unit
volume.
39
Example: Isolated Conducting Sphere (1)
§ An isolated conducting sphere whose radius R is 6.85 cm has a
charge of q=1.25 nC.
Question 1:
How much potential energy is stored in the electric field of the charged conductor?
Answer:
Key Idea: An isolated sphere has a capacitance of C=4πε0R (see previous lecture).
The energy U stored in a capacitor depends on the charge and the capacitance
according to
… and substituting C=4πε0R gives
40
Example: Isolated Conducting Sphere (2)
§ An isolated conducting sphere whose radius R
is 6.85 cm has a charge of q = 1.25 nC.
q
Question 2:
What is the field energy density at the surface of the sphere?
Answer:
Key Idea: The energy density u depends on the magnitude of the
electric field E according to
so we must first find the E field at the surface of the sphere. Recall:
41
What is the total energy in E-field?
Z
1
2
dV = d⇤ sin d r dr
Utot =
udV =
2
= 4⇥r dr
R
Z 1
1
2 2
4⇡
✏0 E r dr =
R 2
◆2 2
Z 1✓
1
q 2
2⇡✏0
r
dr
=
4
4⇡✏
r
0
R
2
1 q
=
2 4⇡✏0 R
1
Yes!
qV
2
21
Example: Thundercloud (1)
§ Suppose a thundercloud with horizontal dimensions of
2.0 km by 3.0 km hovers over a flat area, at an altitude of 500 m and
carries a charge of 160 C.
Question 1:
• What is the potential difference
between the cloud and the ground?
Question 2:
• Knowing that lightning strikes require
electric field strengths of approximately
2.5 MV/m, are these conditions sufficient
for a lightning strike?
Question 3:
• What is the total electrical energy contained in this cloud?
42
Physics of a spark
V
E⇠
d1
+q
V
d
E⇠
V /d
V /d1
E0
e
E
-q
Ek ⇠ E ⇠ 1eV
⇠ 1µm
Espark ⇠ M eV /m
23
Example: Thundercloud (2)
Question 1: What is the potential difference between the cloud and
the ground?
Answer:
§ We can approximate the cloud-ground system as a parallel plate
capacitor whose capacitance is
§ The charge carried by the cloud is 160 C
1q
V =
= 7.2 108
2C
…++++++++++++ …
++++++++++++
§ 720 million volts
43
Example: Thundercloud (3)
Question 2: Knowing that lightning strikes require electric field
strengths of approximately 2.5 MV/m, are these conditions
sufficient for a lightning strike?
Answer:
§ We know the potential difference between the cloud and ground so
we can calculate the electric field
§ E is lower than 2.5 MV/m, so no lightning cloud to ground
• May have lightning to radio tower or tree….
44
Example: Thundercloud (4)
Question 3: What is the total electrical energy contained in this cloud?
Answer:
§ The total energy stored in a parallel place capacitor is
45
Electric circuits
27
Circuit diagram
Lines represent conductors
The battery or power supply is represented by
The capacitor is represented by the symbol
Battery provides (a DC) potential difference V
28
Charging/Discharging a Capacitor (2)
Illustrate the charging processing using a circuit diagram.
This circuit has a switch
• (pos c) When the switch is in position c, the circuit is open
(not connected).
• (pos a) When the switch is in position a, the battery is
connected across the capacitor. Fully charged, q = CV.
• (pos b) When the switch is in position b, the two plates of
the capacitor are connected. Electrons will move around the
circuit--a current will flow--and the capacitor will discharge.
c
c
8
demo
30
I
-
V
+
I
+
V
31
32
