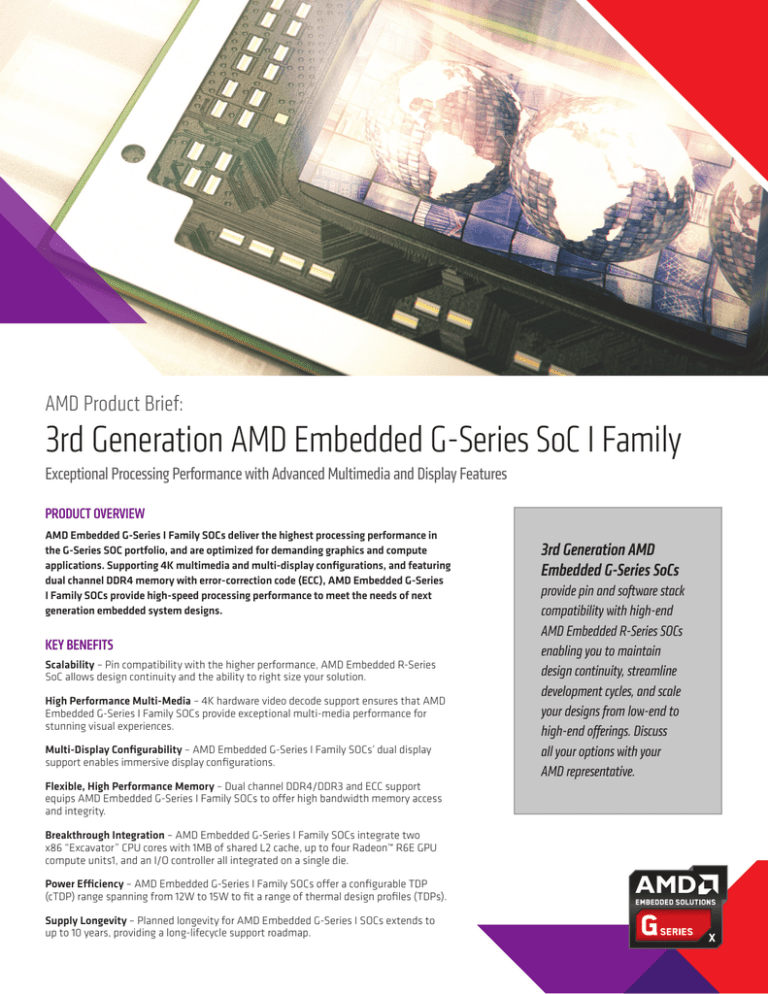

AMD Product Brief: 3rd Generation AMD Embedded G-Series SoC I Family Exceptional Processing Performance with Advanced Multimedia and Display Features PRODUCT OVERVIEW AMD Embedded G-Series I Family SOCs deliver the highest processing performance in the G-Series SOC portfolio, and are optimized for demanding graphics and compute applications. Supporting 4K multimedia and multi-display configurations, and featuring dual channel DDR4 memory with error-correction code (ECC), AMD Embedded G-Series I Family SOCs provide high-speed processing performance to meet the needs of next generation embedded system designs. KEY BENEFITS Scalability – Pin compatibility with the higher performance, AMD Embedded R-Series SoC allows design continuity and the ability to right size your solution. High Performance Multi-Media – 4K hardware video decode support ensures that AMD Embedded G-Series I Family SOCs provide exceptional multi-media performance for stunning visual experiences. Multi-Display Configurability – AMD Embedded G-Series I Family SOCs’ dual display support enables immersive display configurations. Flexible, High Performance Memory – Dual channel DDR4/DDR3 and ECC support equips AMD Embedded G-Series I Family SOCs to offer high bandwidth memory access and integrity. Breakthrough Integration – AMD Embedded G-Series I Family SOCs integrate two x86 “Excavator” CPU cores with 1MB of shared L2 cache, up to four Radeon™ R6E GPU compute units1, and an I/O controller all integrated on a single die. Power Efficiency – AMD Embedded G-Series I Family SOCs offer a configurable TDP (cTDP) range spanning from 12W to 15W to fit a range of thermal design profiles (TDPs). Supply Longevity – Planned longevity for AMD Embedded G-Series I SOCs extends to up to 10 years, providing a long-lifecycle support roadmap. 3rd Generation AMD Embedded G-Series SoCs provide pin and software stack compatibility with high-end AMD Embedded R-Series SOCs enabling you to maintain design continuity, streamline development cycles, and scale your designs from low-end to high-end offerings. Discuss all your options with your AMD representative. AMD Product Brief: 3rd Generation AMD Embedded G-Series SoC I Family TARGET APPLICATIONS AMD Embedded G-Series I Family SOCs are designed to meet the processing requirements of a wide range of embedded applications, including thin client, digital signage, digital gaming, retail POS, industrial/automation, military/aerospace, smart camera, set-top box and networking/communications applications. G-SERIES I FAMILY SOC (BROWN FALCON) • 2X “Excavator” x86 cores with 1MB shared L2 cache • AMD Radeon™ R6E graphics (up to 4CUs) with support for DirectX® 12 • Dual channel 64-bit DDR4 or DDR3 memory with error correction code PCIe® Gen 3 1x4 CPU 0 DDR3 / 4 ECC MEMORY Display Output 2 PCI Express®/Display AMD Radeon™ R6E • Flexible scalability across AMD FP4 class offerings including package footprint and software compatibility with AMD Embedded R-Series SOCs and AMD Embedded G-Series J Family SOCs CPU 1 MEMORY KEY FEATURES DDR3 / 4 ECC Display Output 1 PCIe Gen 2/3 4x1 AMD G-Series “Brown Falcon” SOC • 4K x 2K H.265 decode capability and multi format encode and decode SATA SATA HDD AMD Secure Processor UVD v6 Unified Video Decode Engine – H.265, H.264 decode oo VCE v3.1 Video Compression Engine – H.264 encode • Support for up to two display interfaces via HDMI® 2.0, DisplayPort 1.2, Embedded DisplayPort 1.4 oo SD SD CARD 2x USB 2.0 USB 2.0 2x USB 3.0 BOOT FLASH • Designed to be compliant with the Heterogeneous System Architecture 1.0 Specification SPI USB 3.0 • AMD Secure Processor • High performance, integrated Controller Hub supports: oo PCIe® Gen 3 1x4, PCIe Gen2/3 4x1 oo 2 USB3, 2 USB2 ports oo 2 SATA 2.0/3.0 ports G-SERIES I FAMILY SOC (BROWN FALCON) OPN # of x86 Cores Target TDP Shared L2 Cache Target CPU Base/Max Freq. GPU CUs Target GPU Freq. Target DDR Freq. Temp Range Tj °C ECC I FAMILY Model AMD Embedded G-Series I Family SOC GX-217GI GE217GAAY23KA 2 15W 1MB 1.7/2.0GHz 4CU 758MHz DDR4/DDR3 1600 0-90°C Yes NPU TBD 2 TBD TBD TBD NA NA TBD 0-90°C Yes iTemp TBD 2 TBD TBD TBD TBD TBD TBD TBD Yes AMD.COM/EMBEDDED/G-SERIES Discrete AMD Radeon™ and FirePro™ GPUs based on the Graphics Core Next architecture consist of multiple discrete execution engines known as a Compute Unit (“CU”). Each CU contains 64 shaders (“Stream Processors”) working in unison. 1 ©2016 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon and combinations thereof are trademarks of Advanced Micro Devices, Inc. PCIe is a registered trademark of PCI-SIG Corporation in the US and other countries. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries. Other product names used in this publication are for identification purposes only and may be trademarks of their respective companies. Add AMD copyright and trademark attribution. PID 168697-A
