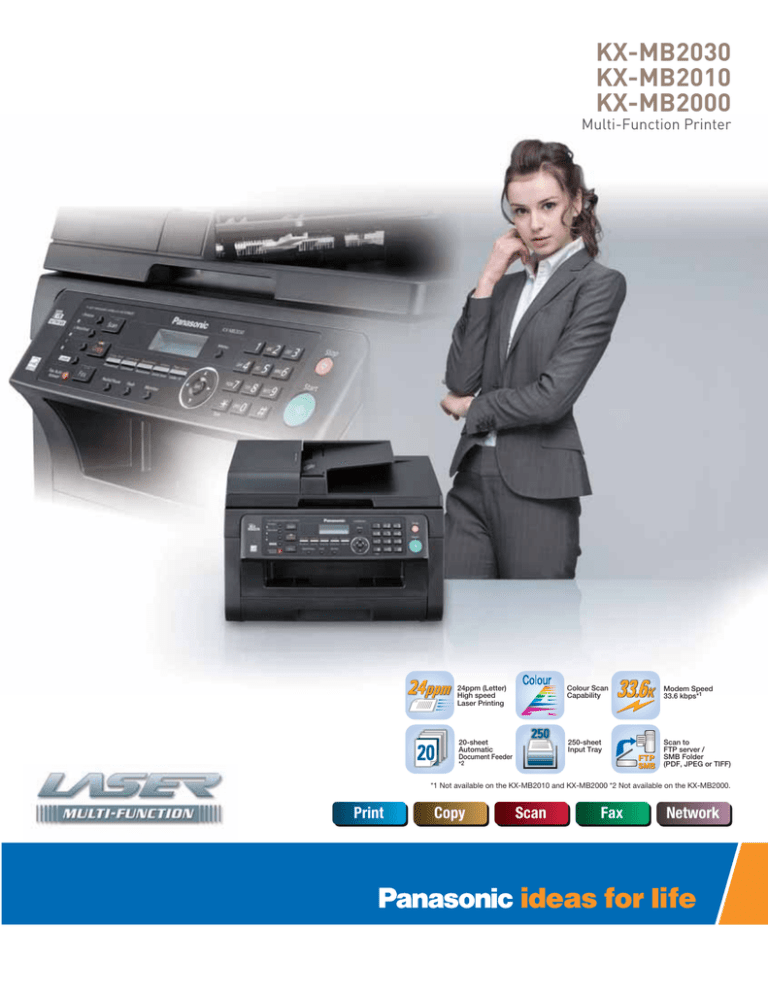

KX-MB2030
KX-MB2010
KX-MB2000
Multi-Function Printer
24ppm (Letter)
High speed
Laser Printing
Colour Scan
Capability
Modem Speed
33.6 kbps*1
20-sheet
Automatic
Document Feeder
*2
250-sheet
Input Tray
Scan to
FTP server /
SMB Folder
(PDF, JPEG or TIFF)
*1 Not available on the KX-MB2010 and KX-MB2000 *2 Not available on the KX-MB2000.
Print
Copy
Scan
Fax
Network
Compact and Stylish
Multi-Function Printer
The Panasonic KX-MB2000 Series multi-function printers are an
excellent choice for small offices and remote home offices.
They feature a compact high-speed 24-ppm printer, diverse copy
features, high-resolution colour scanning up to 9600 dpi (interpolated),
33.6 kbps Super G3 Fax*1, and standard network connection.
They also come bundled with the Panasonic Multifunction Station
Software suite, which includes Panasonic newest software
the Easy Print Utility.
*1 Not available on the KX-MB2010 and KX-MB2000.
Word, Excel, Power Point, PDF, JPEG etc.
The Easy Print Utility is multi-document print
application which lets you merge multiple file
types, such Microsoft Word and Excel files into a
single print job or PDF file.
Word data
The Easy Print Utility provides a real time preview of
the print output and offers the ability to modify the
print layout and page order. You also have the ability
to add a customer document header, footer or
watermark to your document before printing.
Excel data
Printout
Documents scanned from the KX-MB2000 series
can be transmitted in full colour to a Local or Network
connected PC, FTP server, Network Shared folder,
or directly to an Email address.
Scanned documents can be saved as a TIFF,
JPEG or PDF documents.
PDF / TIFF /
JPEG
Network
Network
FTP Server
Shared Folder
E-mail
Merge Print data and Edit Layout
1
Incoming Fax Preview *2
*
Network or USB
Both-side
printed card
Convenient Copy Functions
IQuick ID Copy
Copy both sides of one or more ID or business
cards, and then print onto a single page in the
2-in-1, 4-in-1 or 8-in-1 format.
Network or USB
Network Colour Scanning
Easy Print Utility
8 in 1
Received faxes can be stored into memory and
previewed from a network connected PC using
Internet browser software. Once a fax is previewed,
they can be printed, saved or deleted from memory.
This helps prevent unwanted faxes from being
automatically printed and wasting paper.
2 Fax messages are viewed
on the PC and unneeded
faxes are deleted.
3
1 Notification of fax
reception is sent to the PC.
*1 Not available on the KX-MB2010 and KX-MB2000.
*2 Requires LAN connection
Card Front
Card Back
8 in 1
IImage Repeat
Copy one original and print it repeatedly
on a single page in the 2-in-1, 4-in-1
or 8-in-1 format.
Card Front
User Friendly
Configuration Web Page
IAngled Control Panel
The control panel is angled, making it easy
to view when sitting in a chair or standing.
You can check the device
status and toner level with
a Web browser, and make
device system settings
right from a PC.
IFront Access
Replacing consumables and replenishing
paper are all done from the front side
of the machine, for easy
maintenance and access.
Web browser
(requires LAN connection)
Print
or
Delete
Line up
KX-MB2030
KX-MB2010
KX-MB2000
Model
Automatic Document Feeder
Copy
Print
Scan
Fax
Network
Toner Cartridge
KX-FAT411
(2,000 pages, ISO/IEC 19752 standard)
Drum Cartridge
KX-FAD412
(6,000 pages)

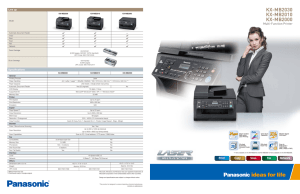

Specifications
KX-MB2030
KX-MB2010
KX-MB2000
General
Printing Process
Laser
Paper Handling
A4 / Letter / Legal *1 / B5(JIS) / B5(ISO) / 16K / 216 mm x 330 mm *1 / 216 mm x 340 mm *1
250 sheets + Single sheet manual tray
Paper Capacity
Yes (20 originals)
Automatic Document Feeder
LCD Display
No
16 digits / 2 lines
Supported OS
Microsoft® Windows® 2000 / XP / 7 / Windows Vista®
Memory Size
32 MB
Printer
Print Speed
Up to 24 ppm
Print Resolution
600 x 600 dpi
Emulation
GDI
Copier
Copy Speed *2
Up to 24 cpm
Up to 600 x 600 dpi
Copy Resolution
99 pages
Multi-Copy
25% - 400% (1% incremental steps)
Reduction / Enlargement
Quick ID Copy, N-in-1, Separate N-in-1, Poster, Image Repeat , Edge , Margin
Copy Function
Scanner
Yes / Yes
Colour / Monochrome Scanning
Up to 600 x 1200 dpi (Optical)
Scan Resolution
Up to 9600 x 9600 dpi (Interpolated)
Scan to PC / Email address / FTP server / SMB folder
Scan Capabilities
Fax
Compatibility
33.6 kbps Super G3
No
Memory Size
3.5 MB
No
100 + 6 stations
No
One-Touch Dial
6 stations
No
Fax / Tel Switch
Yes
No
Phonebook
Interface
Hi-Speed USB 2.0
Local
Network
10 Base-T / 100 Base-TX Ethernet
Others
Dimensions (W x D x H)
Weight
*1 Manual input tray only
*2 Continuous copy of a single original.
16.5" x 17.0" x 12.0"
Approx. 26.5 lbs
16.5" x 17.0" x 10.0"
Approx. 24.3 lbs
Microsoft, Windows and Windows Vista are registered trademarks of
Microsoft Corporation in the United States and/or other countries.
Design and specifications are subject to change without notice.
This product is designed to reduce hazardous chemical substances.
www.panasonic.ca
