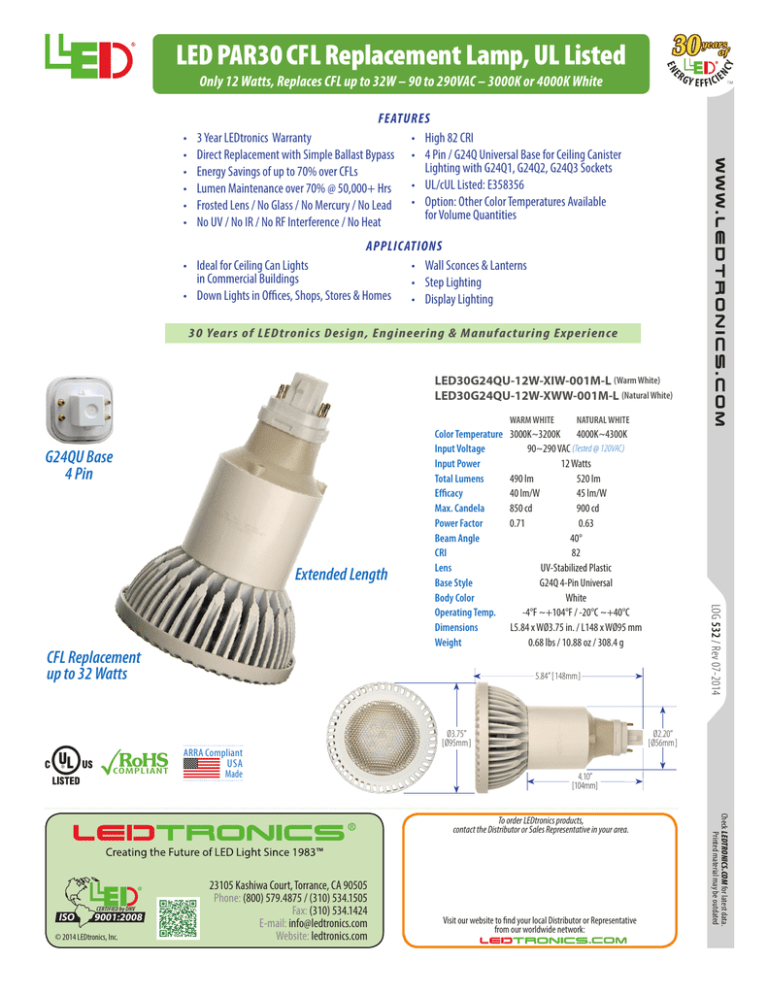

LED PAR30 CFL Replacement Lamp, UL Listed

advertisement
•
•
•
•
•
•
Y
NC
RG
E
Only 12 Watts, Replaces CFL up to 32W – 90 to 290VAC – 3000K or 4000K White
EN
LED PAR30 CFL Replacement Lamp, UL Listed
Y E F FICIE
FEATURES
3 Year LEDtronics Warranty
• High 82 CRI
Direct Replacement with Simple Ballast Bypass • 4 Pin / G24Q Universal Base for Ceiling Canister
Lighting with G24Q1, G24Q2, G24Q3 Sockets
Energy Savings of up to 70% over CFLs
•
UL/cUL Listed: E358356
Lumen Maintenance over 70% @ 50,000+ Hrs
Frosted Lens / No Glass / No Mercury / No Lead • Option: Other Color Temperatures Available
for Volume Quantities
No UV / No IR / No RF Interference / No Heat
APPLICATIONS
• Ideal for Ceiling Can Lights
• Wall Sconces & Lanterns
in Commercial Buildings
• Step Lighting
• Down Lights in Offices, Shops, Stores & Homes • Display Lighting
30 Years of LED tronics Design, Engineering & Manufac turing Experience
LED30G24QU-12W-XIW-001M-L (Warm White)
LED30G24QU-12W-XWW-001M-L (Natural White)
WARM WHITE
G24QU Base
4 Pin
Extended Length
5.84”[148mm]
ARRA Compliant
COMPLIANT
NATURAL WHITE
3000K~3200K 4000K~4300K
90~290 VAC (Tested @ 120VAC)
12 Watts
490 lm
520 lm
40 lm/W
45 lm/W
850 cd
900 cd
0.71
0.63
40°
82
UV-Stabilized Plastic
G24Q 4-Pin Universal
White
-4°F ~+104°F / -20°C ~+40°C
L5.84 x WØ3.75 in. / L148 x WØ95 mm
0.68 lbs / 10.88 oz / 308.4 g
Ø2.20”
[Ø56mm]
Ø3.75”
[Ø95mm]
USA
Made
4.10”
[104mm]
CERTIFIED by DNV
9001:2008
© 2014 LEDtronics, Inc.
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579.4875 / (310) 534.1505
Fax: (310) 534.1424
E-mail: [email protected]
Website: ledtronics.com
Visit our website to find your local Distributor or Representative
from our worldwide network:
Check LEDTRONICS.COM for latest data.
Printed material may be outdated.
To order LEDtronics products,
contact the Distributor or Sales Representative in your area.
ISO
LOG 532 / Rev 07-2014
CFL Replacement
up to 32 Watts
Color Temperature
Input Voltage
Input Power
Total Lumens
Efficacy
Max. Candela
Power Factor
Beam Angle
CRI
Lens
Base Style
Body Color
Operating Temp.
Dimensions
Weight
LED PAR30 CFL Replacement Lamp, UL Listed, 4 Pin G24Q Base
PHOTOMETRIC REPORT:
LED30G24QU-12W-XIW-001M-L
PHOTOMETRIC REPORT:
LED30G24QU-12W-XWW-001M-L
2
LOG 532
E-mail: [email protected]
Website: ledtronics.com
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579.4875 / (310) 534.1505
Fax: (310) 534.1424
