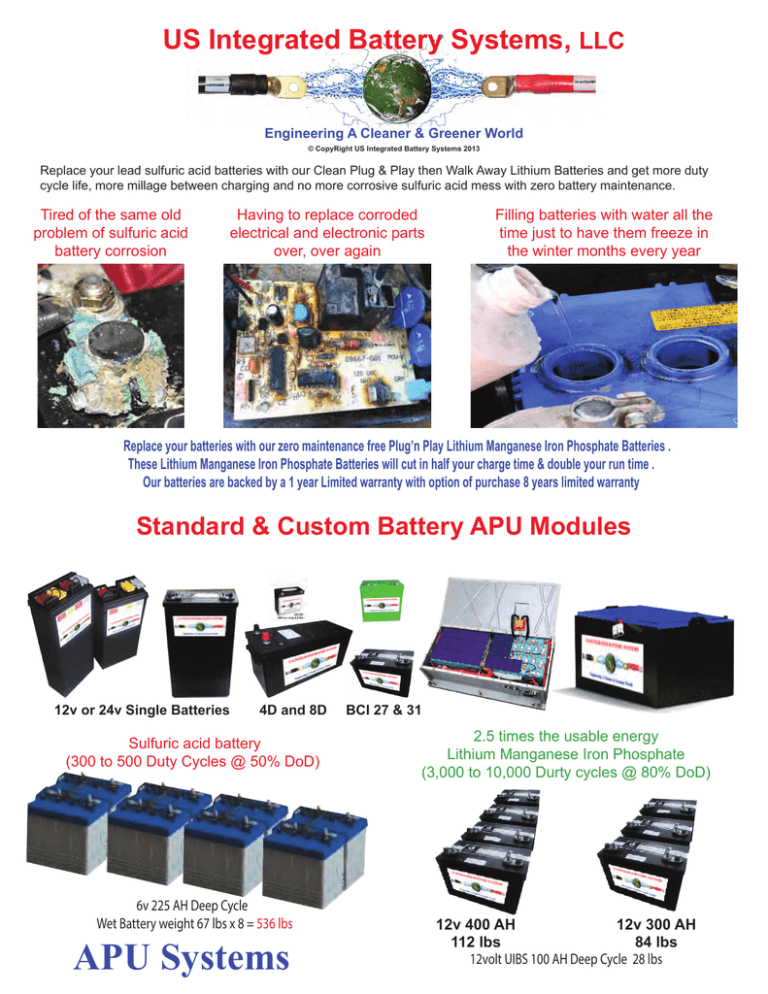

Replace your lead sulfuric acid batteries with our Clean Plug & Play then Walk Away Lithium Batteries and get more duty
cycle life, more millage between charging and no more corrosive sulfuric acid mess with zero battery maintenance.
Tired of the same old
problem of sulfuric acid
battery corrosion
Having to replace corroded
electrical and electronic parts
over, over again
Filling batteries with water all the
time just to have them freeze in
the winter months every year
Replace your batteries with our zero maintenance free Plug’n Play Lithium Manganese Iron Phosphate Batteries .
These Lithium Manganese Iron Phosphate Batteries will cut in half your charge time & double your run time .
Our batteries are backed by a 1 year Limited warranty with option of purchase 8 years limited warranty
Standard & Custom Battery APU Modules
12v or 24v Single Batteries
4D and 8D
Sulfuric acid battery
(300 to 500 Duty Cycles @ 50% DoD)
6v 225 AH Deep Cycle
Wet Battery weight 67 lbs x 8 = 536 lbs
APU Systems
BCI 27 & 31
2.5 times the usable energy
Lithium Manganese Iron Phosphate
(3,000 to 10,000 Durty cycles @ 80% DoD)
12v 400 AH
12v 300 AH
112 lbs
84 lbs
12volt UIBS 100 AH Deep Cycle 28 lbs
APU Systems
Our APU battery systems are suitable for the following applications
Engine Start - APU - HVAC - Thermal Control – Communications – Lift gates – AC Accessories, etc
Lithium Iron Manganese Phosphate
Lead Acid
Usable Energy
Boating & RV’s
16
14.5
14
Discharge Cycle
13.4
12.9
12.8
12.7
12.5
12.2
12
12
97%
Lithium Manganese Iron Phosphate Batteries
Energy Management System
Matching charger
1 year limited warranty included with package purchase.
Optional 8 year extended limited warranty is available to purchase
Custom made cases are available to purchase
Volts DC
10
Package contains:
11.9
50%
8
6
4
2
0
0.0 %
5%
10 %
25 %
50 %
75 %
80 %
85 %
98 %
100 %
Capacity Ah
Energy Management System (EMS) Overview
The Energy Management System is designed for Li-ion battery pack using 20Ah, 40Ah, 60Ah, and 100Ah or 200Ah cells in series or parallel
packs. The system components include a CPU, sense boards (connected as a daisy chain), a cable connecting the sample boards to the CPU, a
shunt sensor, an optional LCD screen and an optional CANBUS or MODBUS communication interface. The features of the Energy Management
System are:
- Designed for battery packs using 20Ah, 40Ah, 60Ah, 100Ah and 200Ah cells
- A distributed system measuring voltage and temperature of each Li-ion cell
- Daisy chain connection supporting up to 140 cells
- Cell balancing
- Integrated Ground Fault Detection and alarm output
- Pack voltage measurement
- Pack SOC calculation
- Low voltage and high voltage alarm cutoff outputs
- Optional CANBUS or MODBUS communication output
- Composite video output
- Made in the U.S.A.
Standard LCD Display System Monitor
Pack Voltage, Amp ( Charge & Discharge), SOC
3 x 12V Battery Application Package Comparison Table
12V
12V
12V
PRODUCT
60Ah
120Ah
180Ah
Cell Capacity
20
40
60
(Ah)
No. of Cells
12
12
12
Capacity
0.8
1.5
2.3
(kWh)
3x Battery Weight
20
44
61
(lbs)
Motor Voltage (V)
Max Voltage
14.8
14.8
14.8
Nominal Voltage
12.8
12.8
12.8
Min Voltage
11.2
11.2
11.2
12V
300Ah
12V
600Ah
100
200
12
12
3.8
7.7
83
165
14.8
12.8
11.2
14.8
12.8
11.2
Optional Display System Monitor - wireless
touchpad android device & software for EMS
4 x 12V Battery Application Package Comparison Table
12V
12V
12V
PRODUCT
80Ah
160Ah
240Ah
Cell Capacity
20
40
60
(Ah)
No. of Cells
16
16
16
Capacity
1.0
2.0
3.1
(kWh)
Battery Weight
27
59
81
(lbs)
Motor Voltage (V)
Max Voltage
14.8
14.8
14.8
Nominal Voltage
12.8
12.8
12.8
Min Voltage
11.2
11.2
11.2
12V
400Ah
12V
800Ah
100
200
16
16
5.1
10.2
110
220
14.8
12.8
11.2
14.8
12.8
11.2
