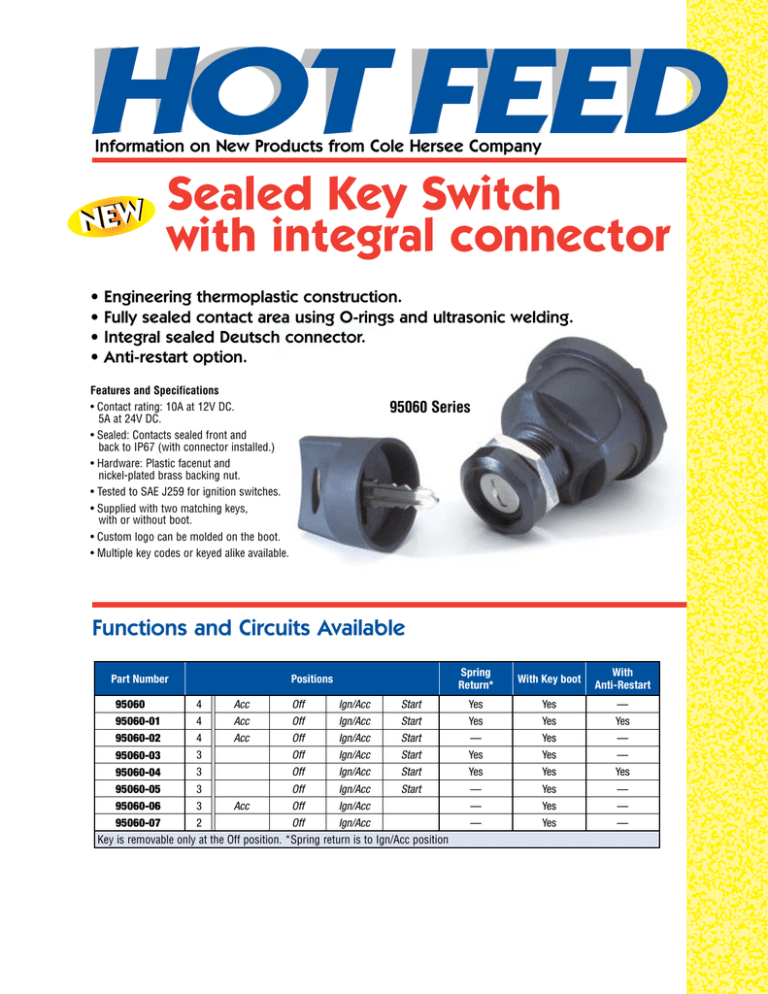

Sealed Key Switch
with integral connector
Engineering thermoplastic construction.
Fully sealed contact area using O-rings and ultrasonic welding.
Integral sealed Deutsch connector.
Anti-restart option.
Features and Specifications
• Contact rating: 10A at 12V DC.
5A at 24V DC.
• Sealed: Contacts sealed front and
back to IP67 (with connector installed.)
• Hardware: Plastic facenut and
nickel-plated brass backing nut.
• Tested to SAE J259 for ignition switches.
• Supplied with two matching keys,
with or without boot.
• Custom logo can be molded on the boot.
• Multiple key codes or keyed alike available.
95060 Series
Functions and Circuits Available
Part Number
Positions
4
Acc
Off
Ign/Acc
Start
95060
4
Acc
Off
Ign/Acc
Start
95060-01
4
Acc
Off
Ign/Acc
Start
95060-02
3
Off
Ign/Acc
Start
95060-03
3
Off
Ign/Acc
Start
95060-04
3
Off
Ign/Acc
Start
95060-05
3
Acc
Off
Ign/Acc
95060-06
2
Off
Ign/Acc
95060-07
Key is removable only at the Off position. *Spring return is to Ign/Acc position
Spring
Return*
With Key boot
With
Anti-Restart
Yes
Yes
—
Yes
Yes
—
—
—
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
—
Yes
—
—
Yes
—
—
—
Switch Dimensions
POS 1
ACC
POS 2
OFF
MOUNTING STEM, M22 x 1.5
POS 3
IGN & ACC
POS 4
START
BRASS HEXNUT
CONNECTOR TO ACCEPT
DEUTSCH DT06-6S CONNECTOR
OR EQUIVALENT
BLACK PLASTIC HOUSING
BLACK PLASTIC
FACENUT
1.248 [31.69]
4-position model shown
Ø2.011 [51.07]
1.950 [49.52]
0.750 [19.05] FLAT
TERMINALS
1 = Battery
2 = Start
3 = Accessory
4 = Ignition
5 = Ignition
6 = Battery
Terminals 1 and 6 are connected internally.
Terminals 4 and 5 are connected internally.
0.850 [21.59]
Ø0.125 [3.18] 2 PL
With Key Boot
2 DOUBLE BITTED BOOTED
KEYS RINGED, BLACK
Without Key Boot
2 DOUBLE BITTED
KEYS RINGED
