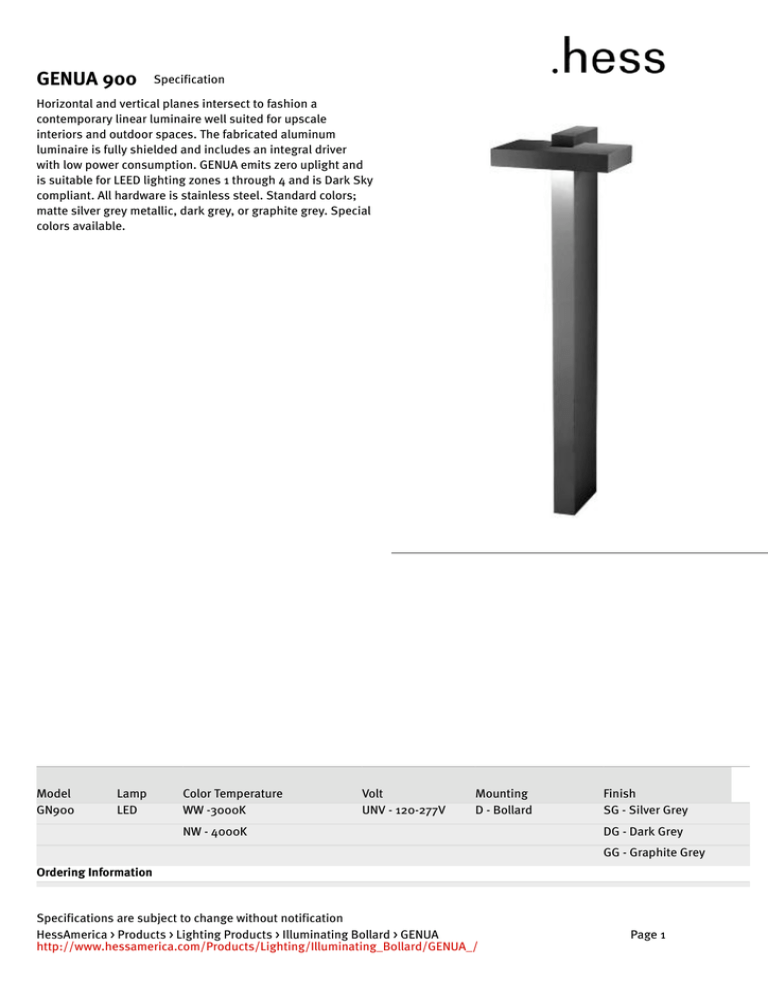

GENUA 900
Specification
Horizontal and vertical planes intersect to fashion a
contemporary linear luminaire well suited for upscale
interiors and outdoor spaces. The fabricated aluminum
luminaire is fully shielded and includes an integral driver
with low power consumption. GENUA emits zero uplight and
is suitable for LEED lighting zones 1 through 4 and is Dark Sky
compliant. All hardware is stainless steel. Standard colors;
matte silver grey metallic, dark grey, or graphite grey. Special
colors available.
Model
GN900
Lamp
LED
Color Temperature
WW -3000K
Volt
UNV - 120-277V
Mounting
D - Bollard
NW - 4000K
Finish
SG - Silver Grey
DG - Dark Grey
GG - Graphite Grey
Ordering Information
Specifications are subject to change without notification
HessAmerica > Products > Lighting Products > Illuminating Bollard > GENUA
http://www.hessamerica.com/Products/Lighting/Illuminating_Bollard/GENUA_/
Page 1
GENUA 900
Specification
HOUSING
Horizontally oriented planar housing is fabricated from 6060 aluminum. Rectilinear bollard shaft is extruded aluminum. Clear
lens is flat tempered glass. All hardware is stainless steel.
OPTICS
LED light engine with electrical disconnect is to flush mounted to the aluminum plate inside the housing. Twelve LEDs with
individual refractive lenses are positioned within the cylindrical housing providing asymmetric distribution with zero uplight.
ELECTRICAL
Input voltage to universal high power factor LED driver is 120v through 277v AC, 50/60 Hz. Drive current to LEDs is 350 mA.
Power consumption is 14 watts.
DELIVERED LUMENS / BUG RATING
3000K: 470 lumens / B0-U1-G1
4000K: 567 lumens / B0-U1-G1
NOTE: Due to rapid and continuous advances in LED technology, LED luminaire data is subject to change without notice and at
the discretion of HessAmerica. Consult factory for current technical data.
MOUNTING
Flange mounted bollard mounts to anchor base plate assembly with stainless steel socket head cap screws and washers.
Anchor base assembly consists of four hot-dip galvanized anchor rods secured to a mounting plate and embedded as an
assembly in concrete foundation (by others).
WEIGHT: 16 lbs
FINISH
Housing is cleaned ultrasonically prior to painting. Standard finish is finely textured matte silver grey metallic. Special colors
available on request.
WARRANTY
Limited product warranty period including LEDs is five years. Driver shall carry the manufacturer's limited warranty.
Specifications are subject to change without notification
HessAmerica > Products > Lighting Products > Illuminating Bollard > GENUA
http://www.hessamerica.com/Products/Lighting/Illuminating_Bollard/GENUA_/
Page 2
Additional information
Dimensions
