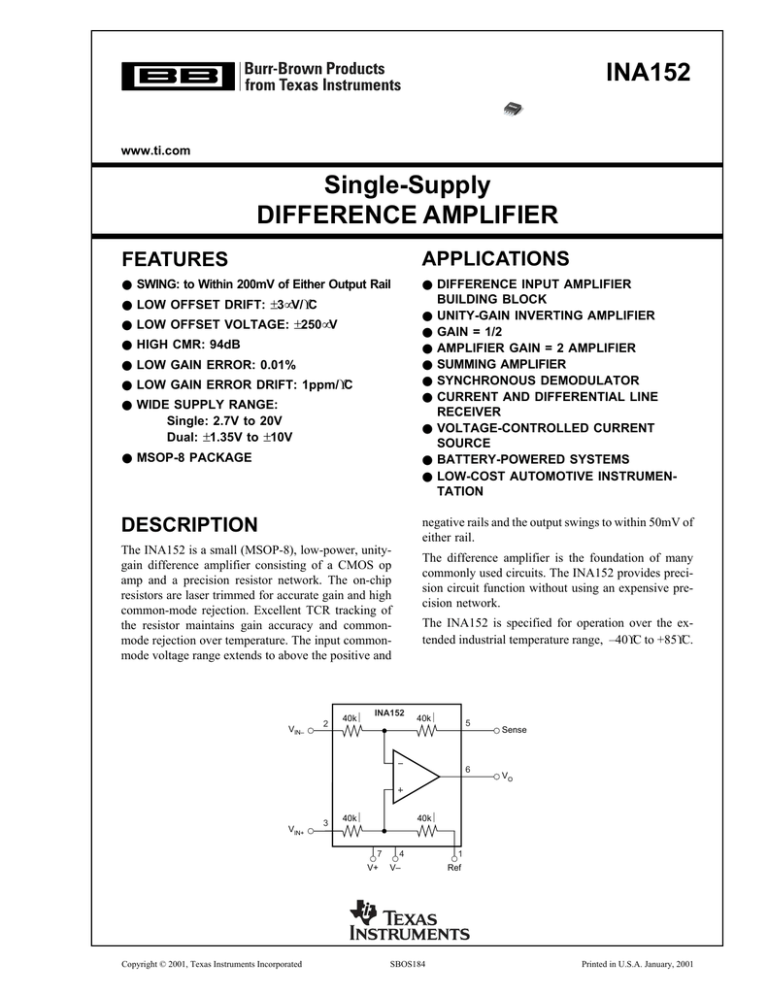

INA152
www.ti.com
Single-Supply
DIFFERENCE AMPLIFIER
FEATURES
APPLICATIONS
● SWING: to Within 200mV of Either Output Rail
● DIFFERENCE INPUT AMPLIFIER
BUILDING BLOCK
● UNITY-GAIN INVERTING AMPLIFIER
● GAIN = 1/2
● AMPLIFIER GAIN = 2 AMPLIFIER
● SUMMING AMPLIFIER
● SYNCHRONOUS DEMODULATOR
● CURRENT AND DIFFERENTIAL LINE
RECEIVER
● VOLTAGE-CONTROLLED CURRENT
SOURCE
● BATTERY-POWERED SYSTEMS
● LOW-COST AUTOMOTIVE INSTRUMENTATION
● LOW OFFSET DRIFT: ±3µV/°C
● LOW OFFSET VOLTAGE: ±250µV
● HIGH CMR: 94dB
● LOW GAIN ERROR: 0.01%
● LOW GAIN ERROR DRIFT: 1ppm/°C
● WIDE SUPPLY RANGE:
Single: 2.7V to 20V
Dual: ±1.35V to ±10V
● MSOP-8 PACKAGE
DESCRIPTION
negative rails and the output swings to within 50mV of
either rail.
The INA152 is a small (MSOP-8), low-power, unitygain difference amplifier consisting of a CMOS op
amp and a precision resistor network. The on-chip
resistors are laser trimmed for accurate gain and high
common-mode rejection. Excellent TCR tracking of
the resistor maintains gain accuracy and commonmode rejection over temperature. The input commonmode voltage range extends to above the positive and
VIN–
2
40kΩ
The difference amplifier is the foundation of many
commonly used circuits. The INA152 provides precision circuit function without using an expensive precision network.
The INA152 is specified for operation over the extended industrial temperature range, –40°C to +85°C.
INA152
40kΩ
5
6
VIN+
3
VO
40kΩ
40kΩ
7
V+
Copyright © 2001, Texas Instruments Incorporated
Sense
4
V–
SBOS184
1
Ref
Printed in U.S.A. January, 2001
SPECIFICATIONS: VS = ±10V
TA = +25°C, VS = ±10V, RL = 10kΩ connected to ground, and reference pin connected to ground, unless otherwise noted.
INA152EA
PARAMETER
OFFSET VOLTAGE
Input Offset Voltage
vs Temperature
vs Power Supply
vs Time
CONDITIONS
MIN
RTO(1) (2)
VCM = 0V
TA = –40°C to +85°C
VS = ±1.35V to ±10V
TYP
MAX
UNITS
±250
±3
5
0.5
±1500
±15
30
µV
µV/°C
µV/V
µV/mo
2(V+) – 2
94
V
dB
80
80
kΩ
kΩ
97
87
2.4
nV/√Hz
nV/√Hz
µVp-p
INPUT VOLTAGE RANGE(3)
Common-Mode Voltage Range
VIN+ – VIN– = 0V
Common-Mode Rejection
2(V–)
80
INPUT IMPEDANCE(4)
Differential
Common-Mode
OUTPUT NOISE VOLTAGE(1) (5)
fO = 10Hz
fO = 1kHz
fB = 0.1Hz to 10Hz
GAIN
Initial(6)
Gain Error
Gain Temperature Drift Coefficient
Nonlinearity
FREQUENCY RESPONSE
Small Signal
Slew Rate
Settling Time, 0.1%
, 0.01%
Overload Recovery
OUTPUT
Voltage
Load Capacitance Stability
Short-Circuit Curent
RTO
(V–) + 0.3V < VO < (V+) – 0.350V
1
±0.01
±1
±0.002
9V Step
9V Step
50% Overdrive
800
0.4
23
25
5
kHz
V/µs
µs
µs
µs
(V+) – 0.02
(V–) + 0.15
500
+7, –12
V
V
pF
mA
RL = 10kΩ to GND
Continuous to Common
POWER SUPPLY
Rated Voltage
Voltage Range
Current, Quiescent
TEMPERATURE RANGE
Specification
Operating
θJA, Junction to Ambient
(V+) – 0.35
(V–) + 0.3
±0.1
±10
±0.005
±10
±1.35
2.7
IO = 0mA
500
–40
–55
±10
20
650
+85
+125
150
V/V
%
ppm/°C
% of FS
V
V
V
µA
°C
°C
°C/W
NOTES: (1) Referred to output in unity-gain difference configuration. Note that this circuit has a gain of 2 for the op amp’s offset voltage and noise voltage.
(2) Includes effects of amplifier’s input bias and offset currents. (3) Limit IIN through 40kΩ resistors to 1mA. (4) 40kΩ resistors are ratio matched but have ±20%
absolute value. (5) Includes effects of amplifier’s input current noise and thermal noise contribution of resistor network. (6) Connected as difference amplifier.
2
INA152
SBOS184
SPECIFICATIONS: VS = +5V
TA = +25°C, VS = +5V, Ref connected to VS/2, RL = 10kΩ connected to VS/2, unless otherwise noted.
INA152EA
PARAMETER
CONDITIONS
MIN
RTO(1) (2)
VCM = VOUT = 0V
TA = –40°C ≤ TA ≤ 85°C
OFFSET VOLTAGE
Input Offset Voltage
vs Temperature
INPUT VOLTAGE RANGE(3)
Voltage Range, Common-Mode
Common-Mode Rejection
VIN+ – VIN– = 0V
0V < VCM < +5V, RSRC = 0Ω
OUTPUT
Voltage
–2.5
80
TYP
MAX
UNITS
±250
±3
±1500
±15
µV
µV/°C
+5.5
94
V
dB
(V–) + 0.05
V
V
V
(V+) – 0.2
(V–) + 0.2
RL = 10kΩ to GND
NOTES: (1) Referred to output in unity-gain difference configuration. Note that this circuit has a gain of 2 for the op amp’s offset voltage and noise voltage.
(2) Includes effects of amplifier’s input bias and offset currents. (3) Limit IIN through 40kΩ resistors to 1mA.
ELECTROSTATIC
DISCHARGE SENSITIVITY
PIN CONFIGURATION
Top View
MSOP-8
Ref
1
VIN–
2
VIN+
V–
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling
and installation procedures can cause damage.
8
NC
7
V+
3
6
VO
4
5
Sense
INA152
ESD damage can range from subtle performance degradation
to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric
changes could cause the device not to meet its published
specifications.
NC = No Internal Connection
ABSOLUTE MAXIMUM RATINGS(1)
Supply Voltage, V+ to V– .................................................................. +22V
Signal Input Terminals .................................................. +20V Continuous
Output Short-Circuit to GND Duration .................................... Continuous
Operating Temperature .................................................. –55°C to +125°C
Storage Temperature ..................................................... –55°C to +125°C
Junction Temperature .................................................................... +150°C
Lead Temperature (soldering, 10s) ............................................... +300°C
PACKAGE/ORDERING INFORMATION
PRODUCT
PACKAGE
PACKAGE
DRAWING
NUMBER
INA152EA
"
MSOP-8
"
337
"
SPECIFIED
TEMPERATURE
RANGE
PACKAGE
MARKING
ORDERING
NUMBER(1)
TRANSPORT
MEDIA
–40°C to +85°C
"
B52
"
INA152EA/250
INA152EA/2K5
Tape and Reel
Tape and Reel
NOTE: (1) Models with a slash (/) are available only in Tape and Reel in the quantities indicated (e.g., /2K5 indicates 2500 devices per reel). Ordering 2500 pieces
of “INA152EA/2K5” will get a single 2500-piece Tape and Reel.
INA152
SBOS184
3
TYPICAL PERFORMANCE CURVES
At TA = +25°C, VS = ±10V, RL = 10kΩ connected to GND, and Ref = GND, unless otherwise noted.
GAIN vs FREQUENCY
COMMON-MODE REJECTION vs FREQUENCY
100
Commom-Mode Rejection (dB)
20
Closed-Loop Gain (dB)
CL = 500pF
0
–20
–40
–60
100k
1M
60
40
VS = ±10V or ±2.5V
20
100
–80
10k
80
10M
1k
10k
Frequency (Hz)
Peak-to-Peak Output Voltage (V)
Power-Supply Rejection (dB)
25
100
–PSRR
80
60
+PSRR
40
20
0
10
100
1k
10k
100k
20
15
10
5
0
100
1M
1k
10k
100k
1M
Frequency (Hz)
Frequency (Hz)
SHORT-CIRCUIT CURRENT vs TEMPERATURE
QUIESCENT CURRENT vs TEMPERATURE
10
700
600
5
VS = ±10V
Short-Circuit Current (mA)
Quiescent Current (µA)
1M
MAXIMUM OUTPUT VOLTAGE vs FREQUENCY
POWER-SUPPLY REJECTION vs FREQUENCY
120
500
VS = ±2.5V
400
300
200
100
0
VS = ±2.5V
VS = ±10V
–5
–10
–15
–20
–25
0
–75
–50
–25
0
25
50
Temperature (°C)
4
100k
Frequency (Hz)
75
100
125
–60
–40
–20
0
20
40
60
80
100
120
Temperature (°C)
INA152
SBOS184
TYPICAL PERFORMANCE CURVES
(Cont.)
At TA = +25°C, VS = ±10V, RL = 10kΩ connected to GND, and Ref = GND, unless otherwise noted.
OUTPUT VOLTAGE SWING vs OUTPUT CURRENT
SLEW RATE vs TEMPERATURE
10
0.5
6
Output Voltage Swing (V)
Slew Rate (V/µs)
0.45
0.4
0.35
0.3
VS = ±10V
+25°C
8
–40°C
+85°C
4
2
0
–2
–40°C
+85°C
–4
+25°C
–6
–8
0.25
–10
–60
–40
–20
0
20
40
60
80
100
0
120
2.5
5
2
–40°C
Output Voltage Swing (V)
Output Voltage Swing (V)
+85°C
+25°C
0.5
+25°C
–0.5
+85°C
–1
15
VS = ±1.35V
–40°C
1
0
12.5
1.5
VS = ±2.5V
1
10
OUTPUT VOLTAGE vs OUTPUT CURRENT
OUTPUT VOLTAGE vs OUTPUT CURRENT
2.5
1.5
7.5
Output Current (mA)
Temperature (°C)
–1.5
–2
+25°C
0.5
+85°C
0
–0.5
+85°C
+25°C
–1
–40°C
–40°C
–1.5
–2.5
0
2
4
6
8
10
12
0
14
0.5
1
1.5
2
2.5
Output Current (mA)
Output Current (mA)
0.1Hz TO 10Hz PEAK-TO-PEAK
VOLTAGE NOISE
NOISE SPECTRAL DENSITY
1µV/div
Noise (nV/√Hz)
1k
100
10
0.1
1
10
100
1k
1s/div
Frequency (Hz)
INA152
SBOS184
5
TYPICAL PERFORMANCE CURVES
(Cont.)
At TA = +25°C, VS = ±10V, RL = 10kΩ connected to GND, and Ref = GND, unless otherwise noted.
CL = 470pF
LARGE-SIGNAL STEP RESPONSE
2V/div
50mV/div
CL = 25
50mV/div
SMALL-SIGNAL STEP RESPONSE
50ms/div
25µs/div
SETTLING TIME vs LOAD CAPACITANCE
INPUT COMMON-MODE VOLTAGE
vs OUTPUT VOLTAGE
25
45
VS = ±10V
20
Common-Mode Voltage (V)
Settling Time (µs)
40
0.01%
35
30
0.1%
25
15
10
VS = +5V
5
0
–5
VS = ±2.5V
–10
–15
–20
20
–25
100
–10
1000
–7.5
–5
–2.5
OFFSET VOLTAGE PRODUCTION DISTRIBUTION
16
5
7.5
10
OFFSET VOLTAGE PRODUCTION DISTRIBUTION
VS = ±10V
VS = ±2.5V
Offset Voltage (µV)
1000
800
600
400
1000
800
600
400
200
0
–200
–400
0
–600
2
0
–800
2
200
4
0
4
6
–200
6
8
–400
8
10
–600
10
12
–800
12
–1000
Percentage of Units (%)
14
–1000
Percentage of Units (%)
2.5
16
14
6
0
Output Voltage (V)
Loading Capacitance (pF)
Offset Voltage (µV)
INA152
SBOS184
TYPICAL PERFORMANCE CURVES
(Cont.)
At TA = +25°C, VS = ±10V, RL = 10kΩ connected to GND, and Ref = GND, unless otherwise noted.
OFFSET VOLTAGE DRIFT
OFFSET VOLTAGE DRIFT
40
40
VS = ±10V
Percentage of Units (%)
Percentage of Units (%)
30
25
20
15
10
25
20
15
10
0
0
1
2
3
4
5
6
7
Offset Voltage Drift (µV/°C)
SBOS184
30
5
5
INA152
VS = ±2.5V
35
35
8
9
10
1
2
3
4
5
6
7
8
9
10
Offset Voltage Drift (µV/°C)
7
APPLICATIONS INFORMATION
The INA152 is a low-power difference amplifier suitable for
a wide range of general-purpose applications. Figure 1
shows the basic connections required for operation of the
INA152. Decoupling capacitors are strongly recommended
in applications with noisy or high-impedance power supplies. The capacitors should be placed close to the device
pins, as shown in Figure 1.
As shown in Figure 1, the differential input signal is connected to pins 2 and 3. The source impedances connected to
the inputs must be nearly equal to assure good commonmode rejection. An 8Ω mismatch in source impedance will
degrade the common-mode rejection of a typical device to
approximately 80dB (a 16Ω mismatch degrades CMR to
74dB). If the source has a known impedance mismatch, an
additional resistor in series with the opposite input can be
used to preserve good common-mode rejection.
The INA152’s internal resistors are accurately ratio trimmed
to match. That is, R1 is trimmed to match R2, and R3 is
trimmed to match R4. However, the absolute values may not
be equal (R1 + R2 may be slightly different than R3 + R4).
Thus, large series resistors on the input (greater than 250Ω),
even if well matched, will degrade common-mode rejection.
Circuit-board layout constraints might suggest possible variations in connections of the internal resistors. It might appear
that pins 1 and 3 could be interchanged, however, because of
the ratio trimming technique used (see paragraph above)
CMRR will be degraded. If pins 1 and 3 are interchanged,
pins 2 and 5 must also be interchanged to maintain proper
ratio matching.
OPERATING VOLTAGE
The INA152 operates from single (+2.7V to +20V) or dual
(±1.35V to ±10V) supplies with excellent performance. Specifications are production tested with +5V and ±10V supplies.
Most behavior remains unchanged throughout the full operating voltage range. Parameters that vary significantly with
operating voltage are shown in the typical performance
curves.
INPUT VOLTAGE
The INA152 can accurately measure differential signals that
are above and below the supply rails. Linear common-mode
range extends from 2 • [(V+) – 1V] to 2 • (V–) (nearly twice
the supplies). See the typical performance curve, “Input
Common-Mode Voltage vs Output Voltage”.
OFFSET VOLTAGE TRIM
The INA152 is laser trimmed for low offset voltage and drift.
Most applications require no external offset adjustment.
Figure 2 shows an optional circuit for trimming the output
offset voltage. The output is referred to the output reference
terminal (pin 1), which is normally grounded. A voltage
applied to the Ref terminal will be summed with the output
signal. This can be used to null offset voltage, as shown in
Figure 2. The source impedance of a signal applied to the Ref
terminal should be less than 10Ω to maintain good commonmode rejection.
INA152
V+
V–
2
V2
R1
R2
5
1µF
1µF
7
4
6
VO
INA152
V2
–In
2
R1
40kΩ
R2
40kΩ
10Ω
5
V3
3
R3
R4
6
V3
+In
3
R3
40kΩ
R4
40kΩ
1
VO = V 3 – V2
Gain Error = ±0.01%
CMR = 94dB
Nonlinearity = ±0.002%
+V
VO = V 3 – V2
Offset Adjustment
Range = ±1mV
1
100kΩ
100kΩ
10Ω
–V
FIGURE 1. Precision Difference Amplifier (Basic Power
Supply and Signal Connections).
8
FIGURE 2. Offset Adjustment.
INA152
SBOS184
TYPICAL APPLICATIONS
V1
–In
INA152
A1
2
5
R2
V+
V+
3
6
R1
INA152
VO
2
R2
5
1
3
7
A2
V2
+In
6
VO = (1 + 2R2/R1) (V2 – V1)
The INA152 can be combined with op amps to form a complete Instrumentation Amplifier (IA) with specialized performance characteristics. Texas
Instruments offers many complete high performance IAs. Products with
related performances are shown at the right in the table below.
FEATURE
SIMILAR COMPLETE
TEXAS INSTRUMENTS IA
OPA2227
Low Noise
INA163
OPA129
Ultra Low Bias Current (fA)
INA116
OPA2277
Low Offset Drift, Low Noise
INA114, INA128
OPA2130
Low Power, FET-Input (pA)
INA121
OPA2234
Single Supply, Precision, Low Power
INA122, INA118
A1, A2
1
Common
VO = (V+)/2
4
Common
FIGURE 5. Pseudoground Generator.
FIGURE 3. Precision Instrumentation Amplifier.
INA152
V2
INA152
2
2
5
5
6
100Ω(1)
1%
6
V–
VO = –V2
V0
0 to 2V
100Ω(1)
1%
3
1
IIN
0 to 20mA
1
3
NOTE: (1) Input series resistors should be less than
250Ω (1% max mismatch) to maintain excellent CMR.
With 100Ω resistors, gain error is increased to 0.5%.
FIGURE 4. Current Receiver with Compliance to Rails.
INA152
SBOS184
FIGURE 6. Precision Unity-Gain Inverting Amplifier.
9
INA152
INA152
5
2
2
6
6
VO = 2 • V1
1
5
VO = V1 + V 3
1
V1
V1
V3
3
FIGURE 7. Precision Gain = 2 Amplifier.
3
FIGURE 10. Precision Summing Amplifier.
INA152
+10V
2
2
5
6
+5V Out
REF02
6
VO =
3
V3
INA152
2
V3
5
2
4
–5V Out
6
1
3
1
FIGURE 11. ±5V Precision Voltage Reference.
FIGURE 8. Precision Gain = 1/2 Amplifier.
R1
R2
INA152
2
2
5
INA152
5
6
V1
V3
1
VO =
3
(V1 + V3)
2
6
V1
V3
1
3
(
VO = 1 +
FIGURE 9. Precision Average Value Amplifier.
10
VO
R2
R1
)( V +2 V )
1
3
FIGURE 12. Precision Summing Amplifier with Gain.
INA152
SBOS184
1
Noise (60Hz hum)
INA115
4
A1
2
Transducer or
Analog Signal
25kΩ
3
Feedback
12
25kΩ
25kΩ
A3
RG
Output
11
14
25kΩ
25kΩ
G=1+
50kΩ
RG
15
Noise (60Hz hum)
25kΩ
A2
5
100kΩ
Shield
13
7
V+
8
10
Ref
V–
3
INA152
2
5
6
1
FIGURE 13. Instrumentation Amplifier Guard Drive Generator.
INA152
2
INA152
V1
3
A
V2
B
VO = V3 + V4 – V1 – V2
V3
V4
FIGURE 14. Precision Summing Instrumentation Amplifier.
INA152
SBOS184
11
INA152
INA152
5
2
V2
R
5
2
6
R
V1
A
V1
1
3
6
V01
1
3
IO = (V1 – V2) (1/40k + 1/R)
Load
IO
V2
INA152
FIGURE 15. Precision Voltage-to-Current Converter with
Differential Inputs.
2
5
INA152
V2
6
V02
B
5
2
1
3
6
R
V3
3
V01 – V02 = 2 (V2 – V1)
OPA130
1
FIGURE 18. Differential Output Difference Amplifier.
IO = (V3 – V2)/R
IO
Load
FIGURE 16. Differential Input Voltage-to-Current
Converter for Low IOUT.
V2
2
INA152
5
6
INA152
V2
R (R ≥ 200Ω)
5
2
V3
1
3
Gate can be
+VCC –5V
R
6
R < 200Ω
R
IO
Gate can be
+VS –5V
1
3
(V3 – V2)
Load
R
V3
IO =
IO = (V3 – V2) (1/40k + 1/R)
Load
IO
FIGURE 19. Isolating Current Source with Buffering
Amplifier for Greater Accuracy.
FIGURE 17. Isolating Current Source.
12
INA152
SBOS184
+5V
7
VS
INA152
2
5
Transducer
or
Analog
Signal
6
0V-4V
Input
1
3
12 Bits
Out
ADS7806
4
–5V
Eliminates errors due to different grounds.
FIGURE 20. Differential Input Data Acquisition.
INA152
2
5
V1
DG188
6
3
VO
1
Logic In
VO
0
–V1
1
+V1
1
Logic
In
FIGURE 21. Digitally Controlled Gain of ±1 Amplifier.
INA152
2
D1
D2
V1
Input
R2
–In
1
R3
SBOS184
2
5
6
6
V0 = |V1|
BUF634
VO
R4
R5
2kΩ
FIGURE 22. Precision Absolute Value Buffer.
INA152
BUF634 inside feedback
loop contributes no error.
INA152
5
10pF
3
OPA130
R1
+In
3
1
RL
FIGURE 23. High Output Current Precision Difference
Amplifier.
13
PACKAGE OPTION ADDENDUM
www.ti.com
10-Jun-2014
PACKAGING INFORMATION
Orderable Device
Status
(1)
Package Type Package Pins Package
Drawing
Qty
Eco Plan
Lead/Ball Finish
MSL Peak Temp
(2)
(6)
(3)
Op Temp (°C)
Device Marking
(4/5)
INA152EA/250
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-3-260C-168 HR
-40 to 85
B52
INA152EA/250G4
ACTIVE
VSSOP
DGK
8
250
Green (RoHS
& no Sb/Br)
CU NIPDAU
Level-3-260C-168 HR
-40 to 85
B52
INA152EA/2K5
ACTIVE
VSSOP
DGK
8
2500
Green (RoHS
& no Sb/Br)
CU NIPDAU |
CU NIPDAUAG
Level-3-260C-168 HR
-40 to 85
B52
(1)
The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2)
Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability
information and additional product content details.
TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that
lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between
the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight
in homogeneous material)
(3)
MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4)
There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5)
Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6)
Lead/Ball Finish - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead/Ball Finish values may wrap to two lines if the finish
value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
Addendum-Page 1
Samples
PACKAGE OPTION ADDENDUM
www.ti.com
10-Jun-2014
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
Addendum-Page 2
PACKAGE MATERIALS INFORMATION
www.ti.com
26-Jan-2013
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device
Package Package Pins
Type Drawing
SPQ
Reel
Reel
A0
Diameter Width (mm)
(mm) W1 (mm)
B0
(mm)
K0
(mm)
P1
(mm)
W
Pin1
(mm) Quadrant
INA152EA/250
VSSOP
DGK
8
250
180.0
12.4
5.3
3.4
1.4
8.0
12.0
Q1
INA152EA/2K5
VSSOP
DGK
8
2500
330.0
12.4
5.3
3.4
1.4
8.0
12.0
Q1
Pack Materials-Page 1
PACKAGE MATERIALS INFORMATION
www.ti.com
26-Jan-2013
*All dimensions are nominal
Device
Package Type
Package Drawing
Pins
SPQ
Length (mm)
Width (mm)
Height (mm)
INA152EA/250
VSSOP
DGK
INA152EA/2K5
VSSOP
DGK
8
250
210.0
185.0
35.0
8
2500
367.0
367.0
35.0
Pack Materials-Page 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products
Applications
Audio
www.ti.com/audio
Automotive and Transportation
www.ti.com/automotive
Amplifiers
amplifier.ti.com
Communications and Telecom
www.ti.com/communications
Data Converters
dataconverter.ti.com
Computers and Peripherals
www.ti.com/computers
DLP® Products
www.dlp.com
Consumer Electronics
www.ti.com/consumer-apps
DSP
dsp.ti.com
Energy and Lighting
www.ti.com/energy
Clocks and Timers
www.ti.com/clocks
Industrial
www.ti.com/industrial
Interface
interface.ti.com
Medical
www.ti.com/medical
Logic
logic.ti.com
Security
www.ti.com/security
Power Mgmt
power.ti.com
Space, Avionics and Defense
www.ti.com/space-avionics-defense
Microcontrollers
microcontroller.ti.com
Video and Imaging
www.ti.com/video
RFID
www.ti-rfid.com
OMAP Applications Processors
www.ti.com/omap
TI E2E Community
e2e.ti.com
Wireless Connectivity
www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2014, Texas Instruments Incorporated
