TZERO HID-AS-IN / TZERO HID-S-IN
PASS-THROUGH CONNECTION
MOUNTING AND MAINTENANCE
INSTRUCTIONS
Made in Italy
TUNNEL
LIGHTING
TZERO HID_IN_IM_ENG - Rev.03 of 17/12/13
Pag. 1 of 4

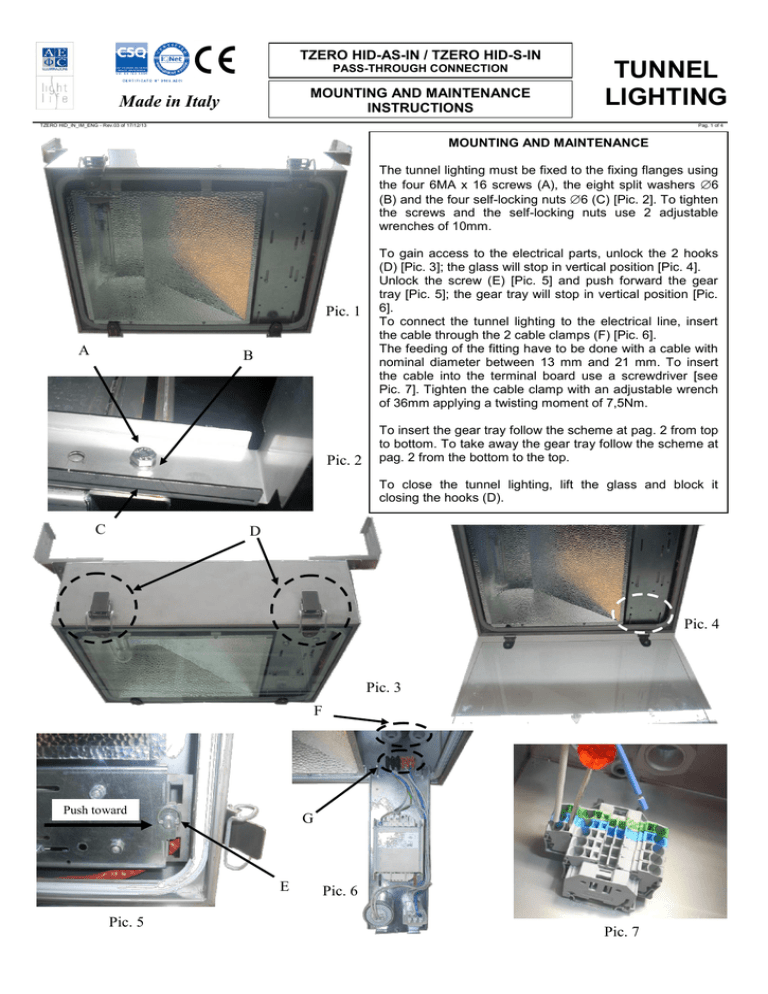

MOUNTING AND MAINTENANCE
The tunnel lighting must be fixed to the fixing flanges using
the four 6MA x 16 screws (A), the eight split washers 6
(B) and the four self-locking nuts 6 (C) [Pic. 2]. To tighten
the screws and the self-locking nuts use 2 adjustable
wrenches of 10mm.
Pic. 1
A
B
Pic. 2
To gain access to the electrical parts, unlock the 2 hooks
(D) [Pic. 3]; the glass will stop in vertical position [Pic. 4].
Unlock the screw (E) [Pic. 5] and push forward the gear
tray [Pic. 5]; the gear tray will stop in vertical position [Pic.
6].
To connect the tunnel lighting to the electrical line, insert
the cable through the 2 cable clamps (F) [Pic. 6].
The feeding of the fitting have to be done with a cable with
nominal diameter between 13 mm and 21 mm. To insert
the cable into the terminal board use a screwdriver [see
Pic. 7]. Tighten the cable clamp with an adjustable wrench
of 36mm applying a twisting moment of 7,5Nm.
To insert the gear tray follow the scheme at pag. 2 from top
to bottom. To take away the gear tray follow the scheme at
pag. 2 from the bottom to the top.
To close the tunnel lighting, lift the glass and block it
closing the hooks (D).
C
D
Pic. 4
Pic. 3
F
Push toward
G
E
Pic. 5
Pic. 6
Pic. 7
TZERO HID-AS-IN / TZERO HID-S-IN
PASS-THROUGH CONNECTION
MOUNTING AND MAINTENANCE
INSTRUCTIONS
Made in Italy
TUNNEL
LIGHTING
TZERO HID_IN_IM_ENG - Rev.03 of 17/12/13
EXTRACTION OF GEAR
TRAY
1.
Pag. 2 of 4
C
A
Loosen the fixing screw (A);
the gear tray will move down
blocked by the safety hooks
(C)
5. Tighten the fixing screw (A)
with half rotation
Pic. 1
2.
4. Push the gear tray in the
direction indicated until the screw
(A) is in the same position of the
hole (see also the Pic. 5 - E)
Pull the gear tray in the
direction indicated until the
gear tray is free
Pic. 2
EXTRACT
INSERT
D
3.
C
Rotate the gear tray until it
stops in vertical position
3. Rotate the gear tray in order to
insert the safety hooks (C) in the
holes (D)
INSERT
EXTRACT
Pic. 3
B
4.
Disconnect the connectors
(B) and lift the gear tray
2. Connect the connectors (B)
Pic. 4
5.
1. Insert the gear tray in the hinge
(E)
Take away the gear tray
E
Pic. 5
INSERTION OF GEAR
TRAY
TZERO HID-AS-IN / TZERO HID-S-IN
TUNNEL
LIGHTING
PASS-THROUGH CONNECTION
MOUNTING AND MAINTENANCE
INSTRUCTIONS
Made in Italy
TZERO HID_IN_IM_ENG - Rev.03 of 17/12/13
Pag. 3 of 4
HID
TZERO
70W
100W
150W
FLU
250W
400W
58W

E27
E40
G13





Lamp type – Weight
70W SHP
100W SHP
150W SHP
250W SHP
400W SHP
70W SHP
100W SHP
150W SHP
250W SHP
400W SHP
Weight [gr]
Empty
With C.G.
14.000
15.000
12.500
16.000
17.000
19.000
13.000
14.000
11.500
15.000
16.000
18.000
58W FLUO
13.500
Model
Power
AS
S
FLU
Lamp positions
LAMP
70W SHP-T
100W SHP-T
150W SHP-T
250W SHP-T
400W SHP-T
POS.
B Rot. + Spacer
B Rot.
B Rot.
A Rot.
A
NORMAL Position
ROTATED Position
15.000
TZERO HID
Lamp holder plate
B
ROTATED Position
with SPACERS
A
WIRING SCHEME
WIRING SCHEME
58W FLUO
70 W ÷ 400 W SHP
A
L
L
L
Out
L
Out
In
L
INFORMATION TO THE CUSTOMERS
Out
Out
L
L
N
N
A – Ballast
C – Capacitor
Directive 2002/96/EC (Waste Electrical and
Electronic
Equipment
WEEE):
information for users.
L
N
Out
In
A
A
In
N
L
L
N
In
In
A
A
L – Lamp
Z – Ignitor
f – Fuse
This product complies with EU Directive 2002/95/EC.
The crossed-out wastebasket symbol on the appliance
means that at the end of its useful lifespan, the product
must be disposed of separately from ordinary
household wastes. The user is responsible for
delivering the appliance to an appropriate collection
facility at the end of its useful lifespan. Appropriate
separate collection to permit recycling, treatment and
environmentally compatible disposal helps prevent
negative impact on the environment and human health
and promotes recycling of the materials making up the
product. For more information on available collection
facilities, contact your local waste collection service.
TZERO HID-AS-IN / TZERO HID-S-IN
TUNNEL
LIGHTING
PASS-THROUGH CONNECTION
MOUNTING AND MAINTENANCE
INSTRUCTIONS
Made in Italy
TZERO HID_IN_IM_ENG - Rev.03 of 17/12/13
Pag. 4 of 4
BASE AREA
TZERO HID-AS-IN
0.30 m2
TZERO HID-S-IN
0.26 m2
ELECTRICAL LINE CONNECTION
In order to insure insulation
characteristic of the feeder
cable, we would advise that you
first secure the feeder cable to
the internal cable clamp,
remove approximatly 50mm of
external sheathing, and 10mm
of sheathing from the internal
wires.
1 3  1 5 mm
< 5 0 mm
SIDE AREA
TZERO HID-AS-IN
0.11 m2
TZERO HID-S-IN
0.09 m2
TZERO HID-AS-IN
Dimensions
BASE AREA:
0.36 m2
TZERO HID-S-IN
Dimensions
SIDE AREA:
0.16 m2
TZERO FLU-S-IN
Dimensions
ATTENTION
a) The luminaire can’t be installed close to flammable surfaces.
b) This luminaire has been designed and manufactured following all relevant standards. The installation must be
done by experienced personnel and following the instructions.
The present instruction paper has to be kept for any future maintenance operation on the luminaire.
Non compliance with the above will automatically release AEC Illuminazione Srl from any responsibility.
