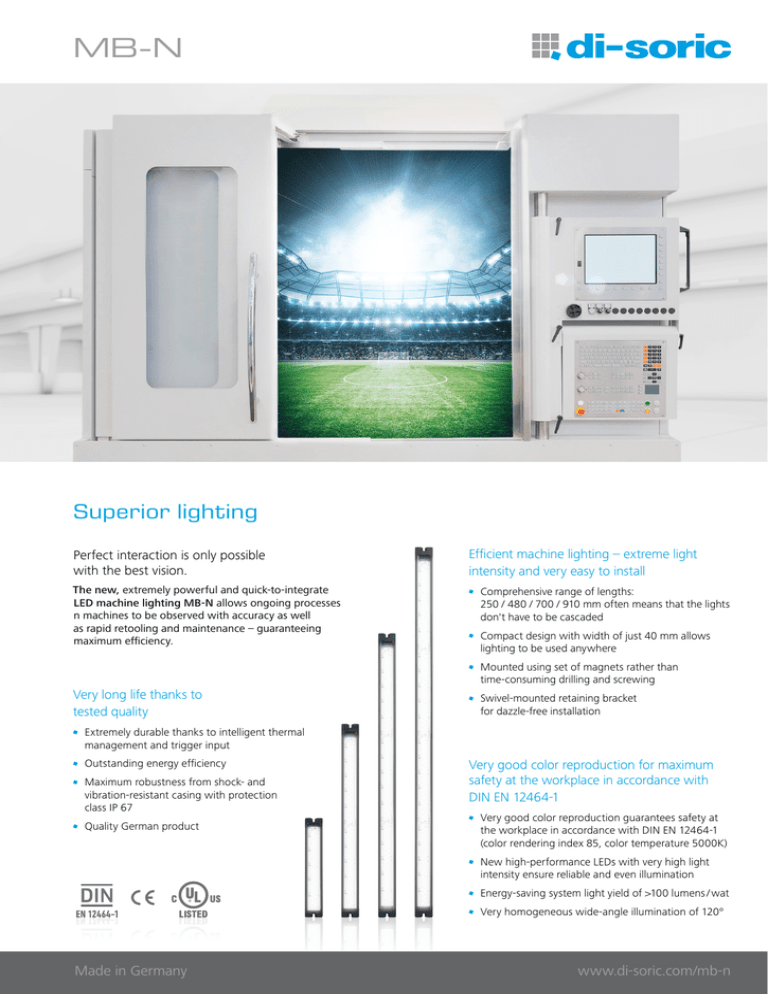

MB-N
Superior lighting
Perfect interaction is only possible
with the best vision.
The new, extremely powerful and quick-to-integrate
LED machine lighting MB-N allows ongoing processes
n machines to be observed with accuracy as well
as rapid retooling and maintenance – guaranteeing
maximum efficiency.
Efficient machine lighting – extreme light
intensity and very easy to install
Comprehensive range of lengths:
250 / 480 / 700 / 910 mm often means that the lights
don't have to be cascaded
Compact design with width of just 40 mm allows
lighting to be used anywhere
Mounted using set of magnets rather than
time-consuming drilling and screwing
Very long life thanks to
tested quality
Swivel-mounted retaining bracket
for dazzle-free installation
Extremely durable thanks to intelligent thermal
management and trigger input
Outstanding energy efficiency
Maximum robustness from shock- and
vibration-resistant casing with protection
class IP 67
Quality German product
Very good color reproduction for maximum
safety at the workplace in accordance with
DIN EN 12464-1
Very good color reproduction guarantees safety at
the workplace in accordance with DIN EN 12464-1
(color rendering index 85, color temperature 5000K)
New high-performance LEDs with very high light
intensity ensure reliable and even illumination
Energy-saving system light yield of >100 lumens / wat
Very homogeneous wide-angle illumination of 120°
Made in Germany
www.di-soric.com/mb-n
Machine illumination
Technical data (typ.)
+20 °C, 24 V DC
Connection diagram
Light colour
white 5000K (LED)
Emmission angle
typ. 120°
Color rendering index CRI
85
Service voltage
24 V DC ± 5 %
Shock-/vibration load
30g / 10 – 55Hz, 1mm
Trigger input low level
0 ... ≤ 5,0 V
Trigger input high level
≥ 8,0 ... 25,2 V
Trigger PWM signal: Ton / Toff
< 50 / < 50 µs
Inverse polarity protection
yes
Ambient temperature
0 … +40 °C
Protection class
IP67
Protection degree
III, operation on protective low voltage
Risk group (DIN EN 62471)
free
Casing material
Aluminium black anodized
Material
PU, crystal clear (Window)
Trigger
BN = brown
BK = black
Dauerlicht
Continuous
light
)
gin g
ack a
We i
gh
(w i t t
hou
tp
C ab
le
flyin , 30 0 0
m
g le
ads m,
C ab
le
co n 3 0 0 m
ne c
to r M m w i t h
12,
3- p o
le
x
s flu
in o u
L um
Illum
i
b e i nat io n
1,0
in te
m
nsi t
y
ty
Illum
i
at 0 nat io n
in te
,5 m
nsi
n
V
Pow
e
a t 2 r co n s u
mp t
4V
io
t 24
I n te
rn
co n a l p o w
sum
e
ptio r
na
Illum
inat
ed a
re a
(m m
)
d
BU = blue
Product-ID
220 x 30
450 mA
10,8 W
1800 lx
530 lx
1100 lm
210 g
260 g
MB-N-250-K-B3
MB-N-250-K
440 x 30
900 mA
21,6 W
3200 lx
1000 lx
2200 lm
390 g
440 g
MB-N-480-K-B3
MB-N-480-K
660 x 30
1350 mA
32,4 W
3900 lx
1300 lx
3300 lm
550 g
600 g
MB-N-700-K-B3
MB-N-700-K
870 x 30
1800 mA
43,2 W
4400 lx
1600 lx
4400 lm
700 g
750 g
MB-N-910-K-B3
MB-N-910-K
Accessories
MB-MHS-2
Magnetic holding set 2 consits of:
2 high power magnets with M4 thread,
2 Allen screws M4x10, 2 washers
MB-MHS-2
Mounting brackets set consits of:
2 two-piece mounting brackets in stainless steel
and the necessary mounting material
BW-MB
BW-MB
Drawing (mm, typ.)
Magnetic holding set
MB-MHS...
3.000
10
40
1.5
4.5
Leuchtfläche
Illuminated area
Surface d'éclairage
MB-N-xxx-K
10
3.5
M12x1
2
5
MB-N-xxx-K-B3
Connecting cables
M12, straight
M12, angled
300
236
466
686
896
250
480
700
910
PUR 2,5 m
VKHM-Z-2.5/4
VKHM-W-2.5/4
PUR 5,0 m
VKHM-Z-5/4
VKHM-W-5/4
PUR 10,0 m
VKHM-Z-10/4
VKHM-W-10/4
PUR 15,0 m
VKHM-Z-15/4
VKHM-W-15/4
Further Information: www.di-soric.com/mb-n
di-soric GmbH & Co. KG Steinbeisstraße 6 DE-73660 Urbach
Fon + 49 (0) 71 81 / 98 79 - 0 Fax + 49 (0) 71 81 / 98 79 - 179 info@di-soric.com www.di-soric.com
www.di-soric.com
© di-soric | All data without guarantee. Subject to technical alterations, errors and misprints excepted. | Dated 04/16 | PI_108.0416e
