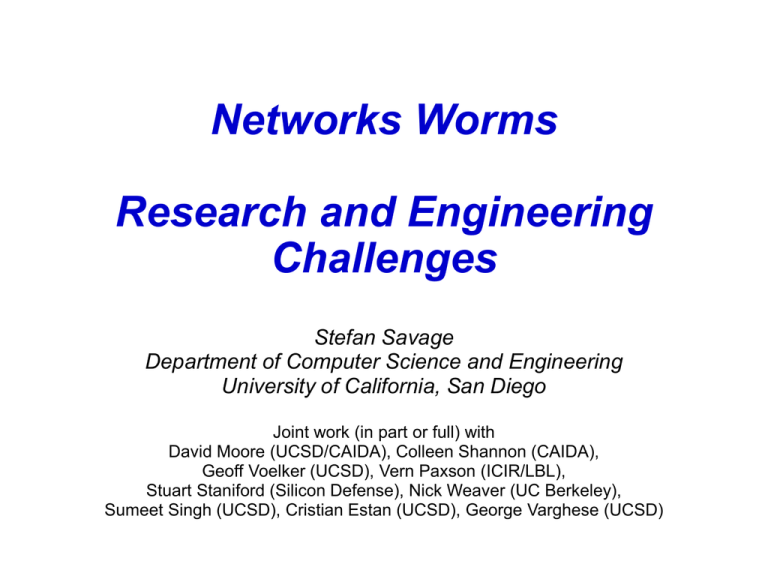

Networks Worms
Research and Engineering
Challenges
Stefan Savage
Department of Computer Science and Engineering
University of California, San Diego
Joint work (in part or full) with
David Moore (UCSD/CAIDA), Colleen Shannon (CAIDA),
Geoff Voelker (UCSD), Vern Paxson (ICIR/LBL),
Stuart Staniford (Silicon Defense), Nick Weaver (UC Berkeley),
Sumeet Singh (UCSD), Cristian Estan (UCSD), George Varghese (UCSD)
What is a Network Worm?
• Self-propagating self-replicating network program
– Exploits some vulnerability to infect remote machines
• No human intervention necessary
– Infected machines continue propagating infection
University California, San Diego – Department of Computer Science
UCSD CSE
A Brief History…
• Brunner describes “tapeworm” program in novel
“Shockwave Rider” (1972)
[I’ve been told there is an earlier sci-fi reference]
• Shoch&Hupp co-opt idea; coin term “worm” (1982)
– Key idea: programs that self-propagate through network to
accomplish some task
– Benign; didn’t replicate
• Fred Cohen demonstrates power and threat of selfreplicating viruses (1984)
• Morris worm exploits buffer overflow vulnerabilities &
infects a few thousand hosts (1988)
Hiatus for 13 years…
University California, San Diego – Department of Computer Science
UCSD CSE
Recent Events
• CodeRed worm released in Summer 2001
–
–
–
–
Exploited buffer overflow in IIS
Uniform random target selection (after fixed bug in CRv1)
Infects 360,000 hosts in 10 hours (CRv2)
Still going…
• Starts renaissance in worm development
– CodeRed II
– Nimda
– Scalper, etc.
• Culminating in Sapphire/Slammer worm (Winter 2003)
University California, San Diego – Department of Computer Science
UCSD CSE
Inside the Sapphire/Slammer Worm
• Worm fit in a single UDP packet (404 bytes total)
• Code structure
– Cleanup from buffer overflow
– Get API pointers
Header
Oflow
• Code borrowed from published exploit
– Create socket & packet
– Seed PRNG with getTickCount()
– While (TRUE)
• Increment PRNG
– Mildly buggy
• Send packet to PRNG address
• Key insight: decouple scanning from target
behavior (easy to adapt to TCP-based worms)
University California, San Diego – Department of Computer Science
UCSD CSE
API
Socket
Seed
PRNG
Sendto
Sapphire growth
• First ~1min behaves like classic
random scanning worm
– Doubling time of ~8.5 seconds
– Code Red doubled every 40mins
• >1min worm starts to saturate
access bandwidth
– Some hosts issue >20,000 scans/sec
– Self-interfering
(no congestion control)
• Peaks at ~3min
– 55million IP scans/sec
• 90% of Internet scanned in <10mins
• Infected ~100k hosts
(conservative due to PRNG errors)
University California, San Diego – Department of Computer Science
UCSD CSE
Eye Candy
University California, San Diego – Department of Computer Science
UCSD CSE
Motivation (Gloom and Doom)
• Possibly controversial statement: worms are the
most potent network security threat today
– Many millions of susceptible hosts
– Easy to write worms
• Worm payload separate from vulnerability exploit
• Significant code reuse in practice
– Possible to cause major damage
• Lucky so far; existing worms have benign payload
• Wipe disk; flash bios; modify data; reveal data; Internet DoS
• We have no operational defense
– Good evidence that humans don’t react fast enough
– Defensive technology is nascent at best
University California, San Diego – Department of Computer Science
UCSD CSE
Agenda for today
• How to think about the worm problem
• Reactive defense
– Containment: what we’re doing
– Treatment: the next talk
• Proactive defense
– Prevention: an appeal to the software research
community
University California, San Diego – Department of Computer Science
UCSD CSE
Modeling network worms
• Network worms are well modeled as infectious epidemics
– Simplest version: Homogeneous random contacts
• Classic SI model
•
•
•
•
•
dI
IS
N: population size

N
S(t): susceptible hosts at time t dt
dS
IS
I(t): infected hosts at time t
 
dt
N
ß: contact rate
i(t): I(t)/N, s(t): S(t)/N
courtesy Paxson,
Staniford, Weaver
e  (t T )
i (t ) 
1  e  (t T )
University California, San Diego – Department of Computer Science
UCSD CSE
di
  i (1  i )
dt
What’s important?
• How likely is it that an infection attempt is
successful?
– Target selection (random, biased, hitlist, etc)
– Vulnerability distribution (e.g. density – S(0)/N)
• How frequently are infections attempted?
– ß: Contact rate
• That’s it… with current technology death/recovery
is irrelevant on timescales of interest
University California, San Diego – Department of Computer Science
UCSD CSE
What can be done?
• Reduce the number of infected hosts
– Treatment, reduce I(t) while I(t) is still small
• Reduce the contact rate
Reactive
– Containment, reduce ß while I(t) is still small
• Reduce the number of susceptible hosts
– Prevention, reduce S(0)
University California, San Diego – Department of Computer Science
UCSD CSE
Proactive
Treatment
• Reduce # of infected hosts
• Disinfect infected hosts
– Detect infection in real-time
– Develop specialized “vaccine” in real-time
(next talk)
– Distribute “patch” more quickly than worm can spread
• Anti-worm? (CRClean written)
• Bandwidth interference…
University California, San Diego – Department of Computer Science
UCSD CSE
Containment
• Reduce contact rate
• Oblivious defense
– Consume limited worm resources [Liston01]
– Throttle traffic to slow spread [Williamson02]
– Possibly important capability, but worm still spreads…
• Targeted defense
– Detect and block worm [Moore et al 03]
University California, San Diego – Department of Computer Science
UCSD CSE
Design Issues for Reactive Defense
[Moore et al 03]
• Any reactive defense is defined by:
– Reaction time – how long to detect, propagate
information, and activate response
– Containment strategy – how malicious behavior is
identified and stopped
– Deployment scenario - who participates in the system
• We evaluate the requirements for these
parameters to build any effective system.
University California, San Diego – Department of Computer Science
UCSD CSE
Methodology
• Simulate spread of worm across Internet topology:
– infected hosts attempt to spread at a fixed rate (probes/sec)
– target selection is uniformly random over IPv4 space
• Simulation of defense:
– system detects infection within reaction time
– subset of network nodes employ a containment strategy
• Evaluation metric:
– % of vulnerable hosts infected in 24 hours
– 100 runs of each set of parameters (95th percentile taken)
• Systems must plan for reasonable situations, not the average case
• Source data:
– vulnerable hosts: 359,000 IP addresses of CodeRed v2 victims
– Internet topology: AS routing topology derived from RouteViews
University California, San Diego – Department of Computer Science
UCSD CSE
Initial Approach: Universal Deployment
• Assume every host employs the containment
strategy
• Two containment strategies we tested:
– Address blacklisting:
• block traffic from malicious source IP addresses
• reaction time is relative to each infected host
– Content filtering:
• block traffic based on signature of content
• reaction time is from first infection
• How quickly does each strategy need to react?
• How sensitive is reaction time to worm probe rate?
University California, San Diego – Department of Computer Science
UCSD CSE
How quickly does each
strategy need to react?
Content Filtering:
% Infected (95th perc.)
% Infected (95th perc.)
Address Blacklisting:
Reaction time (minutes)
Reaction time (hours)
• To contain worms to 10% of vulnerable hosts after 24 hours of
spreading at 10 probes/sec (CodeRed):
– Address blacklisting: reaction time must be < 25 minutes.
– Content filtering: reaction time must be < 3 hours
University California, San Diego – Department of Computer Science
UCSD CSE
How sensitive is reaction time
to worm probe rate?
reaction time
Content Filtering:
probes/second
• Reaction times must be fast when probe rates get high:
– 10 probes/sec: reaction time must be < 3 hours
– 1000 probes/sec: reaction time must be < 2 minutes
University California, San Diego – Department of Computer Science
UCSD CSE
Limited Network Deployment
• Depending on every host to implement containment is not
feasible:
– installation and administration costs
– system communication overhead
• A more realistic scenario is limited deployment in the
network:
– Customer Network: firewall-like inbound filtering of traffic
– ISP Network: traffic through border routers of large transit ISPs
• How effective are the deployment scenarios?
• How sensitive is reaction time to worm probe rate under
limited network deployment?
University California, San Diego – Department of Computer Science
UCSD CSE
How effective are the deployment
scenarios?
% Infected at 24 hours (95th perc.)
CodeRed-like Worm:
University California, San Diego – Department of Computer Science
UCSD CSE
How sensitive is reaction time to worm
probe rate?
reaction time
Top 100 ISPs
probes/second
• Above 60 probes/sec, containment to 10% hosts within
24 hours is impossible even with instantaneous reaction.
University California, San Diego – Department of Computer Science
UCSD CSE
Summary for reactive defense
• Reaction time:
– required reaction times are a couple minutes or less
(far less for BW-limited scanners)
• Containment strategy:
– content filtering is more effective than address
blacklisting
• Deployment scenarios:
– need nearly all customer networks to provide containment
– need at least top 40 ISPs provide containment
• We’re currently trying to build a system that could surpass
these requirements (another talk)
University California, San Diego – Department of Computer Science
UCSD CSE
Proactive Defense: Prevention
• Reduce # of susceptible hosts
• Software quality: eliminate vulnerability
–
–
–
–
Static/dynamic testing [e.g. work of Cowan, Wagner, Engler, etc]
Software process, code review, etc…
Active research community
Traditional problems: soundness, completeness, usability
• Software updating: reduce window of vulnerability
– Most worms exploit known vulnerability (10 days -> 3 months)
– Relatively little activity; yet critical problem
• Software heterogeneity: reduce impact of vulnerability
– Exploit existing heterogeneity [e.g. Junqueria’s Phoenix, HotOS 03]
– Artificial heterogeneity [e.g. Forrest97]
University California, San Diego – Department of Computer Science
UCSD CSE
Artificial Heterogeneity:
A Call to Arms for the Software
Research Community
• Key idea: automatically give each instance of a program a
unique implementation
• Low-level
– Environment/Run-time heterogeneity
• Variable stack sizes, dynamic import tables
– Representation heterogeneity
• Activation record format; randomize function prolog
• Register assignment, spilling order; Heap vs stack assignment
– Control flow heterogeneity
• Re-order basic blocks
• Isomorphic CFGs
• High-level
– Source-translation -> functional equivalents
– Translation into design-level equivalents (its ok to have different
semantics for property p if property p isn’t defined in interface spec)
University California, San Diego – Department of Computer Science
UCSD CSE
Why this is a good/dumb idea
• Yes but,
– Simple code randomization was tried for buffer overflows and it
didn’t help much
– Software maintenance becomes more expensive
– This is just code obfuscation and we know that doesn’t work
• Yes and,
– This might also help debug programs and eliminate the use of
undefined “quasi-invariants”
– This is something the software community could do besides
repeating the “write correct code” mantra
– We’re desperate enough that it might be worth giving this some
serious thought
University California, San Diego – Department of Computer Science
UCSD CSE
Summary
• Worms are a humongous potential problem
• There are a limited # of things you can do
• Reactive defense
– Very challenging engineering requirements
– But a number of us are having a shot at it
• Proactive defense
– Some obvious things (better software, better patch
distribution)
– Large potential impact from attacking homogeneity
– Open research question: can we programmatically
create sufficient software diversity to provide
protection?
University California, San Diego – Department of Computer Science
UCSD CSE
