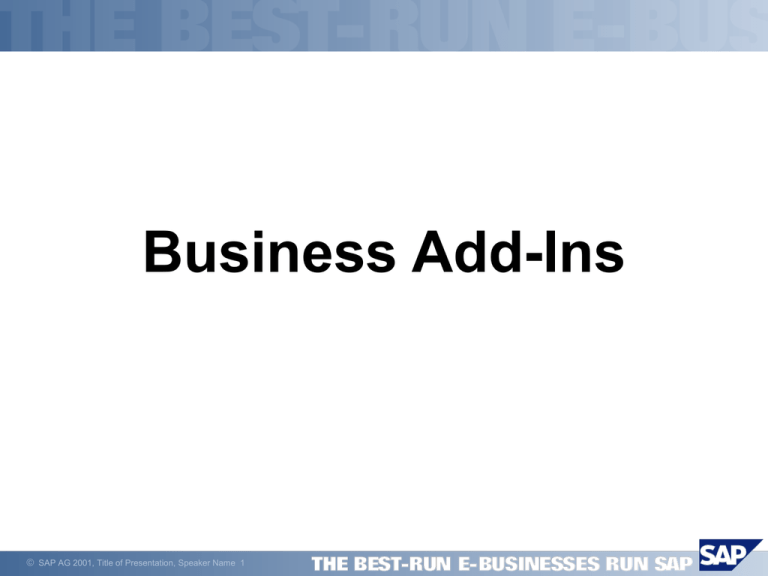

Business Add-Ins
 SAP AG 2001, Title of Presentation, Speaker Name 1
Modifications and Enhancements
Flexibility
Modifications
Assisted modifications
Business Add-Ins
Customer exits
Ease of Use
 SAP AG 2001, Title of Presentation, Speaker Name 2
Modifying the R/3 System to Meet Your Needs
Customer
Development
Modifications
Hook Techniques
Exit Techniques and Add-Ins
Customizing
 SAP AG 2001, Title of Presentation, Speaker Name 3
 SAP AG 2001, Title of Presentation, Speaker Name 4
Interface
Add-InAdapter:
Publish &
Subscribe
Filter
Control
Interface
CORE
R/3
Interface
Architecture: Business Add-Ins
Customer
extension
Industry
solution
Add-Ins: Definition
Add-ins are points in an object’s source code where additional
functions or statements can be inserted. Add-ins are defined by
the object’s initial developer and allow other developers to easily
include additional code in a subsequent phase of development
without having to ‘modify’ the original.
Additional advantages:

No change licences necessary

Interfaces are upwardly compatible

Less work at upgrade
 SAP AG 2001, Title of Presentation, Speaker Name 5
Business Add-Ins

Delivery of implemented add-ins (country-specific versions,
IBU solutions, partner software, ...)

Technique can be used by other software vendors

Delivery and correction of default solutions (4.6C)

Filter-dependent implementation possible

‘Event-like’ add-ins (Publish & Subscribe)

Integrated administration and documentation

Trace possibilities
 SAP AG 2001, Title of Presentation, Speaker Name 6
Why Business Add-Ins?

Perform calls in programs / using tables


Flexible <-> Fuzzy interface (global data,...)
Customer exits (SMOD/CMOD)

System infrastructure: SAP - customer
 Naming convention not compatible with namespace extension

Business Transaction Events (Open FI)

No bundle of objects that belong together

No interface elements
Business Add-Ins should be viewed as expanded
and enhanced business transaction events
 SAP AG 2001, Title of Presentation, Speaker Name 7
Architecture
IF_app_exit
Application
Program XXX.
Customer
Generate class
Data:
exit type
ref to if_app_exit.
Create object...
Call method...
 SAP AG 2001, Title of Presentation, Speaker Name 8
mth1
mth2
mth3
...
CL_imp_app_exit
mth1
mth2
mth3
...
Example Program
REPORT BADI .
DATA EXIT TYPE REF TO IF_EX_BADI.
DATA WORD(15) TYPE C.
CALL METHOD CL_EXITHANDLER=>GET_INSTANCE
CHANGING INSTANCE = EXIT.
START-OF-SELECTION.
WRITE:/ 'Please click here'.
AT LINE-SELECTION.
NEW-PAGE.
WORD = 'Business add in'.
WRITE:/ 'Original word:
', WORD.
CALL METHOD EXIT->METHODE
CHANGING
PARAMETER = WORT.
WRITE:/ 'Changed word: ', WORD.
 SAP AG 2001, Title of Presentation, Speaker Name 9
Filter Dependence
Sometimes it is important for partners to be able to implement and deliver a
single add-in with different filter values (for different countries, for example).
For this reason, add-ins can be defined for specific filter values.

Type of filter: data element with search help

Parameter flt_val must be suitably filled when the add-in
is called.

Add-in must be implemented for a specific filter value.
 SAP AG 2001, Title of Presentation, Speaker Name 10
Filter-Dependent Add-Ins
Add-in implementation
Add-in definition
IF_app_exit
Type of filter dependency:
country-specific
Exit call
... Exit type ref to IF_app_exit.
IF_app_exit
Country:
Japan
Country:
China
Country = ‚J‘.
Call method exit->mth1
exporting
flt_val = country.
 SAP AG 2001, Title of Presentation, Speaker Name 11
...
Business Add-In Manager

Definition part (SE18)

Specification of
common Interface
(method collection)

Define Add-In Type
(publish & subscribe,
filter dependent)
 Automatic generation
of adapter classes

Implementation (SE19)

Select filter value
(e.g. country code)
 Supply code
for interface methods

Activate Add-In
 SAP AG 2001, Title of Presentation, Speaker Name 12
