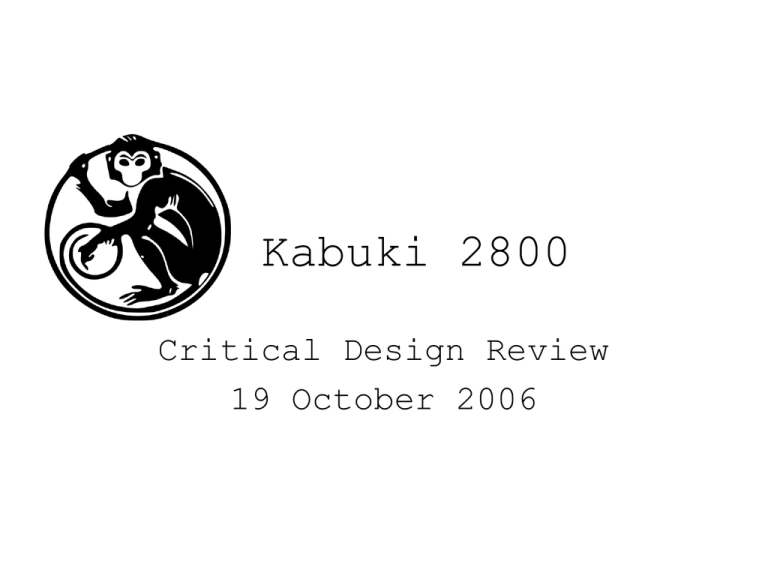

Kabuki 2800
Critical Design Review
19 October 2006
Agenda
1.
2.
3.
4.
5.
6.
System Block Diagram
Software Processes
System Specifications and Design
Test Results and Demo
Detailed Schedule
Division of Labor
Block Diagram
Audio Out
Analog
DSK Starter Kit
48KHz A/D
48KHz D/A
DSP processing core
Audio In
Analog
DSP Co-Processor
oFFT / IFFT
oCommunicates with DSK
via HPI or Router Card
Router Board
Routs signals
between DSP
host and all
peripherals
FPGA and PROM
USB
RS-232
USB display
oTablet or
Laptop
oCommunicates with
Router Card
Performance Board
A/D
Reads input from
o1 foot fader pedal
o5 actuators
Communicates with Router
Card via RS-232
Foot Pedal
Actuator 1
Actuator 2
Actuator 3
Actuator 4
Actuator 5
Kabuki 2800
Router: Protocol
• “Kabuki Router Advanced
Addressing Protocol”
• Common command and data
protocol for all devices
• 24-bit KRAAP packets
– 3 bit dest. Module
– 5 bit command code
– 16 bits of data
R uter: Logic
Router: Logic example
• USB asking UART command handler
for input board state
information
Software: DSP
• Effects processing magic
• Runs on TI DSK
• Written entirely in C
• Currently ~3k lines of code
• Subversion version control
Software: DSP
• Gets preset info from router
• Gets inputs from input board
or software console
• Sends data to software
console for spectral analysis
• Sends data to possible DSP
coprocessor
Software: DSP
• Toplevel architecture
Software: DSP
• Possible effect: Single
Software: DSP
• Possible effect: Mixer
Software: DSP
• Possible effect: Complex
Software: Console
• Connects to router via USB
• Written entirely in Python
• Uses Gtk+ Linux GUI toolkit
• ‘Subversion’ version control
• Nanobunnies
Software: Console
Router
Function:
• Handles I/O from one module to
the next
• Brain:
– FPGA with FLASH prom/memory
• Ports:
– EMIF, RS-232, USB, JTAG
Router Board
EMIF
DLP-245
Buttons
MAX3237
74xx TXRX
RS-232
FPGA
Cyclone
II
PROM
FLASH
LEDs
JTAG
1.2V
CLK
Buko the monkey
PERIPH.
HPI
USB
3.3V
Transceiver Logic (USB)
Max RS 3232
• Assembled
• Prototyped
• Capacitors
• Lag time
• Functionality
Prototype Board
DB9
Connector
RS3232
Performance Module
Specifications
•
•
•
•
Read fader pedal from A/D @12 bits
Read foot actuator inputs
Boot from flash prom
Communicate with Router Board via RS232 Transceiver at 1MHz
• Debugging LEDs and Switches
Performance Block Diagram
RS-232 Transceiver
Switches /
LEDs
Spartan
3E
Flash PROM
A/D Converter
Foot
Pedal
Actuators
Performance Module
Switches
LEDs
Reset
RS232 Transceiver
VREG Vcc
A/D
Spartan3E
FPGA
VREG VccInt
Xilinx PROM
JTAG
VREG VccAux
Actuator Inputs
Fader Pedal
Performance Module Design
• Xilinx Spartan 3E FPGA to handle
communication with the A/D and
Router Card.
• Xilinx PROM to program Spartan 3E
• Maxim 3237 RS-232 Megabaud
Transceiver
Clock Source: Crystal Oscillator (25100MHz)
Performance Module Input
• 5 Foot Actuators
• (Connected directly into Spartan)
• 1 Fader Foot Pedal
• 3.3 volt signal attenuated through the
pedal
• AD7859 (ADC with 12-bit
resolution)
• High speed
• PLCC 44 package: replaceable
Performance Module Power
• Vcc = 3.3 V LDO Regulator LT1086,
stepped down from 5 V
• JTAG, VccAux = 2.5 V LDO Regulator
LT1763, stepped down from 3.3 V
Regulator
• VccInt = 1.2 V LDO Regulator LT3021,
stepped down from 3.3 V Regulator
DSP Co-processor Design
TMS3206713B-200
• 200pin HLQFP
HPI
• Not BGA!!!
• Connection
• through Host Peripheral Interface on DSK
• 192K internal SRAM
• Maybe enough!
• Clock Source:
• same as DSK, 50MHz Crystal Oscillator.
DSP C -processor
Specifications
• Communication via 225MHz
• Direct Connection to DSK Host
• Transfer 256 samples and FFT / IFFT in
<1us
Development Structure
Primary
Secondary
Kabuki 2800
Dan’s Tasks
Secondary
Primary
• Software Effects
• Software Devices
• Software simulation


Layout design and
fabrication.
Firmware
Kabuki 2800
Justin’s Tasks
Primary
Secondary
• Router Board Layout
Design and Fab.
 Does No have any.
• Firmware
• USB design and
Protocols
Kabuki 2800
Tim’s Tasks
Primary
Secondary
• Performance
board firmware
• layout and design

USB Design and
Protocols

Device Casing
Kabuki 2800
Yazan Task’s
Secondary
 Module hardware design
 Module Firmware design
 Audio effect algorithm
simulation
 Audio effect algorithm
 Final packaging and
Software
Primary
• Device Casing and
Fabrication
• DSK and interface
Card
Kabuki 2800
Schedule
• Phase 1 – Milestone 1, Nov. 2
• Phase 2 – Milestone 2, Nov. 30
• Phase 3 – Expo, Dec. 14
Phases
• Phase 1 –
Development &
Prototyping
• Phase 2 –
Integration
• Phase 3 – Testing
and Production
Router Board
Phase 1
•
•
•
•
•
•
•
Board Fabricated (Done)
FPGA configured (Done)
FPGA boots from PROM (Done)
FLASH reads/writes properly
DSK I/O Firmware Complete
USB tested
RS-232 interface tested
Router Board
Phase 2
• FPGA configured and tested
Router Board
Phase 3
• All interfaces fully functional (RS-232, USB)
• Flash storage able to load / store presets
• I/O functions with DSK and DSP coprocessor
• USB firmware interfaces with FPGA and
with host computer
• RS-232 interface fully functioning
• Firmware completed and under testing
• Communication established with DSP
coprocessor.
Performance Board
Phase 1
• PCB Fabricated (In Progress)
• FPGA configured and tested
• FPGA boots from EEPROM
• A/D converter tested
• Firmware in testing
Performance Board
Phase 2
• FPGA interfaces with I/O board
• Foot – pedals generate interrupts
• A/D converter samples fader pedal
Performance Board
Phase 3
• FPGA interfaces with Interface Card
• All user inputs are fully functional
DSP Coprocessor
Phase 1
• Board Layout Complete
DSP Coprocessor
Phase 2
• Board fabricated,
populated and ready for
testing
• JTAG ready
DSP Coprocessor
Phase 3
• DSP Processor is able to implement
FFT and Wavelet Transforms
• DSP is able to communicate with I/O
board and and co-process transforms
Effect Algorithms
Phase 1
• Some Time Domain Effects
Simulated
– Phasing
– Filters
– Etc.
Effect Algorithms
Phase 2
• Most time domain effects
simulated
• Several more time domain
effects implemented
• FFTs simulated in Matlab
Effect Algorithms
Phase 3
• Time Domain effects implemented
• FFT and Wavelet Domain effects
simulated and implemented
Kabuki 2800
Budget
Module
Item
Main box I/O board
Altera Cyclone or Xilinx Spartan III FPGA
$60
2
$10
$130
Main box I/O board
4-layer PCB fabrication
$60
3
$10
$190
Main box I/O board
USB 2.0 transceiver DSK mezzanine board
$100
1
$10
$110
Main box coprocessor board
TI DSP
$40
2
$10
$90
Main box coprocessor board
4-layer PCB fabrication
$60
3
$10
$190
Performance Card
4-layer PCB fabrication
$66
2
$10
$142
Performance Card
Xilinx FPGA and PROM
$30
2
$10
$70
Human input box controls
Foot actuators
$30
5
$150
Human input box controls
Foot pedals
$100
1
$100
Box Casing
Casing materials + fabrication
$160
1
$160
Testing & prototyping
Misc audio connectors and converters (1/8", 1/4", XLR)
$40
1
$40
Misc
Misc electrical components (surface-mount components, LEDs, A/D
converter)
$200
1
$200
Sum Total
Cost
Qty
Shipping
Total
$1,702
