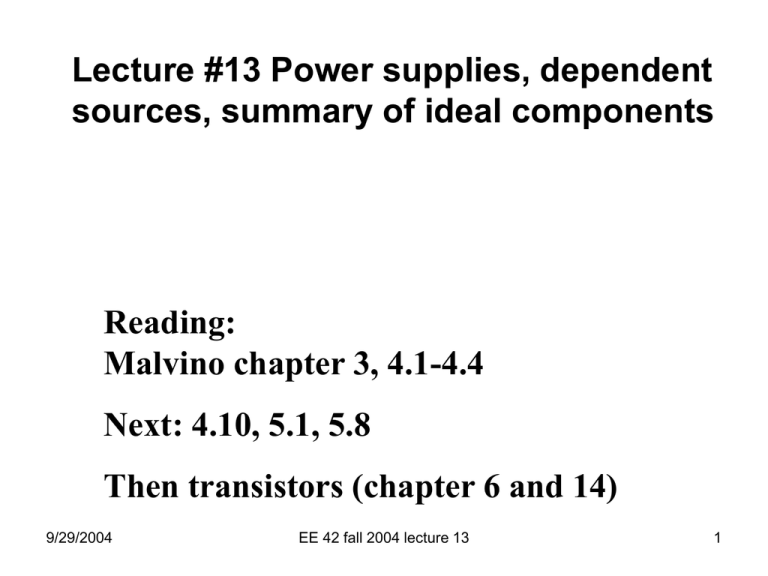

Lecture #13 Power supplies, dependent
sources, summary of ideal components
Reading:
Malvino chapter 3, 4.1-4.4
Next: 4.10, 5.1, 5.8
Then transistors (chapter 6 and 14)
9/29/2004
EE 42 fall 2004 lecture 13
1
Topics
Today:
• Inductors and transformers
• Power supplies
• A new type of ideal device, the dependent
source.
• Summary of ideal devices
9/29/2004
EE 42 fall 2004 lecture 13
2
Inductors
• Any coil of wire will produce a magnetic field
when current flows through it
• The magnetic field holds energy.
• If the current is changed, the magnetic field will
change, and therefore the energy stored will
change.
• Since the power must come from the circuit, this
creates a voltage:
9/29/2004
dI
V L
dt
EE 42 fall 2004 lecture 13
3
Symbol for and ideal inductor
• The symbol for an inductor is similar to
that of a resistor, but with loops
dI
V L
dt
9/29/2004
EE 42 fall 2004 lecture 13
4
Transformers
• A transformer is a couple of coils of wire
which transfer power from one to the other
by a changing magnetic field.
• By having different numbers of windings,
or turns of wire, a transformer can step up
or step down an AC voltage.
9/29/2004
EE 42 fall 2004 lecture 13
5
Transformers
9/29/2004
EE 42 fall 2004 lecture 13
6
Transformer symbols
• The symbol for a transformer is a pair of the
same loopy lines used for inductors, but close
together. If the inductor has a core of a
magnetic material, it is shown as a couple of
lines between the coils.
The number of turns in the coils will
Be written nearby.
9/29/2004
EE 42 fall 2004 lecture 13
7
Ideal transformer
• The voltage across the secondary of the
transformer (the output windings) is:
N2
V2 
V1
N1
• But this only works for changes in the
voltage—and therefore for AC only
9/29/2004
EE 42 fall 2004 lecture 13
8
Ideal transformer
• The transfer of power can increase or
decrease the voltage, and the current
changes as well.
• Remember:
P  I1V1
so P  I1V1  I 2V2 if it is ideal (lossless))
V1 N1

V2 N 2
9/29/2004
EE 42 fall 2004 lecture 13
9
Half-wave rectifier
• A single diode can be used to take an
alternating current, and allow only the
positive voltage swing to be applied to the
load
~
9/29/2004
R
EE 42 fall 2004 lecture 13
10
An AC input is sinusoidal
1.5
1
0.5
0
0
5
10
15
20
-0.5
-1
-1.5
9/29/2004
EE 42 fall 2004 lecture 13
11
The diode blocks the negative
voltages
1.2
1
0.8
0.6
0.4
0.2
0
-0.2
9/29/2004
0
5
10
EE 42 fall 2004 lecture 13
15
20
12
Full-wave rectifier
• If we add an additional diode, it does not pass current at
the same time as the first diode, but the load is now
disconnected during the negative half cycle.
• What if we could flip the connection and use the negative
half wave?
~
9/29/2004
R
EE 42 fall 2004 lecture 13
13
Full-wave rectifier
• The result is called a full wave rectifier
~
9/29/2004
R
EE 42 fall 2004 lecture 13
14
Full-wave rectified voltage
1.2
1
0.8
0.6
0.4
0.2
0
0
9/29/2004
5
10
EE 42 fall 2004 lecture 13
15
20
15
Filtering
• A transformer and a full wave rectifier will
produce a voltage which is always
positive, but varies with time
• In order to power electronic devices, we
need to smooth out the variations with
time.
• Another way to look at this is that we need
to store energy temporarily while the input
voltage changes sign.
9/29/2004
EE 42 fall 2004 lecture 13
16
Power supply filter capacitor
• If we add a capacitor in parallel with the load, it will
charge up when power is available from the voltage
source, and then it will slowly discharge through the load
when the diodes are off.
~
9/29/2004
EE 42 fall 2004 lecture 13
R
17
Full wave rectified, with filtering
1.2
1
0.8
0.6
0.4
0.2
0
0
9/29/2004
5
10
EE 42 fall 2004 lecture 13
15
20
18
Ripple
The result is a DC voltage, with some residual variations at twice the
frequency of the AC power. The variation is called ripple.
1.2
1
0.8
0.6
0.4
0.2
0
0
9/29/2004
5
10
EE 42 fall 2004 lecture 13
15
20
19
Regulated power supply
• In order to produce a power supply without
ripple, we will need to use an active device
called a regulator
~
9/29/2004
R
EE 42 fall 2004 lecture 13
Constant voltage
power supply
to load
20
Ideal devices
Wire:
Current in =current out
No voltage differences
Resistor
V  IR
dV
I  C
dt
9/29/2004
EE 42 fall 2004 lecture 13
21
Ideal devices 2
Inductor:
dI
V L
dt
Ideal diode:
Reversed bias  no current, open circuit
Forward bias  no voltage drop, just like a wire
9/29/2004
EE 42 fall 2004 lecture 13
22
Ideal devices 3
+
+
Transformer
V1
V2
-
-
9/29/2004
EE 42 fall 2004 lecture 13
V1 N1

V2 N 2
23
Ideal devices 4
V (t )
I (t )
~
Voltage source:
Voltage given, current can be anything
Note: the voltage could be given as
A function of time
Current source
Current given, voltage can be anything
Note: the current could be given as
A function of time
9/29/2004
EE 42 fall 2004 lecture 13
24
Ideal devices 5
+
V1
-
+
~
V2
-
+
V1
9/29/2004
I (t )
Dependent Voltage source:
Voltage given as a multiple of another
Voltage or a current, current can be anything
V2  KV1
Dependent Current source
Current given as a multiple of a different
current or voltage, voltage can be anything
I 2  GV1
EE 42 fall 2004 lecture 13
25
