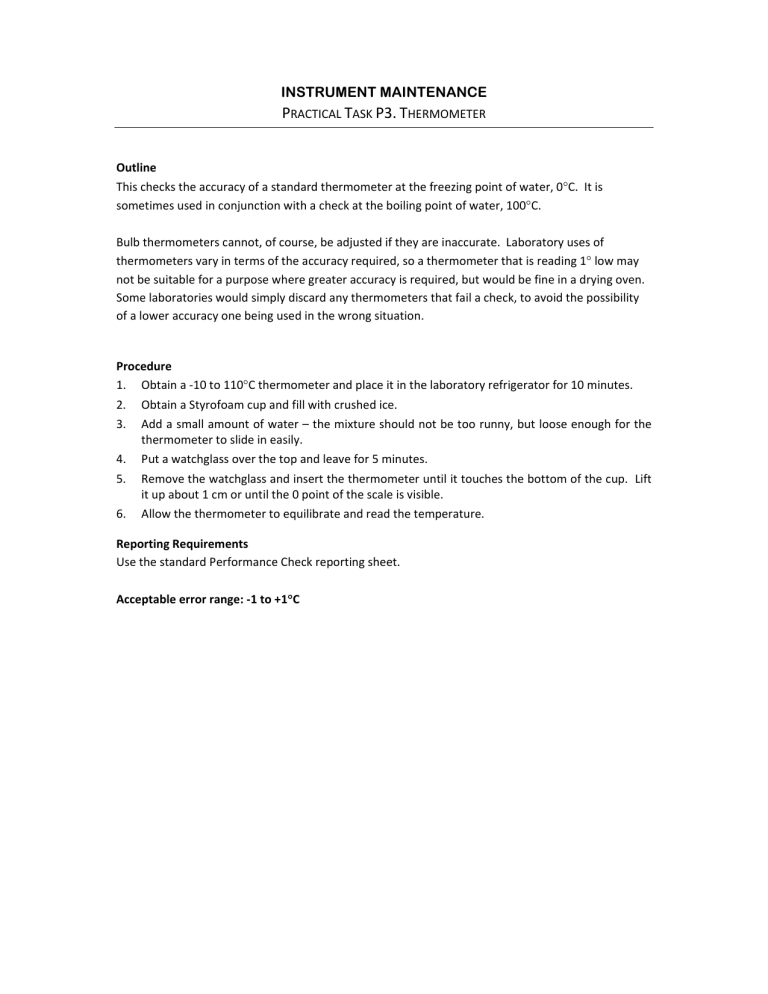

INSTRUMENT MAINTENANCE

P RACTICAL   T ASK   P3.

  T HERMOMETER







Outline

This   checks   the   accuracy   of   a   standard   thermometer   at   the   freezing   point   of   water,   0

C.

   It   is   sometimes   used   in   conjunction   with   a   check   at   the   boiling   point   of   water,   100

C.



Bulb   thermometers   cannot,   of   course,   be   adjusted   if   they   are   inaccurate.

   Laboratory   uses   of   thermometers   vary   in   terms   of   the   accuracy   required,   so   a   thermometer   that   is   reading   1

  low   may   not   be   suitable   for   a   purpose   where   greater   accuracy   is   required,   but   would   be   fine   in   a   drying   oven.



Some   laboratories   would   simply   discard   any   thermometers   that   fail   a   check,   to   avoid   the   possibility

  of   a   lower   accuracy   one   being   used   in   the   wrong   situation.



Procedure

1.

Obtain   a  ‐ 10   to   110

C   thermometer   and   place   it   in   the   laboratory   refrigerator   for   10   minutes.



2.

Obtain   a   Styrofoam   cup   and   fill   with   crushed   ice.



3.

Add   a   small   amount   of   water   –   the   mixture   should   not   be   too   runny,   but   loose   enough   for   the   thermometer   to   slide   in   easily.



4.

Put   a   watchglass   over   the   top   and   leave   for   5   minutes.



5.

Remove   the   watchglass   and   insert   the   thermometer   until   it   touches   the   bottom   of   the   cup.

   Lift   it   up   about   1   cm   or   until   the   0   point   of   the   scale   is   visible.



6.

Allow   the   thermometer   to   equilibrate   and   read   the   temperature.







Reporting   Requirements

Use   the   standard   Performance   Check   reporting   sheet.





Acceptable   error   range:  ‐ 1   to   +1

C
