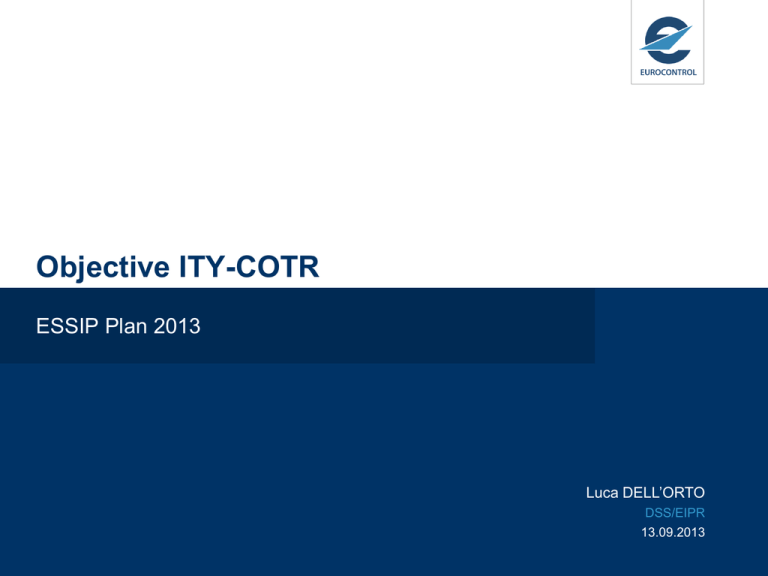

Objective ITY-COTR
ESSIP Plan 2013
Luca DELL’ORTO
DSS/EIPR
13.09.2013
Comprehensive Explanation (1/4)
 This OBJ covers the implementation of Ground-Ground (G/G)
data exchange and automated co-ordination procedures to reduce
the controller workload and human errors as specified by
Regulation
 1032/2006 EC and
 30/2009 EC (amending 1032/2009 EC – the ‘COTR’ Reg.).
 Scope: EU+ States) (= EU+CH+NO+ECAA)
 Applicability: to all ACC units providing services to GAT (not
covered: ACC  TWR + ACC  APP)
 Military SLoAs are applicable to all Military units regardless of their
role (MIL being an ATS provider to GAT traffic or not) and
coordination between CIV and MIL control units
ESSIP Plan 2013 / Objective ITY-COTR
2
Comprehensive Explanation (2/4)
EC 1032/2006 mandatory
processes to implement
OLDI equivalent
ITY-COTR
SLoA – ASP
and MIL
ITY-COTR
timeframe
Applicability
Notification Process
ABI
ASP02
12-2012
EU+
Initial co-ordination
ACT
ASP03
12-2012
EU+
Revision of Coordination
REV
ASP04
12-2012
EU+
Abrogation of Coordination
MAC
ASP05
12-2012
EU+
Basic Flight Data
BFD
ASP06
MIL01
12-2012
EU+
Change to Flight Data
CFD
ASP07
MIL02
12-2012
EU+
Safety Assessment
-
ASP 10
12-2012
EU+
Logon Forward
LOF
ASP08
02-2015
EU+
Next Authority Notified
NAN
ASP09
02-2015
EU+
-
ASP11
02-2015
EU+
EC 30/2009 mandatory
processes
Non-mandatory requirements
(complementing EC
Regulation)
Training of ATC Personnel
3
ESSIP Plan 2013 / Objective ITY-COTR
Comprehensive Explanation (3/4)
 ASP01 – concerns FDPS infrastructure, OLDI message processing ,
presentation and recording etc - States that have implemented OLDI
will be compliant with this SLoA.
 ASP02/03/04/05 - concerns FDPS capability to receive, process,
present and sent the messages as specified.
 ASP06/07 - to Flight Data Exchange with military ATS units.
 ASP08/ASP09 - data link related messages with different deployment
date (specified in regulation (EC) 30/2009)
ESSIP Plan 2013 / Objective ITY-COTR
4
Comprehensive Explanation (4/4)
 ASP11 - ATCO training on automated flight data exchange; in most of
the cases this action has been completed, the basic OLDI data
exchange has been widely implemented at Pan European level. Note:
this SLoA is not derived from the (EC) Regulations 1032/2006 or
30/2009.
 MIL01/MIL02 - are related to capabilities of military ATS units to
received, process or present BFD/CFD or receive or present CPRs
+ safety assessment & oversight of all changes:
 ASP10 - safety assessment of any modification of automated flight
data exchange.
 REG01 - regulatory oversight of safety arguments that concern any
modification of automated flight data exchange.
ESSIP Plan 2013 / Objective ITY-COTR
5
What is new or has changed for ESSIP Plan ed.
2013
 No change
ESSIP Plan 2013 / Objective ITY-COTR
6
Link to European ATM Master Plan and/or
Interim Deployment Programme (IDP)
Eur. ATM Master Plan:
 [CM-0201] - Automated Assistance to Controller for Seamless
Coordination, Transfer and Dialogue – ESSENTIAL
IDP:
 none
ESSIP Plan 2013 / Objective ITY-COTR
7
ITY-COTR – Most important SLoAs
 All
Finalisation Criteria and Closed Questions
 Ensure it is implemented with new FDPS or upgrade of current FDPS
 Establish OLDI link with adjacent ACC, as an additional info to the
finalisation criteria expressed in the SLoAs
 Implement ACT/REV/ABI or MAC with adjacent unit, again as an
additional info to the finalisation criteria expressed in the SLoAs
 Does your FDPS support ACT/REV/ABI/MAC data reception/processing
and sending?
 Does exchange of messages with upstream/ downstream units ?
 Does exchange BFD/CFD or CPS with military ATS units exist ?
 FDPS upgrade planned to accommodate data link messages ?
ESSIP Plan 2013 / Objective ITY-COTR
8
Supporting Material
 EUROCONTROL - SPEC 106 - EUROCONTROL Specification
for On-Line Data Interchange (OLDI) - Edition 4.2 - OJ2011/C
146/05 / 16-12-2010
 EUROCONTROL - SPEC 106C1 - EUROCONTROL Corrigendum to Specification for On-Line Data Interchange
(OLDI) Edition 4.2 - OJ 2011/C 146/05 / 16-12-2010
 EUROCONTROL Specification 0107, Ed. 3.1 (2011),
‘Eurocontrol specification for ATS Data Exchange Presentation
(ADEXP)’
 NOTE:
 EUROCONTROL Specification 0107, Ed. 3.1 was published by
EUROCONTOL in October 2011. It supersedes Ed 3.0 as EC
Community specification.
ESSIP Plan 2013 / Objective ITY-COTR
9
ESSIP Report 2012
 Only implemented in full in 3 States.
 Another 16 States declared it as Partially Completed and 13 as
Planned by 02/2015.
 Most basic processes are already implemented and the remaining
ones are planned in line with the relevant EC Regulation 1032/2006
(deployemnt date: 02/2015)
 Reasons: Topic very mature, covered by existing EUROCONTROL
Specifications. A number of these messages are already available
in newer generation FDPS across Europe.
ESSIP Plan 2013 / Objective ITY-COTR
10
Links and contacts
 Objective Coordinator:
Dell’Orto Luca, +32 2 729 3325
luca.dellorto@eurocontrol.int
 EUROCONTROL Objective Expert:
Stephen Morton, +32 2 729 3492
stephen.morton@eurocontrol.int
ESSIP Plan 2013 / Objective ITY-COTR
11
