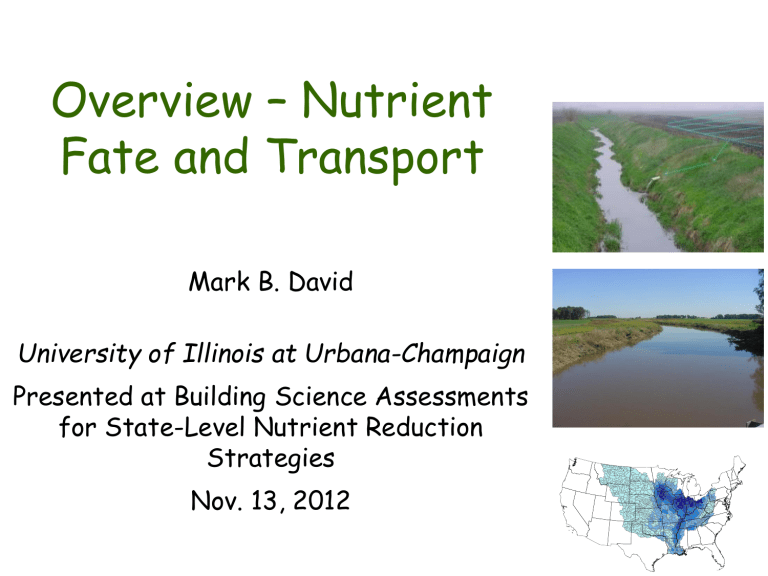

Overview – Nutrient

Fate and Transport

Mark B. David

University of Illinois at Urbana-Champaign

Presented at Building Science Assessments for State-Level Nutrient Reduction

Strategies

Nov. 13, 2012

What I will cover

• what the problem is

• N and P sources, balances, and river exports in the

Mississippi River Basin (MRB)

– Illinois as example

– what is going to the Gulf

• importance of modified hydrology (tile drainage)

• timing of flow and nutrients; fate

• myths; the challenge ahead

What is the problem?

• both local and downstream water quality problems from nitrate and total P

– local: algal production due to P; drinking water for N

– downstream: hypoxia in the Gulf of Mexico

• USEPA requiring nutrient criteria in flowing waters

Hypoxic zone, 2012

What was new (in 2007, now old)

• reaffirmed previous assessment

• importance of spring (April, May, June) nitrate

• now phosphorus recognized as having role in

Gulf

• no one answer to fix problem

– both agriculture and people (sewage effluent)

• recommended 45% reduction in N and P going down Mississippi River

Mississippi

River Basin

Nitrogen

1200000

1000000

800000

600000

400000

200000

0

2.5

2.0

1.5

1.0

0.5

Nitrate-N

0.0

2.5

2.0

Total N

1.5

1.0

Particulate/organic N

0.5

Ammonium

0.0

1955 1960 1965 1970 1975 1980 1985 1990 1995 2000 2005 2010 2015

Mississippi River Basin Phosphorus

1200000

1000000

800000

600000

400000

200000

0

0.25

Total P

0.20

0.15

0.10

0.05

Soluble reactive P

0.00

1955 1960 1965 1970 1975 1980 1985 1990 1995 2000 2005 2010 2015

Major Mississippi Subbasins

Major Mississippi Subbasins

Nutrient loads for

2001 to 2010

50

40

30

2001-2005

2006-2010

Total P

20

10

0

350

300

250

200

150

Nitrate-N

100

50

0 on fton

M iss-

Clint

Gra

M iss-

M issou ri-

Om

M issou ah a an n be s ne lto n ri-

Herm

M iss-

The

Oh io-Can

Oh io-G ran d

Cha in tle

Rock

A rkan sas-Lit

Riv

Red er-A lex an dra

Lo w er

M iss

Subbasin

Nutrient yields for

2001 to 2010

3.0

2.5

2.0

1.5

1.0

0.5

2001-2005

2006-2010

Total P

0.0

16

14

12

10

8

6

Nitrate-N

4

2

0

M is s-

C lint on

M is s-

Gr af ton

M is sour

M i-Om aha is sour nn i-H erma

M is s-

Thebe s anne lto n and

C hain

Lit tle

Ohio-C

Ohio-Gr

A rkans as-

R ed

R iv

R ock er-

A lex andra

Low er M is s

Subbasin

Spring nitrate, upper Miss and Ohio

30

25

20

15

10

5

0

30

25

20

15

10

Mississippi River at Grafton

5

Ohio River at Grand Chain, IL

0

1975 1980 1985 1990 1995 2000 2005 2010 2015

0.30

0.25

0.20

0.15

0.10

0.05

0.00

0.30

0.25

0.20

0.15

0.10

Mississippi River at Grafton

0.05

Ohio River at Grand Chain, IL

0.00

1975 1980 1985 1990 1995 2000 2005 2010 2015

Source of spring nitrate

0.7

0.6

0.5

0.4

0.3

0.2

MRB

Grafton and Ohio

0.1

0.0

1975 1980 1985 1990 1995 2000 2005 2010 2015

County Level Analysis of

Mississippi River Basin

• counties in MRB (all 1768)

• 1997 to 2006 annual data on fertilizer, crops, animals, people, deposition

• predictive model from watersheds applied to all MRB counties

• both N and P

From David et al. (2010)

inputs

Nutrient Balances

+ +

- outputs

-

-

Annual N Fertilizer Applications

Fertilizer (kg N ha -1 )

0.0 - 11.2

11.3 - 27.2

27.3 - 45.4

45.5 - 65.9

66.0 - 107.1

From David et al. (2010)

Tile drainage is concentrated in the corn belt

0.0 - 5.1

5.2 - 16.3

16.4 - 31.7

31.8 - 51.4

51.5 - 81.8

From David et al. (2010)

Net N Inputs (NNI) kg N ha -1

-5 - 20

20 - 40

40 - 60

60 - 200

Some counties negative, N from soil mineralization

Illinois N budget through

2012

100

80

Fertilizer

60

40

Legume N

20

NOy deposition

0

120

100

80

60

40

20

0

Grain harvest

Human consumption

50 Net Nitrogen Inputs

40

30

Manure

20

10

0

1950 1960 1970 1980 1990 2000 2010

Linking N balances to N Export

• hydrology overwhelming factor

– channelization, tile drainage

• can look at watershed N export as a fraction of net N inputs

– most studies, about 25%

– however in MRB we know it is larger in critical areas

– can be > 100% in heavily tile drained watersheds

Drainage by tiles and ditches

Patterned tile systems

Embarras River - Camargo

Embarras River

20

15

10

5

0

19931994199519961997199819992000200120022003200420052006200720082009201020112012

Embarras River

40

30

20

10

60

50

0

199519961997199819992000200120022003200420052006200720082009201020112012

Water Year

Modeled January to June Nitrate Export

Predicted N Yield (kg N/ha)

0.00 - 3.00

3.01 - 7.50

7.51 - 10.00

10.01 - 15.00

15.01 - 25.00

Best model includes fertilizer, sewage effluent, and tile drainage

Components of P Mass Balances

• net P inputs

= inputs – outputs inputs (fertilizer) outputs (grain harvest - human and animal consumption)

• net indicates additions or removals from soil

• little P (relative to N) is lost to streams, but it is biologically important

• surface runoff and tile leaching

• manure

Fertilizer P Row Crop %

Manure P Net P Inputs

From Jacobson et al. (2011)

Modeled January to June Total P

From Jacobson et al. (2011)

Illinois P budget through

2012

20

15

10

Fertilizer

5

0

20

15

Grain harvest

10

5

Manure

Human consumption

0

20

15

10

5

Balance

0

-5

-10

1950 1960 1970 1980 1990 2000 2010

P from fields to rivers –

Embarras

River

From Gentry et al. (2007)

Particulate

P from fields to rivers

From Gentry et al. (2007)

Importance of a Few Storm Events

From Royer et al. (2006)

Fate of N

• limited in-stream losses of nitrate during high flow periods

– Lake

Shelbyville

– Saylorville

Reservoir

• retention times too short

• spring nitrate, headed to Gulf

100

80

60

40

20

0

0.1

Lake Shelbyville, Illinois

Garnier et al. (1999)

Royer et al. (2004)

Saylorville Reservoir, Iowa

Crumpton equation

1 10 100 1000

Depth/Time of Travel (m yr

-1

)

10000

Fate of P

• some sediment removal

• problem of sediment already in streams/rivers

– stream bank, bed erosion

• algal biomass can move downstream

• no way to easily get out of system (like nitrate)

Source: Clay Soil and Water Conservation

District, Minnesota

What we know about nutrient sources

• Upper Mississippi and Ohio subbasins are the major source of nitrate and total P

– even more so in critical spring period

• the tile drained cornbelt is clearly identified

• mass balance of P has greatly decreased, but not N

What can we do in agriculture?

• given,

– it is not typically over fertilization based on current rates and yields

– may be zero or negative N & P balances in some areas of the tile drained

Midwest

• three types of conservation practices could help

– nutrient-use efficiency

– in-field management

– off-site measures

Potential Efficiencies -SAB report

Perennial biofuels quickly reduce nitrate loss

30

25

Corn-Corn-Soy

Miscanthus

Switchgrass

Prairie

20

15

10

5

0

J a n

0

8

J u l0

8

J a n

0

9

J u l0

9

J a n

1

0

J u l1

0

J a n

1

1

J u l1

1

J a n

1

2

From Smith et al. (2013)

Point sources in MRB?

• sewage effluent and industrial (22% of annual

N and 34% of P)

• however, only 14% (N) and

20% (P) of spring load

• not going to solve problem, but could help for P

A few myths

• no-till solves all problems

• a few (bad) actors are the problem

• over application of N (or P) is most of the problem

• just targeting a few fields will solve most of the problem

• edge of field denitrification can solve the problem

• the response will take a long time (decades?)

What’s making it difficult

• more corn (and fertilizer)

• more intensive tile drainage

• warmer winters

• more intense winter/spring precipitation

• fall N in Illinois, Indiana, Ohio

• the intensity of agriculture across the cornbelt

• many (most?) practices to reduce nutrient loss don’t increase yield

Conclusions

• N and P balances don’t relate well to nitrate and P loss across the MRB (but could increase losses in a drought year)

• counties with high fertilizer inputs have high crop fractions (& corn acres) and tile drainage

– all lead to nitrate loss

– corn & soybeans on tile drained land much more important than manure, deposition, or sewage effluent

• P from both surface runoff and tiles

– sewage effluent also important

• high winter/spring flow and nutrient losses are a challenge, and seem to be getting worse

Job ahead for us

• 45% reductions in N and P will be quite difficult in upper MRB

• we haven’t really started

– not in any meaningful way

• variety of methods and costs

– many or most unrelated to yields

• scale of problem is impressive

• but, we do know how to do it!
