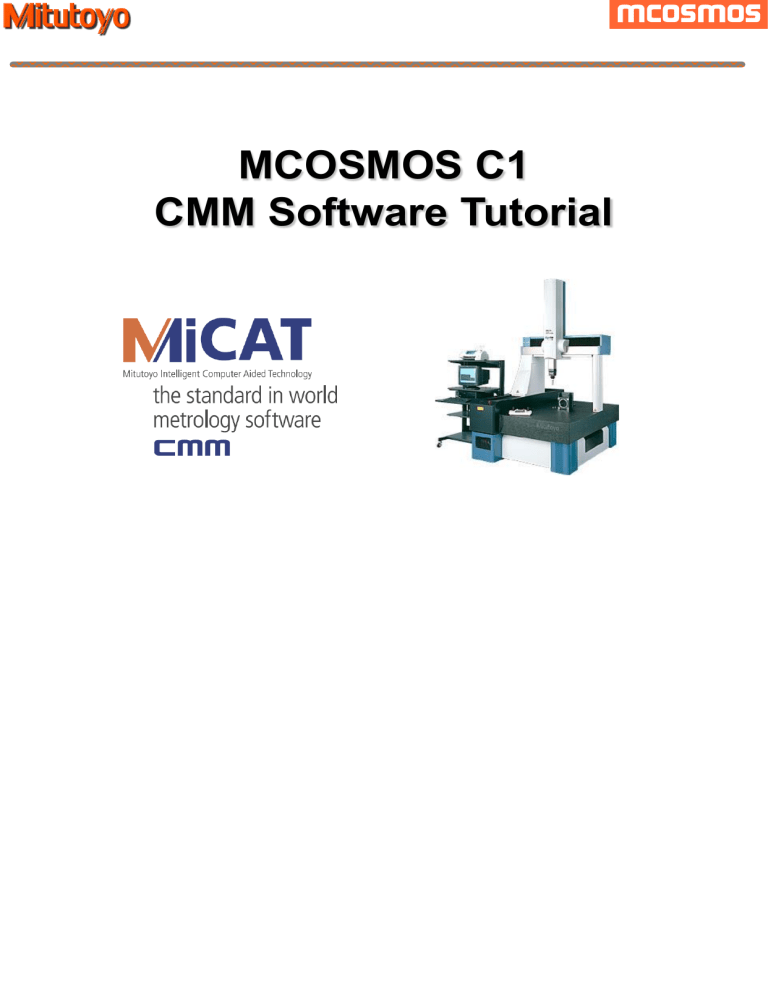

MCOSMOS C1 CMM Software Tutorial MCOSMOS Overview • MCOSMOS: – “Mitutoyo Controlled Open System for Modular Operation Support“ • Modular CMM software system – For Both CNC and Manual CMMs – Three Levels: 1,2,3 – Optional Modules Available • Provides CMM control, measurement and evaluation • Runs on Microsoft® Windows® 2000 or XP Pro © 2005 Mitutoyo Corporation All Rights Reserved 2 MCOSMOS 1, 2, & 3 Part Manager The Control center from which the software package initialized and the individual part programs are managed GEOPAK (Geometry module) For (online / offline) part program creation using the measurement of geometric elements. Extensive tolerance comparisons and output functions are included Cat 1000 P ( CAD based programming module) For (online / offline) part program creation using the measurement of geometric elements directly from the CAD model, with collision avoidance. Cat 1000 S ( 3D free form surface evaluation module) CAD model based generation of surface measurement points and comparison of actual/nominal data, with graphical output SCANPAK ( 2D profile evaluation module) For scanning and evaluation of workspace contours and 3D digitizing of surfaces © 2005 Mitutoyo Corporation All Rights Reserved 3 Content : C1 Geopak Probe data management - Calibrate - Automatic calibration - Save - Archive - Probe builder - Define probes - Generate - Edit Generated program Tolerancing Review - Coordinate - Size - Position - Orientation © 2005 Mitutoyo Corporation All Rights Reserved CNC movement - Parameters and commands - Automatic measurement - Automatic probe calibration - Drive moves Cartesian/polar Automat part programs - Manual / CNC program - Fixture coordinate system - Conversion to full CNC Programming Review - Techniques - Operator instructions 4 Probe Data Management 1 Select Probe Select Probe Data Management © 2005 Mitutoyo Corporation All Rights Reserved 5 Probe Data Management 2 Select Probe Builder © 2005 Mitutoyo Corporation All Rights Reserved 6 Configure probe system 1 Select OK Preview your selection Apply your selection Select your probe head Customize your probe list Coordinate orientation Select view © 2005 Mitutoyo Corporation All Rights Reserved 7 Configure probe system 2 List of components Apply to the probe Remove last item Select the next component Preview the selection © 2005 Mitutoyo Corporation All Rights Reserved 8 Configure probe system 3 Apply to the probe Select the next component Preview the selection © 2005 Mitutoyo Corporation All Rights Reserved 9 Configure probe system 4 Apply to the probe Select the next component Preview the selection © 2005 Mitutoyo Corporation All Rights Reserved 10 Configure probe system 5 Apply to the probe Select the next component Preview the selection © 2005 Mitutoyo Corporation All Rights Reserved 11 Configure probe system 6 Apply to the probe Select the next component Preview the selection © 2005 Mitutoyo Corporation All Rights Reserved 12 Configure probe system 7 Complete list of probe components mounted on CMM Select OK © 2005 Mitutoyo Corporation All Rights Reserved 13 Configure probe system 8 Select yes to delete all probes but probe 1 © 2005 Mitutoyo Corporation All Rights Reserved Select no to redefine all probe orientations based on the new swivel length 14 Define Probes 1 Probe position and diameter information with no time and date shows the probe is not calibrated © 2005 Mitutoyo Corporation All Rights Reserved Select Define probes 15 Define Probes 2 Graphic of probe in selected orientation Add remove selected probe Select view Listing of probes Graphically select probes Select OK when finished © 2005 Mitutoyo Corporation All Rights Reserved 16 Probe Calibration 1 Select the red check marks to select all © 2005 Mitutoyo Corporation All Rights Reserved Use Windows selection methods to select probes Select Calibrate to start probe calibration of selected probes 17 Probe Calibration 2 Z Offset Angle Z Offset Distance Masterball Equator © 2005 Mitutoyo Corporation All Rights Reserved 18 Probe Calibration 3 Select Auto Calibration Set CNC parameters Select point on top of sphere Define Calibration settings Select OK © 2005 Mitutoyo Corporation All Rights Reserved 19 Probe Calibration 4 © 2005 Mitutoyo Corporation All Rights Reserved 20 Probe Calibration 5 Point #1 Top © 2005 Mitutoyo Corporation All Rights Reserved 21 Generate probe calibration program 1 Select Generate © 2005 Mitutoyo Corporation All Rights Reserved 22 Generate probe calibration program 2 Select trees to calibrate Select styli to calibrate View selected probe Select view Set Parameters for Calibration © 2005 Mitutoyo Corporation All Rights Reserved Set CNC parameters Select Ok Select Masterball 23 Archive probe data Archive indicates probe is not archived Define probe name Archive probe Select OK Select OK © 2005 Mitutoyo Corporation All Rights Reserved 24 Editing Calibration Program Select text Select Program Input Text Select Programmable stop Select Picture Select OK © 2005 Mitutoyo Corporation All Rights Reserved Browse for Picture Verify picture Select location for instruction 25 Editing Calibration Program Select Probe Use Pull down Select Archive name Select line to load probe Select Probe from archive Select OK © 2005 Mitutoyo Corporation All Rights Reserved 26 Editing Calibration Program Double click to edit line Select probes to calibrate Adjust CNC Parameters Adjust Calibration settings Select OK © 2005 Mitutoyo Corporation All Rights Reserved 27 Define Masterball Select Probe Select Define masterball position Select masterball # Select sphere name Select OK © 2005 Mitutoyo Corporation All Rights Reserved 28 CNC: Setting CNC On Select Machine Sets do not change Get max speed Get default speed Manually Input speed Select CNC parameters and CNC on © 2005 Mitutoyo Corporation All Rights Reserved 29 Setting CNC on / off Will toggle CNC mode on / off © 2005 Mitutoyo Corporation All Rights Reserved 30 CNC parameter 1 Select CNC parameter to set or change parameters © 2005 Mitutoyo Corporation All Rights Reserved Active only with a scanning probe installed in the CMM 31 CNC Parameter 2 Point to point speed Speed to take a measurement See next slide Distance machine will search for part contact without an error A cylindrical tolerance for the straight portion and spherical tolerance for the target point of a move machine command © 2005 Mitutoyo Corporation All Rights Reserved 32 Safety Distance Starting position of probe Theoretical touch point Moves along vector at measurement speed Machine movement speed Probe radius © 2005 Mitutoyo Corporation All Rights Reserved Safety Distance End of measurement length, CMM will error if contact is not made by this position PART Measurement Length 33 Error Recovery Learn or repeat mode started without starting CMM and homing the CMM Measure command did not contact part before exceeding the measurement length Measure or move command contacted part or fixture before starting measure mode © 2005 Mitutoyo Corporation All Rights Reserved 34 CNC: Movement This button will allow you to make an automatic move by entering the desired coordinate s © 2005 Mitutoyo Corporation All Rights Reserved Send the CMM to the home position This button is a absolute move. The system will move relative to current coordinate system. This button will move the system relative to the current position of the stylus 35 CNC: Automatic Elements Select Machine Select element type to measure Select Automatic element measurement Measurement point Select Measurement tool Automatic line measurement Automatic plane measurement Automatic circle measurement © 2005 Mitutoyo Corporation All Rights Reserved Automatic cylinder measurement 36 CNC: Automatic Elements Automatic tools may also be accessed from the measurement dialog © 2005 Mitutoyo Corporation All Rights Reserved 37 Auto Measurement Point Coordinate format Machine position Point on work piece Start point / target 1 Vector direction format Normalize vector Reverse vector Vector direction Point at Center of probe Target point direction format Select Automatic point Target point 2 Machine position © 2005 Mitutoyo Corporation All Rights Reserved 38 Auto Measurement Line Length of line Number of points Angle Probing direction X Y Z Coordinate, line, and probing direction pictorial Driving plane Select Automatic line Coordinate system format Machine position © 2005 Mitutoyo Corporation All Rights Reserved Line start point Scanning parameters for scanning probe 39 Auto Measurement Plane Arc move Number of points Start Angle Rotation Diameter End Angle Probing direction X Y Z Coordinate plane and probing direction pictorial Driving plane Select Automatic Plane Coordinate format Machine position © 2005 Mitutoyo Corporation All Rights Reserved Center of plane Slot width Scanning parameters for scanning probe 40 Auto Measurement Circle Arc move Number of points Diameter Id Od Rotation Coordinates of circle Scanning parameters Slot width Start angle End angle Driving plane Select Automatic Circle Coordinate format Machine position © 2005 Mitutoyo Corporation All Rights Reserved Pitch of thread X Y Z Coordinate circle and probing direction pictorial 41 Auto Measurement Cylinder Diameter Number of points Arc move Id Od Number of steps Slot width Start angle End angle Probing direction Rotation Height difference Driving plane Select Automatic cylinder Coordinate format Machine position © 2005 Mitutoyo Corporation All Rights Reserved Start point of cylinder Scanning parameters X Y Z Coordinate cylinder and probing direction pictorial 42 Manual Coordinate Systems 1 Set dialog as shown Select Coord.sys. Select Plane line line pattern Select Pattern alignment Select Align coordinate system Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 43 Manual Coordinate Systems 2 You collect the points Pattern alignment provides the instruction Pattern alignment provides the instruction Pattern alignment provides the instruction © 2005 Mitutoyo Corporation All Rights Reserved You collect the points You collect the points 44 Verify Coordinate System 1 Orientation symbol Origin symbol © 2005 Mitutoyo Corporation All Rights Reserved 45 Verify Coordinate System 2 View Part Coordinate system PCS Machine Coordinate system MCS © 2005 Mitutoyo Corporation All Rights Reserved 46 CNC On / Off Select Machine Select CNC on / off © 2005 Mitutoyo Corporation All Rights Reserved 47 CNC Parameters 1 Select Machine Select CNC Parameters © 2005 Mitutoyo Corporation All Rights Reserved 48 CNC Parameter 2 Point to point speed Speed to take a measurement at Distance from target to edge of probe prior to change from movement to measurement speed Distance machine will search for part contact without an error A cylindrical tolerance for the straight portion and spherical tolerance for the target point of a move machine command © 2005 Mitutoyo Corporation All Rights Reserved Parameters for scanning probes 49 Clearance Height Select Machine Select Clearance height Turn Clearance height on Select axis for clearance height Use machine position to define clearance height value Select OK © 2005 Mitutoyo Corporation All Rights Reserved Define clearance height value 50 Automatic Plane Select Plane Set parameters as shown Select Yes Select OK © 2005 Mitutoyo Corporation All Rights Reserved 51 Collecting data on our Plane 1 Select Automatic line measurement Adjust parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Verify Graphic Select OK to collect data 52 Collecting data on our Plane 2 Verify Graphic Select Automatic plane measurement Adjust parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK to collect data 53 Collecting data on our Plane 3 Verify Graphic Select Automatic plane measurement Adjust parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK to collect data 54 Collecting data on our Plane 4 Select Automatic point measurement Adjust parameters as shown Select OK to collect data © 2005 Mitutoyo Corporation All Rights Reserved 55 Collecting data on our Plane 5 Select Automatic point measurement Adjust parameters as shown Select OK to collect data © 2005 Mitutoyo Corporation All Rights Reserved 56 Finish Element Select finish element © 2005 Mitutoyo Corporation All Rights Reserved View graphic of plane and points measured 57 Align Plane Select Align Plane Set parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK Select Cancel 58 Automatic Circle Select Circle Set parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK 59 Collecting data on a Circle Verify Graphic Set parameters as shown based on current coordinate system © 2005 Mitutoyo Corporation All Rights Reserved Select OK 60 Tolerancing Datum A Select Actual value Define Nominals & Tolerances Select More Define Datum Label Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 61 Creating an Origin Select Create origin Set parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Cancel 62 Automatic Cylinder Select Cylinder Set parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK 63 Collecting data on a Cylinder Verify Graphic Set parameters as shown based on current coordinate system © 2005 Mitutoyo Corporation All Rights Reserved Select OK 64 Tolerancing a Cylinder Select Diameter Select Actual value Define Nominal & Tolerance Select more Define Datum Label Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 65 Creating a Point for Alignment Select Plane Set Perimeters as shown Define Distance Define Vector Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 66 Creating a Point for Alignment Select Point Set Parameters as shown Select Plane Select (3)Plane Select Cylinder Select OK Select OK Select (1)Cylinder © 2005 Mitutoyo Corporation All Rights Reserved 67 Align by Point with Offset Select Coord.sys. Select Align axis by point with offset Select point Select (1)Point Set offset values Select XY Plane Select OK Select Cancel © 2005 Mitutoyo Corporation All Rights Reserved 68 Save Coordinate System Select save Coord.sys. Define Coord.sys. # Select OK Select Yes © 2005 Mitutoyo Corporation All Rights Reserved 69 Tolerancing Position of an Axis Select Cylinder Select (1)Cylinder Define Datum label for MMC Define Tolerance Set distance to apply tolerance over Define Nominals Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Position of axis 70 Tolerancing Cylinder Coordinates Select (1)Cylinder Select OK Select Cylinder Select Actual value Define Nominals & Tolerances Check X&Y Coordinates Select Element Select OK © 2005 Mitutoyo Corporation All Rights Reserved 71 Automatic Circle Select Circle Set Parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK 72 Collecting data on a Circle Verify Graphic Set parameters as shown based on current coordinate system Select OK Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Delete Command Select OK 73 Adjust CNC Parameters 1 Cancel Element Select Machine Select Yes Select CNC parameters © 2005 Mitutoyo Corporation All Rights Reserved 74 Adjust CNC Parameters 2 Adjust Safety distance (.312-.156)/2=.078 Select do not change for all parameters not changed Select OK © 2005 Mitutoyo Corporation All Rights Reserved 75 Automatic Circle Select Circle Set Parameters as shown © 2005 Mitutoyo Corporation All Rights Reserved Select OK 76 Collecting data on a Circle Verify Graphic Set parameters as shown based on current coordinate system © 2005 Mitutoyo Corporation All Rights Reserved Select OK 77 Tolerance Circle 1 Position Select Actual value Select Cylinder format Toggle ABS to off Toggle to position © 2005 Mitutoyo Corporation All Rights Reserved Check Dia & Position Select XY Plane Define Nominals & Tolerances Selec t OK 78 Tolerance Circle 1 Coordinates Select Actual value Toggle ABS to off Define nominals & Tolerances Check X&Y Select Cartesian format Select Last element Toggle to single coordinate © 2005 Mitutoyo Corporation All Rights Reserved Select OK 79 Measure & Tolerance Exercise 1 Measure Circles 3-5 Tolerance for position © 2005 Mitutoyo Corporation All Rights Reserved Collect points Tolerance for X&Y 80 Measure & Tolerance Exercise 1 Tolerance circles 3, 4 & 5 for dia. and position in a cylindrical format Measure Circles 3, 4 & 5 Tolerance circles X 3, 4 & 5 for and Y in a Cartesian format © 2005 Mitutoyo Corporation All Rights Reserved 81 Automatic Line 1 Selec t Line Set parameters as shown Select Yes Select OK © 2005 Mitutoyo Corporation All Rights Reserved 82 Collecting data on Line 1 Verify Graphic Set parameters as shown Finish element © 2005 Mitutoyo Corporation All Rights Reserved Select OK 83 Tolerance Line 1 Select Actual value Define Nominals & Tolerances Check Angle & Distance Select OK © 2005 Mitutoyo Corporation All Rights Reserved 84 Collecting data on Line 2 Verify Graphic Set parameters as shown Finish element © 2005 Mitutoyo Corporation All Rights Reserved Select OK 85 Tolerance Line 2 Select Actual Value This is not the B/P requirement So Select Cancel © 2005 Mitutoyo Corporation All Rights Reserved 86 Collecting data on Line 3 Verify Graphic Set parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 87 Collecting data on Line 3 Verify Graphic Set parameters as shown Finish element © 2005 Mitutoyo Corporation All Rights Reserved Select OK 88 Tolerance Line 3 Select Actual value This is not the B/P requirement So Select Cancel © 2005 Mitutoyo Corporation All Rights Reserved 89 Collecting data on Line 4 Verify Graphic Set parameters as shown Finish element © 2005 Mitutoyo Corporation All Rights Reserved Select OK 90 Tolerance Line 4 Select Actual value This is not the B/P requirement So Select Cancel © 2005 Mitutoyo Corporation All Rights Reserved 91 Collecting data on Line 5 Verify Graphic Set parameters as shown Finish element © 2005 Mitutoyo Corporation All Rights Reserved Select OK 92 Tolerance Line 5 Select Actual value Define Nominals & Tolerances Check Angle & Distance Select OK © 2005 Mitutoyo Corporation All Rights Reserved 93 Construct Intersection Point Select Point Set parameters as shown Select lines Select (1)Line Select (2)Line Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 94 Construction Exercise Constrict Intersection points 3, & 4 © 2005 Mitutoyo Corporation All Rights Reserved 95 Construct & Tolerance Distance Select Distance Select Tolerance Select Actual value Check Distance Define Nominals & Tolerances Select Line Select (1)Line Select Point Select (3)Point Verify Results © 2005 Mitutoyo Corporation All Rights Reserved Select OK Select OK 96 Construct & Tolerance Distance Exorcize Construct and tolerance distance 2, 3 &4 © 2005 Mitutoyo Corporation All Rights Reserved 97 Reverse Element Direction Select Line Set parameters as shown Select element type as line Select reverse direction Select (4) Line Select OK Select XY Projection Select OK © 2005 Mitutoyo Corporation All Rights Reserved 98 Tolerancing Line for Angle Define nominal and tolerance Select Actual value Select Angle X Select OK © 2005 Mitutoyo Corporation All Rights Reserved 99 Change Probe Select Yes Adjust clearance height for selected probe Select Change probe Select Probe 5 © 2005 Mitutoyo Corporation All Rights Reserved Select OK 100 Partial Circle Select Circle Set Parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 101 Partial Automatic Circle Verify Graphic Set parameters as shown based on current coordinate system © 2005 Mitutoyo Corporation All Rights Reserved Select OK 102 Tolerance Circle 6 ZX Position Select Actual Value Select Cartesian format Toggle ABS to off Toggle to position © 2005 Mitutoyo Corporation All Rights Reserved Check Dia & Position Select ZX Plane Define Nominals and tolerances Select OK 103 Partial Circle Select Circle Set Parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 104 Partial Automatic Circle Verify Graphic Set parameters as shown based on current coordinate system © 2005 Mitutoyo Corporation All Rights Reserved Select OK 105 Tolerance Circle 6 ZX Position Select Actual Value Select Cartesian format Toggle ABS to off Toggle to position © 2005 Mitutoyo Corporation All Rights Reserved Check Dia & Position Select ZX Plane Define Nominals and tolerances Select OK 106 Safe Move Probe Change Select Change probe Select Move machine Turn clearance height off Select Position of Machine Select Absolute position Set Z axis to Swivel length Select OK Select OK Select Yes Select probe 6 Select OK © 2005 Mitutoyo Corporation All Rights Reserved 107 Move Machine Select Absolute position Define X, Y & Z requirements Define X & Y requirements Z Axis clearance Select Move Machine Select Move Machine © 2005 Mitutoyo Corporation All Rights Reserved Select OK Select OK 108 Verify Move Verify probe position © 2005 Mitutoyo Corporation All Rights Reserved 109 Cylinder at Compound Angle Select Cylinder Set parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 110 Automatic Cylinder Measurement Select XY YZ ZX Driving plane The cylinder on the part is not parallel to the Y X Z Axis Select Cancel © 2005 Mitutoyo Corporation All Rights Reserved 111 Adjust Coordinate System Select Move and rotate Define Move Verify Move and rotate Define Rotation Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Rotation axis 112 Adjust Coordinate System 2 Select Move and rotate Select Rotation axis Select OK Define Rotation Verify Move and rotate © 2005 Mitutoyo Corporation All Rights Reserved 113 Compound hole as Cylinder Select Cylinder Set parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 114 Compound hole as Cylinder Set parameters as shown Height difference .375-.045 Measurement depth .500-.080-.045 © 2005 Mitutoyo Corporation All Rights Reserved Select OK Verify Graphic 115 Tolerancing Position of an Axis Select Actual Value Toggle ABS to off Select Diameter, X&Y Define nominals & tolerances Select More Define Datum label Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 116 Tolerancing Position of an Axis Define Tolerance Select Cylinder Select (2)Cylinder Define Datum label for MMC Set distance to apply tolerance over Define Nominals Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Position of axis 117 Plain for Pierce Point Select Plane Select Tolerance Set Parameters as shown Select OK © 2005 Mitutoyo Corporation All Rights Reserved 118 Intermediate Move (Go To) Select Absolute move Define move to Select Yes Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 119 Automatic Plane Measurement Set plane diameter Set Start End angle Verify Graphic Set pattern center point © 2005 Mitutoyo Corporation All Rights Reserved Select OK 120 Profile of a Planer surface Select Actual Value Select Z axis Define nominal and tolerance © 2005 Mitutoyo Corporation All Rights Reserved Select OK 121 Saving / Loading a Coordinate System Select Load Coord. Sys Select OK Define new Coord. Sys Select OK Select Save Cord. Sys Select Cord. Sys to load Select Yes © 2005 Mitutoyo Corporation All Rights Reserved 122 Pierce Point Select Point Select Intersection element Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select (3) Plane Select (2) Cylinder Select OK 123 Tolerance Pierce Point Select X, Y&Z © 2005 Mitutoyo Corporation All Rights Reserved Define Nominals & Tolerances Select OK 124 Local Vs Part Coordinate System Deviations in local Coordinate system Deviations in Part Coordinate system © 2005 Mitutoyo Corporation All Rights Reserved 125 Tolerance Orientation 1 Select Plane Select Select(3) (3)Plane Plane Select OK Select Tolerance Element © 2005 Mitutoyo Corporation All Rights Reserved 126 Tolerance Orientation 2 Select Actual Value Select Angle Z Define Nominal and Tolerance Select OK © 2005 Mitutoyo Corporation All Rights Reserved 127 Tolerance Orientation 3 Select Cylinder Select (2) (3) Cylinder Plane Select OK Select Tolerance Element © 2005 Mitutoyo Corporation All Rights Reserved 128 Tolerance Orientation 4 Select Actual Value Select Angle Z Define Nominal and Tolerance Select OK © 2005 Mitutoyo Corporation All Rights Reserved 129 Tolerance Orientation 5 Select Line Select Intersection Select Tolerance Select (1) Plane Select (3) Plane Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select Ok 130 Tolerance Orientation 6 Select Actual Value Define Nominal and Tolerance Select Angle X Select OK © 2005 Mitutoyo Corporation All Rights Reserved 131 Tolerance Orientation 7 Select Line Select Theoretical Define length Define start point Define Vector Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 132 Tolerance Orientation 8 Select Angle Select (8) Line Select Actuals Select (2) Cylinder Select Ok Verify Results Select XY Angle Select OK © 2005 Mitutoyo Corporation All Rights Reserved Define nominal & tolerance 133 Home the Machine Select Machine Position Select Absolute move Define as swivel length Select Probe 1 Select Move machine Select Change Probe Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 134 Home the Machine Select Exit Select In home Select Save part program Select OK Select Move machine © 2005 Mitutoyo Corporation All Rights Reserved Select OK 135 Manual to Fixture Based Select Learn mode Define part name Select New part 1 Select Create new part Select OK © 2005 Mitutoyo Corporation All Rights Reserved 136 Manual Coordinate Systems 1 Set dialog as shown Select Coord.sys. Select Plane line line pattern Select Pattern alignment Select Align coordinate system Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 137 Manual Coordinate Systems 2 You collect the points Pattern alignment provides the instruction Pattern alignment provides the instruction Pattern alignment provides the instruction © 2005 Mitutoyo Corporation All Rights Reserved You collect the points You collect the points 138 FCS to PCS Select Exit Select Point Document your X, Y &Z values Select auto repetition Select Delete part program Select Measure Select Side point Select OK © 2005 Mitutoyo Corporation All Rights Reserved Select OK 139 Editing to full CNC Highlight and delete the machine coordinate system and the pattern alignment © 2005 Mitutoyo Corporation All Rights Reserved 140 Editing to full CNC Select Move and rotate part Select Load Coordinate system Select FCS 9999 Select OK Define X, Y &Z values collected earlier Select OK © 2005 Mitutoyo Corporation All Rights Reserved 141 Editing to full CNC Select Exit Select Move machine Select Program Programmable stop Select Program Programmable stop Select Move machine Select Save © 2005 Mitutoyo Corporation All Rights Reserved 142 Knowledge Base 1 Select About Mitutoyo © 2005 Mitutoyo Corporation All Rights Reserved 143 Knowledge Base 2 Select Knowledgebase © 2005 Mitutoyo Corporation All Rights Reserved 144 Knowledge Base 3 Select MCOSMOS Knowledge base © 2005 Mitutoyo Corporation All Rights Reserved 145 Knowledge Base 4 Select New user © 2005 Mitutoyo Corporation All Rights Reserved 146 Knowledge Base 5 Provide all requested information © 2005 Mitutoyo Corporation All Rights Reserved 147 Contacts • © 2005 Mitutoyo Corporation All Rights Reserved 148
