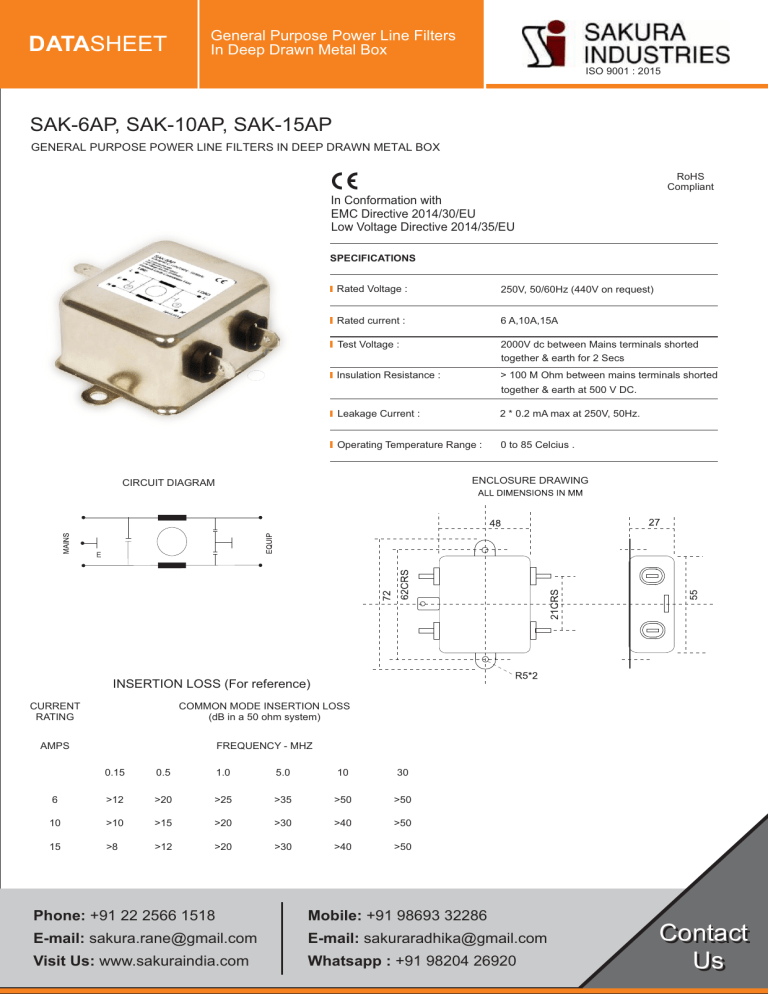

DATASHEET
General Purpose Power Line Filters
In Deep Drawn Metal Box
ISO 9001 : 2015
SAK-6AP, SAK-10AP, SAK-15AP
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V, 50/60Hz (440V on request)
Rated current :
6 A,10A,15A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V, 50Hz.
Operating Temperature Range :
0 to 85 Celcius .
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
6
>12
>20
>25
>35
>50
>50
10
>10
>15
>20
>30
>40
>50
15
>8
>12
>20
>30
>40
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
General Purpose Power Line Filters
In Deep Drawn Metal Box
ISO 9001 : 2015
SAK-6AP, SAK-10AP, SAK-15AP
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V, 50/60Hz
Rated current :
6 A,10A,15A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V, 50Hz.
Operating Temperature Range :
0 to 85 Celcius .
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
62CRS
27
INSERTION LOSS (For reference)
55
72
70
R5*2
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
6
>12
>20
>25
>35
>50
>50
10
>10
>15
>20
>30
>40
>50
15
>8
>12
>20
>30
>40
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
POWER LINE FILTERS IN PLASTIC
SHELL
DATASHEET
ISO 9001 : 2015
SAK-22-1/3,SAK-22-3/3,SAK-22-6/3
POWER LINE FILTERS IN PLASTIC SHELL
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V, 50/60Hz
Rated current :
1A,3A,6A
Test Voltage :
2000V ac between Mains terminals shorted
together & earth for 2 Secs
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V, 50Hz.
Operating Temperature Range :
0 to 85 Celcius .
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
10
10
22
14
27
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
20
0.15
0.5
1.0
5.0
10
30
1
>20
>35
>35
>40
>50
>50
3
>20
>35
>35
>40
>50
>50
6
>15
>20
>25
>35
>40
>50
Loose leads
MATL : PLASTIC
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
GENERAL PURPOSE POWER LINE FILTERS
IN DEEP DRAWN METAL BOX
ISO 9001 : 2015
SAK 42-1/3,SAK 42-3/3,SAK 42-6/3
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz (440V on request)
Rated current :
1A,3A,6A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>35
>35
>40
>50
>50
3
>20
>35
>35
>40
>50
>50
6
>15
>20
>25
>35
>40
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
POWER LINE FILTERS
WITH IEC 320 C 14 PLUG
DATASHEET
ISO 9001 : 2015
SAK 322-1/3,SAK 322-3/3,SAK 322-6/06,SAK 322-10/06
POWER LINE FILTER WITH IEC 320 C 14 PLUG
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50Hz/60Hz
Rated current :
1A,3 A, 6A,10A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
>100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>30
>40
>50
>40
>40
6
>15
>20
>25
>30
>40
>40
10
>10
>15
>25
>30
>40
>30
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
POWER LINE FILTER
WITH IEC 320 C 14 PLUG & FUSE
DATASHEET
ISO 9001 : 2015
SAK 361-1/3,SAK 361-3/3,SAK 361-6/06,SAK 361-10/06
POWER LINE FILTER WITH IEC 320 C 14 PLUG & FUSE
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz
Rated current :
1A,3A,6A,10A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 240V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>30
>40
>50
>40
>40
6
>15
>20
>25
>30
>40
>40
10
>10
>15
>25
>30
>40
>30
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
POWER LINE FILTER
WITH IEC 320 C 14 PLUG & FUSE
DATASHEET
ISO 9001 : 2015
SAK 362-1/3,SAK 362-3/3,SAK 362-6/3
POWER LINE FILTER WITH IEC 320 C 14 PLUG & FUSE
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz
Rated current :
1A,3A,6A,10A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
CIRCUIT DIAGRAM
ENCLOSURE DRAWING
ELECTRICAL SCHEMATIC
39
EQUIP
E
52.5
MAINS
66
8.5
FUSE
FUSE
INSERTION LOSS (For reference)
6.5dia*3dia CS
19
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>35
>40
>40
>40
>40
6
>15
>20
>25
>30
>40
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
32.5
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
40
3.2dia*2
CURRENT
RATING
35.5
Contact
Us
DATASHEET
POWER LINE FILTER
WITH IEC 320 C 14 PLUG,
POWER SUPPLY SWITCH & FUSE
ISO 9001 : 2015
SAK 382-1/3,SAK 382-3/3,SAK 382-6/06,SAK 382-10/06
POWER LINE FILTER WITH IEC 320 C 14 PLUG, POWER SUPPLY SWITCH & FUSE
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz
Rated current :
1A,3A,6A,10A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>30
>40
>50
>40
>40
6
>15
>20
>25
>30
>40
>40
10
>10
>15
>25
>30
>40
>30
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
POWER LINE FILTERS IN PLASTIC SHELL
ISO 9001 : 2015
SAK 405-1/3, SAK 405-3/3, SAK 405-6/3
POWER LINE FILTERS IN PLASTIC SHELL
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz (440V on request)
Rated current :
1A,3A,6A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>30
>40
>50
>40
>40
6
>15
>20
>25
>30
>40
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
POWER LINE FILTERS IN PLASTIC SHELL
ISO 9001 : 2015
SAK-405-1/3, SAK-405-3/3, SAK-405-6/3
POWER LINE FILTERS IN PLASTIC SHELL
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
240 V,50/60 Hz
Rated current :
1A,3A.6A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 60 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Voltage drop :
1 V rms Max.
Temperature Range :
0 to 85 Celcius.
CIRCUIT DIAGRAM
ENCLOSURE DRAWING
ELECTRICAL SCHEMATIC
25
EQUIP
MAINS
40
33
42
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
18
60
0.15
0.5
1.0
5.0
10
30
1
>20
>35
>35
>40
>50
>50
3
>20
>35
>35
>40
>50
>50
6
>15
>20
>25
>35
>40
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
GENERAL PURPOSE
POWER LINE FILTERS
IN ALUMINIUM ENCLOSURE
ISO 9001 : 2015
SAK 422-1/3,SAK 422-3/3,SAK 422-6/3
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz (440V on request)
Rated current :
1A,3A,6A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>30
>40
>50
>50
>40
3
>20
>30
>40
>50
>40
>40
6
>15
>20
>25
>30
>40
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
GENERAL PURPOSE POWER LINE FILTERS
DATASHEET
IN DEEP DRAWN METAL BOX
ISO 9001 : 2015
SAK 612-20
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request).
Rated current :
20A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
20
0.15
0.5
1.0
5.0
10
30
>20
>30
>40
>40
>50
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
GENERAL PURPOSE POWER LINE FILTERS
IN DEEP DRAWN METAL BOX
ISO 9001 : 2015
SAK-612-30,SAK-612-40
GENERAL PURPOSE POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
30A, 40A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.5 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
30
>15
>25
>35
>40
>50
>50
40
>10
>15
>20
>35
>40
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
HIGH PERFORMANCE POWER LINE
FILTERS
DATASHEET
ISO 9001 : 2015
SAK-612-660-15,SAK-612-660-20
HIGH PERFORMANCE POWER LINE FILTERS
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
15A,20A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
EQUIP
MAINS
CIRCUIT DIAGRAM
E
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
15
>30
>40
>50
>50
>50
>50
20
>25
>35
>45
>50
>50
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH CURRENT
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-40
SINGLE PHASE HIGH CURRENT POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
40A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.5 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
16
100
EQUIP
MAINS
50
CIRCUIT DIAGRAM
E
130
114
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
100
CURRENT
RATING
AMPS
130
INSERTION LOSS (For reference)
30
5mm dia*4
40
>15
>20
>30
>40
>40
>40
MATL: MS ,FINISH : ZINC PLATING
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH CURRENT
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-50,SAK-615-60
SINGLE PHASE HIGH CURRENT POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
50A,60A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.5 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
16
100
EQUIP
MAINS
80
CIRCUIT DIAGRAM
E
130
115
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
50
>15
>20
>30
>30
>40
>40
60
>10
>15
>25
>30
>40
>40
100
CURRENT
RATING
AMPS
150
INSERTION LOSS (For reference)
5mm dia*4
MATL: MS,ZINC PLATING
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH CURRENT
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-70,SAK-615-80
SINGLE PHASE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
70A,80A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 2 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
50
100
EQUIP
MAINS
80
CIRCUIT DIAGRAM
E
130
28
115
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
70
>15
>25
>35
>50
>40
>40
80
>12
>20
>30
>50
>40
>40
150
CURRENT
RATING
AMPS
100
INSERTION LOSS (For reference)
5mm dia*4
28
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH PERFORMANCE
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-660-30
SINGLE PHASE HIGH PERFORMANCE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
30A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
E
50
EQUIP
MAINS
16
100
130
114
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
30
0.15
0.5
1.0
5.0
10
30
>20
>30
>40
>40
>50
>50
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
130
CURRENT
RATING
100
INSERTION LOSS (For reference)
5mm dia*4
Contact
Us
SINGLE PHASE HIGH PERFORMANCE
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-660-50,SAK-615-660-60
SINGLE PHASE HIGH PERFORMANCE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
50A,60A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
E
80
EQUIP
MAINS
16
100
130
115
INSERTION LOSS (For reference)
0.15
0.5
1.0
5.0
10
30
50
>20
>30
>40
>50
>40
>40
60
>15
>25
>35
>50
>40
>40
150
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
100
CURRENT
RATING
AMPS
5mm dia*4
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH PERFORMANCE
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-660-70,SAK-615-660-90,SAK-615-660-120
SINGLE PHASE HIGH PERFORMANCE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz.
Rated current :
70A,90A,120A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
115
E
80
EQUIP
MAINS
CIRCUIT DIAGRAM
145
130
28
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
70
>20
>30
>40
>50
>40
>40
90
>15
>25
>35
>50
>40
>40
120
>12
>20
>30
>50
>40
>40
170
CURRENT
RATING
AMPS
100
INSERTION LOSS (For reference)
5mm dia*4
28
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH PERFORMANCE
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-615-660-150,SAK-615-660-200,SAK-615-660-300
SINGLE PHASE HIGH PERFORMANCE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz.
Rated current :
150A,200A,300A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
150
EQUIP
MAINS
130
E
180
contact shroud
6mm dia*4nos
166
INSERTION LOSS (For reference)
CURRENT
RATING
AMPS
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
150
>15
>25
>35
>50
>40
>40
200
>15
>25
>35
>50
>40
>40
300
>12
>20
>30
>50
>40
>40
180
80
8 dia
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
SINGLE PHASE HIGH PERFORMANCE
POWER LINE FILTER
DATASHEET
ISO 9001 : 2015
SAK-616-100, SAK-616-120, SAK-616-125
SINGLE PHASE HIGH PERFORMANCE POWER LINE FILTER
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
440V AC,50/60Hz.
Rated current :
100A,120A,125A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 1 mA max at 250V,50Hz.
Operating Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
150
ELECTRICAL SCHEMATIC
EQUIP
MAINS
130
E
180
contact shroud
6mm dia*4nos
166
INSERTION LOSS (For reference)
CURRENT
RATING
AMPS
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
100
>15
>25
>35
>50
>40
>40
120
>15
>25
>35
>50
>40
>40
125
>15
>25
>35
>50
>40
>40
180
80
8 dia
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
HIGH ATTENUATION POWER LINE FILTERS
IN DEEP DRAWN METAL BOX
ISO 9001 : 2015
SAK-660-1/06,SAK-660-3/06,SAK-660-6/06,SAK-660-10/06
HIGH ATTENUATION POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz (440V on request)
Rated current :
1A,3A,6A,10A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.4 mA max at 250V,50Hz.
Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>30
>40
>50
>60
>60
>40
3
>25
>35
>45
>60
>60
>40
6
>20
>30
>40
>40
>40
>40
10
>15
>25
>40
>40
>40
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
HIGH ATTENUATION POWER LINE FILTERS
IN DEEP DRAWN METAL BOX
ISO 9001 : 2015
SAK-660-1/06(DIN),SAK-660-3/06(DIN)
HIGH ATTENUATION POWER LINE FILTERS IN DEEP DRAWN METAL BOX
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V,50/60Hz
Rated current :
1A,3A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.4 mA max at 250V,50Hz.
Temperature Range :
0 to 85 Celcius.
DIMENSIONS(mm)
CIRCUIT DIAGRAM
20
27
62CRS
72
70
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
R5*2
0.15
0.5
1.0
5.0
10
30
1
>25
>35
>50
>60
>50
>40
3
>20
>30
>40
>50
>50
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
DATASHEET
POWER LINE FILTERS
FOR SINGLE PHASE AC DRIVES
ISO 9001 : 2015
SAK-DRV-1/460,SAK-DRV-2/460,SAK-DRV-3/460,SAK-DRV-6/460,
SAK-DRV-10/460
POWER LINE FILTERS FOR SINGLE PHASE AC DRIVES
RoHS
Compliant
In Conformation with
EMC Directive 2004/108/EC
Low Voltage Directive 2006/95/EC
SPECIFICATIONS
Rated Voltage :
440V, 50/60Hz
Rated current :
1A, 2A, 3A, 6A, 10A
Test Voltage :
2000V ac between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 100 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.4 mA max at 440V,50Hz.
Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
INSERTION LOSS (For reference)
CURRENT
RATING
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
AMPS
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
1
>20
>35
>35
>40
>50
>50
2,3
>20
>35
>35
>40
>50
>50
6
>15
>25
>35
>40
>50
>50
10
>10
>20
>30
>40
>40
>40
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
POWER LINE FILTERS
DATASHEET
FOR SINGLE PHASE DRIVES
ISO 9001 : 2015
SAK-SER-DRV-3/01, SAK-DRV-6/01, SAK-SER-DRV-10/01, SAK-SER-DRV-15/01
POWER LINE FILTERS FOR SINGLE PHASE DRIVES
RoHS
Compliant
In Conformation with
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
SPECIFICATIONS
Rated Voltage :
250V ,50/60Hz (440V on request)
Rated current :
3A,6A,10A,15A
Test Voltage :
2000V dc between Mains terminals shorted
together & earth for 2 Secs.
Insulation Resistance :
> 20 M Ohm between mains terminals shorted
together & earth at 500 V DC.
Leakage Current :
2 * 0.2 mA max at 230V,50Hz.
Voltage Drop :
1 V rms Max.
Temperature Range :
0 to 85 Celcius.
ENCLOSURE DRAWING
CIRCUIT DIAGRAM
E
27
55
21CRS
72
62CRS
EQUIP
MAINS
48
INSERTION LOSS ( For reference )
CURRENT
RATING
AMPS
COMMON MODE INSERTION LOSS
(dB in a 50 ohm system)
FREQUENCY - MHZ
0.15
0.5
1.0
5.0
10
30
3
>20
>35
>35
>40
>50
>50
6
>18
>30
>35
>35
>45
>45
10
>15
>20
>30
>35
>40
>50
15
>10
>15
>20
>30
>40
>50
5
ALL DIMENSIONS IN MM
Phone: +91 22 2566 1518
Mobile: +91 98693 32286
E-mail: sakura.rane@gmail.com
E-mail: sakuraradhika@gmail.com
Visit Us: www.sakuraindia.com
Whatsapp : +91 98204 26920
Contact
Us
