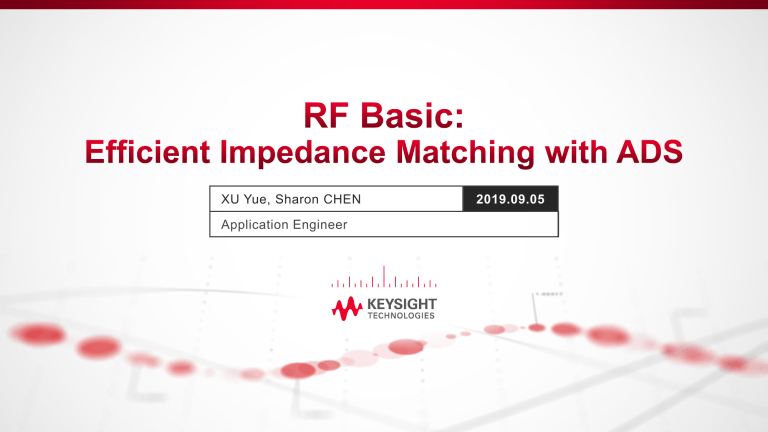

XU Yue, Sharon CHEN Application Engineer 2019.09.05 • 射频匹配概述 • ADS 阻抗匹配仿真流程介绍 • 阻抗匹配仿真实验 • 实验1 匹配架构设计(Smith Chart Wizard) • 实验2 替换真实组件与有损传输线(CILD) • 实验3 匹配电路优化 • 实验4 汇入 Layout 档案 • 实验5 EM + Component 联合仿真(RFPro) • 实验6 Pre-Layout and Post-Layout 仿真比对 ቐ Pre-Layout ቊ Post-Layout • 总结 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 2 • 在通信系统中，射频信道都是不可或缺的。射频系统的性能好坏会直接决定通信质量的好坏。 • 当使用密度较高的射频模块组建射频系统时，工程师最重要的工作就是调谐各模块之间的匹配设计，从 而使系统性能最优。 • 另外，如果需要对某些组件进行设计，例如 PA、天线等射频组件，匹配也将直接影响射频组件的性能。 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 3 • 小型化趋势，组件尺寸减小。手动调谐匹配网络会花费 更多的时间。 • 频率升高，空间狭小，重复测量难以保证每次精度。 • 盲目的进行设计与Tuning，除了花费时间外，也不利于 技术经验的积累。 • From Internet RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 4 器件选型 电路设计 佈线 电路板制作 手动Tuning 超过一周 一周 器件选型 电路设计 佈线 电路板制作 /同步仿真 根据仿真结果 后手动Tuning 一周 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 0.5-2 days Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 5 • 射频匹配概述 • ADS 阻抗匹配仿真流程介绍 • 阻抗匹配仿真实验 • 实验1 匹配架构设计(Smith Chart Wizard) • 实验2 替换真实组件与有损传输线(CILD) • 实验3 匹配电路优化 • 实验4 汇入 Layout 档案 • 实验5 EM + Component 联合仿真(RFPro) • 实验6 Pre-Layout and Post-Layout 仿真比对 ቐ Pre-Layout ቊ Post-Layout • 总结 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 6 Pre-Layout Layout • Design Matching Circuit (Smith Chart Wizard) • Design Microstrip/Strip Line (CILD - Controlled Impedance Line Designer) Post-Layout .brd Allegro Import PCB Layout EM +Component Co-Simulation ODB++ Protel, PADS, … RFPro • • • • RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Select Net Set up Ports Frequency Range Add Components Lab 4 Lab 5 Lab 6 7 • 假设发射机需要获得最大功率转换效率，所需要匹配的阻抗值为 2.992+j*2.847. • 频率：2-3GHz Matching Network 2.992+j*2.847 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 8 • Help > F1 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 9 • Help > F1 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 10 • Help > F1 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 11 • 射频匹配概述 • ADS 阻抗匹配仿真流程介绍 • 阻抗匹配仿真实验 • 实验1 匹配架构设计(Smith Chart Wizard) • 实验2 替换真实组件与有损传输线(CILD) • 实验3 匹配电路优化 • 实验4 汇入 Layout 档案 • 实验5 EM + Component 联合仿真(RFPro) • 实验6 Pre-Layout and Post-Layout 仿真比对 ቐ Pre-Layout ቊ Post-Layout • 总结 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 12 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 13 Notes: • 请勿将 Unarchive 后的 Workspace 存放在中文路径下 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 14 1 创建一个新的Schematic 3 点击 Tool → Smith Chart.. Lab1_a_SmithChart 2 命名为 Lab1_a_SmithChart RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 15 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 16 若出现此提醒， 点击OK即可 1 点击”Palette” 点击Smith Chart图示， 2 并摆放至画面中 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 17 Notes: • 再次打开Smith Chart Utility • 此选项代表电路图中 smart component 与 Smith Chart Utility 的连动关系 直接点击OK RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 18 可以看到所连动的组件名称 1 输入频率 2 单击ZS* 3 输入阻抗 2.992+j*2.847 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 19 1 点击 Circles → Q… 2 输入欲匹配Q值圆之值“1.1”→ 点击OK RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 20 2 单击 ZL，开始匹配 1 (From Load to Source) RF Matching ADS Matching Flow 3 点击Build ADS Circuit，将此设计好的电路建立至电路图 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 21 2 单击 Push Into Hierarchy 查看子电路 1 单击图示 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 22 单击 Pop Out Hierarchy 返回主电路 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 23 点击”Insert Wire”，再点击组件 2 端点，即可将组件互相连接 1 从下拉式选单中找到 “Simulation-S_Param”， 并点击 “S P” 和 ”TermG”， 将对象摆放至画面中。 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 24 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 25 Tips: How to View Smith Chart Simulation Result? 1 点击 Smith Chart 图示 2 选取S(1,1) → 点击 >>Add>> 3 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 26 Tips: Add Marker 1 点击 Insert a New Marker， 并将Marker放置在仿真出的 曲线上 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS 确认 Marker 落点在 2.4 GHz， 2 若没有，可以直接点击数字，自 行更改至 2.4 GHz Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 27 How to View Smith Chart Result 1 双击 Marker 框框 2 4 3 Tips: 点开 Zo 的下 拉式选单，选择"50“ Notes: • 匹配电路阻抗为 3.074 + j*2.599 • 与设计目标 2.992 + j*2.847相当接近 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 28 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 29 1 创建一个新的Schematic Lab2_a_CILD_Murata 2 命名为 Lab2_a_CILD_Murata RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 30 2 并接上 TermG 和 S参数仿真器 1 复制上一个 lab 所设计的子电路到新的 Schematic RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 31 Hint: How to Import Component Library in ADS? 1 在ADS主画面点击 File → Manage Libraries 3 选取组件库(Murata) 2 点击 Add Library Definition File… 4 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 32 Hint: How to check if the component library has been imported? 成功导入 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 33 1 在下拉式选单中找到"muRata Components" 2 3 双击电容，选择 组件值 与 Part Number 选择 GRM15 将电容放置至中央 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 34 1 选择 Discrete Optimize setting，以利之后优化分析 Tips: 此方框可以上下左右拉伸 2 在 Normal Value 字段选择与 lab1 设计的容值相近的电容 3 取消勾选此项 6 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 35 Tips: 单击组件，按下“Ctrl+R”，击可旋转组件 将 理想电容 置换为 muRata电容 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 36 在下拉式选单中找到“muRataLibWeb Set Up" RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 37 1 点击 Tool → Controlled Impedance Line Designer RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 38 Notes: • 如果一次优化结果与目标值不一致， 可以重复点击 “Optimize”，直至阻抗 达到目标设计 2 点击 Optimize 1 设定频率 2.4 GHz 点击 Optimize 3 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 39 1 点击 Add New Line Type… 2 输入lineType_TL1 3 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 40 2 按下齿轮，仿真 电长度设计目标：7.159、10.17、30.78 Notes: • 记住每条传输线所计算出的线长 7.15 (deg) → 58 mil 10.17 (deg) → 83 mil 30.78 (deg) → 250 mil 1 输入长度 TL1 TL3 TL2 3 观察电长度是否为自己希望设计的数值若否，则不断更改Length，重复仿真 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 41 3 选择刚才命名的LineType，并输入CILD计算的线长度 4 点选Display 为了避免板面复杂， 取消勾选这两项 1 在下拉式选单中 2 双击 LTLINE1 找到“Tlines-LineType"， 并点击单端传输线，放置中央 5 Tips: 此窗口可以上下左右拉伸 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 42 将ideal传输线全部置换为LineType的传输线 Notes: • 图中29mil长度的传输线，并非 是匹配作用，而是实际中电容 过后需要一小段传输线方便连 接或测试 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 43 How to View Smith Chart Result 阻抗已偏掉, 目标:2.992+j*2.847 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Notes: • 因实际组件具有寄生效应，因此必须对 组件进行Tuning，但有个更快的方法， 就是使用优化功能，让ADS自动帮我们 Tuning。 Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 44 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 45 Lab3_a_CILD_Murata_Opt RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 46 直接点击数字进行更改 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 47 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 48 • 常用的优化方式：Random, Gradient, Hybrid RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 49 将迭代次数更改至2000 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 50 输入 “dB(S11)” 下拉式选单选择 “SP1” 输入 "-15" 下拉式选单选择 “<” RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 51 输入 “dB(S22)” 下拉式选单选择 “SP1” 下拉式选单选择 “<” 输入 "-15" RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 52 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 53 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 54 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 55 Tips: How to View S-Parameter Result? 1 3 4 2 5 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 56 How to View Smith Chart Result Notes: • 此时输入阻抗为 2.992 - j*2.847 ohm， 反射越小，代表从输入端看进去的阻抗 越接近 2.992 + j*2.847 ohm。 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 57 Before Optimization: After Optimization: RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 58 Notes: • 此步骤为最后一个Lab时使用， 另存完毕后即可关闭窗口 Lab6_a_Correlation RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 59 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 60 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 61 1 4 下拉式选单选择 “ODB++ File Format” 5 2 3 不用解压缩，可以直接汇入 7 6 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 62 Notes: • 这里的迭层红色字体处有误 我们将在之 后的步骤修改。 • 此时先点击 OK 按键，并在弹出的 Status 窗口点击 OK，PCB 导入工作即 可完成。 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 63 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 64 3 将 Thickness 更改为20 mil 打开 1 PCB_odb.subst 2 单击介质层 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 65 1 2 5 找到 Rogers_RO4350 3 并单击选取 Notes: • 直接在键盘按下 ”R” 会快 速找到R开头的材料 RF Matching ADS Matching Flow 4 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 66 点击存档， 2 即完成Stack-up的修改 RF Matching ADS Matching Flow 1 在下拉式选单中选择 Rogers_RO4350 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 67 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 68 2 点击 “Hide All Layers”，仅显示 top 层 1 打开在 PCB_odb文 件夹之下的 layout Tips: • 鼠标滚轮往自己滑，为”缩小” Layout 界面，反之。 • 按住鼠标右键，可以”移动” Layout。 • 鼠标左键为”选取” RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 69 按照讲义顺序，依序 1 加入六个端口 RF Matching ADS Matching Flow Notes: • 当箭头显示的颜色和当下的Layer的颜 色不同时，代表Port会被加到其他层。 • 这一排工具栏能够帮助我们对准，选 取右边数来第二项。 Port 2 Port 5 Port 1 Port 4 Port 3 Port 6 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 70 1 点击 “Port Editor” 2 RF Matching ADS Matching Flow 选取 P2, P3 拖曳至 P1 下方的 Gnd， 代表 Port 2 和 Port 3 是 Port 1 的 reference ground RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 71 存档 2 3 选取 P5, P6 拖曳至 P4 下方的 Gnd， 代表 Port 5 和 Port 6 是 Port 4 的 reference ground RF Matching ADS Matching Flow 完成后直接关闭 “Port Editor” 窗口 1 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 72 开启 RFPro，在弹出的设置窗口检查 Substrate设置是否正确，点击OK RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 73 • RFPro 仿真平台由 ADS Layout 接口进入，在独立的接口中完成电磁场仿真所需的全部设置，显示三维结构和 电磁场分析结果，查看和输出仿真结果，快速进行 Circuit + Layout 同步仿真分析。 ✓ Layout RF Matching ADS Matching Flow ✓ Solver RF Basic: Efficient Impedance Matching with ADS ✓ Integration Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 74 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 75 通过Ctrl键选择P1与P4，拖拽到 Full EM Analysis下的Ports处 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 76 通过Ctrl键选择C1 C2 C3，拖拽到Full EM Analysis下的Component Models处 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 77 2 1 点击 C1 → 右键单 击选择 Properties RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key 点击 Add → 选择 Model DB Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 78 1 在料号栏中输入：GRM1555C2A4R7CA01 选取下方出现的搜寻结果 3 2 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 79 检查组件是否有误，无误点击Done完成设定 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 80 Notes: • 重复前文步骤，完成C2 C3设定 • C2料号：GRM1555C2A3R2BA01 • C3料号：GRM1555C1H1R3BA01 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 81 2 将频率范围设定为 2 ~ 3GHz 惊叹号消失，代 表组件设定完成 1 双击 “Options..” 3 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 82 查看仿真状态，显示 Completed 代表仿真完成 双击 “Run”， 进行仿真 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 83 2 下拉式选单选择 Smith Chart 双击 3 单击矩阵左上角， 1 “S-Parameters” RF Matching 显示 S(1,1) 的仿真结果 ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 84 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 85 1 点击 File → Save As… 2 存档为“Lab5_RFPro" RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 3 Lab 3 Lab 4 Lab 5 Lab 6 86 2 将 TermG1 改为50 ohm RF Matching ADS Matching Flow Run Simulation 1 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 87 How to View Smith Chart Result • • 此下拉式选单可以选择先 前的仿真结果 分别把 Lab5_RFPro 和 Lab1 的 S(1,1) 结果叫出 RF Matching ADS Matching Flow — Pre-Layout: CILD+Murata（红色） — Post-Layout: RFPro电磁分析（蓝色） — 代表我们希望匹配的阻抗2.992+j*2.847 RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 88 • 射频匹配概述 • ADS 阻抗匹配仿真流程介绍 • 阻抗匹配仿真实验 • 实验1 匹配架构设计(Smith Chart Wizard) • 实验2 替换真实组件与有损传输线(CILD) • 实验3 匹配电路优化 • 实验4 汇入 Layout 档案 • 实验5 EM + Component 联合仿真(RFPro) • 实验6 Pre-Layout and Post-Layout 仿真比对 ቐ Pre-Layout ቊ Post-Layout • 总结 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 89 整个实验完成了射频匹配从 Pre-Layout 到 Post-Layout 的全部流程 1. 在 Pre-Layout，我们学到 Smith Chart，CILD 等小工具的使用。 2. 在 Post-Layout，了解 ADS 如何导入 PCB File，以及 RFPro 如何快速完成对 Circuit + Layout 的联合仿真。 3. 最后，透过 Correlation 的比对，验证 Pre-Layout 和 Post-Layout 的结果是相当 接近的，虽然 Pre-Layout 不能取代 Post-Layout，但在前期有效的评估，可以帮 助节省在系统设计初期组件选择的时间，避免多次迭代。 RF Matching ADS Matching Flow RF Basic: Efficient Impedance Matching with ADS Hot Key Lab 1 Lab 2 Lab 3 Lab 4 Lab 5 Lab 6 90
