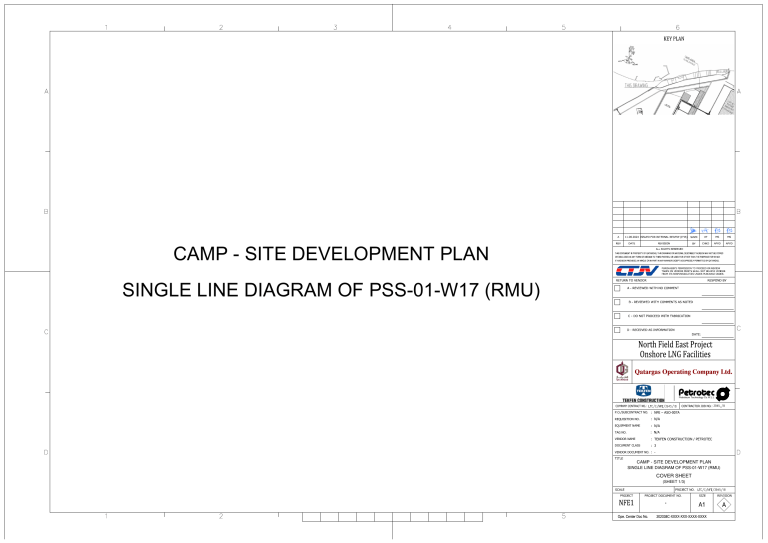

CAMP - SITE DEVELOPMENT PLAN
SINGLE LINE DIAGRAM OF PSS-01-W17 (RMU)
Petrotec
Petroleum Technology Co.W.L.L
P.O./SUBCONTRACT NO. :
REQUISITION NO.
: N/A
EQUIPMENT NAME
: N/A
TAG NO.
: N/A
VENDOR NAME
: TEKFEN CONSTRUCTION / PETROTEC
DOCUMENT CLASS
: 3
VENDOR DOCUMENT NO. : -
Table of contents
SHEET No
TITLE 1
TITLE 2
A
1 3
SINGLE LINE DIAGRAM OF PSS-01-W17 (RMU)
COVER SHEET
X
2 3
SINGLE LINE DIAGRAM OF PSS-01-W17 (RMU)
INDEX SHEET
X
3 3
SINGLE LINE DIAGRAM OF PSS-01-W17 (RMU)
PSS-01-W17
X
B
C
0
1
2
50
Petrotec
Petroleum Technology Co.W.L.L
P.O./SUBCONTRACT NO. :
REQUISITION NO.
: N/A
EQUIPMENT NAME
: N/A
TAG NO.
: N/A
VENDOR NAME
: TEKFEN CONSTRUCTION / PETROTEC
DOCUMENT CLASS
: 3
VENDOR DOCUMENT NO. : -
UNIT SUB
DESCRIPTION
PSS-01-W17
INCOMING &
OUTGOING CABLE
LBS
33kV
630A
3
ES
E
33kV COMPARTMENT
RING(R.M.U.)
MAIN UNIT
33kV,50Hz,3PH,3W,25kA,1SEC
LBS
33kV
630A
3
ES
E
HV
HRC
FUSE
500kVA,
33/0.415-0.24kV
Dyn11,ONAN
TRANSFORMER
PR
TR
(0-500V)
V
VS
3200A
CL-1
INTER TRIP
LOW VOLTAGE
MAIN DESTRIBUTION
BOARD
A
3
AS
0-800A
4
I>
ACB
4P 800A
I>>
Petrotec
Petroleum Technology Co.W.L.L
415/240V, 800A, 50Hz, 3Ph, 4W, 50kA, 3 Sec.
TOTAL DEMAND LOAD = 425.06kVA
P.O./SUBCONTRACT NO. :
REQUISITION NO.
1Q
MCCB
NZMN3 3P
630AF/
630AT
(SET@500A)
2Q
I>
EDB-OFF
(LOCATED AT
OFFICE-301)
MCCB
NZMN3 3P
400AF/
400AT
(SET@320A)
3Q
I>
TO EDB-SC/
FEEDER PILLAR /
EDB-WS/EDB-WH1/
EDB-WH2
MCCB
NZMN2 3P
200AF/
200AT
4Q
I>
100kVAR
CAPACITOR PANEL
MCCB
NZMN1 3P
100AF/
20AT
Icu-50kA
(SET@16A)
5Q
I>
WATER PUMP
MCCB
NZMN1 3P
100AF/
20AT
Icu-50kA
(SET@16A)
6Q
I>
MCCB
NZMN1 3P
100AF/
20AT
Icu-50kA
(SET@16A)
SPARE
7Q
I>
SPARE
MCCB
NZMN3 3P
630AF/
630AT
Icu-50kA
8Q
I>
SPARE
MCCB
NZMN2 3P
200AF/
200AT
9Q
I>
SPARE
MCCB
NZMN1 3P
100AF/
80AT
Icu-50kA
I>
: N/A
EQUIPMENT NAME
: N/A
TAG NO.
: N/A
VENDOR NAME
: TEKFEN CONSTRUCTION / PETROTEC
DOCUMENT CLASS
: 3
VENDOR DOCUMENT NO. : -
SPARE
NFE1-TFN-EL-PLN-00001
OUTGOING FEEDERS
B
