Anchor Pull-Out Test Procedure
Document Reference No.: QTC-APOT-001
Prepared by: [Your Company Name]
Revision No.: 1 | Date: [Insert Date]
1. Purpose
To verify the tensile (pull-out) capacity of mechanical or chemical anchors installed in concrete or
masonry substrates by applying axial load and measuring displacement or failure.
2. Scope
This procedure applies to post-installed or cast-in-place anchors used in construction and structural
applications, and is intended for both proof testing and qualification testing.
3. References
ASTM E488/E488M – Standard Test Methods for Strength of Anchors in Concrete Elements

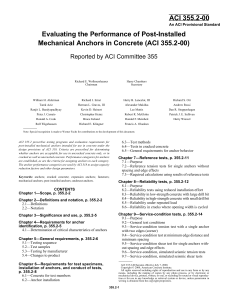

ACI 355.2 – Qualification of Post-Installed Mechanical Anchors in Concrete
Manufacturer installation instructions for anchor systems
4. Equipment Required
Portable hydraulic pull tester with digital gauge (calibrated)
Anchor adaptor/fitting kit
Dial indicator or LVDT for displacement measurement
Torque wrench (if required for torque-controlled anchors)
Safety barriers and PPE
5. Test Preparation
5.1 Site Conditions
Ensure the anchor installation area is clean, dry, and accessible.
Clear the area of loose debris or obstructions.
Ensure safety perimeter is established.
5.2 Anchor Marking
Identify and mark test locations on site drawings or maps.
Visually inspect anchors for damage or installation defects.
5.3 Equipment Setup
Calibrate the pull tester and confirm zero load reading.
Attach the proper adaptor for the specific anchor size/type.
Position the pull tester perpendicular to the anchor axis.
6. Test Procedure
6.1 Apply Load
Increase axial tensile load at a steady rate (typically 1–2 kN/sec or as specified).
Monitor both load and displacement using the digital readout and displacement gauge.
6.2 Test Types
Proof Test: Apply test load (usually 50–100% of design capacity) and hold for 1 minute. No
visible movement or damage should occur.
Ultimate Load Test: Continue loading until anchor failure or slip exceeds specified threshold.
6.3 Data Recording
Record peak load, displacement at each load step, and mode of failure (pull-out, concrete
breakout, anchor yield, etc.).
Take photos if required for documentation.
7. Acceptance Criteria
Anchor must resist the test load without exceeding allowable displacement (typically <1 mm at
proof load).
No visible cracking or structural damage in the surrounding substrate.
Failure modes should be ductile (anchor stretch or pull-out), not brittle (concrete spalling or
breakout).
8. Post-Test Activities
Remove test equipment and clean the test area.
Document all findings in the pull test report including:
o
Location
o
Anchor type and size
o
Load-displacement curve
o
Observations and pass/fail status
9. Safety Precautions
Ensure load cell and test frame are rated for maximum expected loads.
Never stand in line with the pulling direction.
Wear hard hats, gloves, and eye protection at all times.
