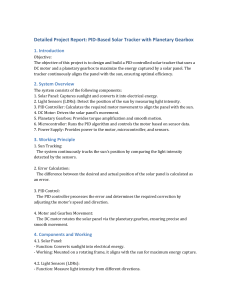

Detailed Project Report: PID-Based Solar Tracker with Planetary Gearbox
1. Introduction
Objective:
The objective of this project is to design and build a PID-controlled solar tracker that uses a
DC motor and a planetary gearbox to maximize the energy captured by a solar panel. The
tracker continuously aligns the panel with the sun, ensuring optimal efficiency.
2. System Overview
The system consists of the following components:
1. Solar Panel: Captures sunlight and converts it into electrical energy.
2. Light Sensors (LDRs): Detect the position of the sun by measuring light intensity.
3. PID Controller: Calculates the required motor movement to align the panel with the sun.
4. DC Motor: Drives the solar panel’s movement.
5. Planetary Gearbox: Provides torque amplification and smooth motion.
6. Microcontroller: Runs the PID algorithm and controls the motor based on sensor data.
7. Power Supply: Provides power to the motor, microcontroller, and sensors.
3. Working Principle
1. Sun Tracking:
The system continuously tracks the sun's position by comparing the light intensity
detected by the sensors.
2. Error Calculation:
The difference between the desired and actual position of the solar panel is calculated as
an error.
3. PID Control:
The PID controller processes the error and determines the required correction by
adjusting the motor's speed and direction.
4. Motor and Gearbox Movement:
The DC motor rotates the solar panel via the planetary gearbox, ensuring precise and
smooth movement.
4. Components and Working
4.1. Solar Panel:
- Function: Converts sunlight into electrical energy.
- Working: Mounted on a rotating frame, it aligns with the sun for maximum energy capture.
4.2. Light Sensors (LDRs):
- Function: Measure light intensity from different directions.
- Working: Two LDRs are placed on opposite sides of the solar panel. The difference in light
intensity between the two sensors indicates the sun's direction.
4.3. PID Controller:
- Function: Minimizes the error between the panel's current and desired positions.
- Working: Proportional, Integral, and Derivative terms are calculated to adjust the motor's
movement precisely.
4.4. DC Motor:
- Function: Rotates the solar panel.
- Working: Receives PWM signals from the microcontroller to adjust speed and direction
based on PID output.
4.5. Planetary Gearbox:
- Function: Amplifies the motor's torque and reduces its speed for precise control.
- Working: Sun gear, planet gears, and ring gear work together to provide output torque to
the solar panel.
4.6. Microcontroller:
- Function: Runs the PID algorithm and controls the motor.
- Working: Reads sensor data, calculates the error, and sends PWM signals to the motor.
4.7. Power Supply:
- Function: Provides power to the system.
- Working: Can be a battery or solar power source.
5. System Architecture
LDR Sensors → Microcontroller → PID Controller → DC Motor → Planetary Gearbox → Solar
Panel
6. Design Calculations and Advanced Manufacturing Practices
6.1. Planetary Gearbox:
- Torque Amplification: Calculated using the gear ratio (R = T_A / T_S).
- Efficiency: Advanced materials like high-strength steel alloys ensure durability under
torque.
6.2. Solar Panel Frame:
- Stress Analysis: Conducted using CAD tools to withstand wind and weight loads.
6.3. PID Tuning:
- Parameters (Kp, Ki, Kd) are optimized using simulation software like MATLAB for precise
control.
7. Manufacturing Practices
7.1. Planetary Gearbox:
- Materials: High-strength steel alloys or composites.
- Techniques: CNC machining and powder metallurgy for precision.
7.2. 3D Printing for Prototypes:
- Materials: PETG or carbon-fiber-reinforced filaments for rapid prototyping.
7.3. Assembly:
- Alignment: Laser measurement tools ensure precision during assembly.
7.4. Maintenance:
- Regular lubrication and inspections extend system life.
8. Bill of Materials (BOM)
9. Sustainability Considerations
Material Selection:
- Use recyclable or low-environmental-impact materials like aluminum or composites.
Energy Efficiency:
- Energy-efficient motors and gearboxes contribute to sustainability.
