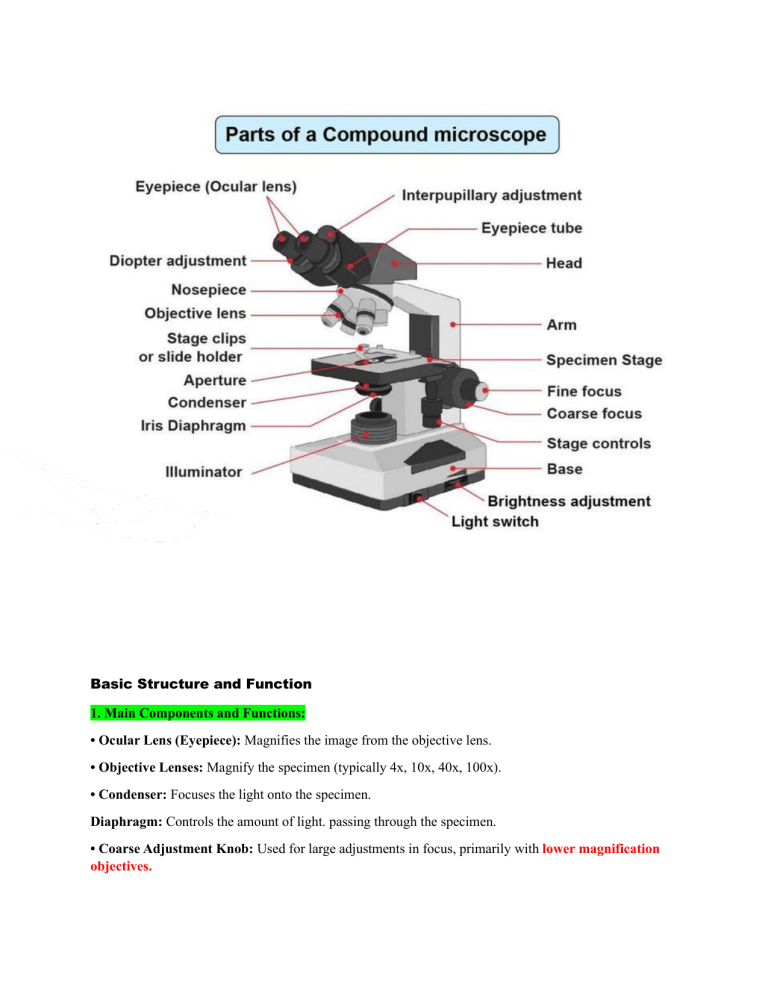

Basic Structure and Function
1. Main Components and Functions:
• Ocular Lens (Eyepiece): Magnifies the image from the objective lens.
• Objective Lenses: Magnify the specimen (typically 4x, 10x, 40x, 100x).
• Condenser: Focuses the light onto the specimen.
Diaphragm: Controls the amount of light. passing through the specimen.
• Coarse Adjustment Knob: Used for large adjustments in focus, primarily with lower magnification
objectives.
• Fine Adjustment Knob: Used for small, precise adjustments in focus, especially with higher
magnification objectives.
•Stage: Holds the slide with the specimen.
Light Source: Provides illumination for viewing the specimen.
• Base: Supports the microscope.
• Arm: Connects the base and the head of the microscope.
2. Objective vs. Ocular Lens: The objective lens is closest to the specimen and provides the initial
magnification. The ocular lens further magnifies this image for the viewer.
3. Total Magnification: Total magnification
(Magnification of objective lens) x (Magnification of ocular lens)
4. Condenser Purpose: The condenser focuses the light from the light source onto the specimen, creating
a concentrated beam of light for better visibility.
5. Diaphragm Function: The diaphragm controls the diameter of the light beam passing through the
condenser, thus regulating the amount of light reaching the specimen. This affects contrast and brightness.
6. Starting with Lowest Magnification: Starting with the lowest magnification allows you to easily
locate and center the specimen before moving to higher magnifications. This prevents accidentally
crashing the objective lens into the slide.
Using the Microscope
7. Wet Mount Slide: Place a drop of liquid (usually water) on a clean slide. Place the specimen in the
liquid. Cover with a coverslip, angling the coverslip to avoid air bubbles.
8. Carrying a Microscope: Carry the microscope with one hand under the base and the other hand on the
arm.
9. Focusing Steps:
1. Place the slide on the stage and secure it with the stage clips.
2. Start with the lowest magnification objective.
3. Use the coarse adjustment knob to bring the objective lens close to the slide
(but not touching!).
4. Look through the ocular lens and slowly move the stage or objective lens
away from the slide using the coarse adjustment knob until the image comes
into view.
5. Use the fine adjustment knob to sharpen the focus.
6. Adjust the condenser and diaphragm for optimal light.
10. Coarse vs. Fine Adjustment: The coarse adjustment is for large focus changes, used initially to get
the specimen into the general field of view. The fine adjustment is for small, precise focus adjustments,
used to sharpen the image, especially at higher magnifications.
COURSE ADJUSTMENTS USE TO ADJUST STAGE
FINE ADJUSTMENT USE TO CLEAR IMAGE OR FOCUS
11. Light Intensity Adjustment: Adjust the light intensity using the light control knob or by
adjusting the condenser and diaphragm.
12. Common Issues and Solutions:
➢ No image: Check if the light is on, the slide is properly placed, and the objective lens is
in the light path.
➢ Blurry image: Use the fine adjustment knob. Clean the lenses if necessary.
➢ Dark image: Adjust the light intensity, condenser, or diaphragm.
➢ Specimen not in field of view: Start with the lowest magnification and center the
specimen before moving to higher magnifications.
Image Formation and Properties
13. Image Creation: Light from the source passes through the condenser, specimen, and objective lens.
The objective lens magnifies the image, and the ocular lens further magnifies it for the viewer.
14. Magnification and Field of View: As magnification increases, the field of view (the area you see)
decreases.
15. Depth of Field: Depth of field is the thickness of the specimen that is in focus at one time. It
decreases with increasing magnification.
16. Resolution vs. Magnification: Magnification makes the image larger, while resolution is the ability
to distinguish between two closely spaced points. A highly magnified image can still be blurry (low
resolution).
17. Resolution Importance: Resolution is crucial because it determines the clarity of the image and the
amount of detail that can be seen.
Types of Light Microscopy
18. Types and Applications:
Brightfield: Basic light microscopy, used for stained or naturally pigmented specimens.
Darkfield: Creates a dark background and highlights the edges of unstained specimens.
Phase Contrast: Enhances contrast in unstained, transparent specimens by exploiting differences in
refractive index.
Fluorescence: Uses fluorescent dyes to visualize specific structures.
19. Fluorescence Microscopy: Specimen is stained with a fluorescent dye. The dye is excited by a
specific wavelength of light, and it emits light of a longer wavelength that is then detected.
20. Light vs. Electron Microscopy: Light microscopy uses light, while electron microscopy uses
electrons. Electron microscopy has much higher magnification. and resolution but requires more complex
sample preparation.
Applications of Light Microscopy
21. Common Specimens: Cells, tissues, microorganisms, pond water samples, blood smears.
22. Uses in Various Fields:
•
•
Biology: Studying cell structure, cell division, tissues, and microorganisms. • Medicine:
Diagnosing diseases, examining blood cells, and studying pathogens.
Materials Science: Examining the microstructure of materials. Additional Questions
23. Safety Precautions: Be careful with glass slides and coverslips. Handle the microscope carefully.
Keep electrical cords tidy.
24. Cleaning and Storage: Clean lenses with lens paper. Store the microscope in a dust- free
environment, covered, and with the lowest magnification objective in place.
